Mass-energy equivalence E² = (pc)² + (mc²)²: Visual walkthrough

Step 1 — A moving object carries two separate numbers

WHAT. Picture a single object — a tiny ball — drifting across the page at some steady speed. Two questions we can ask about it:

"How hard is it to stop?" → that number is called momentum, written $p$ .
"How much can it do — how much heat, light, work is bottled inside it?" → that number is called energy, written $E$ .

WHY these two. In all of physics, when nothing pushes on an object, these two numbers stay fixed forever (they are conserved). So the whole story of a free particle lives in the pair $(E, p)$ . We want to know how they are related.

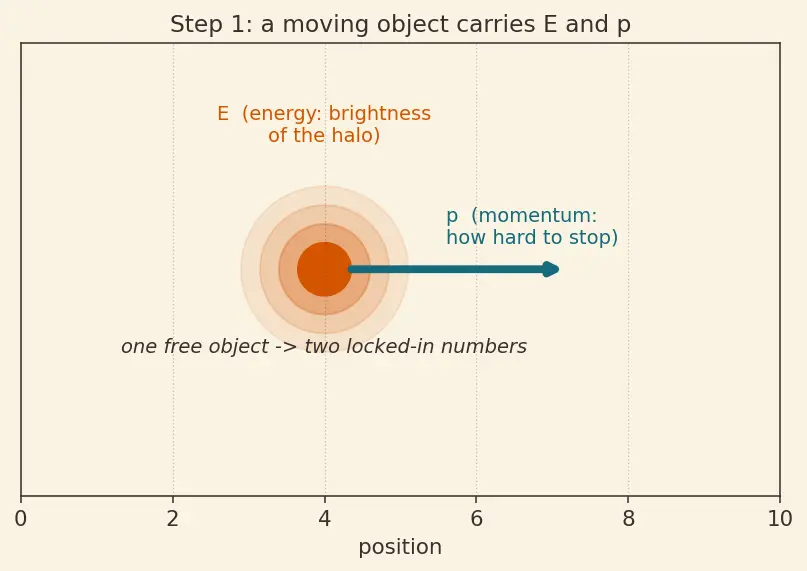

PICTURE. The ball moves right. A thick arrow shows $p$ (bigger arrow = harder to stop). A glowing halo shows $E$ (brighter = more energy).

Figure — Mass-energy equivalence E² = (pc)² + (mc²)²

Step 2 — Newton's guesses, and where they crack

WHAT. Before Einstein, the rules were: $p_{Newton} = mass m speed v, K E_{Newton} = \frac{1}{2} m v^{2}$ Here $m$ is mass (how much "stuff") and $v$ is speed. The symbol $K E$ means kinetic energy — the energy purely due to moving.

How $K E$ relates to $E$ . Recall from Step 1 that $E$ is the total energy: existing-energy plus motion-energy. In Newton's world the "existing" part was ignored (thought to be zero), so his total energy was effectively just $E_{Newton} = K E_{Newton} = \frac{1}{2} m v^{2}$ . Einstein's correction (Step 3) is exactly to restore the missing "existing" part — the rest energy $m c^{2}$ — so that $E$ becomes rest energy plus kinetic energy. Keep this split in mind: it returns in Step 7.

WHY they crack. These say: go faster, get more $p$ and more $E$ , with no ceiling. But nature has a speed limit — the speed of light, called $c$ (about $300, 000$ km every second). Newton's formulas never notice that limit. Near $c$ they give wrong answers. We need formulas that know about $c$ .

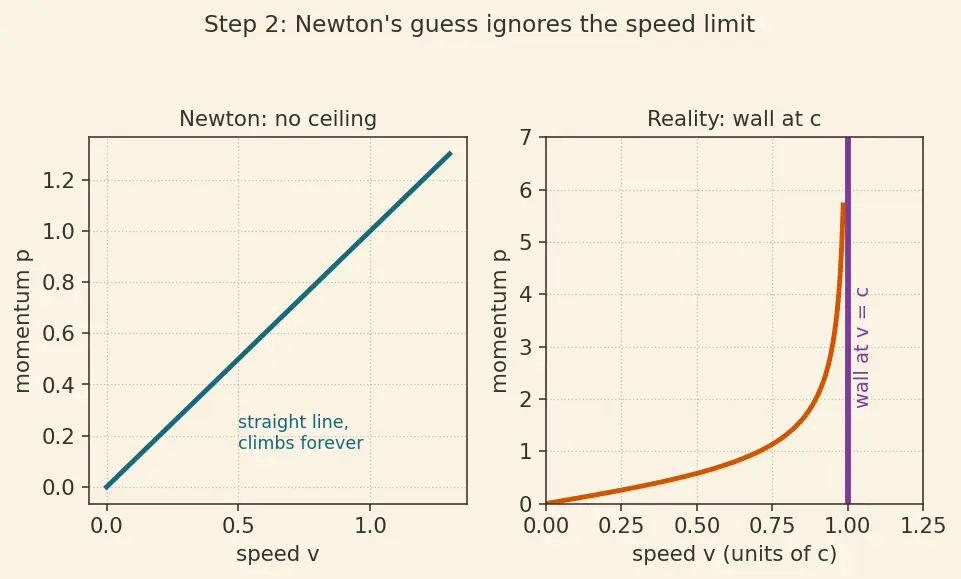

PICTURE. Two speedometers: the left (Newton) climbs in a straight line with no wall; the right (reality) has a red wall at $v = c$ the needle can never cross.

Step 3 — The stretch factor $γ$ : relativity's "near-lightspeed" dial

WHAT. Special relativity replaces Newton's formulas with: $E = stretch γ rest energy m c^{2}, p = stretch γ Newton’s p m v$ The new character is $γ$ (the Greek letter gamma), the Lorentz Factor: $γ = \frac{1}{1 - \frac{v ^{2}}{c ^{2}}}$

Reading $γ$ symbol by symbol. Inside the square root sits $1 - \frac{v ^{2}}{c ^{2}}$ . The ratio $\frac{v}{c}$ is "your speed as a fraction of light speed." At rest, $\frac{v}{c} = 0$ , so $γ = \frac{1}{1} = 1$ — no stretch. As $v$ climbs toward $c$ , $\frac{v ^{2}}{c ^{2}} \to 1$ , the root $\to 0$ , and $γ \to \infty$ — infinite stretch. That blow-up is the speed limit made visible.

WHY this exact form — shown, not asserted. We demand that at everyday slow speeds ( $v ≪ c$ ) the new formulas fall back to Newton's. To check this we expand $γ$ for small $\frac{v}{c}$ . Using the binomial approximation $(1 - x)^{- 1/2} \approx 1 + \frac{1}{2} x$ for tiny $x$ (here $x = \frac{v ^{2}}{c ^{2}}$ ): $γ = (1 - \frac{v ^{2}}{c ^{2}})^{- 1/2} \approx 1 + \frac{1}{2} \frac{v ^{2}}{c ^{2}} + \dots$ Now feed this into $E = γ m c^{2}$ : $E \approx (1 + \frac{1}{2} \frac{v ^{2}}{c ^{2}}) m c^{2} = rest energy m c^{2} + Newton’s K E \frac{1}{2} m v^{2} + \dots$ So the total energy $E$ splits into a rest piece $m c^{2}$ plus exactly Newton's $\frac{1}{2} m v^{2}$ — this is the "existing part" promised in Step 2, now made visible. Likewise $p = γ m v \to m v$ when $γ \to 1$ . So $γ$ is the minimal fix that respects the speed limit yet reproduces Newton at low speed. ✓

PICTURE. The curve of $γ$ versus $v / c$ : flat and near $1$ for small speeds, then rocketing up to a vertical wall at $v / c = 1$ .

Step 4 — Combine $E$ and $p$ : form $E^{2} - (p c)^{2}$

WHAT. We have two formulas that both contain the messy $γ$ . Idea: build a combination where $γ$ cancels itself out. Try squaring each and subtracting. First note that multiplying momentum by $c$ gives $p c$ , which has the same units as energy (so we can compare them): $E^{2} - (p c)^{2} = (γ m c^{2})^{2} - (γ m v c)^{2}$

Where the powers of $c$ live (a careful look). Watch the $c$ 's so nothing feels like a trick:

First term: $(γ m c^{2})^{2} = γ^{2} m^{2} c^{4}$ — that is a $c^{4}$ .
Second term: $(γ m v c)^{2} = γ^{2} m^{2} v^{2} c^{2}$ — only a $c^{2}$ .

They do not start with the same power of $c$ . To pull out a common factor we take the largest power both share, which is $γ^{2} m^{2} c^{2}$ . From the first term this leaves $c^{2}$ behind (since $c^{4} = c^{2} \cdot c^{2}$ ); from the second it leaves $v^{2}$ . So: $E^{2} - (p c)^{2} = shared piece (one c^{2} of the c^{4}) γ^{2} m^{2} c^{2} (left over c^{2} - v^{2})$

WHY subtract these two squares. The leftover bracket involves only $c$ and $v$ — exactly the stuff hiding inside $γ$ . That is our chance to make $γ$ eat itself.

PICTURE. Two squares drawn as areas — a big orange square of side $E$ and a teal square of side $p c$ . We slide the teal square out of the orange one; the leftover L-shaped area is what we are computing.

Step 5 — Watch $γ$ cancel, leaving something velocity-free

WHAT. Square the definition of $γ$ : $γ^{2} = \frac{1}{1 - \frac{v ^{2}}{c ^{2}}} = \frac{c ^{2}}{c ^{2} - v ^{2}}$ Now substitute into the result of Step 4: $E^{2} - (p c)^{2} = \frac{c ^{2}}{c ^{2} - v ^{2}} \cdot m^{2} c^{2} \cdot (c^{2} - v^{2})$

WHY this is the punchline. The factor $(c^{2} - v^{2})$ sits on the bottom of $γ^{2}$ and as a leftover on top from Step 4. They are identical, so they cancel: $E^{2} - (p c)^{2} = c^{2} \cdot m^{2} c^{2} = m^{2} c^{4}$ No $v$ survives. The answer does not care how fast you move or which frame you watch from — it is an invariant. And its value is $m^{2} c^{4} = (m c^{2})^{2}$ : the rest energy, squared.

PICTURE. The $(c^{2} - v^{2})$ on top and bottom shown crossing out in plum, leaving the clean block $m^{2} c^{4}$ .

Step 6 — Rearrange into the Pythagorean triangle

WHAT. Take $E^{2} - (p c)^{2} = (m c^{2})^{2}$ and move the $(p c)^{2}$ to the other side: $E^{2} = (p c)^{2} + (m c^{2})^{2}$

WHY a triangle. This is exactly the shape of $hypotenuse^{2} = leg^{2} + leg^{2}$ . So we may draw it: put $m c^{2}$ as the upright leg, $p c$ as the flat leg, and $E$ as the slanted hypotenuse joining them.

Vertical leg $m c^{2}$ = rest energy — fixed, it never changes when you speed up.
Horizontal leg $p c$ = motion's contribution — grows as you go faster.
Hypotenuse $E$ = total energy — always longer than either leg.

PICTURE. The right triangle with all three sides labelled and the right-angle marked between the two legs.

Step 7 — Edge case A: sitting still ( $p = 0$ )

WHAT. If the object is not moving, its momentum is zero, so the flat leg $p c$ shrinks to nothing. $E = 0 + (m c^{2})^{2} = m c^{2}$

WHY it matters. The triangle collapses onto its vertical leg — the hypotenuse and the upright become the same line. What remains, $E = m c^{2}$ , is the world's most famous equation, and now you see it is just the $p = 0$ corner of the triangle, not the whole story. (This is the "rest energy" piece we peeled off in Step 3 — here it stands entirely alone because there is no motion left.)

PICTURE. The triangle flattened sideways to a single vertical stick: $E$ lying exactly on top of $m c^{2}$ .

Step 8 — Edge case B: massless light ( $m = 0$ )

WHAT. A photon (a particle of light) has zero rest mass: $m = 0$ , so the upright leg $m c^{2}$ vanishes. $E = (p c)^{2} + 0 = p c ⟹ p = \frac{E}{c}$

WHY light still has momentum. Newton's $p = m v$ would give $0 \times v = 0$ — wrong. In the triangle picture, with no vertical leg, the hypotenuse lies flat on top of the horizontal leg: $E$ equals $p c$ exactly. So light carries momentum $E / c$ even though it weighs nothing. This is why sunlight can push a solar sail. A massless particle must travel at $c$ — there is no rest leg to define a "rest frame."

PICTURE. The triangle flattened the other way to a single horizontal stick: $E$ lying exactly on $p c$ .

Step 9 — Limiting behaviour: the triangle at every speed

WHAT. Watch the triangle morph as speed goes from $0$ to $c$ :

$v = 0$ : tall thin triangle (all vertical) → $E = m c^{2}$ .
moderate $v$ : balanced triangle, both legs present → $E = (p c)^{2} + (m c^{2})^{2}$ .
$v \to c$ : the flat leg $p c \to \infty$ (since $γ \to \infty$ ), so the hypotenuse $E \to \infty$ .

WHY nothing massive reaches $c$ . As the flat leg races off to infinity, $E$ must too — you would need infinite energy to push a massive object all the way to $c$ . Only the massless case (no vertical leg at all) already lives on the light-speed line.

PICTURE. Three triangles side by side sharing the same fixed vertical leg $m c^{2}$ , with the flat leg stretching longer and longer.

Recall Predict then verify

Q: Speed doubles from a small value — does $E$ roughly double? ::: No — at low speed the extra energy is $\frac{1}{2} m v^{2}$ , which quadruples; near $c$ it explodes far faster. The triangle's flat leg grows nonlinearly because $γ$ does.

The one-picture summary

Everything on this page in a single frame: the two starting numbers $(E, p)$ → the $γ$ dial → the cancellation → the master triangle → its three limits.

Recall Feynman retelling of the whole walkthrough

A moving thing carries two locked-in numbers: how hard it is to stop ( $p$ ) and how much it can do ( $E$ ). Newton's simple guesses ignore the cosmic speed limit $c$ , so relativity multiplies them by a "near-lightspeed stretch dial" $γ$ that is $1$ when you're slow and blows up as you approach light speed. Expand that dial for slow speeds and you literally see Einstein's total energy split into "rest energy $m c^{2}$ plus Newton's $\frac{1}{2} m v^{2}$ " — the old physics was hiding inside the new. Now here's the trick: square the energy, square the momentum-times- $c$ , and subtract. The stretch dial appears on the top of one term and the bottom of another and cancels itself completely, leaving a number that has no speed in it at all — the same for everybody — and that number is just the rest energy squared, $(m c^{2})^{2}$ . Slide the momentum term across and you get $E^{2} = (p c)^{2} + (m c^{2})^{2}$ , which is exactly Pythagoras: rest energy stands upright (never changes), momentum stretches sideways (grows with speed), and the total energy is the diagonal joining them. Stop moving and the sideways leg vanishes — you get $E = m c^{2}$ . Take away all mass and the upright leg vanishes — you get light: $E = p c$ , weightless yet still pushing. Try to reach light speed with mass and the sideways leg runs off to infinity, dragging $E$ with it — that's why you never can.

Connections

Parent · Hinglish version
Special Relativity — where the speed limit $c$ and $γ$ come from
Lorentz Factor — the $γ$ dial of Steps 3 & 5
Photon Momentum — the $m = 0$ triangle of Step 8
Relativistic Kinetic Energy — the leftover $E - m c^{2} = (γ - 1) m c^{2}$
Four-Momentum — the deeper object whose "length" is the invariant
Nuclear Binding Energy — the invariant $m c^{2}$ applied to nuclei
