Visual walkthrough — De Broglie hypothesis — matter waves λ = h - p

Before we start, three plain words we will keep re-using:

---

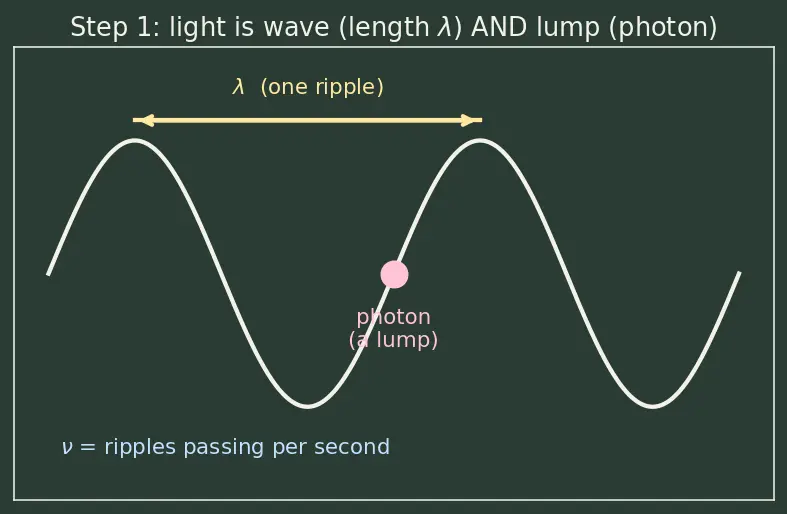

Step 1 — A wave has a length; a photon has a punch

WHAT. We start with light, because light is the one thing physics already knew was both a wave and a bundle (a "photon"). Look at the figure: the wavy line is a light wave, and $\lambda$ is marked as the distance between two crests. The little glowing dot riding it is the photon — light delivered as a lump.

WHY here. De Broglie's whole idea is copying light's rule onto matter. So we must first pin down light's rule cleanly. We cannot borrow a rule we haven't stated.

PICTURE.

The key measured fact of a wave:

$\underset{\text{one ripple’s length (m)}}{\underbrace{\lambda }}\times \underset{\text{ripples per second}}{\underbrace{\nu }}=\underset{\text{speed of light (m/s)}}{\underbrace{c}}$

Read it as: (length of one ripple) × (ripples per second) = distance covered per second = speed. Rearranged, $\lambda =c/\nu$: long ripples mean few per second.

---

Step 2 — Two facts the photon already obeys

WHAT. Physics before de Broglie handed us two equations for a single photon. We simply place them side by side.

WHY. These are our only raw materials. We are not allowed to assume anything about matter yet — we are still purely in the world of light, steel-manning the photon so its rule is airtight.

PICTURE.

---

Step 3 — Force the two facts to agree

WHAT. Fact A says $E=h\nu$. Fact B says $E=pc$. The same photon can only have one energy, so these must be equal. We set them equal and clean up using $c=\nu \lambda$ from Step 1.

WHY. This is pure logic, not a new assumption: if two expressions describe the same $E$, they are the same number. Equating them lets us eliminate $E$ and $\nu$ and get a relationship between $\lambda$ and $p$ alone — exactly the pair we care about.

PICTURE.

$\underset{E\text{ from Fact B}}{\underbrace{pc}}=\underset{E\text{ from Fact A}}{\underbrace{h\nu }}=h\cdot \frac{c}{\lambda }$

The middle-to-right step swapped $\nu$ for $c/\lambda$ (Step 1). Now the speed $c$ sits on both sides — so cancel it:

$p=\frac{h}{\lambda }⟹\boxed{\lambda =\frac{h}{p}}$

Term by term on the right: $\lambda$ = the ripple length we want, $h$ = Planck's constant (fixed), $p$ = the photon's momentum. Big $p$ ⇒ small $\lambda$.

---

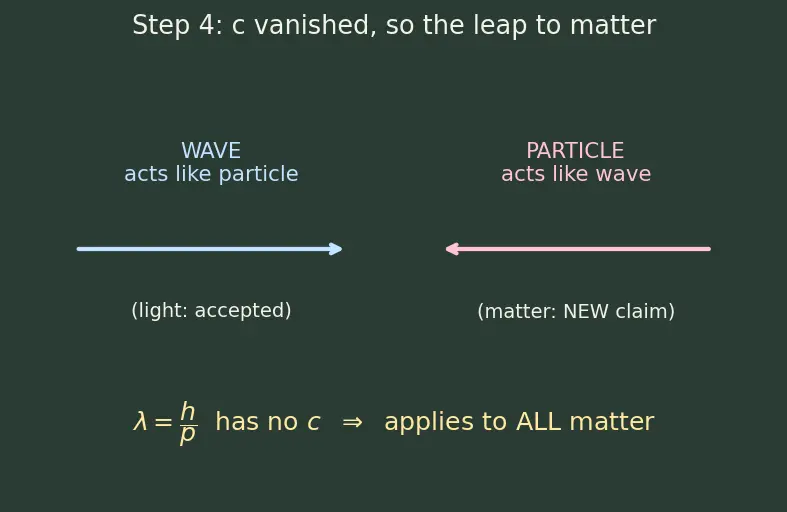

Step 4 — The leap: $c$ has vanished

WHAT. Stare at the boxed result. There is no $c$ and no "massless" condition left in it. Every fingerprint of light has cancelled out.

WHY this is the whole hypothesis. A formula that mentions nothing special about light has no reason to belong only to light. De Broglie's bold move (1924) was to declare: since the surviving rule $\lambda =h/p$ is light-agnostic, it should hold for any object that has momentum — electrons, protons, cricket balls, you.

PICTURE.

For everyday, slow (non-relativistic) matter, put $p=mv$ back in:

$\lambda =\frac{h}{p}=\frac{h}{mv}$ $m$ = mass, $v$ = speed. This is the everyday working form — but remember it is a special case of the real master form $\lambda =h/p$.

---

Step 5 — Rewriting $p$ when you only know the energy

WHAT. Often you're told a particle's kinetic energy $K$ ("energy of motion"), not its momentum. We convert.

WHY. In a lab you accelerate an electron through a voltage; that gives it energy, not directly momentum. So we need $\lambda$ in terms of $K$.

PICTURE.

Start from the two ways to write kinetic energy:

$K=\frac{1}{2}m{v}^2=\frac{(mv{)}^2}{2m}=\frac{p^2}{2m}⟹p=\sqrt{2mK}$

Term by term: we replaced $v$ by $p/m$ so that only $p$, $m$, $K$ appear, then solved for $p$. Slot into $\lambda =h/p$:

$\boxed{\lambda =\frac{h}{\sqrt{2mK}}}$

$h$ constant; $m$ mass; $K$ kinetic energy. Notice $\lambda \propto 1/\sqrt{m}$ and $\lambda \propto 1/\sqrt{K}$ — heavier or more energetic ⇒ shorter ripple.

---

Step 6 — The electron shortcut (a number worth doing once)

WHAT. An electron pushed through a voltage $V$ gains kinetic energy $K=eV$, where $e=1.6\times 10^{-19}\text{C}$ is its charge. Feed that in.

WHY. Because "accelerate through $V$ volts" is the single most common lab setup, it pays to bake all the constants into one ready formula.

PICTURE.

$\lambda =\frac{h}{\sqrt{2m_e(eV)}}=\frac{1}{\sqrt{V}}\cdot \underset{\text{a fixed number}}{\underbrace{\frac{h}{\sqrt{2m_{e}e}}}}$

Compute the fixed number once with $m_e=9.11\times 10^{-31}\text{kg}$:

$\frac{6.626\times 10^{-34}}{\sqrt{2(9.11\times 10^{-31})(1.6\times 10^{-19})}}\approx 1.227\times 10^{-9}\text{m}\cdot {\text{V}}^{1/2}=12.27\text{A˚}\cdot {\text{V}}^{1/2}$

$\boxed{\lambda =\frac{12.27}{\sqrt{V}}\text{A˚}(V\text{ in volts})}$

(One ångström, $1\text{A˚}=10^{-10}\text{m}$, is roughly the spacing between atoms in a crystal — remember that, it's why electron diffraction works.)

---

Step 7 — The two extreme cases (where naïve use breaks)

WHAT. We check the boundaries so no reader ever gets ambushed by a case we skipped.

WHY. A formula you can't stress-test at its edges is a formula you don't understand. Two edges matter: the massless edge and the macroscopic edge.

PICTURE.

Case A — massless (photon). If you blindly use $\lambda =h/(mv)$ with $m=0$, you get $h/0=\infty$: nonsense. Fix: that mass-form was only Step 4's special case. The master form $\lambda =h/p$ is fine — a photon has a perfectly finite $p=E/c$. Always keep the momentum form as the real one.

Case B — macroscopic (cricket ball). Mass $m=0.16\text{kg}$, speed $v=40\text{m/s}$: $p=mv=6.4\text{kg⋅m/s},\lambda =\frac{6.626\times 10^{-34}}{6.4}\approx 1.0\times 10^{-34}\text{m}.$ That ripple is $10^{24}$ times smaller than an atom — smaller than any slit could ever resolve. This is why big things look purely classical: big $p$ ⇒ vanishingly small $\lambda$ ⇒ no visible wave behaviour. Nothing special "turns off" for large objects; the wave is simply too short to notice.

The figure plots $\lambda$ against $p$ on a log scale: one smooth curve $\lambda =h/p$, with the electron sitting up in the "atomic" band and the cricket ball buried at the bottom. Same law, wildly different regimes.

---

The one-picture summary

This last figure compresses the whole chain onto one board:

$E=h\nu \stackrel{E=pc,c=\nu \lambda }{\to }\lambda =\frac{h}{p}\stackrel{\text{de Broglie’s leap}}{\to }\text{true for ALL matter}\stackrel{p=\sqrt{2mK}}{\to }\lambda =\frac{12.27}{\sqrt{V}}\text{A˚}$

Recall Feynman retelling — the whole walk in plain words

We started with light because light was already known to be both wave and lump. A light-lump obeys two old rules: its energy is Planck's constant times its frequency, and (being massless) its energy equals its momentum times the speed of light. Since it's the same lump, those two energies must match. Setting them equal and using "one ripple's length times ripples-per-second equals speed," the speed of light cancelled clean out. What survived was: ripple length equals Planck's constant divided by momentum. Now the punchline — that surviving rule doesn't mention light anywhere. So de Broglie dared to say it applies to everything that moves. If you know the pushing energy instead of the momentum, you swap in $p=\sqrt{2mK}$; for an electron shoved through $V$ volts it collapses to the neat $12.27/\sqrt{V}$ ångström. Test the edges: a photon ($m=0$) is fine because the real rule uses momentum, not mass; a cricket ball has enormous momentum so its ripple is $10^{-34}$ metres — real, but far too tiny to ever see. Matter is secretly wavy; we only catch it when things are small.

---

Connections

• Photoelectric effect — source of $E=h\nu$ and photon momentum, the seeds of Step 2.
• Compton effect — independent proof that photons carry momentum $p=E/c$.
• Davisson–Germer experiment — the experiment that vindicated Step 4's leap.
• Wave–particle duality — the umbrella idea behind the whole walk.
• Bohr model — quantized orbits as standing matter waves ($2\pi r=n\lambda$).
• Heisenberg Uncertainty Principle — the price of matter being wavy.
