Foundations — Blasius solution — exact laminar boundary layer solution

This page assumes nothing. Before you touch the Blasius derivation, every letter and symbol on that page is unpacked here — first in plain words, then as a picture, then with the reason the topic can't live without it.

0. The scene: what are we even looking at?

Picture air blowing from left to right over a flat table. Far above the table the air moves at one steady speed. Right on the table the air is frozen — it cannot slide along a solid surface (the "sticky rule"). Between frozen and free there is a thin wedge-shaped region where the speed climbs from zero up to full speed. That wedge is the boundary layer, and it's the star of the whole show.

Two directions matter, so we name them:

We need both because the flow behaves completely differently in the two directions — fast changes upward, slow changes forward. That contrast is the engine of the whole simplification.

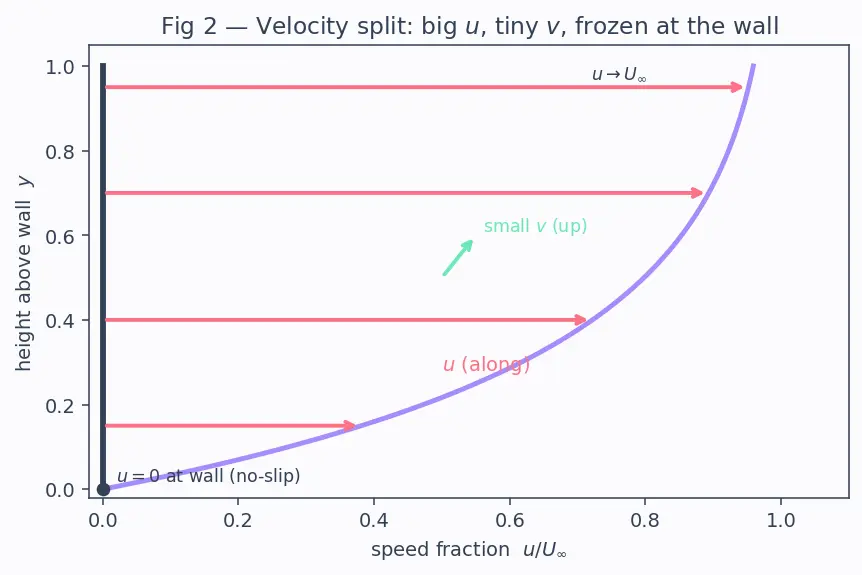

1. Velocity: the arrows $u$, $v$, and $U_{\infty }$

Fluid moves, so at every point there's an arrow telling us how fast and which way. We split that arrow into two pieces along our two axes.

Why the topic needs these three. The entire question "what is the velocity profile?" is the question "how does $u$ change as you climb in $y$?" We measure everything against $U_{\infty }$ because that's the one fixed reference speed in the problem.

2. Rates of change: what $\partial$ means

The whole subject is built on how quickly things change. That needs one piece of notation.

Why "big in $y$, small in $x$". Climbing upward, $u$ shoots from $0$ to full speed over a hair-thin gap — a fast change. Walking forward, $u$ at a fixed height barely changes over a whole metre — a slow change. So $\partial /\partial y$ terms dominate $\partial /\partial x$ terms. That single observation lets Prandtl throw away the worst term of Navier–Stokes. See Prandtl Boundary Layer Theory.

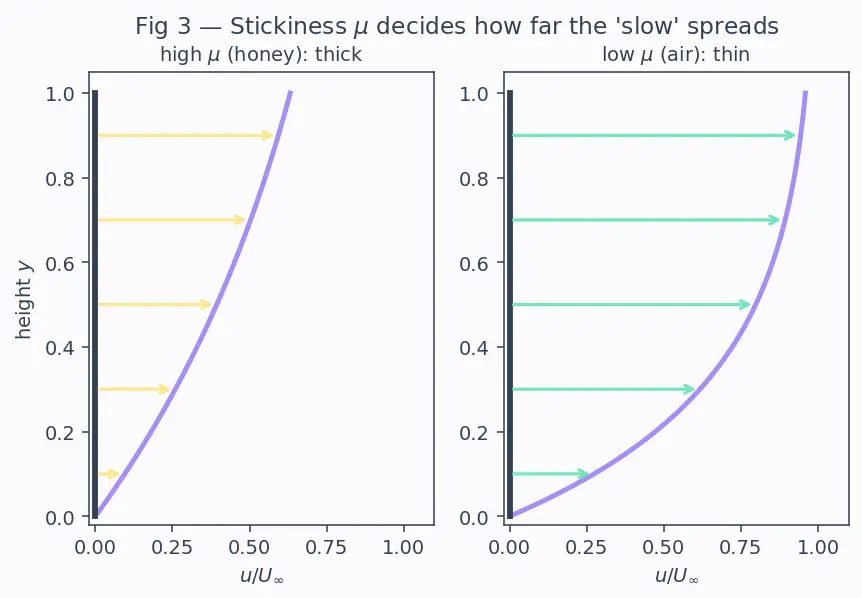

3. Fluid properties: $\nu$, $\mu$, $\rho$

Three numbers describe the fluid itself, before any flow.

Why the topic needs them. Viscosity ($\mu$, or $\nu$) is the reason the boundary layer exists. No stickiness → no dragging → no slow zone. And the tug the fluid gives the wall (drag) is literally $\mu$ times the wall steepness $\partial u/\partial y$.

4. The tug-of-war made into a number: $R{e}_x$

Below $R{e}_x\approx 5\times 10^5$ the flow stays smooth and orderly — laminar — and Blasius applies. Above it the flow trips into chaos — turbulent — and you need Turbulent Boundary Layer instead.

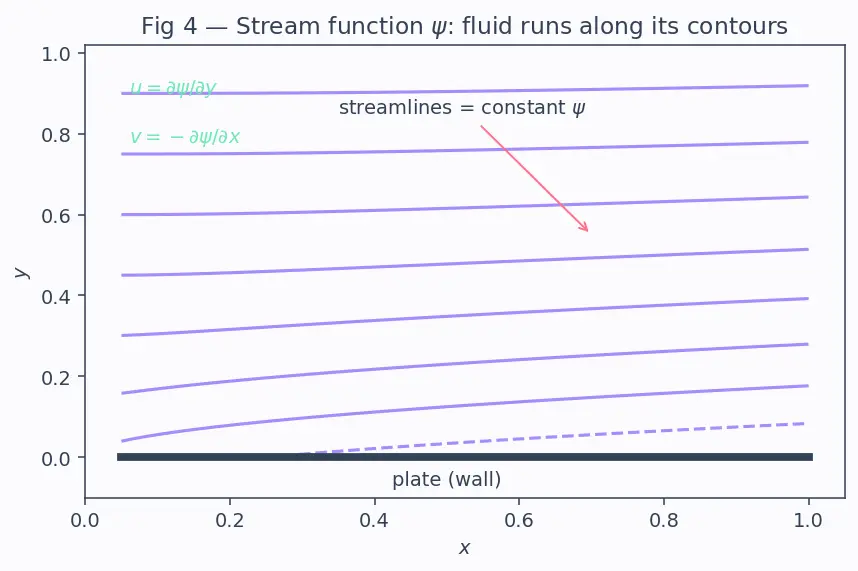

5. The stream function $\psi$ — one function for two velocities

We have two unknown velocities $u$ and $v$ tied together by continuity (mass can't appear or vanish). Handling two coupled unknowns is painful. Trick: invent one function that gives both.

6. The clever ruler: $\eta$ and the shape function $f$

This is the payoff that makes Blasius work.

7. Thickness and drag symbols: $\delta$, ${\tau }_w$, $C_f$, $C_D$

The prerequisite map

Read it upward: sticky rule + derivatives + viscosity feed the thin-layer idea and Reynolds number; the stream function plus the clever ruler $\eta$ produce the shape function $f$; that gives the Blasius equation, which yields thickness and drag.

Equipment checklist

Cover the right side. If you can answer each, you're ready for the parent note.
