Foundations — Cyclic coordinates — corresponding conservation law

The parent note Cyclic coordinates — corresponding conservation law throws a lot of notation at you at once: $q_k$, ${\dot{q}}_k$, $L$, $\partial$, $\frac{d}{dt}$, $p_k$, the Euler–Lagrange equation. We will meet each one slowly, in the order that lets the next one make sense.

1. A "coordinate" $q$ — the number that says where you are

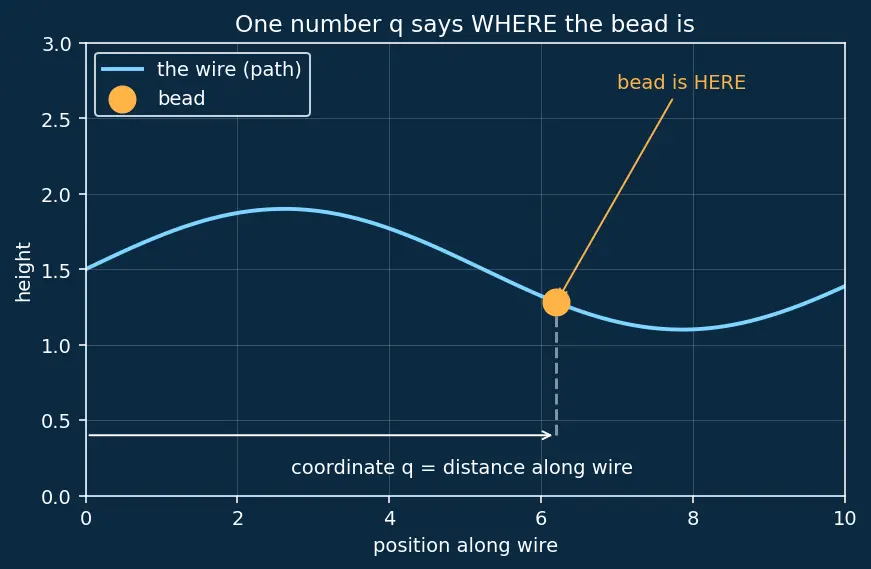

Picture a bead threaded on a wire. To say where the bead is, you need one number — how far along the wire. That number is a coordinate.

Why the topic needs it. The whole idea of "cyclic" is about whether the rulebook depends on a specific coordinate. So we must first agree that a coordinate is just a labelled slider.

The little subscript $k$ in $q_k$ is only a name tag. If a system needs three numbers to describe it, we call them $q_1,q_2,q_3$; the symbol $q_k$ means "pick whichever one, the $k$-th." Nothing deep — it lets us write one equation that covers all of them.

2. The dot — $\dot{q}$ means how fast that number changes

The overdot is shorthand invented by Newton for "per unit time." Look at the slider from figure 1: if the bead's coordinate $q$ grows by a tiny amount in a tiny time, the ratio (amount grown) ÷ (time taken) is $\dot{q}$.

Crucial for later: $q$ and $\dot{q}$ are treated as independent inputs to the Lagrangian. This is exactly why a coordinate can be "cyclic" (the rulebook ignores $q$) while its speed $\dot{q}$ is still very much present.

3. The Lagrangian $L$ — the system's rulebook

Think of $L$ as a machine: you feed in the current coordinates and speeds, it spits out one number. Different physical setups have different machines.

Why $T-V$ and not $T+V$? That minus sign is what makes the machine predict correct motion via the Euler–Lagrange equation (section 6). For now, accept $L$ as the object that encodes the physics. See Euler–Lagrange Equations for the deeper story.

Here $m$ is mass (how much stuff / how hard to accelerate) and $g$ is the gravitational acceleration (how strongly gravity pulls, about $9.8$ in SI units).

4. The partial derivative $\frac{\partial L}{\partial q}$ — does the rulebook notice this one knob?

This is the single most important symbol on the page, so we build it carefully.

Why "partial" and the curly $\partial$? $L$ depends on many things ($q_1,{\dot{q}}_1,q_2,\dots$). A plain derivative $\frac{d}{d\square }$ would let everything vary together. We want to vary just one input and hold the rest still. The curly $\partial$ is the flag that says "only this one; freeze the others."

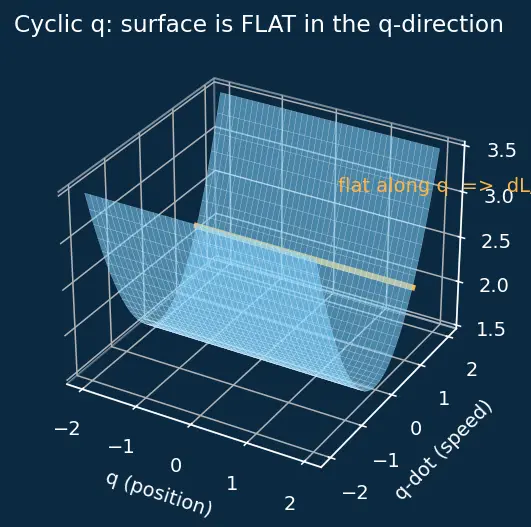

Read the picture. The surface is $L$ plotted against two inputs. Walking in the $q$-direction on a flat slice means $L$ doesn't change — that slope is zero: $\frac{\partial L}{\partial q}=0⟺q\text{ is cyclic.}$ Walking in a tilted direction means $L$ does change — that slope is nonzero, and physically it is a force pushing along $q$.

5. The total time-derivative $\frac{d}{dt}$ — how a quantity actually drifts as the motion unfolds

Contrast the two derivatives, because the parent note uses both in one line:

• $\partial /\partial q$ — a hypothetical nudge of one input, others frozen. ("What if?")
• $d/dt$ — the actual change as the whole system evolves. ("What really happens as the clock ticks.")

Why we need it. A conservation law is the statement "$\frac{d}{dt}(\text{quantity})=0$" — the quantity really doesn't drift as the motion runs. Only the total time-derivative can express that.

6. The Euler–Lagrange equation — the engine that turns $L$ into motion

You now own every symbol in it:

• $\frac{\partial L}{\partial {\dot{q}}_k}$ — sensitivity of the rulebook to the speed knob.
• $\frac{d}{dt}(\cdots )$ — how that sensitivity actually drifts in time.
• $\frac{\partial L}{\partial q_k}$ — sensitivity to the position knob (the generalized force).

7. The conjugate momentum $p_k$ — the quantity that gets conserved

Why call it momentum? Try the free particle $L=\frac{1}{2}m{\dot{x}}^2-V$. Then $\partial L/\partial \dot{x}=m\dot{x}$ — the familiar mass × velocity. The definition simply generalizes that idea to any coordinate, including angles.

Now watch every symbol click together. The Euler–Lagrange equation, with $p_k=\partial L/\partial {\dot{q}}_k$ plugged in, becomes: $\frac{d{p}_k}{dt}=\frac{\partial L}{\partial q_k}.$ If $q_k$ is cyclic, the right side is $0$, so $\frac{d{p}_k}{dt}=0$ — meaning $p_k$ is constant. That is the parent note's whole result, and you built every letter of it.

This chain — symmetry → cyclic coordinate → conserved momentum — is the local face of the grand Noether's Theorem. Its close cousin, time-symmetry giving Conservation of Energy, and its use in Central Force Motion and Hamiltonian Mechanics, all rest on exactly these symbols.
