Foundations — Maxwell's equations — integral form, all four

This page assumes you have seen nothing. We build every letter, arrow, and squiggle used in the parent note from the ground up, each one earned before the next.

Layer 0 — Arrows that carry a direction: vectors

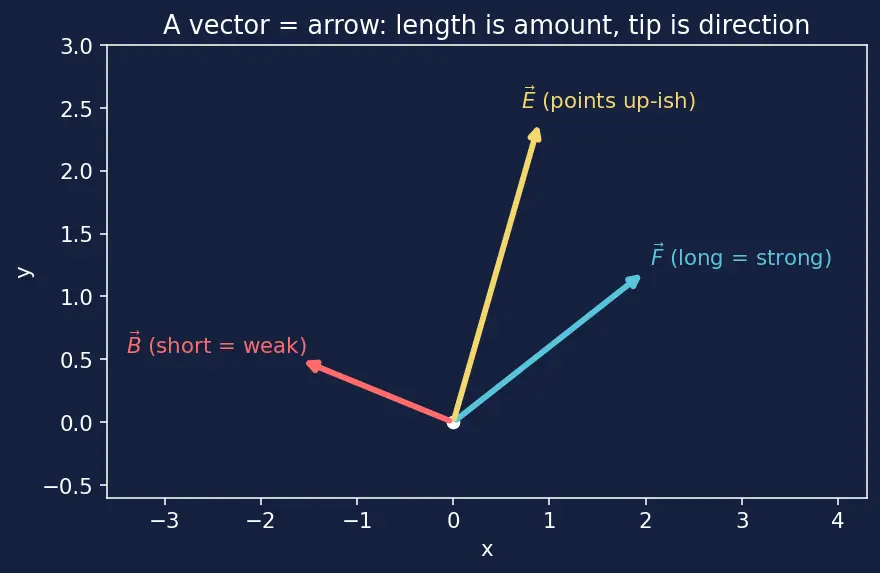

A plain number like $5$ tells you how much. But wind, water flow, and electric push also have a direction. We draw those as an arrow: the length is the amount, the way it points is the direction. An arrow-quantity is a vector.

We write a vector with a little arrow on top: $\vec{F}$ means "the vector called $F$". The parent note uses $\vec{E}$ (electric field), $\vec{B}$ (magnetic field), $\vec{A}$ (area, as an arrow — explained soon), and $\vec{\ell }$ (a tiny step along a curve).

• $\vec{E}$ = the electric field — the arrow a $+1$ test charge would feel a push along.
• $\vec{B}$ = the magnetic field — the arrow a compass needle lines up with.

Layer 1 — The unit arrow: $\hat{r}$

Sometimes we only want the direction, not the size. A hat means "arrow of length exactly 1 pointing that way." So $\hat{r}$ ("r-hat") is the unit arrow pointing radially outward, straight away from a central point.

The parent writes $\vec{E}=\frac{q}{4\pi {\epsilon }_0{r}^2}\hat{r}$: the messy fraction is the size, and $\hat{r}$ just says "...pointing straight out."

Layer 2 — Multiplying two arrows: the dot product $\vec{F}\cdot d\vec{A}$

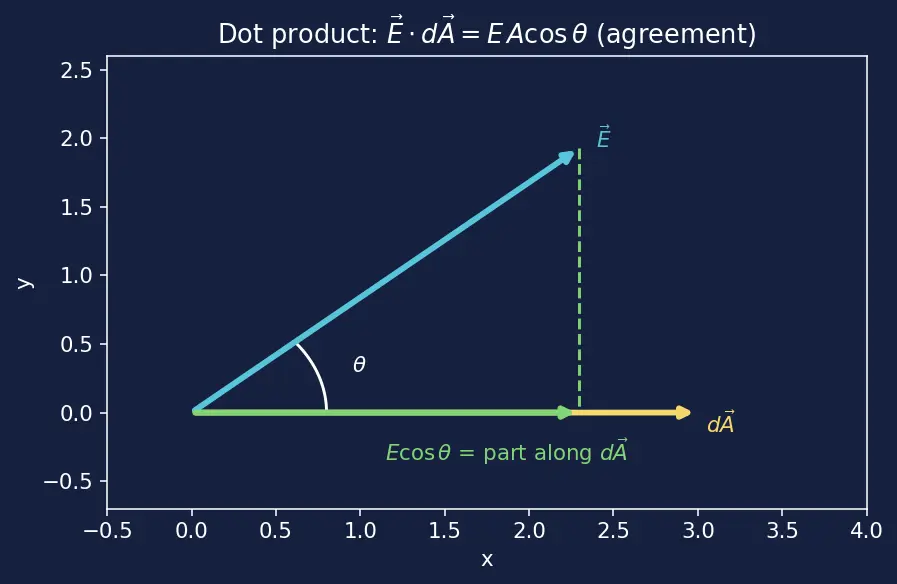

We meet $\vec{F}\cdot d\vec{A}$ everywhere. The dot ($\cdot$) between two vectors is a special multiply that asks: "how much do these two arrows point the same way?"

Layer 3 — Surfaces get arrows too: $d\vec{A}$

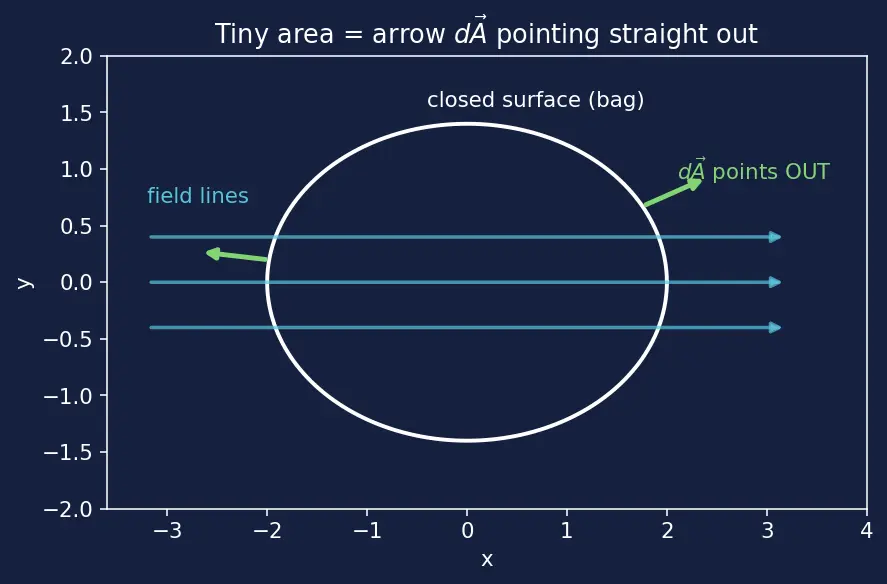

Here is the trick that makes flux work. Chop a surface into tiny flat patches. Each patch gets its own arrow $d\vec{A}$:

• its length = the patch's tiny area,
• its direction = straight out of the patch, perpendicular (the "normal").

The little $d$ means "an infinitesimally small piece." So $d\vec{A}$ = "a tiny bit of area, pointing straight out of itself."

For a closed surface (a sealed bag), $d\vec{A}$ always points outward. This is why "lines leaving" count positive and "lines entering" count negative — see Gauss's Law.

Layer 4 — Adding up all the pieces: $\int$ and $\oint$

The stretched-S symbol $\int$ ("integral") just means "add up a continuous pile of tiny pieces." Since we sliced the surface into infinitely many patches $d\vec{A}$, we can't use ordinary $+$; the integral is the grown-up plus sign for infinitely many infinitesimals.

The circle $\oint$ is a reminder, nothing more: "this thing closes on itself." Getting closed vs open wrong is a classic error flagged in the parent's mistakes list.

Layer 5 — Flux $\Phi$: the "how much pokes through" number

Now we assemble the pieces. Take the field arrow $\vec{E}$ at each patch, dot it with that patch's $d\vec{A}$ (giving the amount piercing that patch), and add them all with $\int$:

${\Phi }_E$ means flux of the electric field; ${\Phi }_B$ means flux of the magnetic field. That's the whole meaning of the subscript.

Layer 6 — Walking a loop: $d\vec{\ell }$ and circulation

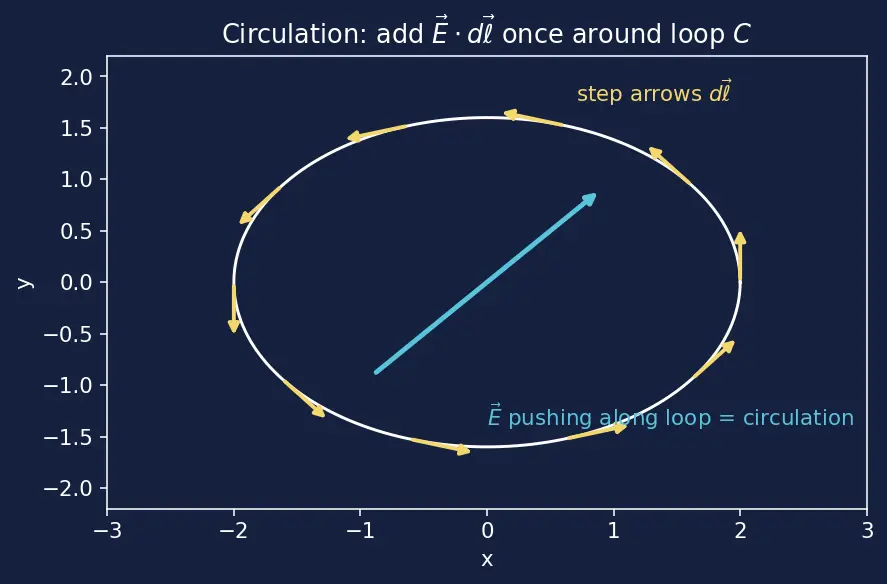

For the "swirl" laws (Faraday, Ampère) we no longer pierce a surface — we walk around a closed loop $C$. Chop the loop into tiny steps; each step is an arrow $d\vec{\ell }$ ("d-ell"): length = tiny step size, direction = the way you're walking.

$\vec{E}\cdot d\vec{\ell }$ asks "how much does the field push along my step?" Add up all steps around the loop:

Layer 7 — The rate-of-change tool: $\frac{d}{dt}$

Faraday and Ampère–Maxwell care not about flux itself but about how fast flux changes. The symbol $\frac{d\Phi }{dt}$ means "the rate at which $\Phi$ changes as time $t$ ticks" — the slope of the flux-vs-time graph.

The minus sign in $-d{\Phi }_B/dt$ is Lenz's law: nature pushes back against the change.

Layer 8 — The named constants

Their combination gives the speed of light: $c=1/\sqrt{{\mu }_0{\epsilon }_0}$ — the punchline that makes Electromagnetic Waves fall out of the equations.

Other letters used in the parent:

• $q,Q$ = amount of charge (small/enclosed).
• $I$ = current, charge flowing per second. $I_d$ = displacement current (see Displacement Current) — not moving charge, but ${\epsilon }_{0}d{\Phi }_E/dt$.
• $\lambda$ = charge per unit length; $r$ = distance from a center; $s$ = a side length; $L$ = a length.
• $\text{EMF}$ = the total push per charge around a loop, $\oint \vec{E}\cdot d\vec{\ell }$.
• $\vec{E},\vec{B}$ live on the plates/gaps of a capacitor in worked example (C).
