Foundations — Magnetic force on current-carrying conductor

This page assumes nothing. Before you meet $\vec{F}=I\vec{L}\times \vec{B}$ on the parent note, every letter, arrow, and cross in that formula must already feel obvious. Below we build each piece from the ground up, in the order they stack.

1. Arrows: what a "vector" is

Why do we need arrows at all? Because in this topic direction is the whole point. The current goes one way, the field points another way, and the force ends up pointing in a third way that is neither of them. A plain number (like "5") could never store three different directions — an arrow can.

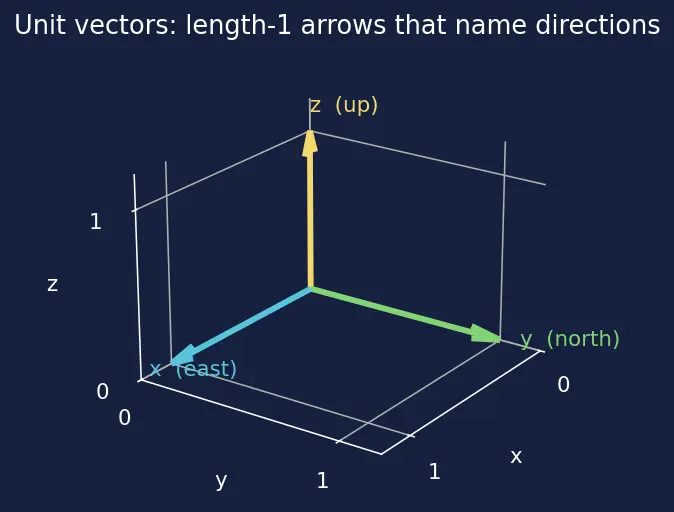

2. Direction labels: $\hat{x}$, $\hat{y}$, $\hat{z}$

Think of them as the three edges of a room's corner:

• $\hat{x}$ → east (right),
• $\hat{y}$ → north (away from you),
• $\hat{z}$ → up.

Any real arrow is then "so much east, so much north, so much up". This is how we will point the current one way and the field another and still keep the bookkeeping straight.

3. Charge $q$ and the electron

Why does the parent note care about $q$? Because the force on a single carrier is proportional to its charge. No charge, no magnetic push. This $q$ is the seed the whole derivation grows from.

4. Velocity $\vec{v}$ and drift velocity ${\vec{v}}_d$

Inside a wire, electrons jiggle randomly at high speed, but they also creep slowly in one overall direction when a battery is connected. That slow overall creep is the drift velocity ${\vec{v}}_d$.

5. From marching charges to current $I$

Now assemble the wire's insides. Give the wire:

• cross-sectional area $A$ (the size of the "pipe", in ${\mathrm{m}}^2$),
• $n$ = number of charge carriers packed into each cubic metre (the "crowd density", in ${\mathrm{m}}^{-3}$),
• each carrier of charge $q$, drifting at speed $v_d$.

In one second every carrier moves forward a distance $v_d$. So all carriers inside a box of length $v_d$ and area $A$ pass the finish line. That box holds $nA{v}_d$ carriers, each carrying charge $q$, giving:

6. The length vector $\vec{L}$

This packages "how long the wire is" and "which way the current goes" into one object — exactly what a cross product wants to eat.

7. The magnetic field $\vec{B}$

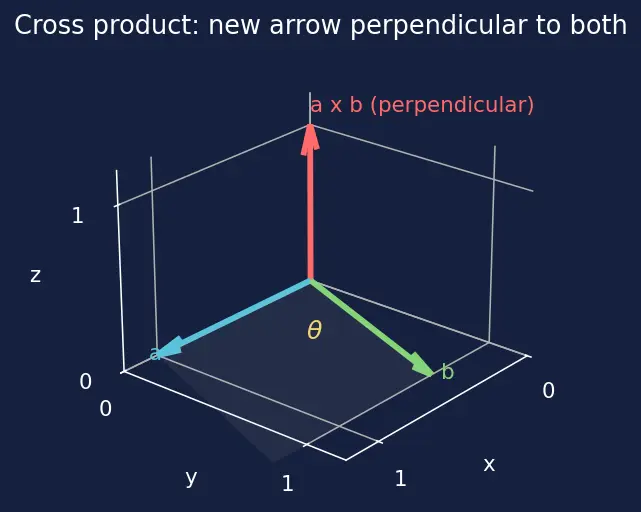

8. The cross product $\times$ — the heart of it all

This is the single symbol that scares people, so we build it slowly.

Why a cross product, and not ordinary multiplication? Because the magnetic force is sideways. Ordinary multiplication ($5\times 3$) makes a number and keeps no direction; a dot product would give a number too. Only the cross product manufactures a third, perpendicular arrow — which is precisely the sideways shove we observe. Nature demanded a perpendicular result, so we reach for the one tool that produces one. (More geometry in Cross product (vectors).)

9. Putting it together

Every symbol in the parent's boxed formula now has a face:

$\vec{F}=\underset{\S 5}{\underbrace{I}}\underset{\S 6}{\underbrace{\vec{L}}}\underset{\S 8}{\underbrace{\times }}\underset{\S 7}{\underbrace{\vec{B}}}$

• $I$ — how much charge marches by each second,
• $\vec{L}$ — how far and which way the wire (and current) runs,
• $\times$ — the machine that turns "wire direction" and "field direction" into a perpendicular push,
• $\vec{B}$ — the field doing the pushing.

And the magnitude $F=BIL\sin \theta$ is just the cross-product length formula from §8 with the letters filled in. Nothing new — you already own every piece.

Prerequisite map

Equipment checklist

Cover the right side and answer out loud before revealing.

Connections

• Magnetic force on current-carrying conductor — the topic these foundations feed.
• Lorentz force on a moving charge — force on one carrier, $\vec{F}=q\vec{v}\times \vec{B}$.
• Drift velocity and current — where $I=nAq{v}_d$ is born.
• Cross product (vectors) — the geometry of §8 in full.
• Torque on a current loop · Electric motor · Moving-coil galvanometer — where it all leads.
• Force between two parallel currents — two of these forces meeting.
