WHAT: perpendicular means θ=90∘, so sinθ=1 and the formula collapses to F=BIL.
WHY: at 90∘ the whole wire "cuts across" the field, so every carrier feels the maximum sideways shove.
F=BIL=0.20×5.0×0.40=0.40N.Answer: 0.40N.
Recall Solution 1.2
Vector form: F=IL×B with magnitude F=BILsinθ.
Maximum at θ=90∘ (wire ⊥ field): F=BIL.
Zero at θ=0∘ or 180∘ (wire ∥ or anti-∥ to field): F=0.
WHY zero when parallel:L∥B⇒L×B=0, because the cross product measures how perpendicular two vectors are.
WHAT: the wire is tilted, so keep the full sinθ.
WHY: only the part of the wire across the field is pushed; sin30∘=0.5 says exactly half of the "sideways-ness" survives.
F=BILsinθ=0.50×3.0×0.60×sin30∘=0.90×0.5=0.45N.Answer: 0.45N.
Recall Solution 2.2
WHAT: we know F, I, L, and θ=90∘; solve F=BIL for B.
WHY rearrange: the formula ties four numbers together; knowing any three finds the fourth.
B=ILF=2.0×0.300.24=0.600.24=0.40T.Answer: B=0.40T.
Recall Solution 2.3
WHAT: set up axes and use the cross product to double-check the hand.
Let x^= east, y^= north, z^= up.
Current is north: L∝y^. Field is down: B∝−z^.
L×B∝y^×(−z^)=−(y^×z^)=−x^=west.Answer: the force points west.Hand check (Fleming's Left-Hand Rule, defined at the top of this page): First finger down (field), second finger north (current) → thumb points west. ✓
WHAT: compute F=IL×B component-by-component.
WHY the cross product: the x^-part of B is parallel to the wire and must contribute nothing; the cross product automatically kills it.
= 0.50(0.10)\underbrace{(\hat x\times\hat x)}_{=\,0} + 0.50(0.20)\underbrace{(\hat x\times\hat y)}_{=\,\hat z}.$$
$$\vec L\times\vec B = 0.10\,\hat z\ \ (\mathrm{m\cdot T}).$$
$$\vec F = I(\vec L\times\vec B) = 4.0 \times 0.10\,\hat z = 0.40\,\hat z\ \mathrm{N}.$$
**Magnitude $= 0.40\,\mathrm{N}$, direction $+\hat z$ (out of the plane).**
Notice the parallel field component $0.10\,\hat x$ dropped out — exactly the physics of $\sin\theta$.Recall Solution 3.2

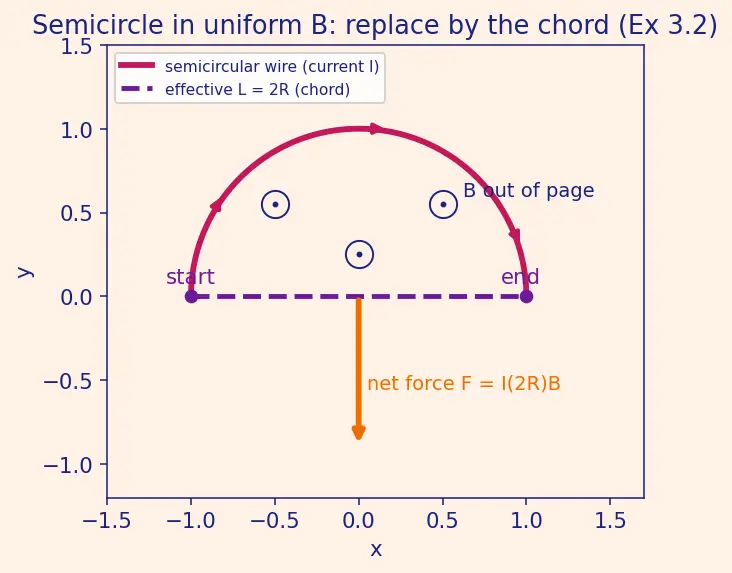

WHAT: use the uniform-field shortcut from the parent note. In a uniform B,
F=I(∫dℓ)×B,
and ∫dℓ is just the straight vector from start end to finish end — the diameter, length 2R.
WHY this saves us: we avoid integrating force around the curve; only the endpoints matter.
Leff=2R=0.40m.
The diameter is perpendicular to B (which is out of the page), so θ=90∘:
F=BILeff=0.30×6.0×0.40=0.72N.Direction — derived, not just read off: put the diameter along the x-axis, with the effective current vector pointing from the start end to the finish end, Leff=2Rx^. The field is out of the page, B=Bz^. Then
F=ILeff×B=I(2R)B(x^×z^)=I(2R)B(−y^),
using x^×z^=−y^. So the force points along −y^: perpendicular to the diameter, in the plane of the page, pointing away from the bulge of the semicircle. The orange arrow in the figure shows this direction.
Answer: 0.72N, perpendicular to the diameter.
Recall Solution 3.3
WHAT: apply the same shortcut, but now the wire returns to its start.
F=I(∮dℓ)×B.
For any closed path, ∮dℓ=0 (you end where you began, so total displacement is zero).
F=I(0)×B=0.Answer: net force is zero. Each side still feels a force, but opposite contributions cancel. What survives is a torque — the seed of the current-loop torque and the motor.

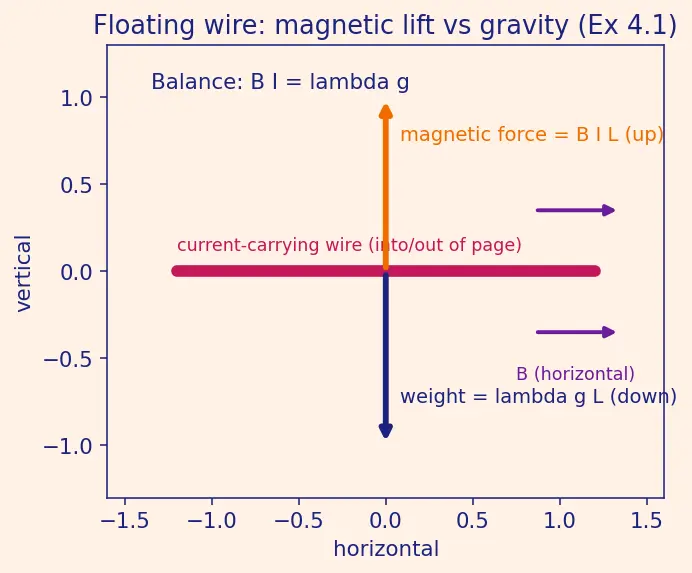

WHAT: set the upward magnetic force equal to the downward weight, per unit length.
WHY per unit length: both forces scale with L, so L cancels and we get a clean condition.
Weight per length: Lmg=λg. Magnetic force per length (at θ=90∘): LF=BI.
Balance:
BI=λg⇒I=Bλg=0.400.050×9.8.I=0.400.49=1.225A≈1.2A.Answer: I≈1.2A, flowing in the direction that (by Fleming's Left-Hand Rule, defined at the top of this page) makes the force point up.
Recall Solution 4.2
WHAT: add the fields first (fields superpose), then take one cross product.
WHY superpose: magnetic fields add as vectors, so the wire only ever "feels" the total Btot.
= 0.25(0.30)(\hat x\times\hat y) + 0.25(0.30)(\hat x\times\hat z).$$
Using $\hat x\times\hat y = \hat z$ and $\hat x\times\hat z = -\hat y$:
$$\vec L\times\vec B_{\text{tot}} = 0.075\,\hat z - 0.075\,\hat y \ \ (\mathrm{m\cdot T}).$$
$$\vec F = I(\vec L\times\vec B_{\text{tot}}) = 8.0(0.075\,\hat z - 0.075\,\hat y) = 0.60\,\hat z - 0.60\,\hat y\ \mathrm{N}.$$
Magnitude:
$$F = \sqrt{0.60^2 + 0.60^2} = 0.60\sqrt{2} \approx 0.85\,\mathrm{N}.$$
**Answer: $F \approx 0.85\,\mathrm{N}$**, pointing in the $(\hat z - \hat y)$ direction.
WHAT: one vertical side of one turn is a straight wire of length ℓ perpendicular to B, so it feels F1=BIℓ. Because N turns are stacked at that side, all carrying the same current the same way, their forces add straight up.
WHY multiply by N: the N wires lie side by side in the same field pointing the same way, so their equal forces simply sum — that is exactly why more turns make a galvanometer more sensitive.
F=NBIℓ=50×0.10×(2.0×10−3)×0.030.
Step by step: 50×0.10=5.0; then 5.0×2.0×10−3=1.0×10−2; then 1.0×10−2×0.030=3.0×10−4.
F=3.0×10−4N.Answer: F=3.0×10−4N on one vertical side.
WHY the radial field matters: because it keeps θ=90∘ at every deflection angle, F (and hence the torque) stays proportional to I — that is what makes the galvanometer's scale linear.
Recall Solution 5.2
WHAT/WHY: The two opposite sides of the loop carry current in opposite directions, so by F=IL×B they feel equal and opposite forces — the vector sum (∮dℓ=0) is zero, so the loop is not pushed anywhere as a whole.
But those two equal-opposite forces act along different lines (they are offset by the width of the loop), forming a couple. A couple produces a torque with no net force — it rotates the loop. That rotation, with a commutator to flip the current each half-turn, is the electric motor.
Perpendicular force, L=0.40, I=5.0, B=0.20? ::: 0.40N.
Force at 30∘, L=0.60, I=3.0, B=0.50? ::: 0.45N.
Field from F=0.24, I=2.0, L=0.30, 90∘? ::: 0.40T.
Semicircle net force (R=0.20, I=6.0, B=0.30)? ::: 0.72N (use Leff=2R).
Floating-wire current (λ=0.050, B=0.40, g=9.8)? ::: ≈1.2A.
Galvanometer side force (N=50, B=0.10, I=2.0mA, ℓ=0.030)? ::: 3.0×10−4N.
Net force on any closed loop in uniform B? ::: Zero; torque may remain.
