Series and parallel resistance: Visual walkthrough

Step 0 — What every symbol means (nothing assumed)

Before any formula, meet the three actors. Look at the figure: a battery pushes charge around a loop through a grey block (a resistor).

Two more facts, also as pictures (Kirchhoff's two laws):

Everything else is consequence.

Step 1 — Series: spot the single path

WHAT: Two resistors $R_{1}, R_{2}$ joined end-to-end into one unbroken line, fed by a battery of voltage $V$ .

WHY: We want the one resistor $R_{e q}$ that the battery could not tell apart from this chain — same push, same flow. First we must understand what "one path" forces.

PICTURE: Follow the red arrow. It enters $R_{1}$ , leaves $R_{1}$ , and the only place to go is straight into $R_{2}$ . There is no junction, no fork.

Step 2 — Series: the push splits (voltage adds)

WHAT: Write the voltage each resistor uses up, then add them.

WHY: The battery's push $V$ has to be "spent" crossing each choke. KVL says the amounts spent must add up to what was supplied.

PICTURE: Two "waterfalls" in a row — the total drop is the sum of the two drops. The red bracket marks the total $V$ ; the two black brackets are the pieces.

Apply Ohm to each resistor (same $I$ from Step 1): $V_{1} = I R_{1} V_{2} = I R_{2}$ Here $V_{1}$ is the push used crossing $R_{1}$ , and the same $I$ appears in both because of Step 1.

Now KVL — the supplied push equals the sum of the drops: $supplied V = I R_{1} V_{1} + I R_{2} V_{2} = I R_{1} + I R_{2} = I (R_{1} + R_{2})$ Notice we factored out $I$ — legal only because it is the same $I$ in every term. That is Step 1 paying off.

Step 3 — Series: read off the equivalent resistance

WHAT: Compare with the definition $R_{e q} = V / I$ .

WHY: $R_{e q}$ is defined as (voltage across the whole combination) ÷ (current into it). We already have $V = I (R_{1} + R_{2})$ , so divide.

PICTURE: The two-resistor chain collapses into one fat block — the red equivalent resistor — that the battery experiences identically.

$R_{e q} = \frac{V}{I} = \frac{I ( R _{1} + R _{2} )}{I} = R_{1} + R_{2}$ The $I$ cancels top and bottom, leaving: $R_{ser i es} = R_{1} + R_{2} + \dots + R_{n}$ (For $n$ resistors, Step 2 just has more terms; the factor-out still works.)

Step 4 — Parallel: spot the shared two nodes

WHAT: Two resistors both wired between the same two junctions, call them node A (top) and node B (bottom).

WHY: Voltage is a difference between two points. If both resistors touch A at one end and B at the other, they must feel the same difference.

PICTURE: Both black resistors hang between the two red nodes A and B — like two ladders leaning between the same two shelves.

Step 5 — Parallel: the flow splits (currents add)

WHAT: Write the current in each branch, then add them at the junction.

WHY: At node A the incoming current $I$ has a fork — it must split into the two branches, and KCL says the pieces add back to $I$ .

PICTURE: The red total current arrives at A and divides into two black branch arrows; they rejoin at B.

Apply Ohm to each branch (same $V$ from Step 4), solved for current: $I_{1} = \frac{V}{R _{1}} I_{2} = \frac{V}{R _{2}}$ Here the same $V$ sits on top of each fraction — that is Step 4 at work.

Now KCL — the branch currents add to the total: $total I = V / R_{1} I_{1} + V / R_{2} I_{2} = \frac{V}{R _{1}} + \frac{V}{R _{2}} = V (\frac{1}{R _{1}} + \frac{1}{R _{2}})$ This time we factored out $V$ — legal only because it is the same $V$ in every branch.

Step 6 — Parallel: read off the equivalent (and flip it!)

WHAT: Compare with $\frac{1}{R _{e q}} = \frac{I}{V}$ .

WHY: From $I = V (\frac{1}{R _{1}} + \frac{1}{R _{2}})$ , divide both sides by $V$ to isolate the combination that equals $1/ R_{e q}$ .

PICTURE: The two side-by-side branches collapse into one red equivalent resistor between A and B.

$\frac{I}{V} = \frac{1}{R _{1}} + \frac{1}{R _{2}} ⟹ \frac{1}{R _{p a r a l l e l}} = \frac{1}{R _{1}} + \frac{1}{R _{2}} + \dots + \frac{1}{R _{n}}$

Step 7 — The degenerate & edge cases (so nothing surprises you)

Every derivation must survive its extremes. Look at the figure — three limiting scenarios drawn side by side.

Step 8 — A fully collapsed mixed network (all the moves at once)

WHAT: $R_{1} = 4 Ω$ in series with a parallel pair $R_{2} = 6 Ω, R_{3} = 12 Ω$ , driven by $V = 10$ V.

WHY: To show the two rules are composable — collapse the parallel island first, then treat the result as an ordinary series link.

PICTURE: Watch the network shrink: pair → single 4 Ω block (red) → series sum → single 8 Ω block.

Collapse the parallel island (Step 6 shortcut): $\frac{6 \cdot 12}{6 + 12} = \frac{72}{18} = 4 Ω$ .
Now series (Step 3): $4 Ω + 4 Ω = 8 Ω = R_{e q}$ .
Battery current: $I = \frac{V}{R _{e q}} = \frac{10}{8} = 1.25$ A.
Voltage across the island: $V_{i s l an d} = I \cdot 4 = 5$ V, so $I_{2} = \frac{5}{6} \approx 0.83$ A, $I_{3} = \frac{5}{12} \approx 0.42$ A, and $0.83 + 0.42 = 1.25$ ✓ (KCL sanity check).

The one-picture summary

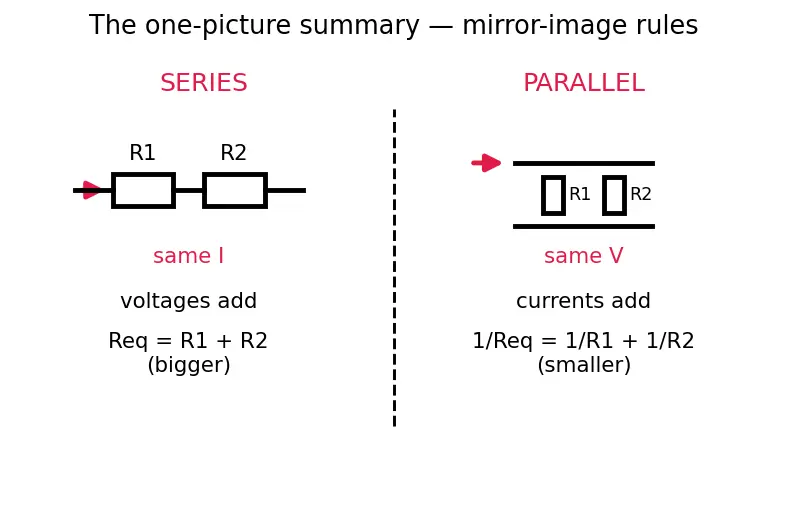

Both derivations, mirror images of each other, on one canvas: series = same current, voltages add; parallel = same voltage, currents add.

Recall Feynman: tell the whole story to a 12-year-old

Picture charges as a crowd of people. A resistor is a doorway — a narrow one is hard to pass. Series is doorways one behind another down a single hallway: everyone must pass through all of them in turn, so the same crowd-per-second squeezes through each, and the difficulties simply pile up — the hallway gets harder. Parallel is doorways side by side in the same wall: the crowd reaches the wall and splits, more doors means the crowd gets through faster overall, so the total difficulty drops below even the easiest single door. The push (voltage) across every side-by-side door is the same wall-pressure; the crowd-per-second (current) through every in-line door is the same. Add pushes in a line; add flows across a fork. Ohm ( $V = I R$ ) turns pushes into flows and back; Kirchhoff just keeps the books — nothing is created, nothing lost. That is the entire chapter.

Recall Quick self-check

Why can we factor out $I$ in the series derivation? ::: Because the single path forces the same $I$ through every resistor (Step 1). Why can we factor out $V$ in the parallel derivation? ::: Because both ends of every branch touch the same two nodes, so each feels the same $V$ (Step 4). A resistor in parallel with a plain wire gives $R_{e q} =$ ? ::: $0$ (the wire short-circuits it, Case B). A resistor in parallel with a broken branch gives $R_{e q} =$ ? ::: $R_{1}$ (the open branch carries no current, Case C). An open circuit in series does what? ::: Stops all current, $R_{e q} = \infty$ — the only path is broken.
