Foundations — Thermal expansion — linear, area, volumetric

This page is the toolbox. Before we can use any formula on the parent note Thermal expansion, we must earn every symbol — say what it means in plain words, draw the picture behind it, and explain why the topic needs it. Nothing here assumes you have seen the notation before.

0 · What "temperature" and "heat" even mean here

Picture two thermometers: one at the start (cold), one at the end (hot). $\Delta T$ is the gap between their readings — nothing more.

Why the topic needs $\Delta T$: expansion is driven by heating, so the very first thing we measure is how much hotter the object got.

1 · Length, and the letter $L$

Picture a rod drawn twice: a short cold bar labelled $L_0$, and a very slightly longer hot bar labelled $L$ directly beneath it.

Why the topic needs it: everything we build is about the difference between these two lengths.

2 · Change in length, $\Delta L$

In the figure, $\Delta L$ is the small overhang of the hot bar past the end of the cold bar.

3 · The BIG idea: fractional change $\frac{\Delta L}{L}$

Here is the single most important notation on the whole topic.

Picture: a long bar and a short bar, both shaded so the same fraction of each is coloured as "the growth." The coloured pieces look different in absolute size but are the same slice of the whole.

4 · The coefficients $\alpha$, $\beta$, $\gamma$

Now the Greek letters that name the material's expansion rate.

"Per degree" is why the units are $K^{-1}$: you get a plain fraction for each 1 K rise, so $\frac{\Delta L}{L}=\alpha \Delta T\Rightarrow \alpha =\frac{1}{\Delta T}\cdot \frac{\Delta L}{L}.$

Why the topic needs them: $\alpha$, $\beta$, $\gamma$ are the numbers you look up in a table for steel, glass, copper — the whole point is to plug them into a formula and predict growth.

5 · Powers: $L^2$ means area, $L^3$ means volume

Before we can talk about sheets and blocks we must be sure what a little raised number means.

Picture a square tiled into $L\times L$ little unit squares (that count is $L^2$), and a cube stacked from $L\times L\times L$ little unit cubes (that count is $L^3$).

6 · Reading the symbol $A_0(1+\alpha \Delta T{)}^2$

We need one more piece of algebra literacy: squaring a bracket.

Here $x$ stands for the small quantity $\alpha \Delta T$. The $2$ in front of $x$ (for the square) and the $3$ (for the cube) are exactly where $\beta =2\alpha$ and $\gamma =3\alpha$ come from.

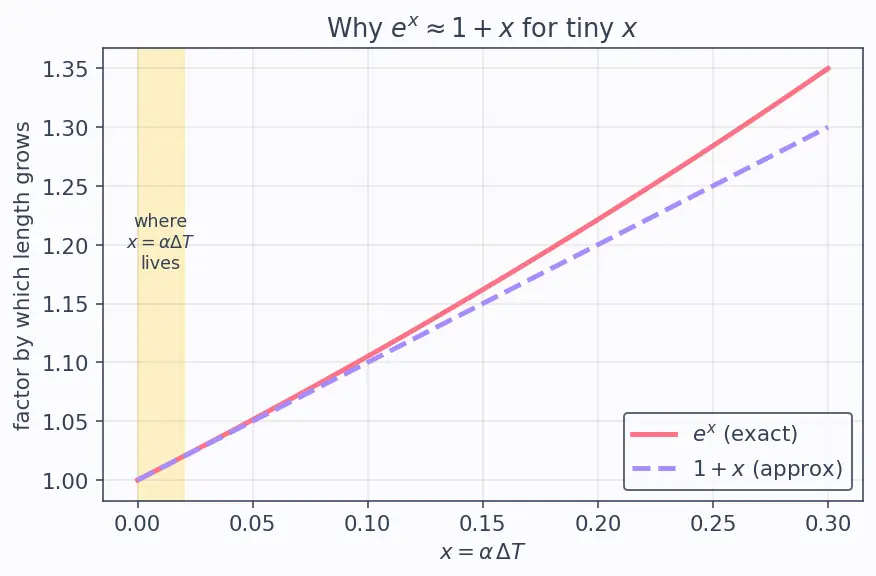

7 · Why we're allowed to "drop small terms" (the $\approx$ symbol)

For the same reason the exact law $L=L_0{e}^{\alpha \Delta T}$ (with $e\approx 2.718$, the natural exponential — the number that grows by its own current size) simplifies via $e^x\approx 1+x$ to the everyday form: $L\approx L_0(1+\alpha \Delta T).$

You don't need calculus for this page — just trust that a very small $x$ makes $e^x$ and $1+x$ almost identical, which the figure shows.

Prerequisite map

Equipment checklist

Test yourself — reveal only after answering.

Connections

• Thermal expansion — linear, area, volumetric — the parent topic these tools unlock.
• Kinetic theory of gases — where "jiggling atoms" is made quantitative.
• Interatomic potential energy curve — why the average spacing drifts outward.
• Gas laws — the one place you must use absolute $T$, not just $\Delta T$.
