Foundations — SHM differential equation — solution - x = A cos(ωt + φ)

We build strictly bottom-up. Nothing below is used before it is drawn — so we deliberately do not write the full formula yet; we assemble it piece by piece and only spell it out at the very end.

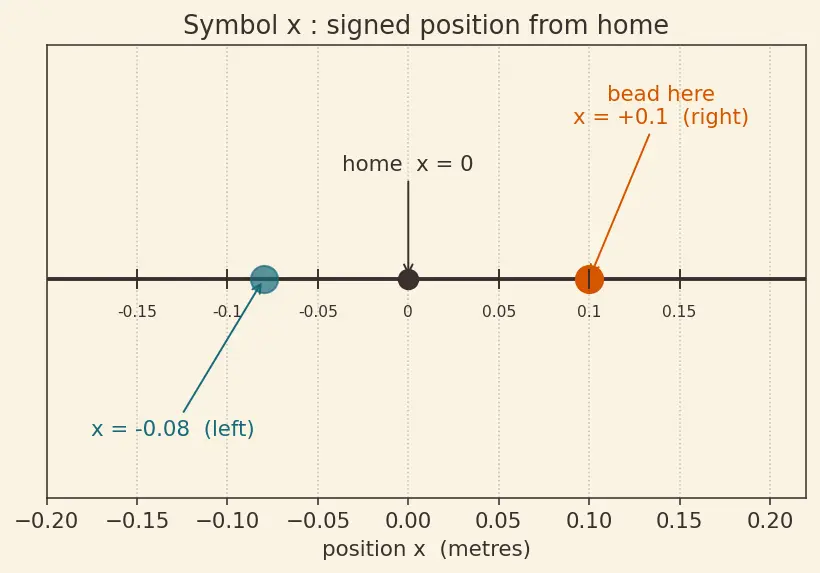

0. Position on a line: $x$

Why the topic needs it. SHM is a story about where the bead is at each instant. That "where" is $x$, and everything else — speed, force, energy — is built by watching how $x$ changes.

1. Time: $t$

Why the topic needs it. The bead's position is not one number — it is a movie. We write $x(t)$ ("$x$ of $t$") to mean "the position at time $t$".

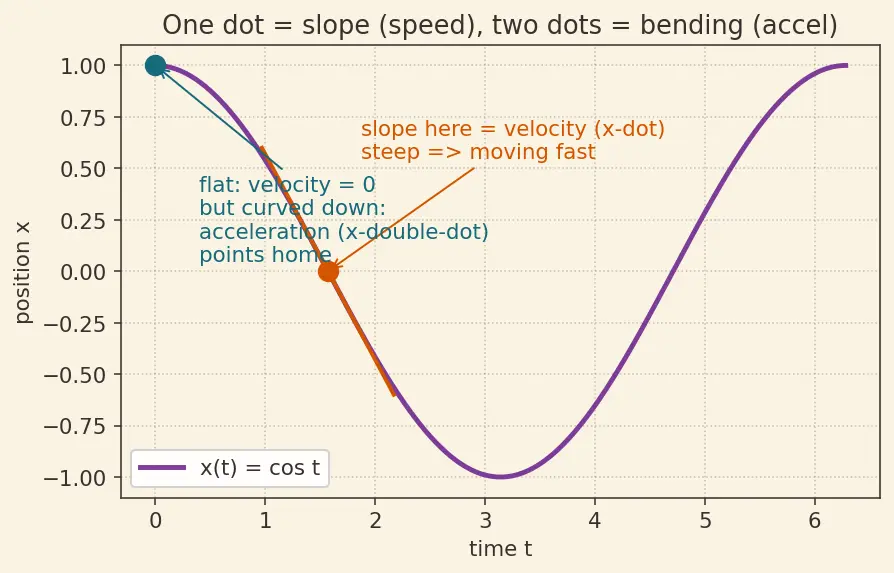

2. How fast, how curved: $\dot{x}$ and $\ddot{x}$

Now we ask: how fast and which way is the bead moving? and how is that motion being changed? Those two questions are what the dots on top mean.

Why the topic needs it. The heart of SHM is a rule about $\ddot{x}$: acceleration always points back home in proportion to $x$. Without the double-dot there is no equation. (What causes that acceleration — a force — we meet in the next section.)

3. What causes acceleration: force $F$, mass $m$, and Hooke's spring

See Hooke's Law and the spring force for the full story of where $F=-kx$ comes from.

Why the topic needs it. Set the two expressions for $F$ equal: $m\ddot{x}=-kx\Rightarrow \ddot{x}=-\frac{k}{m}x.$ That $-k/m$ in front of $x$ is exactly the shape "acceleration points home in proportion to displacement." So the minus sign in Hooke's law becomes the minus sign of SHM — the reason the motion swings back instead of running away.

4. The tuning knob: $\omega$

Why the topic needs it. $\omega$ is the one dial that controls the speed of the whole oscillation. It sets the period, the max speed, the max acceleration — everything.

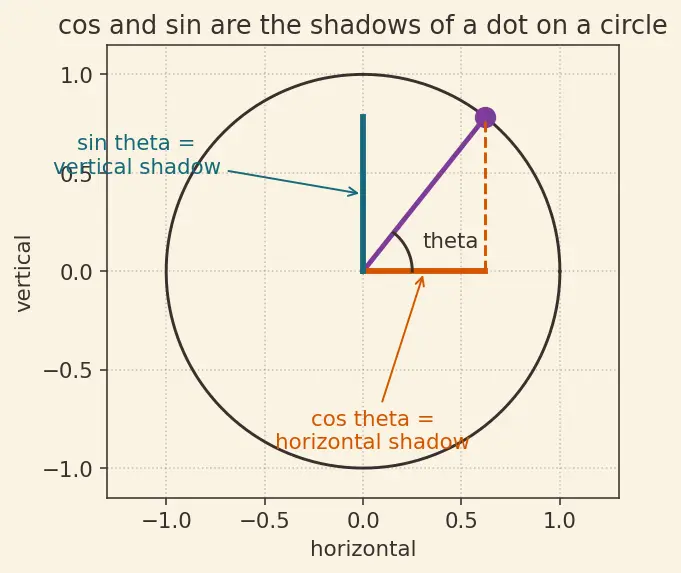

5. The wave shape: $\cos$, $\sin$, and the angle $\theta$

Before symbols like $\cos (\dots )$ make sense, you must know what $\cos$ is.

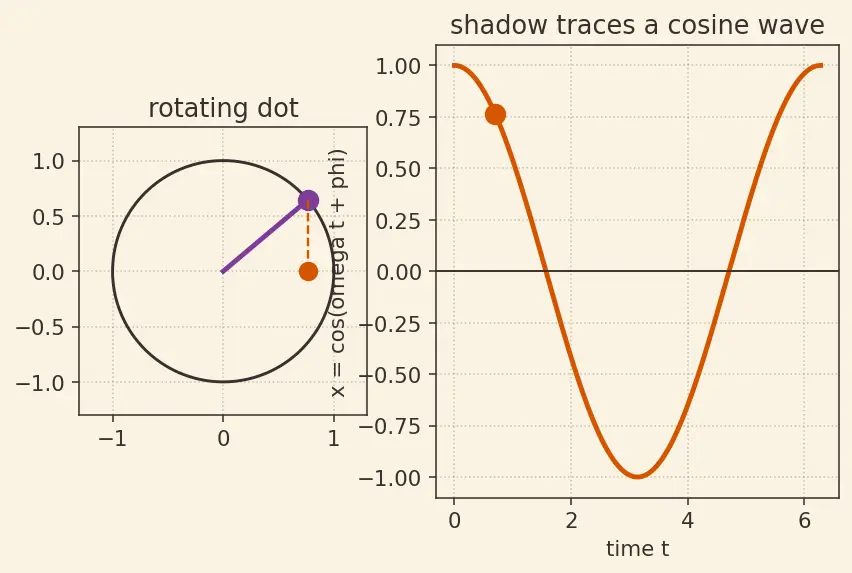

Why the topic needs it. The solution is literally $x=(\text{a size})\times \cos (\text{an angle that grows with time})$. Cosine is chosen because it is the shape whose second derivative is a flipped copy of itself — the only function that satisfies "acceleration points home."

6. Turning time into an angle: $\omega t+\varphi$

Here is where the pieces click together.

Why the topic needs it. A 2nd-order equation needs two facts to pin down reality: where you start and how fast. The size $A$ (next section) carries the "how big"; $\varphi$ carries the "where in the cycle." Together they fully specify the motion.

7. The size of the swing: $A$

Why the topic needs it. $A$ scales the whole wiggle. At $x=\pm A$ the bead momentarily stops (turning points); at $x=0$ it is fastest. $A$ ties directly to the stored energy — see Energy in SHM.

8. How long one swing takes: the period $T$ (and frequency $f$)

Why the topic needs it. $T$ and $f$ are the everyday, measurable "how often" of an oscillation — what a stopwatch reads. Notice $T$ contains no $A$: a bigger swing does not take longer (SHM is isochronous). $T$, $f$ and $\omega$ are three names for the same rhythm, linked by the loop-size $2\pi$.

Putting the whole symbol-set together

Only now — with every letter earned — do we assemble the parent note's solution:

$x(t)=\underset{\text{how far}}{\underbrace{A}}\cos (\underset{\text{angle from time}}{\underbrace{\omega t}}+\underset{\text{head start}}{\underbrace{\varphi }})$

Every letter is now defined: $x$ = signed position, $t$ = clock, $A$ = swing size, $\omega$ = turning rate, $\varphi$ = starting angle, $T$/$f$ = the round-trip time and rate, $\cos$ = the circle-shadow shape, and behind them $F,m,k$ = the force, mass and stiffness that created the motion.

How the foundations feed the topic

The map below is read bottom-to-top of each chain: raw ideas on the left flow into combined ideas, and every chain empties into the final solution node.

Reading the map, node by node. The left column is the raw stuff: position $x$, time $t$, the spring force (Hooke), the stiffness/mass pair, the circle, and radians. Follow the arrows:

• $x\to \dot{x}\to \ddot{x}$ (with $t$ feeding the rate): the dots are built from position and time.
• Hooke's pull-back becomes Newton's $F=m\ddot{x}$, and together with $\ddot{x}$ this yields the SHM equation node.
• $k$ and $m$ combine into $\omega$; the circle plus radians give the cos shadow shape; $\omega$ and $t$ make the growing angle, which $\varphi$ shifts into $\omega t+\varphi$; $\omega$ and $2\pi$ set the period $T$.
• Every chain empties into the bottom node — the full solution $x=A\cos (\omega t+\varphi )$. If any left-column box is shaky, the arrow leading out of it is the exact gap to close before tackling the parent note.

Equipment checklist

Test yourself — cover the right side and answer out loud.
