Escape velocity — derivation: Visual walkthrough

Step 1 — Meet the players: a mass in a pull

WHAT. Picture a big round world of mass $M$ (say Earth) and a tiny object of mass $m$ (a ball) sitting a distance $r$ from the world's centre. The two letters mean:

$M$ = the mass of the big body doing the pulling (kilograms).
$m$ = the mass of the little body being pulled.
$r$ = the straight-line distance from the centre of $M$ to the ball.

WHY these three. Gravity's strength depends only on how much stuff pulls ( $M$ ), how much stuff is pulled ( $m$ ), and how far apart the centres are ( $r$ ). Nothing else. So these three are the complete cast.

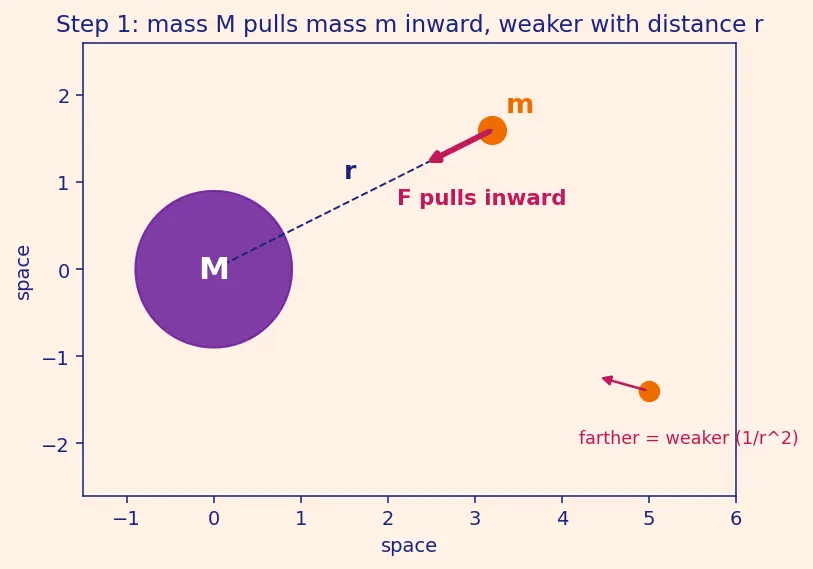

PICTURE. The red arrow is the pull. Notice it points inward, toward the centre — gravity always attracts. Its length shrinks as $r$ grows: far away, the pull is feeble.

Step 2 — Why we switch from force to energy

WHAT. We are about to stop talking about the pull $F$ and start talking about energy. Two kinds:

Kinetic energy $K = \frac{1}{2} m v^{2}$ — the energy of moving. Here $v$ is the ball's speed.
Potential energy $U$ — energy stored by position in the pull, which we build in Step 3.

WHY switch tools? The force $F$ changes at every height (that pesky $1/ r^{2}$ ). Tracking a changing force through the whole climb to infinity with $F = ma$ is a nightmare. Energy sidesteps this: it only cares about the start and the end, not the messy journey in between. That is the right tool for a "does it ever come back?" question — a start-vs-end question.

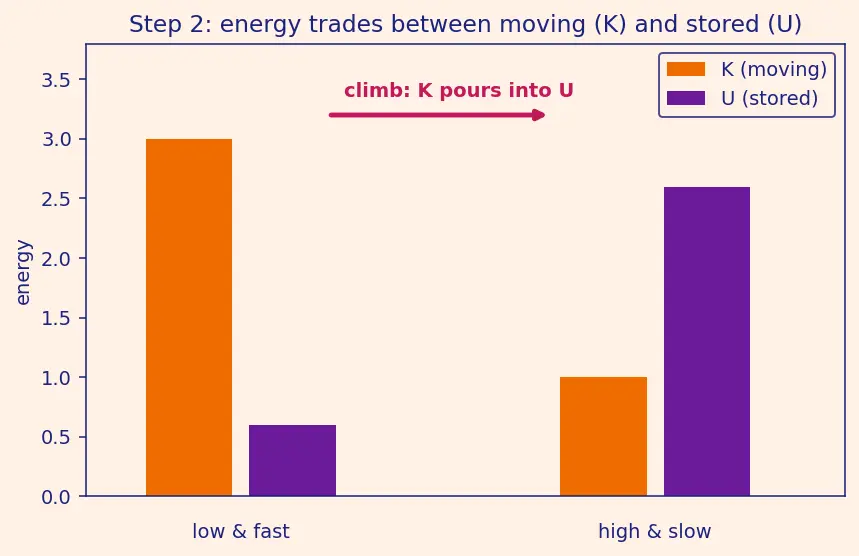

PICTURE. Two bars: a moving ball has a tall $K$ bar; as it climbs it trades $K$ for $U$ , like pouring water between two glasses. The total stays level.

Step 3 — Building potential energy by climbing out

WHAT. Potential energy $U (r)$ is defined as the work you must do against gravity to carry the ball from infinitely far away in to distance $r$ . We pick the natural zero: $U (\infty) = 0$ , because two objects infinitely apart don't interact at all.

WHY this convention. Zero should mean "no interaction." Infinity is the only place with no pull, so that is where $U = 0$ lives. Every closer position is then measured relative to it.

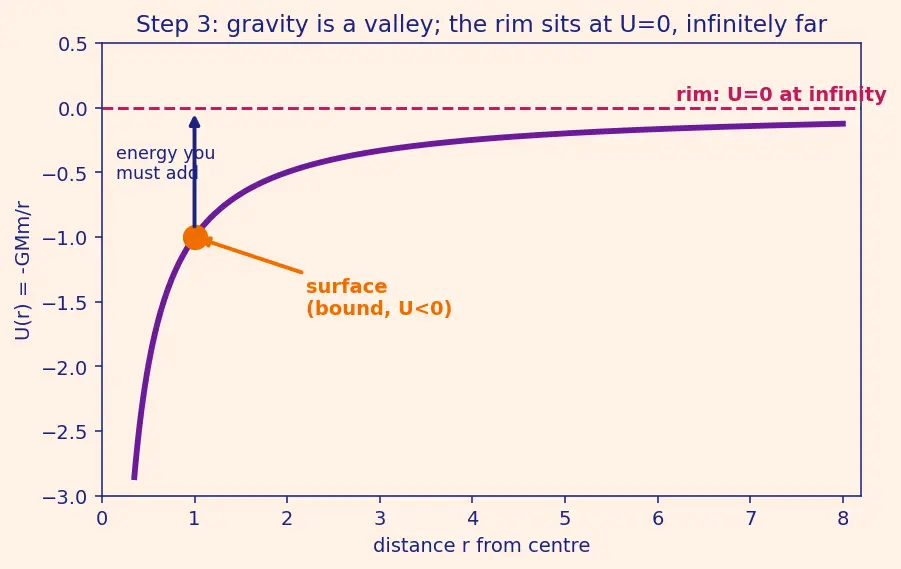

PICTURE — the well. Plot $U$ against $r$ . It is a valley: deep and negative near the surface, rising toward $0$ as $r \to \infty$ . Sitting in the well means you are trapped — you owe energy to climb out to the rim at infinity.

The work done by gravity as the ball moves from $\infty$ inward to $r$ is $W_{grav} = \int_{\infty}^{r} (- \frac{GM m}{r ^{' 2}}) d r^{'}$ (the pull points inward, i.e. toward decreasing $r^{'}$ , hence the minus). Potential energy is defined as minus that work, so the two minus signs combine:

$U (r) = - W_{grav} = - \int_{\infty}^{r} (- \frac{GM m}{r ^{' 2}}) d r^{'} = \int_{\infty}^{r} \frac{GM m}{r ^{' 2}} d r^{'} = - \frac{GM m}{r}$

Term by term:

The integral sign just means "add up every tiny slice of work as the ball moves."
$r^{'}$ — a moving dummy distance that sweeps from $\infty$ down to $r$ .
The final minus in $- \frac{GM m}{r}$ — evaluating $[- \frac{1}{r ^{'}}]_{\infty}^{r}$ gives $- \frac{1}{r}$ , so the stored energy sits below zero: the mass is bound.

Step 4 — The energy that never changes

WHAT. After launch, cut the engine. The only force is gravity (no air, no thrust). Add the two energies into a single total $E$ :

$E = K + U = \frac{1}{2} m v^{2} - \frac{GM m}{r}$

WHY it's constant. When the only force is gravity, mechanical energy is conserved (Conservation of mechanical energy) — the water-between-glasses picture from Step 2. As the ball rises, $K$ pours into $U$ ; as it falls, $U$ pours back into $K$ . The sum $E$ is a horizontal line.

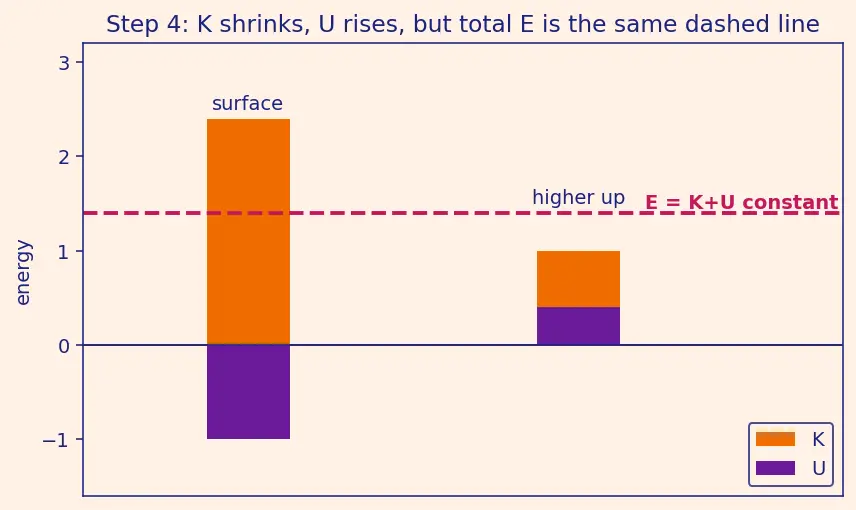

PICTURE. Two moments of the same flight. At the surface the $K$ bar is tall and the $U$ bar is a deep negative pit. Higher up the $K$ bar has shrunk and the $U$ pit is shallower. The stacked total — the dashed line — is identical in both.

Step 5 — The "just barely" condition

WHAT. What does minimum launch speed mean? It means the ball reaches infinity with exactly nothing left over — final speed $0$ . Any spare speed would mean we launched harder than necessary.

WHY final speed = 0, not "still moving." At infinity the pull has faded to zero (that $1/ r^{2} \to 0$ again). So a ball that arrives at infinity — even crawling at zero speed — is free; gravity can no longer reel it back. Arriving with $v = 0$ is the razor's edge between escaping and falling back.

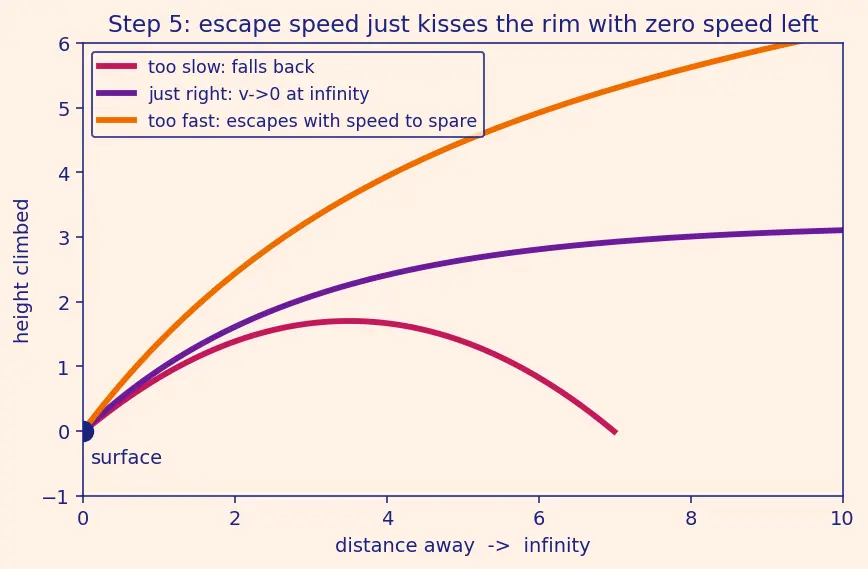

PICTURE. Three flights from the same surface:

Slow (magenta): climbs, stops at a finite height, falls back — a bound arc.
Just-right (violet): the escape speed; coasts forever, its speed easing to zero right at the edge of the picture.
Fast (orange): escapes with speed to spare.

So at infinity, for the just-right flight: $K_{f} = 0, U_{f} = - \frac{GM m}{\infty} = 0 \Rightarrow E_{f} = 0.$

Step 6 — Equate start and end, watch $m$ vanish

WHAT. Energy is constant, so the total at launch equals the total at infinity:

$launch KE \frac{1}{2} m v_{e}^{2} - launch PE at surface r = R \frac{GM m}{R} = E_{f} 0$

Here $R$ = the radius of the world (the ball starts on the surface, so $r = R$ ), and $v_{e}$ = the escape speed we're hunting.

WHY it's beautiful. Every single term carries a factor of $m$ . Divide the whole line by $m$ and it disappears:

$\frac{1}{2} v_{e}^{2} = \frac{GM}{R}$

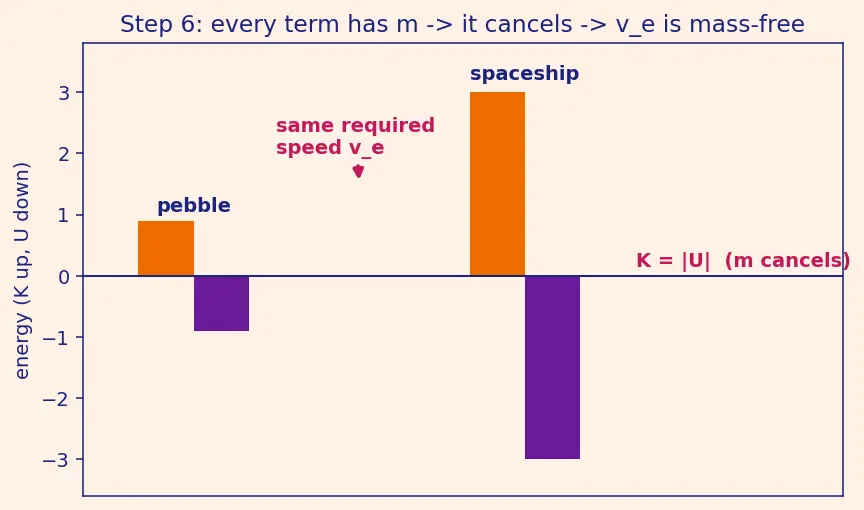

PICTURE. A pebble and a spaceship, side by side, both needing the identical launch speed. Their $K$ and $U$ bars are different heights (the spaceship's are huge) but the ratio that fixes the speed is the same, so the required $v_{e}$ is identical.

Solve for $v_{e}$ by multiplying by $2$ and taking the square root:

Step 7 — Degenerate & edge cases (never leave a gap)

WHAT. Push the formula to its extremes and check the picture still makes sense.

Case A — Tiny world (small $M$ or huge $R$ ): shallow well. $v_{e} = 2 GM / R$ shrinks. The Moon's well is so shallow that gas molecules routinely beat $2.4$ km/s and leak away — that is Why the Moon has no atmosphere.

Case B — Launch straight up vs. sideways. Energy only sees speed, not direction. The threshold is identical — escape velocity is really a speed, not a true velocity. Direction changes the path, never the energy needed.

Case C — Compress the world (shrink $R$ at fixed $M$ ). $v_{e}$ climbs without limit. Squeeze $R$ so far that $v_{e}$ reaches $c$ , the speed of light, and even light cannot escape: you have a black hole, and that $R$ is its Black holes — Schwarzschild radius (set $v_{e} = c$ ).

Case D — Compare to circular orbit. Orbital speed at the surface is $v_{o} = GM / R$ (Orbital velocity & circular motion). Then $\frac{v _{e}}{v _{o}} = \frac{2 GM / R}{GM / R} = 2 .$ Escape needs just $2 \approx 1.41$ times orbit speed.

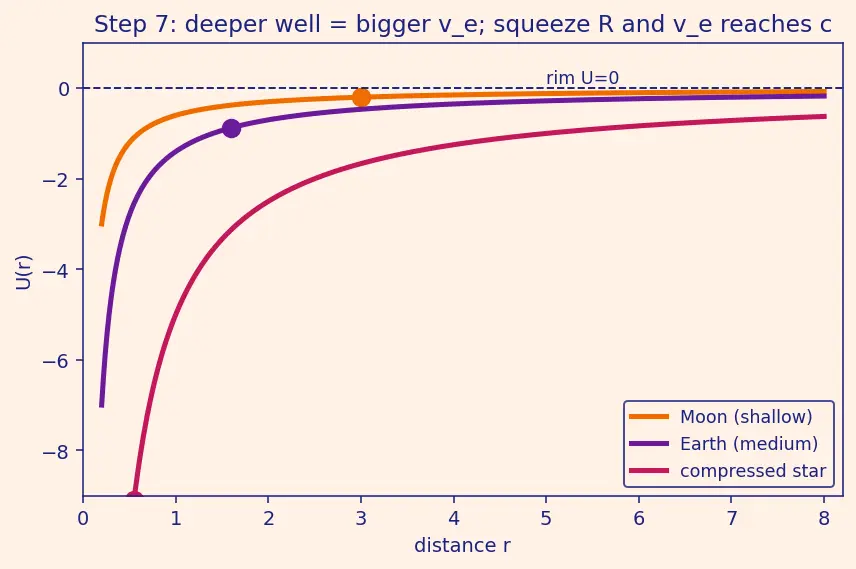

PICTURE. One "well depth" axis with three worlds: Moon (shallow, low $v_{e}$ ), Earth (medium), compressed star (near-vertical wall, $v_{e} \to c$ ). The rim height is the escape energy.

The one-picture summary

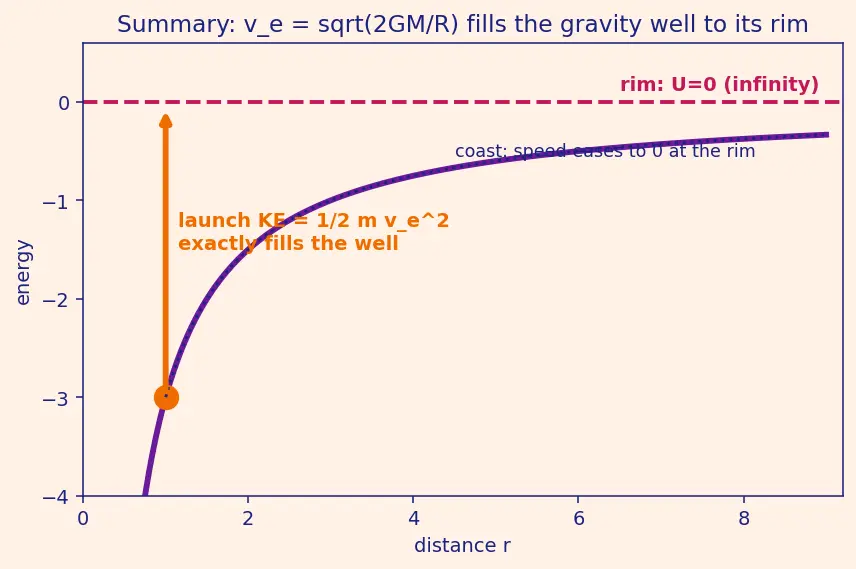

Everything above collapses into a single diagram: the well $U (r) = - GM m / r$ , a launch KE bar that exactly fills the well to the rim, and the coasting curve that flattens to zero at infinity.

Recall Feynman retelling — the whole walkthrough in plain words

Earth is a bowl and you're a marble at the bottom. First we drew the pull (Step 1): a rope yanking you toward the centre, weaker the farther out you go — and we agreed to hold the bowl still while the marble moves, which is fine because the marble is so light the bowl barely reacts. Chasing the changing rope is hard, so we switched to energy — moving-energy and stored-energy that pour into each other like water between two glasses (Step 2). We measured the stored-energy as a valley, deepest at the surface and rising to zero at the faraway rim (Step 3). Because only gravity acts, the total energy is a flat line: climb and your moving-energy empties into the well, fall and it fills back (Step 4). The cheapest escape is the flick that lets the marble just kiss the rim with no speed left — the final speed is zero (Step 5). Setting start-total = rim-total, the marble's own weight cancels off both sides — so a pebble and a bus need the same flick (Step 6). Out pops $v_{e} = 2 GM / R = 2 g R$ : about 11 km/s for Earth, 2.4 for the shallow Moon, and — squeeze the bowl small enough — the rim rises to the speed of light and you've built a black hole (Step 7).

Active recall

Recall Test the pictures

Why did we abandon force for energy? ::: Force changes with $r$ ( $1/ r^{2}$ ); energy only needs start and end, perfect for a "does it return?" question. In Step 3, why is $U$ negative near the surface? ::: The well dips below the $U (\infty) = 0$ rim, so being trapped means having negative stored energy. In Step 5, what does the subscript $f$ mean, and why is final speed zero? ::: $f$ = "final", at $r \to \infty$ ; the pull is zero there, so arriving even at $v = 0$ means gravity can never reel you back — the minimum case. In Step 6, what makes $m$ cancel? ::: Every term carries a factor $m$ ; dividing through removes it, so all masses need the same $v_{e}$ . When is the $+ m$ (reduced mass) correction needed? ::: When the two masses are comparable; then $v_{e} = 2 G (M + m) / R$ in the centre-of-mass frame. For $m ≪ M$ it is negligible. How does compressing $R$ create a black hole (Step 7)? ::: Shrinking $R$ raises $v_{e} = 2 GM / R$ ; when $v_{e} = c$ , not even light escapes.
