Newton's law of gravitation — universal, action at distance: Visual walkthrough

We only ever use words you already know: stuff (matter), pull, distance, and area. Every symbol below is introduced the moment it is needed and not one step earlier.

Step 1 — Two lumps of stuff, one invisible pull

WHAT. Put two objects in empty space. Call the amount of "stuff" in each one its mass. Write the first mass as $m_{1}$ and the second as $m_{2}$ . The little "1" and "2" are just name-tags — they say which lump we mean, nothing more.

WHY. Before any formula, we must agree on the cast of characters. The whole law is a sentence about these two lumps and the empty gap between them. That gap — the straight-line distance from the centre of one to the centre of the other — we name $r$ (for range).

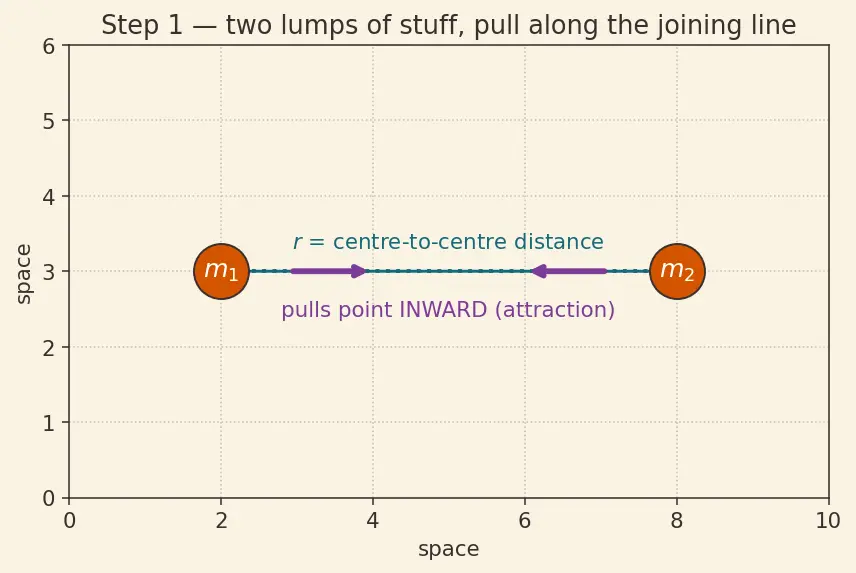

PICTURE. Look at the figure: two orange dots, a dotted teal line joining their centres labelled $r$ , and two arrows (one on each lump) pointing along that line, toward each other. The arrows are the pull. Notice they lie exactly on the joining line — never sideways. That is the first fact of gravity: the pull is always along the line of centres.

Figure — Newton's law of gravitation — universal, action at distance

Step 2 — More stuff means more pull

WHAT. Ask: if I double the stuff in lump 1, what happens to the pull? Imagine lump 1 as two identical half-lumps glued together. Each half pulls lump 2 on its own. Two halves side by side pull twice as hard. So doubling $m_{1}$ doubles the force.

WHY. Every tiny bit of matter does its own pulling, and the pulls add up. Twice the matter = twice as many pulling bits = twice the pull. In symbols we write this as $F \propto m_{1} .$ The wiggly sign $\propto$ means "grows in step with" — if the right side doubles, so does $F$ . Here $F$ is the size (magnitude) of the pull.

The same argument works for lump 2. Doubling $m_{2}$ doubles the pull too, so $F \propto m_{2}$ . Putting both together: $F \propto double it \to 2 \times F m_{1} \cdot double it \to 2 \times F m_{2} = m_{1} m_{2} .$

WHY the product, not the sum? The figure shows it: stacking copies of lump 1 multiplies the force from lump 1's side, and independently stacking lump 2 multiplies it from the other side. Two independent doublings multiply to a four-fold pull — that is exactly what $m_{1} m_{2}$ gives ( $2 \times 2 = 4$ ), while $m_{1} + m_{2}$ would only add. (The 3rd-law symmetry in the parent note is the deeper reason the two masses must enter the same way.)

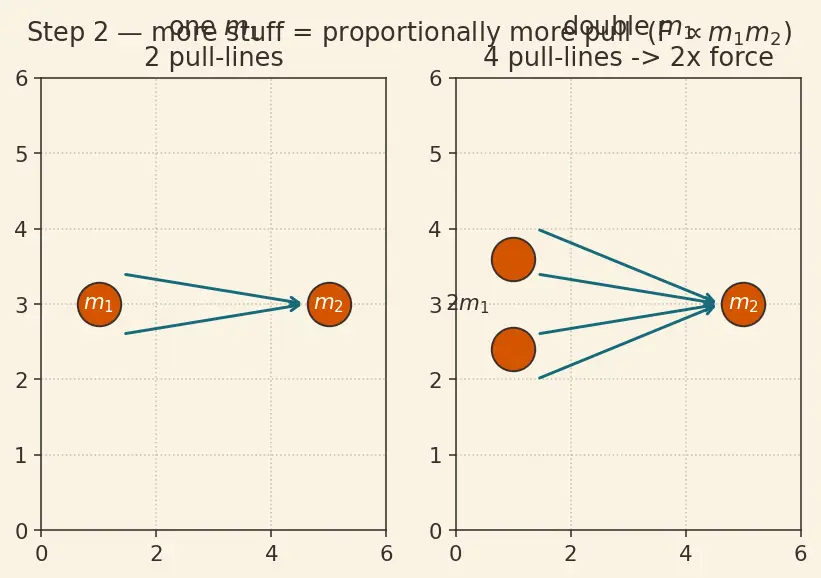

PICTURE. Left panel: one lump 1 → one bundle of pull-lines to lump 2. Right panel: lump 1 doubled → the bundle of pull-lines is visibly doubled. Count the teal lines: they scale with the stuff.

Step 3 — Why the pull fades, and fades like $1/ r^{2}$

WHAT. Now move the lumps apart and ask how fast the pull weakens. Picture the pull leaving lump 1 as a fixed number of straight "influence lines" spraying outward in every direction — like paint sprayed from a point.

WHY. Those lines spread over the surface of an imaginary sphere centred on lump 1. A sphere of radius $r$ has surface area $A = 4 π r^{2} .$ Here $4 π$ is just a fixed number ( $\approx 12.57$ ) that comes with spheres; $r^{2}$ means $r \times r$ . The same fixed spray of lines is now smeared over this area. So the concentration of lines — the strength you feel — is $strength = \frac{fixed number of lines}{A} = \frac{fixed}{4 π r ^{2}} \propto \frac{1}{r ^{2}} .$

WHY squared and not just $r$ ? Because a sphere's skin grows with $r^{2}$ , not $r$ . Go twice as far and the same lines cover $2^{2} = 4$ times the area, so the pull is four times weaker — not two times. That is the meaning of inverse-square.

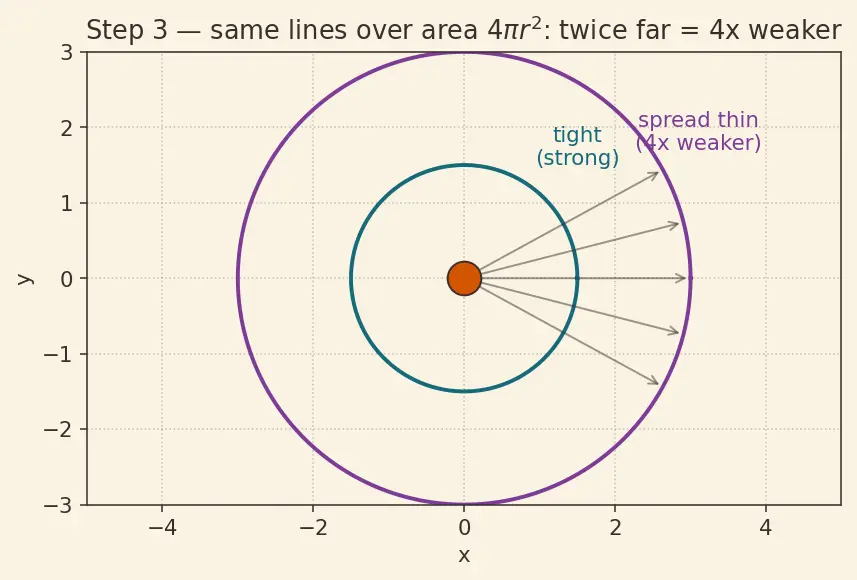

PICTURE. Two nested spheres. The near one (small radius) has the lines packed tight — strong pull. The far one (double radius) has the same lines spread thin over 4× the skin — weak pull. Watch the shaded patch: same number of lines, four times the area.

Step 4 — Turning " $\propto$ " into " $=$ " with the constant $G$

WHAT. The symbol $\propto$ tells us the shape of the law but not the scale. To get real numbers (newtons of force), we multiply by one fixed number, called $G$ : $F = G \frac{m _{1} m _{2}}{r ^{2}} .$

WHY. Nature does not tell us how strong one kilogram's pull is — we must measure it. Henry Cavendish did exactly this by watching two masses gently twist a delicate rod. The number he found is tiny: $G = 6.674 \times 1 0^{- 11} N m^{2} k g^{- 2} .$ That $1 0^{- 11}$ (a decimal point followed by ten zeros) is why gravity feels so weak between everyday objects — the whole formula is multiplied by an almost-nothing number.

Term-by-term, right where each lives: $F = ↑ universal scale G \cdot \frac{m _{1} m _{2} stuff \times stuff ↓}{↑ distance, squared r ^{2}} .$

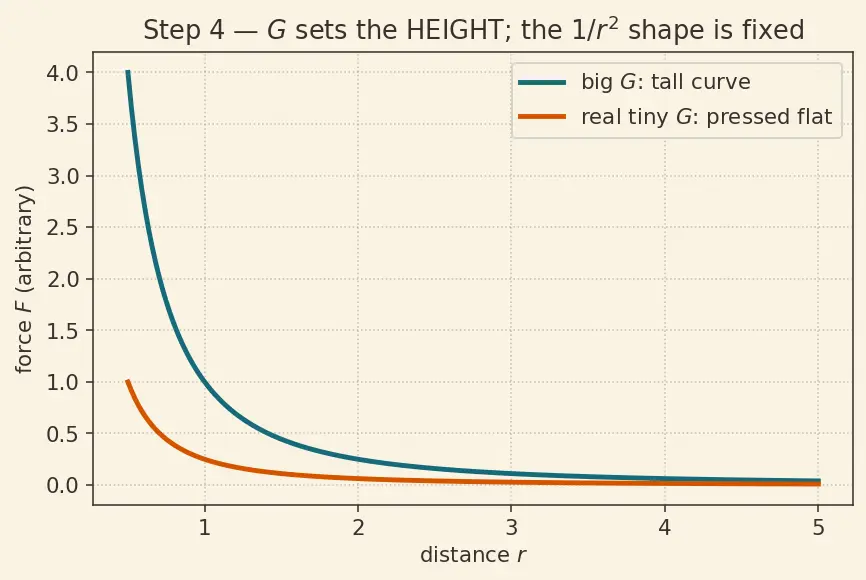

PICTURE. A "dial" figure: the $\propto$ relationship is a fixed curve shape; $G$ is the knob that sets its height. Big $G$ → tall curve (strong gravity); the real, tiny $G$ → a curve pressed almost flat near the axis. The shape is fixed; $G$ only scales it.

Step 5 — Giving the pull a direction (making it a vector)

WHAT. So far $F$ is just a size — a number of newtons. But a pull also has a direction. We attach an arrow of length 1 that points from lump 1 straight toward lump 2, and name it $\overset{r}{^}_{12}$ (the little hat "^" means "length exactly one — a pure direction, no size"). Then the full pull on lump 1 is $F_{12} = + \frac{G m _{1} m _{2}}{r ^{2}} \overset{r}{^}_{12} .$

WHY. The arrow over $F$ says "this is a full arrow, size and direction." Multiplying the size $\frac{G m _{1} m _{2}}{r ^{2}}$ by the unit arrow $\overset{r}{^}_{12}$ glues the correct direction onto the correct size. The plus sign combined with $\overset{r}{^}_{12}$ pointing toward the other mass is what makes gravity attractive — the force points the way the arrow points, i.e. toward lump 2.

WHY not just leave it as a number? Because if a third lump appeared, we would need to add the pulls, and you can only add arrows correctly when each carries its direction. The vector form is future-proof.

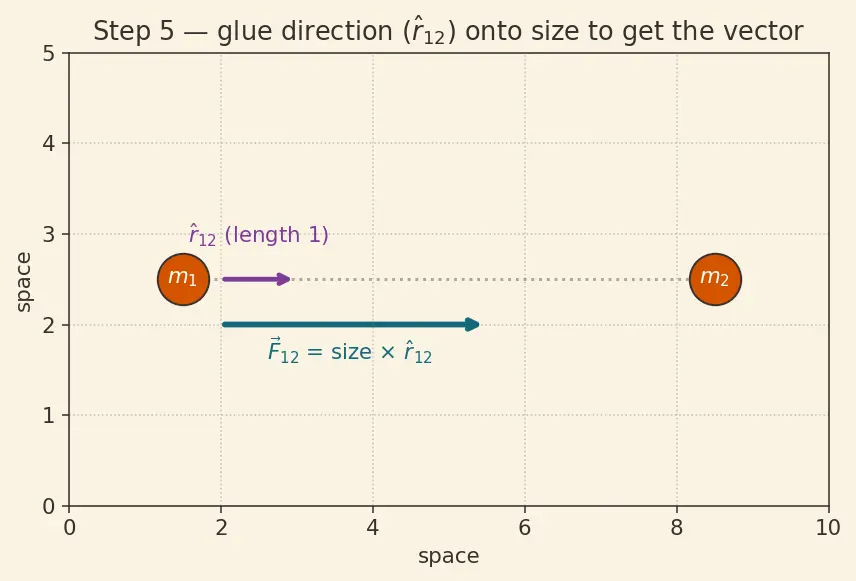

PICTURE. The joining line with the little unit arrow $\overset{r}{^}_{12}$ drawn on it (length exactly 1), then the full force arrow $F_{12}$ drawn along the same line but scaled to the force's true size. Same direction; different length.

Step 6 — Edge case: what happens at the extremes?

WHAT. A good law must behave sensibly in the corners. Check three:

$r \to \infty$ (lumps infinitely far). The bottom $r^{2}$ explodes, so $F \to 0$ . Gravity never becomes exactly zero at any finite distance — it only fades — but it dies fast.
$r \to 0$ (lumps merge). The bottom shrinks to zero, so the formula screams $F \to \infty$ . This is a warning sign: the law is written for point masses (or centre-to-centre for spheres). Real objects have size, so you never actually put $r = 0$ — for a real planet the closest meaningful $r$ is its radius $R$ (the shell theorem guarantees a solid sphere acts as if all its stuff sits at its centre).
One mass zero ( $m_{2} = 0$ ). The top becomes $m_{1} \cdot 0 = 0$ , so $F = 0$ . No stuff, no pull — exactly right.

WHY it matters. These checks are how you trust a formula: it must give zero when there's nothing to pull, and it must flag (with infinity) the one place it isn't allowed to be used. The everyday $g$ lives on this curve too — it is just the value of $\frac{G M _{\oplus}}{r ^{2}}$ evaluated at $r = R_{\oplus}$ (Earth's surface): $g = \frac{G M _{\oplus}}{R _{\oplus}^{2}} \approx 9.8 m/ s^{2} .$

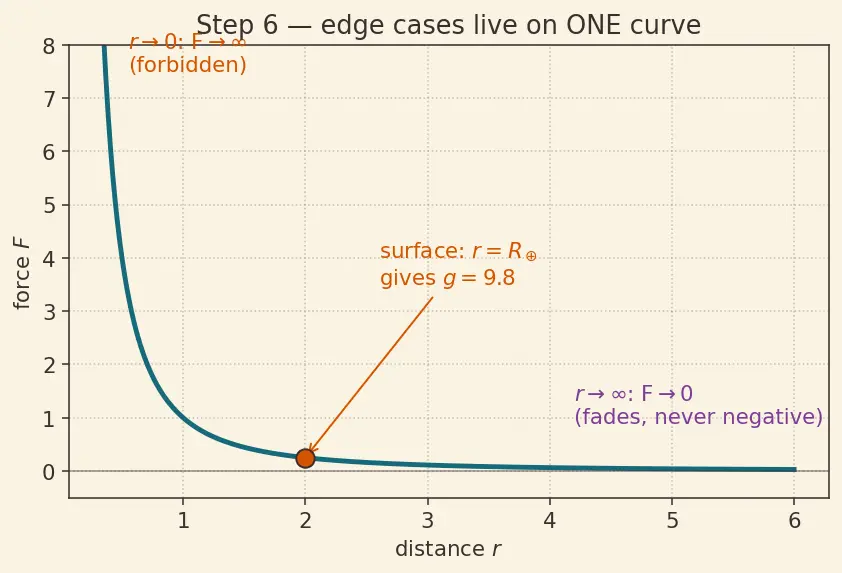

PICTURE. The full $F$ -versus- $r$ curve: a steep wall near $r = 0$ (the forbidden $\infty$ ), a smooth downhill that flattens toward $F = 0$ as $r$ grows, with a marker dropped at $r = R_{\oplus}$ showing where "surface gravity $g$ " sits on the very same curve.

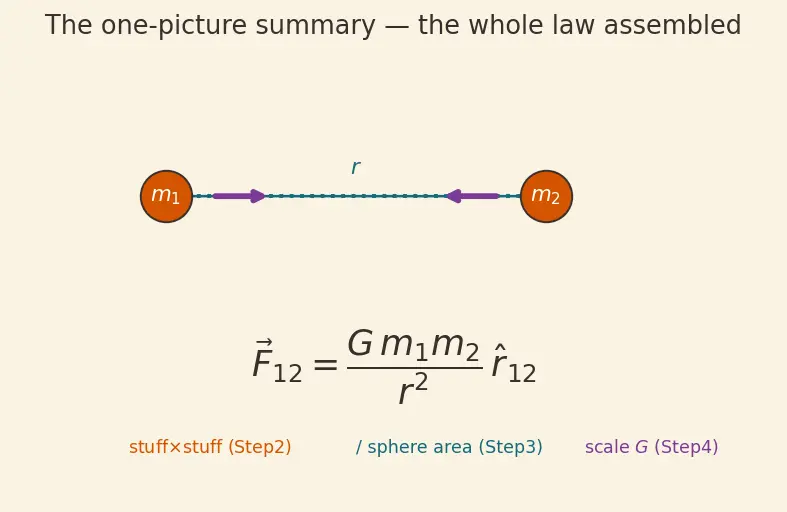

The one-picture summary

Everything above collapses into a single labelled diagram: two masses, the joining line $r$ , the inward attraction arrows, and the assembled formula with each piece coloured to match where it came from — $m_{1} m_{2}$ from Step 2 (stuff), $1/ r^{2}$ from Step 3 (spreading over a sphere), $G$ from Step 4 (measured scale), the arrow from Step 5 (direction).

Recall Feynman retelling — the whole walkthrough in plain words

Two blobs of stuff sit in empty space (Step 1). Each blob is really a crowd of tiny pulling grains, so more stuff means proportionally more pull — and because both blobs multiply their pull independently, the force follows the product $m_{1} m_{2}$ , not the sum (Step 2). Now imagine that pull sprayed outward like paint from a point; it smears over the skin of a growing sphere whose area is $4 π r^{2}$ , so twice as far means four times thinner means four times weaker — inverse-square (Step 3). That gives us the shape of the law, and one measured knob $G$ sets its true, absurdly-tiny height (Step 4). Glue on an arrow pointing blob-to-blob and it becomes a proper pulling vector (Step 5). Finally we sanity-check the corners: far away the pull fades to nothing, at zero separation the formula (correctly) refuses to answer because that's where point-mass thinking breaks, and no stuff means no pull — and the everyday $g = 9.8$ is just this same curve read off at Earth's surface (Step 6).

Recall Rebuild it yourself (cover the answers)

Why product not sum ::: Two independent doublings multiply; $m_{1}$ and $m_{2}$ each scale the force on their own side. Why $1/ r^{2}$ not $1/ r$ ::: Pull spreads over a sphere's skin, area $4 π r^{2}$ ; area grows as $r^{2}$ . What does $G$ do ::: Sets the true scale (height) of the fixed proportional shape; measured by Cavendish. What does the hat in $\overset{r}{^}_{12}$ mean ::: A pure direction — an arrow of length exactly one, pointing from mass 1 toward mass 2. What breaks at $r = 0$ ::: The formula gives infinity; it's built for point masses / centre-to-centre, so never use $r = 0$ for a real body.
