Foundations — Non-inertial reference frames — pseudo forces

Before you can even read the parent note, you must own every letter and symbol it throws at you. This page builds each one from nothing — plain words first, then a picture, then why the topic can't live without it. Read top to bottom; each block leans on the one above.

1. What is a "frame"? (the invisible grid you measure from)

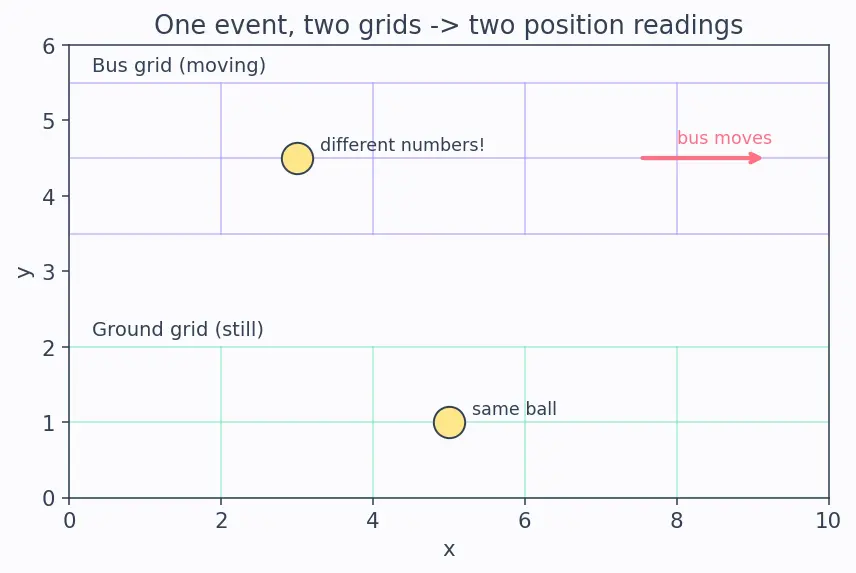

Picture it. Two observers watch one ball. One stands on the ground, one rides a bus. Each carries their own grid of squares. They agree the ball exists, but they write down different positions for it — because their grids slide past each other.

Why the topic needs it. The entire chapter is about comparing two frames — a still one and a moving one. Without the word "frame" there is nothing to compare, and no place for a pseudo force to hide.

2. Time $t$ — the clock every measurement runs on

Picture it. Imagine a stopwatch ticking beside every observer: ground-watcher and bus-rider both read the same seconds $t=0,1,2,\dots$ Whenever we say "how fast something changes," we mean per second of this $t$.

Why the topic needs it. "Velocity" and "acceleration" are changes per unit time. Without naming the clock variable $t$, the word "rate" in the next sections would be floating with nothing to measure against.

3. Vectors and the little arrow: $\vec{r}$, $\vec{a}$, $\vec{F}$

• $\vec{r}$ — position of an object: an arrow from the origin of your grid to the object. "Where is it?"
• $\vec{a}$ — acceleration: how fast the velocity arrow is changing. "Is it speeding up / turning?"
• $\vec{F}$ — force: a push or a pull, drawn as an arrow in the direction of the shove.

4. Three positions: $\vec{r}$ (object), $\vec{R}$ (moving grid), $\vec{r}{}^{\prime }$ (object inside the grid)

The parent note uses three position arrows in one line, $\vec{r}=\vec{R}+\vec{r}{}^{\prime }$, and they are easy to mix up. Let's separate them cleanly before any dots appear.

Picture it. From the ground, draw one arrow $\vec{R}$ out to the bus's front door (the moving grid's origin), and a separate arrow $\vec{r}$ out to the ball. Now stand inside the bus and draw $\vec{r}{}^{\prime }$ from the bus's own origin straight to the ball. Follow $\vec{R}$ then $\vec{r}{}^{\prime }$ tip-to-tail and you land exactly where $\vec{r}$ points — that is the equation $\vec{r}=\vec{R}+\vec{r}{}^{\prime }$.

Why the topic needs it. The parent's very first equation, $\vec{r}=\vec{R}+\vec{r}{}^{\prime }$, reads "object's place from the ground = where the moving box is, plus the object's place inside the box." You cannot read that line until you know all three arrows — especially the primed one, which is what the passenger actually measures.

5. The dot on top: $\dot{\vec{R}}$ and $\ddot{\vec{R}}$ (rate of change in time $t$)

The dots are the scariest-looking symbols, so let's earn them — using the clock $t$ from Section 2.

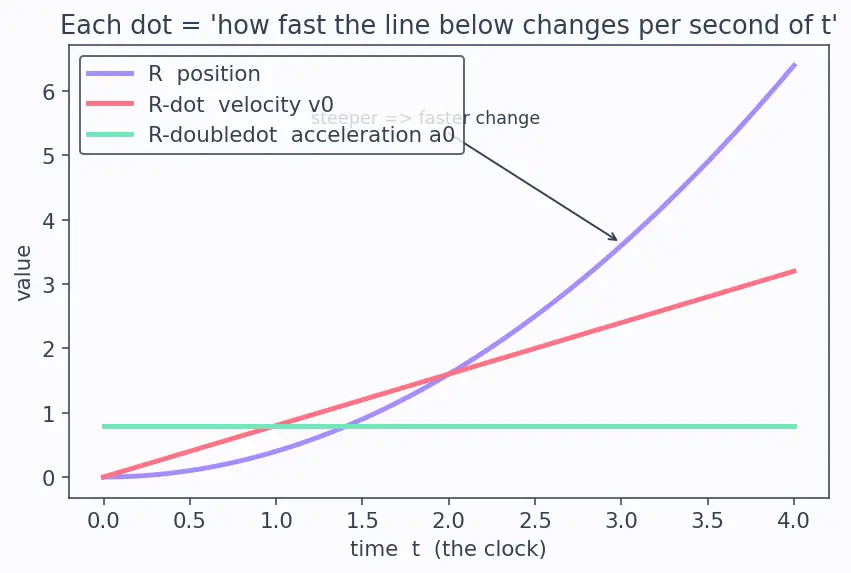

Picture it. Watch the moving grid's origin $\vec{R}$ as a slider on a track, with the clock $t$ ticking.

• Position $\vec{R}$: where the slider is now.
• $\dot{\vec{R}}$ (one dot): how quickly it's sliding = its velocity.
• $\ddot{\vec{R}}$ (two dots): how quickly the sliding itself is ramping up = its acceleration.

Why the topic needs it. The frame's acceleration is written ${\vec{a}}_0=\ddot{\vec{R}}$ — introduced properly in Section 8. For now just hold onto: two dots = acceleration, and the little $0$ means "of the frame."

6. Constant velocity vs acceleration (the line that splits the chapter in two)

Picture it. A car cruising dead-straight at $60$ on a highway has zero acceleration. The same car pressing the gas, braking, or rounding a bend is accelerating — even the bend at steady speed, because "which way" is changing.

Why the topic needs it. This single distinction defines the two frame types in Section 7. A pseudo force appears only when acceleration $\ne 0$.

7. Inertial vs non-inertial frame (the star definitions)

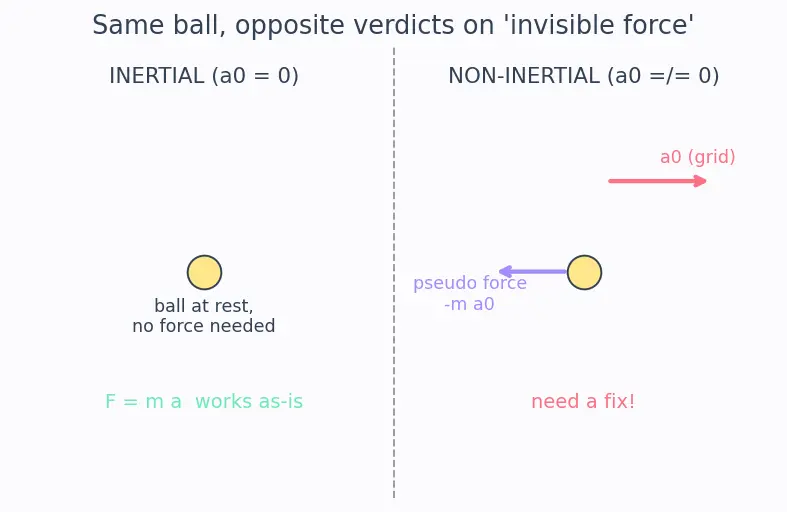

Picture it. The still ground = inertial. The accelerating bus = non-inertial. Same ball, two verdicts on whether an invisible force is needed.

The family of all inertial frames (all moving at constant velocity relative to each other, all agreeing on the laws) is the subject of Galilean relativity. The pseudo force is precisely the price of leaving that family.

8. ${\vec{a}}_0$ — the frame's own acceleration (the source of everything)

Picture it. The bus lurches forward — the arrow ${\vec{a}}_0$ points forward, glued to the vehicle. Everything inside inherits consequences from that one arrow.

9. Mass $m$ and Newton's Second Law $\vec{F}=m\vec{a}$

Why the topic needs it. The pseudo force is a repair added specifically to keep this equation looking true inside an accelerating frame. Without $\vec{F}=m\vec{a}$ there is nothing to repair.

10. Newton's Third Law and "reaction pair" (the rule pseudo forces BREAK)

Why the topic needs it. The most common exam trap is expecting the pseudo force to have such a partner. It doesn't — there's no body doing the pushing, so there's no one to push back. Knowing what a reaction pair is lets you notice it's missing.

11. The minus sign and "opposite" (why $-m{\vec{a}}_0$, not $+m{\vec{a}}_0$)

Picture it. Bus accelerates forward (${\vec{a}}_0$ →). You feel thrown backward. The pseudo force arrow points backward (← $=-m{\vec{a}}_0$). The minus is the "thrown-back" feeling written in symbols.

Prerequisite map

The chain of dependencies in words (a plaintext fallback, followed by the same as a diagram):

1. Reference frame and time $t$ are the ground floor — everything is measured against a grid and a clock.
2. Vectors (arrows) let us record positions and directions: object position $\vec{r}$, grid position $\vec{R}$, and the object inside the grid $\vec{r}{}^{\prime }$.
3. Applying the dot (rate of change in $t$) to $\vec{R}$ gives the frame's velocity ${\vec{v}}_0$ and acceleration ${\vec{a}}_0$.
4. Constant velocity vs accelerating splits frames into inertial and non-inertial.
5. Mass $m$ plus Newton's Second Law is the rule; the minus sign flips ${\vec{a}}_0$; Newton's Third Law is the rule the result breaks — together they build the pseudo force $-m{\vec{a}}_0$.

Equipment checklist

Give a full answer before revealing. If any stumps you, re-read that section.

Connections

• Parent topic — this page is its from-zero toolkit.
• Newton's Second Law — the equation every symbol here serves.
• Newton's Third Law — the reaction-pair rule the pseudo force breaks.
• Galilean relativity — the family of inertial frames.
• Apparent weight & normal force — first application once these foundations are in place.
• Centrifugal force — the rotating-frame version of ${\vec{a}}_0$.
• Coriolis force — a velocity-dependent pseudo force built on the same ideas.
