Inclined planes — with and without friction: Visual walkthrough

Step 1 — What is a "force," and why an arrow?

WHAT: Our object is a block resting on a tilted ramp. One force always acts: weight, the pull of the Earth, drawn straight down.

WHY an arrow: Because we will soon break this one down-pointing arrow into two smaller arrows. Arrows can be added tip-to-tail and split apart — plain numbers cannot carry direction, so we need arrows.

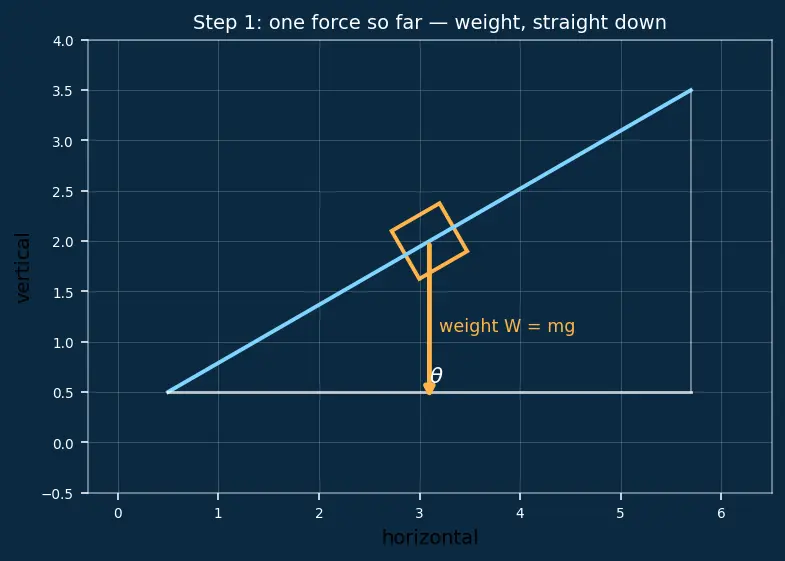

PICTURE: The ramp, the block, and the single amber weight arrow pointing straight down.

Figure — Inclined planes — with and without friction

Step 2 — The angle $θ$ , and why we tilt our grid

WHAT: We throw away the usual "up/down, left/right" grid and lay down a new grid tilted to match the ramp: one axis runs along the slope, the other runs perpendicular (straight out of the ramp's face).

WHY: The block can only ever move along the ramp — it cannot dive into the wood or float off it. If we pick an axis along the ramp, then all the sliding lives on that one axis, and the sideways axis has zero motion. That kills half the algebra. This is exactly the idea behind Vector Resolution & Components — pick axes that make the problem lazy.

PICTURE: The old flat grid (faint) versus the new tilted grid (bright cyan), with the two new axis directions labelled.

Step 3 — Why the same angle $θ$ hides between the weight and the ramp

WHAT: We claim the angle between the weight arrow and the perpendicular-to-ramp direction is also $θ$ — the very same slope angle.

WHY: Look at the two angles. The slope makes angle $θ$ with the horizontal. The weight is vertical; the normal direction is perpendicular to the slope. Vertical ⟂ horizontal, and normal ⟂ slope. When both pairs of sides are perpendicular, the two angles must be equal. So the angle nestled between weight and the perpendicular is $θ$ too. This single geometric fact is the seed of every formula below.

PICTURE: The right triangle formed by the weight arrow and its shadow on the two tilted axes, with both equal $θ$ angles marked and the perpendicular-sides argument shown.

Recall Why "perpendicular sides ⇒ equal angles"?

Rotate one angle by $9 0^{\circ}$ and its two sides land exactly on the other angle's two sides. A rotation never changes an angle's size, so they were equal all along. Answer ::: Rotating an angle by 90° maps its arms onto the second angle's arms, and rotation preserves angle size.

Step 4 — Splitting the weight into two arrows (sine & cosine appear)

WHAT: The weight arrow (length $m g$ ) is the hypotenuse of a right triangle. Its two legs are the two pieces we want: one along the slope, one into the slope.

WHY sine for the along-slope piece? From Step 3, the along-slope leg is the side opposite the $θ$ tucked at the top. Opposite-over-hypotenuse is exactly $sin θ$ , so that leg has length $m g sin θ$ . The into-slope leg is adjacent to $θ$ , giving $m g cos θ$ .

WHY this tool and not another? We need to know "how much of a diagonal arrow points in a chosen direction." That question is defined by sine/cosine — no other tool answers "what fraction of this arrow lies along that axis?" so cleanly.

PICTURE: The weight arrow decomposed into the amber along-slope arrow and the cyan into-slope arrow, each labelled with its length.

Step 5 — The perpendicular axis: normal force is born

WHAT: On the perpendicular axis, two forces act: the into-slope share of gravity ( $m g cos θ$ , into the ramp) and $N$ (out of the ramp).

WHY they must balance: The block never sinks into the ramp nor lifts off it — its perpendicular motion is zero. By Newton's Second Law, zero acceleration means the forces on that axis add to zero.

PICTURE: The perpendicular axis alone, with $m g cos θ$ pointing in and $N$ pointing out, equal in length.

Step 6 — Frictionless slope: the along-slope acceleration

WHAT: On the along-slope axis with no friction, only $m g sin θ$ acts. Newton's Second Law ( $F = ma$ ) turns this force into acceleration.

WHY this tool: Newton's 2nd law is the only bridge from "net force" to "how fast it speeds up." Here the net along-slope force is $m g sin θ$ , so set it equal to $ma$ .

PICTURE: The block sliding, the lone amber $m g sin θ$ arrow driving it, and the resulting acceleration arrow.

Step 7 — Add friction: which way does it point?

WHAT: The block slides down, so kinetic friction points up the slope, fighting it. With $N = m g cos θ$ from Step 5, $f_{k} = μ_{k} m g cos θ$ .

WHY up: Friction always opposes the actual motion. Motion is down ⇒ friction is up. (If someone shoved the block up the ramp, friction would flip and point down.)

PICTURE: Down-slope $m g sin θ$ (amber) versus up-slope $f_{k}$ (cyan), tug-of-war along one axis.

Step 8 — Edge cases: tilt from flat to vertical

WHAT: Test the formulas at their extremes so no scenario surprises you.

WHY: Formulas earn trust only if their limits are sane. We check $θ = 0$ , $θ = 9 0^{\circ}$ , and the special "just about to slip" angle.

PICTURE: Three little ramps — flat, mid, vertical — each with its arrows shrinking/growing.

Case	$sin θ$	$cos θ$	Meaning
$θ = 0$ (flat)	$0$	$1$	No slide force; $N = m g$ (full weight)
$θ = 9 0^{\circ}$ (wall)	$1$	$0$	Full $m g$ pulls down (free fall); $N = 0$
Just slipping	—	—	$m g sin θ = μ_{s} m g cos θ \Rightarrow tan θ_{c} = μ_{s}$

The one-picture summary

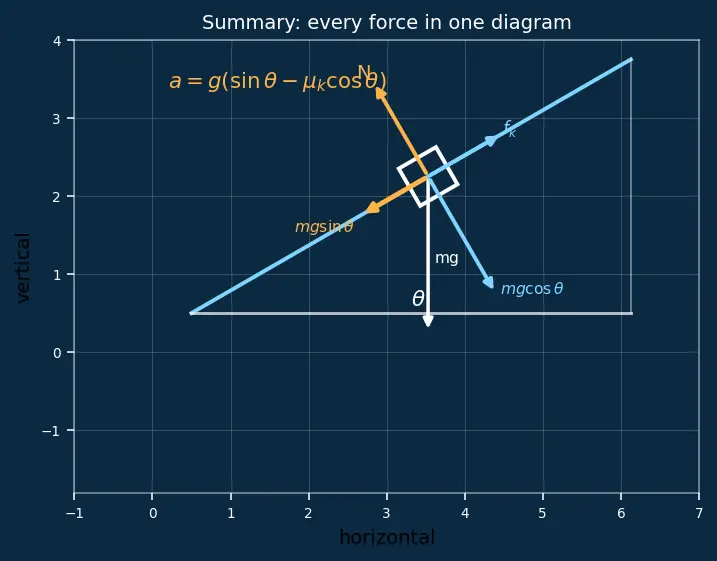

Everything compressed: the weight arrow, its two children $m g sin θ$ and $m g cos θ$ , the balancing $N$ , the resisting $f_{k}$ , and the surviving net force that becomes $ma$ .

Recall Feynman: the whole walk in plain words

Gravity always pulls straight down, but the ramp won't allow "straight down" — the block can only run along the wood. So we tilt our measuring grid to line up with the ramp. Now the single downward pull splits into two arrows: one that leans down the ramp and makes it slide ( $m g sin θ$ ), and one that presses it flat onto the ramp ( $m g cos θ$ ). The ramp pushes back exactly as hard as it's pressed, and we call that push $N$ . If the ramp is smooth, only the leaning arrow survives, and $F = ma$ turns it into $a = g sin θ$ — mass vanishes because it's on both sides. Add roughness and friction grabs back along the ramp, always opposing motion, subtracting $μ_{k} m g cos θ$ . Tilt steeper and steeper; at one magic angle the leaning share finally beats friction and sliding begins — and that angle secretly tells you the roughness, $tan θ_{c} = μ_{s}$ . One-line takeaway ::: Tilt the axes, split $m g$ into $sin$ (slide) and $cos$ (press), then apply $F = ma$ along each axis.
