Intuition The one core ideaAn inclined plane problem is nothing more than gravity split into two perpendicular pieces : one piece that slides the block along the ramp, and one that presses it into the ramp. Master how to build those two pieces from a single downward arrow, and every incline formula becomes obvious.
Before you can split gravity, you need a toolkit of symbols and pictures. Below is every symbol and idea the parent note Inclined Planes leans on — built from absolute zero, each one earned before the next.
m m how much matter an object contains, measured in kilograms (kg
Picture: think of m size of the dot we draw for the object. Bigger dot = more mass = harder to get moving.
Why the topic needs it: every force on an incline (weight, friction) is proportional to m
Definition Gravitational accelerationg g = 9.8 m/s 2 9.8 metres-per-second, faster every second ".
Picture: a stone falling, its speed arrow growing by the same chunk each second. See figure below.
Why the topic needs it: the incline is just gravity "diluted", so g Free Fall & Gravity .
Figure 1 (above): a black falling dot shown at t = 1 , 2 , 3 red velocity arrow beneath it grows longer by the same chunk each second — that steady growth is g speed changes, and it changes at a constant rate.
W Weight is the force with which Earth pulls an object down. Force means "a push or a pull". Multiply how much stuff you have (m g W = m g newton (N 1 N = 1 kg ⋅ m/s 2
Common mistake Mass is not weightWhy it feels the same: on Earth they always travel together.
The difference: m how much stuff ; W = m g how hard gravity pulls that stuff . On the Moon m W force m g m
A vector is a quantity that needs both a size (how big) and a direction (which way). We draw it as an arrow : length = size, arrowhead = direction.
Picture: weight is the arrow pointing straight down , its length equal to m g
Why the topic needs it: gravity, normal force and friction are all vectors. "Splitting gravity" literally means chopping one arrow into two arrows. See Vector Resolution & Components .
Two lines are perpendicular when they meet at a right angle (9 0 ∘
Why the topic needs it: we pick two perpendicular directions (along the slope, into the slope) precisely because a force along one has zero effect along the other. That is what makes the split clean.
θ θ tilt of the ramp measured from flat ground . θ = 0 θ = 9 0 ∘
Picture: the wedge in the figure below, with θ

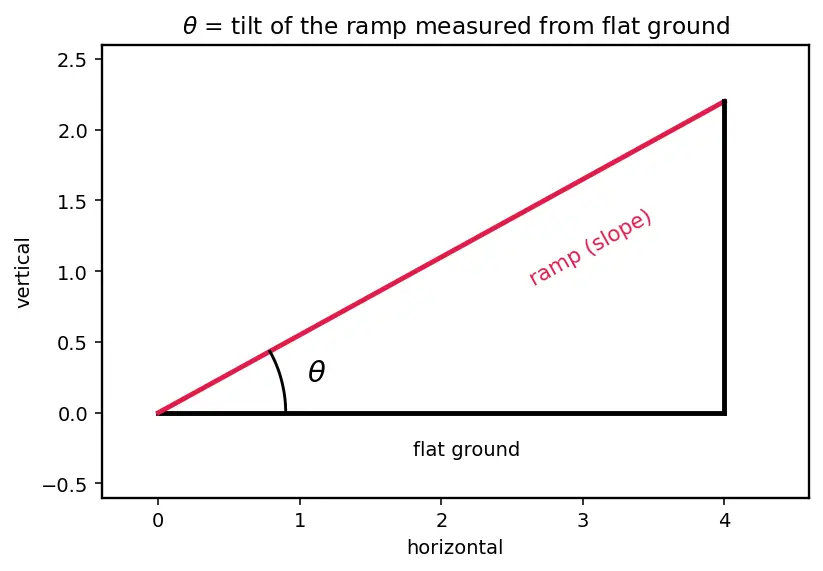

Figure 2 (above): a wedge. The horizontal floor and the vertical side are black; the red line is the ramp surface itself — the key object. The small arc at the bottom-left corner marks θ θ → 0 θ → 9 0 ∘
Here is the tool that does the actual work. Why trig and not something else? Because "how much of a tilted arrow points in a given direction" is exactly the question a right triangle answers, and sine/cosine are the two ratios of that triangle.
Definition Sine and cosine, on the triangleDraw the weight arrow (length m g θ
cos θ = longest side ( m g ) side next to θ ( adjacent ) into the slope.sin θ = longest side ( m g ) side across from θ ( opposite ) along the slope.
Rearranged, the two pieces are:
m g ⊥ = m g cos θ , m g ∥ = m g sin θ
Figure 3 (above): the block sits on the ramp (dot). The red arrow is the full weight m g down the slope (m g sin θ into the surface (m g cos θ θ
Definition Sign convention — these are magnitudes with fixed directionsm g ∥ = m g sin θ m g ⊥ = m g cos θ positive magnitudes (lengths of arrows), never negative. Their directions are fixed by the geometry, so we track them by hand:
m g ∥ = m g sin θ down the slope — we take down-the-slope as the positive x .m g ⊥ = m g cos θ into the surface — the surface pushes back with N y
So when we write force equations, we insert the sign ourselves based on which way each arrow points; the trig only ever supplies the size.
Intuition Why THIS angle appears in the triangleThe slope makes angle θ same θ equal — so the same θ
N perpendicular . N
Picture: an arrow pointing out of the ramp's surface (positive y m g cos θ
Why the topic needs it: N N = m g cos θ less than m g
μ s μ k μ grippy two surfaces are. μ s before sliding starts; μ k while sliding. Rubber-on-road has large μ μ
a a how fast the velocity is changing — the rate the speed arrow grows, in m/s 2
F F = ma F net force : the single arrow you get after adding up all the force arrows on the object (with their signs) along one axis. It is not one particular force — it is the leftover.
Why the topic needs it: a F m
Definition Free body diagram (FBD)A stripped-down sketch showing only the object as a dot and every force as an arrow leaving that dot. No ramp drawing, no clutter.
Why the topic needs it: it is where weight (m g N μ N Free Body Diagrams .
mg sin theta down the slope
mg cos theta into surface
Newtons Second Law F equals ma
Free body diagram ties it together
Test yourself — cover the right side and answer out loud.
What does m The amount of matter, in kilograms (kg).
What is g Gravitational acceleration, about 9.8 m/s 2
Write weight in terms of m g W = m g
What two things does a vector always carry? A size (length) and a direction.
What does "perpendicular" mean and why do we want perpendicular axes? Meeting at 9 0 ∘
Where is the angle θ From flat ground; θ = 0 θ = 9 0 ∘
Which gravity piece uses sine, and which uses cosine, and which way does each point? Sine → down the slope (slides); cosine → into the surface (pressed against by N
Are m g sin θ m g cos θ No — they are positive magnitudes; we attach the direction/sign ourselves.
Check with limits: at θ = 0 sin θ cos θ sin 0 = 0 cos 0 = 1
What does "normal" mean and what does N Perpendicular; N m g cos θ
What is F F = ma The net (total) force along an axis, after adding all force arrows with their signs.
Derive the frictionless acceleration down the slope. ma = m g sin θ ⇒ a = g sin θ
Static friction: inequality or equality, and its ceiling? Inequality, F s ≤ μ s N μ s N ≥ m g sin θ
Kinetic friction: what is its exact size and direction? F k = μ k N
