Average velocity vs instantaneous velocity: Worked examples

Before we compute anything, one reminder in plain words. Position $r (t)$ = "where the thing is at time $t$ ." In one dimension we write just $x (t)$ , a signed number: positive means one way (say, right/east), negative means the other way. Displacement $Δ x = x (end) - x (start)$ is the net arrow from start to finish. Two operations give us velocity:

Speed is a different animal, and because Cases C, D, H, I lean on it, we pin it down now:

The scenario matrix

Every velocity problem is one (or a blend) of these case classes. The table lists them; each row is claimed by an example below.

#	Case class	What makes it tricky	Covered by
A	Motion in one direction, positive $x$	baseline — build intuition	Ex 1
B	Motion in one direction, negative velocity	sign of the answer	Ex 2
C	Reversal (turns around)	$∥ v_{a v g} ∥ \neq =$ avg speed; $v = 0$ at turn	Ex 3
D	Zero displacement (round trip)	$v_{a v g} = 0$ but avg speed $\neq = 0$	Ex 4
E	Degenerate: interval shrinks to a point	why the limit is needed at all	Ex 5
F	Instant $v$ from the definition (no shortcut)	proving the derivative	Ex 6
G	Midpoint theorem for uniform acceleration	$v_{a v g} = v (t_{mi d})$	Ex 7
H	Real-world word problem (multi-leg trip)	translating words → $Δ x, Δ t$	Ex 8
I	Exam twist: given $v_{a v g}$ , find unknown time	reverse-solving	Ex 9
J	Turning-point case, graph-read	flat tangent, sign flip of $v$	Ex 10

We lean on Slope and tangent in calculus, Position-time graphs, Distance vs displacement and Equations of motion under uniform acceleration throughout.

Example 1 — Case A: steady motion, positive direction

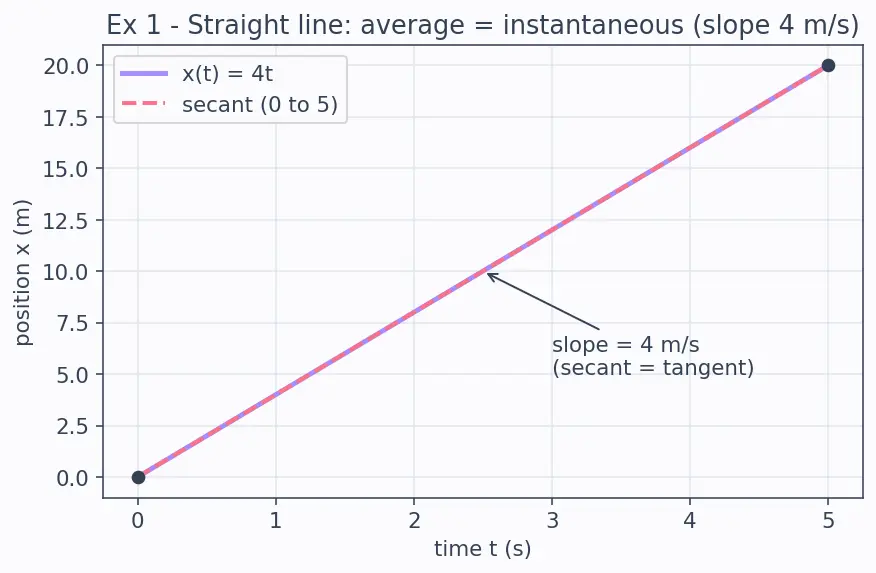

Figure — the position line, its secant over $[0, 5]$ (dashed coral), and the note that here secant = tangent, slope $4$ m/s:

Figure — Average velocity vs instantaneous velocity

Example 2 — Case B: negative velocity

Example 3 — Case C: motion that reverses

Worked example Statement

$x (t) = t^{2} - 4 t$ (metres) on $[0, 4]$ . Find $v_{a v g}$ on $[0, 4]$ , the total distance, the average speed, and the instant the particle turns around.

Forecast: the parabola dips down then comes back. Guess: will $∣ v_{a v g} ∣$ equal the average speed here?

$v (t) = \frac{d}{d t} (t^{2} - 4 t) = 2 t - 4$ . Why first? The turning point is where $v = 0$ .
$v = 0 \Rightarrow 2 t - 4 = 0 \Rightarrow t = 2$ s. Why? At the reversal the tangent is flat (see Slope and tangent in calculus).
Endpoints: $x (0) = 0$ , $x (4) = 16 - 16 = 0$ . So $Δ x = 0$ . Why does this matter? Net displacement is zero even though it moved a lot.
$v_{a v g} = \frac{0}{4} = 0$ m/s. Why zero? It ended where it started.
Distance: from $t = 0$ to $2$ it goes to $x (2) = 4 - 8 = - 4$ (moved $4$ m). From $t = 2$ to $4$ it returns to $0$ (another $4$ m). Total $= 8$ m. Why split at $t = 2$ ? Distance must add path lengths of each unidirectional leg.
Average speed $= \frac{8}{4} = 2$ m/s (using the definition above). Why differs from $v_{a v g}$ ? Speed uses path length; velocity uses net arrow.

Verify: $∣ v_{a v g} ∣ = 0 \leq 2 =$ avg speed ✓ (an instance of the universal law $∣ v_{a v g} ∣ \leq$ avg speed). Turning point at $t = 2$ : $x = - 4$ is the lowest point of the parabola ✓.

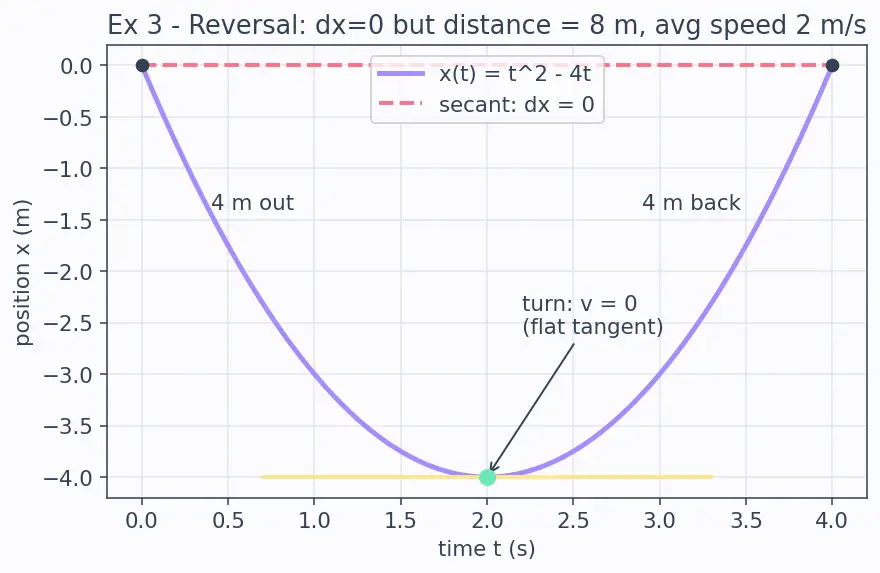

Figure — the parabola dipping to $x = - 4$ , the zero-slope secant over $[0, 4]$ (dashed), the flat tangent (mint) at the turn $t = 2$ , and the two equal $4$ -m legs (butter):

Example 4 — Case D: pure round trip (zero displacement)

Example 5 — Case E: the degenerate interval (why we need the limit)

Worked example Statement

For $x (t) = t^{2}$ , try to get the velocity at $t = 3$ by using $v_{a v g}$ on the interval $[3, 3]$ . What happens, and how does the limit rescue us?

Forecast: guess what $\frac{Δ x}{Δ t}$ does when the two times are the same.

Try $[3, 3]$ : $Δ x = x (3) - x (3) = 0$ and $Δ t = 3 - 3 = 0$ . So $v_{a v g} = \frac{0}{0}$ . Why is this useless? $0/0$ is undefined — a single instant has no interval to average over.
Instead shrink a tiny window $[3, 3 + h]$ , where $h$ is our small time gap (same role as $Δ t$ ). $x (3 + h) - x (3) = (3 + h)^{2} - 9 = 6 h + h^{2}$ . Why keep $h \neq = 0$ ? Only then can we divide.
$v_{a v g} = \frac{6 h + h ^{2}}{h} = 6 + h$ . Why cancel $h$ ? Legal because $h \neq = 0$ before the limit.
Let $h \to 0$ : $v (3) = 6$ m/s. Why now allowed to set $h = 0$ ? The awkward $0/0$ is gone; $6 + h$ is perfectly defined at $h = 0$ .

Verify: Shortcut $v (t) = 2 t$ , so $v (3) = 6$ ✓. The limit is precisely the tool that turns a forbidden $0/0$ into a real number — the whole reason instantaneous velocity is a derivative.

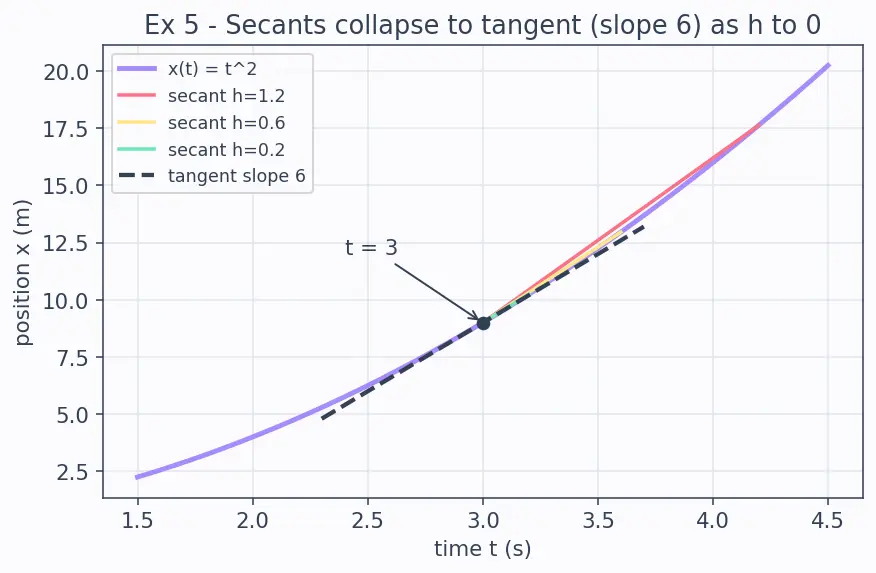

Figure — the parabola $x = t^{2}$ with three secants from $t = 3$ (coral $h = 1.2$ , butter $h = 0.6$ , mint $h = 0.2$ ) collapsing onto the dashed tangent of slope $6$ :

Example 6 — Case F: instantaneous velocity straight from the definition

Example 7 — Case G: the midpoint theorem (uniform acceleration)

Worked example Statement

Under constant acceleration $x (t) = 2 t^{2} + t$ (so $a$ is constant). Show that $v_{a v g}$ on $[2, 6]$ equals $v$ at the midpoint $t = 4$ .

Forecast: the parent note claimed this is a theorem, not luck. Predict $v_{a v g}$ and $v (4)$ separately, then compare.

$x (2) = 8 + 2 = 10$ , $x (6) = 72 + 6 = 78$ . Why? Endpoints.
$v_{a v g} = \frac{78 - 10}{6 - 2} = \frac{68}{4} = 17$ m/s. Why divide by 4? $Δ t = 4$ s.
$v (t) = \frac{d}{d t} (2 t^{2} + t) = 4 t + 1$ . Why linear? Constant acceleration $\Rightarrow$ velocity grows linearly.
Midpoint $t_{mi d} = \frac{2 + 6}{2} = 4$ . $v (4) = 16 + 1 = 17$ m/s. Why check the midpoint? For a linear $v (t)$ , its average over an interval sits exactly at the middle time.

Why the midpoint rule holds in general. Whenever velocity is linear, $v (t) = m t + c$ (here $m = 4$ , $c = 1$ ). Why start from a linear $v$ ? Constant acceleration means $v$ changes by equal amounts in equal times — that is precisely the graph of a straight line. Average velocity is the total displacement over $Δ t$ ; why bring in displacement? because $v_{a v g} = Δ x /Δ t$ by definition, and total displacement is the area under the $v (t)$ graph (this area-equals-displacement fact comes from Equations of motion under uniform acceleration — velocity accumulated over time is distance covered). So over $[p, q]$ , $v_{a v g} = \frac{1}{q - p} \int_{p}^{q} (m t + c) d t = \frac{1}{q - p} [\frac{m}{2} t^{2} + c t]_{p}^{q} = \frac{m}{2} (p + q) + c .$ Why this average-value formula? Dividing the area $\int_{p}^{q} v d t$ by the width $q - p$ is exactly "total displacement over total time" — the definition of $v_{a v g}$ written with an integral. Meanwhile $v$ at the midpoint is $v (\frac{p + q}{2}) = m \cdot \frac{p + q}{2} + c = \frac{m}{2} (p + q) + c$ — identical. So the equality is forced for any linear $v (t)$ , i.e. any uniform acceleration.

Verify: $17 = 17$ ✓, and the general formula gives $\frac{4}{2} (2 + 6) + 1 = 16 + 1 = 17$ ✓.

Example 8 — Case H: real-world multi-leg word problem

Worked example Statement

A commuter drives $12$ km east in $15$ min, stops $5$ min at a light (no motion), then $8$ km west in $10$ min. Find (a) average velocity and (b) average speed for the whole journey, in km/h.

Forecast: the stop adds time but no distance. Guess whether it raises or lowers the averages.

Net displacement $= + 12 - 8 = + 4$ km (east). Why signed sum? East $+$ , west $-$ .
Total time $= 15 + 5 + 10 = 30$ min. Why include the stop? Time keeps ticking even at rest.
Convert to hours by the ratio-of-units method: $30 min \times \frac{1 h}{60 min} = \frac{30}{60} h = 0.5 h$ . Why this trick? Multiplying by a fraction equal to $1$ ( $\frac{1 h}{60 min}$ ) cancels the "min" unit and leaves "h."
$v_{a v g} = \frac{4 km}{0.5 h} = 8$ km/h east. Why the direction? $Δ x > 0$ means net eastward.
Total distance $= 12 + 8 = 20$ km. Why add magnitudes? Path length (average-speed definition).
Average speed $= \frac{20}{0.5} = 40$ km/h.

Verify: $8 \leq 40$ ✓ (an instance of $∣ v_{a v g} ∣ \leq$ avg speed). The $5$ -min stop lowered both averages by inflating $Δ t$ while adding zero distance and zero displacement.

Example 9 — Case I: exam twist, solve for the unknown

Worked example Statement

A train has constant $v_{a v g} = 25$ m/s over a straight track and covers a displacement of $1500$ m. It then, on a second leg, must average $30$ m/s over $600$ m. Find each leg's time and the overall average velocity.

Forecast: overall average is not $(25 + 30) /2$ . Guess whether the true answer is above or below $27.5$ .

Leg 1 time: $t_{1} = \frac{Δ x}{v _{a v g}} = \frac{1500}{25} = 60$ s. Why rearrange? From $v = Δ x /Δ t$ , isolate $Δ t$ .
Leg 2 time: $t_{2} = \frac{600}{30} = 20$ s. Why same formula? Same definition, second leg.
Total displacement $= 1500 + 600 = 2100$ m; total time $= 60 + 20 = 80$ s. Why add each? Both legs run in the same direction, so their displacement arrows point the same way and simply add (no cancellation); time always accumulates leg after leg.
Overall $v_{a v g} = \frac{2100}{80} = 26.25$ m/s. Why not $27.5$ ? Averaging velocities is wrong; you must divide total displacement by total time, which weights each leg by the time it took, not equally.

Verify: $26.25$ m/s lies between $25$ and $30$ , closer to $25$ because more time was spent on the slower leg ( $60$ s vs $20$ s) ✓. This is exactly the [!mistake] the parent note warned about.

Example 10 — Case J: turning point read off a graph

Worked example Statement

A ball thrown up has $x (t) = 20 t - 5 t^{2}$ (metres, taking up as $+$ ). Find when $v = 0$ (the top), the velocity just before and just after, and confirm $v_{a v g}$ over the whole flight from launch to landing.

Forecast: at the very top the ball is momentarily still. Guess whether $v_{a v g}$ over the full up-and-down flight is zero.

$v (t) = \frac{d}{d t} (20 t - 5 t^{2}) = 20 - 10 t$ . Why? Slope of the position parabola.
Top: $v = 0 \Rightarrow 20 - 10 t = 0 \Rightarrow t = 2$ s. Why? Flat tangent = the reversal instant.
Just before ( $t = 1.9$ ): $v = 20 - 19 = + 1$ m/s (still rising). Just after ( $t = 2.1$ ): $v = 20 - 21 = - 1$ m/s (falling). Why signs flip? Direction reverses through the turning point, even though at $t = 2$ exactly $v = 0$ .
Landing: $x = 0 \Rightarrow 20 t - 5 t^{2} = 0 \Rightarrow t (20 - 5 t) = 0 \Rightarrow t = 4$ s. Why the other root? $t = 0$ is launch; $t = 4$ is landing.
Full-flight displacement $= x (4) - x (0) = 0 - 0 = 0$ , so $v_{a v g} = \frac{0}{4} = 0$ m/s.

Verify: $v$ changes sign $+ \to -$ passing through $0$ at $t = 2$ ✓ (dispelling the myth " $v$ can't be $0$ while moving"). $v_{a v g} = 0$ over the round-trip flight, matching Case D ✓.

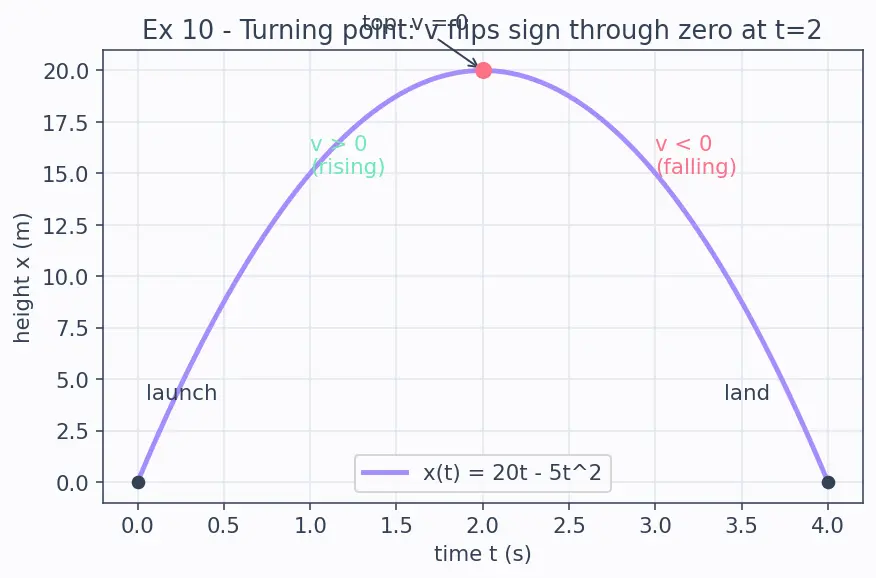

Figure — height $x (t) = 20 t - 5 t^{2}$ vs time, the flat top marked at $t = 2$ ( $v = 0$ ), rising leg labelled $v > 0$ , falling leg $v < 0$ , launch and landing at $x = 0$ :

Recall Which cell trips people up most?

Case I (exam twist) ::: because the temptation to write $(v_{1} + v_{2}) /2$ is strongest there; the fix is total displacement over total time, which time-weights the legs. In Case C and Case J, what is the instantaneous velocity at the turning instant? ::: exactly $0$ (flat tangent), even though the object is otherwise moving. State the universal law relating the two averages. ::: $∣ v_{a v g} ∣ \leq$ average speed, because path length $\geq ∣ displacement ∣$ ; equality only when motion never reverses.
