Scalars vs vectors — definition, examples: Worked examples

The scenario matrix

Before working anything, let us list every kind of case a scalar/vector problem can be. Each later example is tagged with the cell it fills. The reader should never meet a scenario we skipped.

#	Case class	What makes it special	Example that covers it
C1	Scalar addition	direction ignored, plain $A + B$	Ex 1
C2	Aligned vectors ( $θ = 0^{\circ}$ )	$cos θ = + 1$ , vector max $= A + B$	Ex 2
C3	Anti-aligned vectors ( $θ = 18 0^{\circ}$ )	$cos θ = - 1$ , vector min $=	A-B
C4	Perpendicular ( $θ = 9 0^{\circ}$ )	$cos θ = 0$ , Pythagoras	Ex 3
C5	General acute angle ( $0 < θ < 9 0^{\circ}$ )	cross term positive, need full formula	Ex 4
C6	General obtuse angle ( $9 0^{\circ} < θ < 18 0^{\circ}$ )	cross term negative	Ex 5
C7	Zero / degenerate input	one magnitude is $0$ , or both equal & opposite	Ex 6
C8	Sign of a scalar vs sign of a vector	negative means "below zero" vs "reversed"	Ex 7
C9	The direction-trap scalar	has direction but adds arithmetically	Ex 8
C10	Real-world word problem	must decide scalar vs vector yourself	Ex 9
C11	Exam-style twist	round trip, cancellation, mixed	Ex 10

We will use the accent colour red in every figure to mark the one object that matters most in that picture — usually the resultant $R$ .

Setting the notation (earned before use)

Definition The symbols we will reuse

$A$ , $B$ = the magnitudes (just numbers, the lengths of the arrows) of two quantities.
$A$ , $B$ = the arrows themselves (magnitude and direction).
$θ$ = the angle between the two arrows when they are drawn tail-to-tail (starting from the same point). $θ$ runs from $0^{\circ}$ (same way) to $18 0^{\circ}$ (opposite ways).
$R$ = the resultant, the single arrow that has the same effect as $A$ and $B$ together. Its length is $∣ R ∣$ .
$ϕ$ = the direction of the resultant, measured as the angle from $A$ towards $B$ . This tells us which way the answer points.
$cos θ$ , $sin θ$ = the "cosine" and "sine" of the angle. $cos θ$ starts at $+ 1$ when $θ = 0^{\circ}$ , falls to $0$ at $9 0^{\circ}$ , and reaches $- 1$ at $18 0^{\circ}$ . $sin θ$ starts at $0$ , rises to $+ 1$ at $9 0^{\circ}$ , and falls back to $0$ at $18 0^{\circ}$ . Together they measure how much of an arrow points "along" ( $cos$ ) versus "across" ( $sin$ ) another.

Figure — Scalars vs vectors — definition, examples

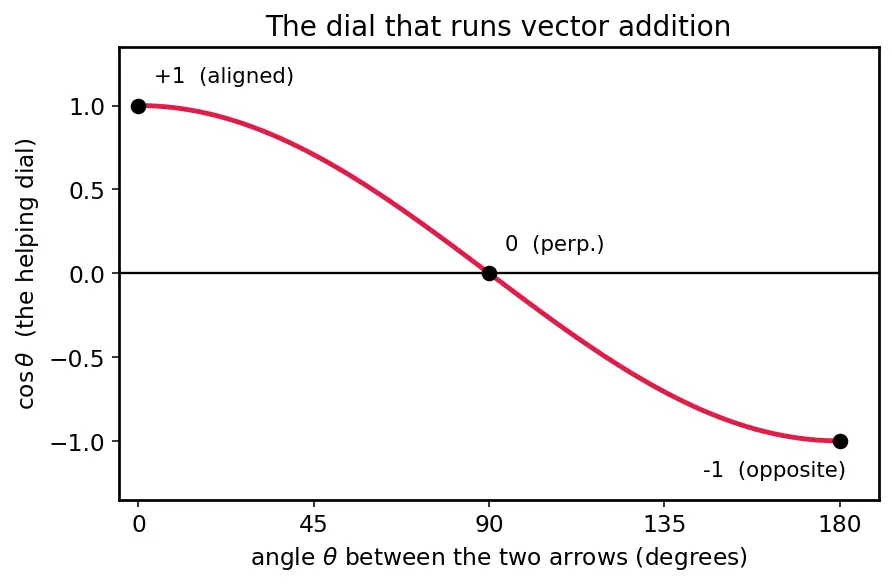

Figure s01 — The red curve is $cos θ$ , the "helping dial". At $θ = 0^{\circ}$ it reads $+ 1$ (arrows help fully), at $9 0^{\circ}$ it reads $0$ (neutral), at $18 0^{\circ}$ it reads $- 1$ (arrows fight fully). The formula multiplies the helping term $2 A B$ by this dial.

Common mistake

$arctan$ only gives you the principal angle — check the quadrant! Why it feels safe: you type $arctan$ of the ratio and read off $ϕ$ . Why it can lie: $arctan$ only ever returns an angle between $- 9 0^{\circ}$ and $+ 9 0^{\circ}$ . But the resultant can genuinely point behind $A$ when the "forward" part $A + B cos θ$ is negative (a very obtuse angle where $B$ leans backwards). Then the true $ϕ$ is more than $9 0^{\circ}$ , and the naive $arctan$ silently gives the wrong quadrant. The fix (sign test on forward & sideways):

"forward" $= A + B cos θ$ , "sideways" $= B sin θ$ (with $0^{\circ} < θ < 18 0^{\circ}$ , sideways is always $\geq 0$ ).
If forward $> 0$ : $ϕ = arctan \frac{sideways}{forward}$ — a first-quadrant angle ( $0^{\circ}$ to $9 0^{\circ}$ ). (Ex 4, Ex 5.)
If forward $= 0$ : $ϕ = 9 0^{\circ}$ exactly (resultant straight sideways).
If forward $< 0$ : $ϕ = 18 0^{\circ} + arctan \frac{sideways}{forward}$ (add $18 0^{\circ}$ because the true angle is in the second quadrant). (Ex 5b below shows this.)

Worked Examples

Ex 1 — Cell C1: plain scalar addition

Figure s02 — Two black mass blocks stacked on a pan; the red total ( $7 kg$ ) is just the arithmetic sum — no arrow, no direction. Contrast this with every later figure where the red object is a directed resultant.

Identify the quantity. Mass. Why this step? Because the addition rule is decided by what kind of quantity it is, not by the numbers.

Check the test. Mass has no direction; two masses never point "different ways". So plain arithmetic: $3 + 4 = 7 kg$ . Why this step? This is cell C1 — the scalar case where $A + B$ is always the answer.

Verify: Units: $kg + kg = kg$ ✓. A scale can't read "7 kg north", confirming mass is a scalar. Answer $= 7 kg$ — matching the forecast.

Ex 2 — Cells C2 & C3: aligned and anti-aligned vectors

Figure s03 — Top: two black force arrows the same way; the red resultant $R = 14 N$ is their full sum (max). Bottom: the arrows point opposite ways; the red resultant $R = 2 N$ is the small leftover (min).

(a) Same direction, $θ = 0^{\circ}$ . $cos 0^{\circ} = 1$ , so $∣ R ∣ = 6^{2} + 8^{2} + 2 \cdot 6 \cdot 8 \cdot 1 = 36 + 64 + 96 = 196 = 14 N .$ Why this step? When $cos θ = + 1$ the formula collapses to $(A + B)^{2} = A + B$ . This is the largest a resultant can ever be. (Cell C2.) Direction: $ϕ = 0^{\circ}$ (same way as both).

(b) Opposite directions, $θ = 18 0^{\circ}$ . $cos 18 0^{\circ} = - 1$ , so $∣ R ∣ = 6^{2} + 8^{2} - 2 \cdot 6 \cdot 8 = 36 + 64 - 96 = 4 = 2 N .$ Why this step? When $cos θ = - 1$ the formula collapses to $(A - B)^{2} = ∣ A - B ∣$ . This is the smallest magnitude possible. (Cell C3.) It points in the direction of the bigger force, the $8 N$ one.

Verify: $A + B = 14$ ✓, $∣ A - B ∣ = ∣6 - 8∣ = 2$ ✓ — both match the forecast. Every real resultant of these two forces must lie between $2 N$ and $14 N$ — a rule worth remembering.

Ex 3 — Cell C4: perpendicular (Pythagoras) — with direction

Figure s04 — Black arrows: $3 km$ East then $4 km$ North, meeting at a right angle. The red arrow is the resultant displacement $R = 5 km$ , tilted $5 3^{\circ}$ up from East.

Find the angle between the legs. East and North are $θ = 9 0^{\circ}$ apart. Why this step? The formula needs the angle between the arrows drawn tail-to-tail; a right-angle turn is $9 0^{\circ}$ .

Magnitude. $cos 9 0^{\circ} = 0$ , so the cross term dies: $∣ R ∣ = 3^{2} + 4^{2} + 0 = 9 + 16 = 25 = 5 km .$ Why this step? At $9 0^{\circ}$ the two arrows neither help nor fight, so the formula becomes pure Pythagoras. (Cell C4.)

Direction. Take $A =$ East ( $3 km$ ), $B =$ North ( $4 km$ ), $θ = 9 0^{\circ}$ so $sin 9 0^{\circ} = 1$ , $cos 9 0^{\circ} = 0$ . Forward $= 3 + 4 \cdot 0 = 3 > 0$ , so we are in the safe first-quadrant case: $tan ϕ = \frac{B s i n θ}{A + B c o s θ} = \frac{4 \cdot 1}{3 + 4 \cdot 0} = \frac{4}{3} .$ So $ϕ = arctan \frac{4}{3} \approx 5 3^{\circ}$ measured North of East. Why this step? $tan$ turns the "sideways-over-forward" ratio $\frac{4}{3}$ back into the actual tilt angle, which is what $arctan$ (the "which angle has this tan?" question) recovers.

Verify: $3$ - $4$ - $5$ right triangle: $3^{2} + 4^{2} = 25 = 5^{2}$ ✓. $arctan \frac{4}{3} = 53.1 3^{\circ} > 4 5^{\circ}$ , so it does lean more North than East — matching the forecast ✓. Distance $= 3 + 4 = 7 km$ (scalar) still differs from the $5 km$ displacement. See Distance vs Displacement.

Ex 4 — Cell C5: general acute angle — with direction

Worked example Two forces at

$6 0^{\circ}$ Forces $5 N$ ( $= A$ ) and $8 N$ ( $= B$ ) act on a point with $θ = 6 0^{\circ}$ between them. Find the resultant magnitude and its direction $ϕ$ from the $5 N$ force.

Forecast: predict now. Acute means the arrows help each other, so magnitude should beat the $9 0^{\circ}$ value ( $89 \approx 9.4$ ) — guess "around $11 N$ ". And since $B$ ( $8$ ) is stronger, $R$ should lean towards $B$ — predict $ϕ$ between $3 0^{\circ}$ and $4 5^{\circ}$ .

Pick the dial values. $cos 6 0^{\circ} = \frac{1}{2}$ , $sin 6 0^{\circ} = \frac{3}{2} \approx 0.866$ . Why this step? Acute angle ⇒ positive cosine ⇒ the cross term adds, so the resultant beats the Pythagorean value.
Magnitude. $∣ R ∣ = 5^{2} + 8^{2} + 2 \cdot 5 \cdot 8 \cdot \frac{1}{2} = 25 + 64 + 40 = 129 \approx 11.36 N .$ Why this step? Full formula, none of its pieces vanishing — cell C5, the "generic" case.
Direction. Forward $= 5 + 8 \cdot 0.5 = 9 > 0$ (first-quadrant case), so: $tan ϕ = \frac{B s i n θ}{A + B c o s θ} = \frac{8 \cdot 0.866}{5 + 8 \cdot 0.5} = \frac{6.928}{9} \approx 0.770,$ so $ϕ = arctan (0.770) \approx 37. 6^{\circ}$ from the $5 N$ force, tilted towards the $8 N$ force. Why this step? $arctan$ recovers the tilt from the sideways/forward ratio, giving the "which way" half of the answer.

Verify: Bounds: $∣5 - 8∣ = 3 \leq 11.36 \leq 13 = 5 + 8$ ✓. $129 > 89$ (bigger than the $9 0^{\circ}$ answer) ✓. And $37. 6^{\circ}$ lies between $3 0^{\circ}$ and $4 5^{\circ}$ , leaning towards the stronger force — forecast confirmed ✓.

Ex 5 — Cell C6: general obtuse angle — including the quadrant trap

Worked example Two velocities at

$12 0^{\circ}$ , then at $16 0^{\circ}$ (a) A boat's engine gives $4 m/s$ ( $= A$ ); a current pushes at $6 m/s$ ( $= B$ ), with $θ = 12 0^{\circ}$ between them. (b) Then repeat with $θ = 16 0^{\circ}$ to expose the $arctan$ quadrant trap. Find each resultant speed and direction $ϕ$ .

Forecast: predict now. Obtuse means they partly fight, so magnitude should fall below the $9 0^{\circ}$ value ( $52 \approx 7.2$ ). For (a) guess "around $5 m/s$ " with $ϕ$ swinging past $4 5^{\circ}$ ; for (b) the arrows nearly oppose, so guess an even smaller speed and a $ϕ$ that has swung past $9 0^{\circ}$ .

(a) $θ = 12 0^{\circ}$ . $cos 12 0^{\circ} = - \frac{1}{2}$ , $sin 12 0^{\circ} \approx 0.866$ . $∣ R ∣ = 4^{2} + 6^{2} + 2 \cdot 4 \cdot 6 \cdot (- \frac{1}{2}) = 16 + 36 - 24 = 28 \approx 5.29 m/s .$ Why this step? Obtuse ⇒ negative cross term (cell C6). Forward $= 4 + 6 \cdot (- 0.5) = 1 > 0$ , still first-quadrant: $tan ϕ = \frac{6 \cdot 0.866}{1} = 5.196, ϕ = arctan (5.196) \approx 79. 1^{\circ} .$ Forward is small but still positive, so $ϕ$ is steep yet under $9 0^{\circ}$ .
(b) $θ = 16 0^{\circ}$ — the trap. $cos 16 0^{\circ} \approx - 0.940$ , $sin 16 0^{\circ} \approx 0.342$ . $∣ R ∣ = 16 + 36 + 2 \cdot 4 \cdot 6 \cdot (- 0.940) = 52 - 45.1 = 6.9 \approx 2.63 m/s .$ Why this step? Now the "forward" part $= 4 + 6 \cdot (- 0.940) = 4 - 5.64 = - 1.64 < 0$ . The resultant leans behind $A$ . By the sign-test fix, we must add $18 0^{\circ}$ : $arctan \frac{6 \cdot 0.342}{- 1.64} = arctan (- 1.251) \approx - 51. 4^{\circ}, ϕ = 18 0^{\circ} + (- 51. 4^{\circ}) = 128. 6^{\circ} .$ Why this step? Naive $arctan$ handed us $- 51. 4^{\circ}$ (fourth quadrant), which is physically wrong — sideways is positive, so the arrow is above the axis but tilted back. Adding $18 0^{\circ}$ lands us in the correct second quadrant, $ϕ \approx 128. 6^{\circ}$ .

Figure s05 — Both obtuse cases from $A$ (black, along the axis). At $θ = 12 0^{\circ}$ the red resultant still tilts forward ( $ϕ \approx 7 9^{\circ}$ ). At $θ = 16 0^{\circ}$ the red resultant leans behind $A$ ( $ϕ \approx 12 9^{\circ}$ ) — the case where blindly trusting $arctan$ would mislead you.

Verify: (a) Bounds $2 \leq 5.29 \leq 10$ ✓, $28 < 52$ ✓, $ϕ = 79. 1^{\circ}$ . (b) Bounds $2 \leq 2.63 \leq 10$ ✓; forward negative ⇒ $ϕ > 9 0^{\circ}$ , and $128. 6^{\circ}$ indeed exceeds $9 0^{\circ}$ — forecast confirmed. See Speed vs Velocity for "resultant speed".

Ex 6 — Cell C7: zero and degenerate inputs

Worked example The corner cases the formula must survive

(a) A single force $7 N$ with a "second force" of $0 N$ . (b) Two equal and opposite forces of $5 N$ .

Forecast: state both answers before checking. (a) Adding nothing should leave $7 N$ pointing the original way. (b) Equal-and-opposite must cancel to exactly $0 N$ , with no meaningful direction. Commit to those.

(a) One input is zero. Set $B = 0$ : $∣ R ∣ = 7^{2} + 0 + 2 \cdot 7 \cdot 0 \cdot cos θ = 49 = 7 N .$ Why this step? If nothing is added, the resultant is just the original arrow — the formula must (and does) return $A$ for any $θ$ . Direction check: $tan ϕ = \frac{0}{7 + 0} = 0$ , so $ϕ = 0^{\circ}$ — it stays exactly along $A$ , as promised. (Degenerate cell C7.)
(b) Equal and opposite. $A = B = 5$ , $θ = 18 0^{\circ}$ , $cos 18 0^{\circ} = - 1$ : $∣ R ∣ = 5^{2} + 5^{2} - 2 \cdot 5 \cdot 5 = 25 + 25 - 50 = 0 = 0 N .$ Why this step? Perfect cancellation must give exactly zero, and it does. A zero vector has no defined direction — the $tan ϕ$ formula gives $\frac{0}{0}$ , the honest signal that "there is no arrow to point". A vector can annihilate itself; a scalar magnitude never can.

Verify: (a) $49 = 7$ ✓, independent of $θ$ , $ϕ = 0^{\circ}$ ✓. (b) $0 = 0$ ✓, direction undefined ✓. Both edge cells behave — forecast confirmed.

Ex 7 — Cell C8: what a minus sign means

Worked example Same "

$- 3$ ", two meanings A thermometer reads a temperature change of $- 3^{\circ} C$ . A car has a velocity of $- 3 m/s$ (on a rightward-positive axis). What does the minus sign mean in each?

Forecast: decide now whether these two minus signs mean the same thing. Predict: no — one means "below zero", the other means "reversed direction".

Temperature (scalar). $- 3^{\circ} C$ means "three degrees below the zero we chose". Why this step? For a scalar the sign is a position on a number line — smaller-than-zero. There is no "direction" for temperature to reverse.
Velocity (vector, in 1-D). $- 3 m/s$ means " $3 m/s$ in the opposite direction to positive" — i.e. moving left at speed $3$ . Why this step? For a vector the sign encodes direction, not smallness. The magnitude (speed) is still $3 m/s$ , a positive number.

Verify: Magnitude of the velocity $= ∣ - 3 ∣ = 3 m/s > 0$ ✓ — a magnitude is never negative. The temperature's "size below zero" genuinely is a below-zero value. Two different meanings, same symbol — forecast confirmed. (Cell C8.)

Ex 8 — Cell C9: the direction-trap scalar

Worked example Currents at a junction

At a wire junction, $2 A$ and $3 A$ flow in. Each current clearly runs along its own wire (a direction!). What flows out?

Forecast: commit now — parallelogram (giving something like $13$ ) or plain arithmetic ( $5 A$ )? Predict plain $5 A$ , because current is secretly a scalar.

Do NOT use the vector formula. Current is a scalar: charge is a counted total, conserved per Kirchhoff. Why this step? The real test (parent note) is the addition rule, not "does it have a direction". Current fails the parallelogram test.
Add arithmetically. $I_{out} = 2 + 3 = 5 A$ . Why this step? Cell C9 — a quantity with a direction that nonetheless adds like plain numbers.

Verify: If we (wrongly) treated it as a vector at, say, $9 0^{\circ}$ , we'd get $4 + 9 = 13 \approx 3.6 A$ — which would violate charge conservation. Arithmetic $5 A$ is the physical answer ✓, matching the forecast. This is why "has direction ⇒ vector" is false.

Ex 9 — Cell C10: real-world word problem (you decide)

Worked example The delivery drone

A drone flies $600 m$ North, then $800 m$ East, in $200 s$ . Find its (a) average speed and (b) average velocity magnitude.

Forecast: predict which is larger and by how much. Speed uses the full zig-zag path, velocity uses the straight shortcut — so predict speed $>$ velocity. Guess speed $= 7 m/s$ , velocity $= 5 m/s$ .

(a) Speed uses distance (scalar). Total path $= 600 + 800 = 1400 m$ . Speed $= \frac{1400}{200} = 7 m/s$ . Why this step? Speed is distance over time; distance ignores direction, so plain addition of legs. (Uses cell C1 inside.)
(b) Velocity uses displacement (vector). Legs are perpendicular ( $θ = 9 0^{\circ}$ ): displacement $= 60 0^{2} + 80 0^{2} = 360000 + 640000 = 1000000 = 1000 m$ . Velocity magnitude $= \frac{1000}{200} = 5 m/s$ . Why this step? Displacement is the straight-line vector from start to finish — cell C4 Pythagoras.

Verify: $600$ - $800$ - $1000$ is $200 \times (3, 4, 5)$ : $60 0^{2} + 80 0^{2} = 100 0^{2}$ ✓. Speed $7 > 5$ velocity ✓, matching the forecast; equality would only occur on a straight-line path.

Ex 10 — Cell C11: exam twist (round trip)

Worked example The complete lap

A runner completes one lap of a $400 m$ track in $80 s$ , ending exactly where they started. Find average speed and average velocity.

Forecast: decide now which of the two is zero. Predict: velocity $= 0$ (you end where you began), speed $\neq = 0$ (you still ran the whole loop). Guess speed $= 5 m/s$ .

Speed. Distance run $= 400 m$ , so speed $= \frac{400}{80} = 5 m/s$ . Why this step? Path length is $400 m$ regardless of the loop shape — scalar.
Velocity. Start point $=$ end point ⇒ displacement $= 0$ . So velocity $= \frac{0}{80} = 0 m/s$ . Why this step? A vector can cancel itself; every step outbound is undone by a step returning. Cell C11 stresses this cancellation the same way Ex 6(b) did with forces.

Verify: Speed $5 m/s$ ✓; velocity $0$ ✓ — matching the forecast. No paradox: "how far you travelled" (scalar, $400 m$ ) and "how far you ended up" (vector, $0 m$ ) are genuinely different questions, and this contrast is the single most-tested idea of the whole topic.

Recall Quick self-test (reveal after guessing)

Two forces $6 N$ and $8 N$ , resultant at $9 0^{\circ}$ ? ::: $36 + 64 = 10 N$ Same forces, maximum possible resultant? ::: aligned, $6 + 8 = 14 N$ Same forces, minimum possible resultant? ::: opposite, $∣6 - 8∣ = 2 N$ $5 N$ and $8 N$ at $6 0^{\circ}$ — magnitude? ::: $25 + 64 + 40 = 129 \approx 11.36 N$ $5 N$ and $8 N$ at $6 0^{\circ}$ — direction from the $5 N$ ? ::: $arctan \frac{8 s i n 6 0 ^{\circ}}{5 + 8 c o s 6 0 ^{\circ}} \approx 37. 6^{\circ}$ When is a plain $arctan$ for $ϕ$ wrong, and how do you fix it? ::: when forward $= A + B cos θ < 0$ ; then add $18 0^{\circ}$ to land in the correct (second) quadrant Why is $2 A$ + $3 A$ into a junction $= 5 A$ , not $13$ ? ::: current is a scalar; it adds arithmetically (charge conservation), not by parallelogram
