This page assumes you have seen none of the notation in the parent note. We build every symbol from the ground up, in an order where each one leans only on the ones before it.
Imagine a fair experiment — a spinning wheel, a rolled die, a measured height. Every time you run it, one thing happens. That "one thing that happens" is called an outcome.
Why the topic needs it: independence is a statement about probabilities, so we need the object P that hands out those numbers before anything else.
The symbol ∩ means "and" — the overlap of two events.
(Figure s01) — Two event-circles A (lavender) and B (coral). The picture makes the symbol ∩ concrete: the shaded lens where the circles overlap isA∩B, the region P measures when we ask "both happen".
Why the topic needs it: this multiply-rule for events is the seed. The whole idea of independent variables is: make this rule hold for every question you could ask. See Independence of events.
(Figure s02) — The three-box flow outcome → X → number shows literally what the symbol X does: a die-outcome enters the butter-coloured machine X and a bare number leaves. This is why {X∈A} below is an event — it names all outcomes whose exiting number lands in A.
The notation {X∈A} (with A now a set of numbers, like the interval (−∞,x]) is itself an event: "the number X produces lands inside A."
Why the topic needs it: independence of variables is defined by demanding {X∈A} and {Y∈B} be independent events for all number-sets A,B.
A random variable's full personality is its distribution: how its output-numbers spread out. There are three languages for it.

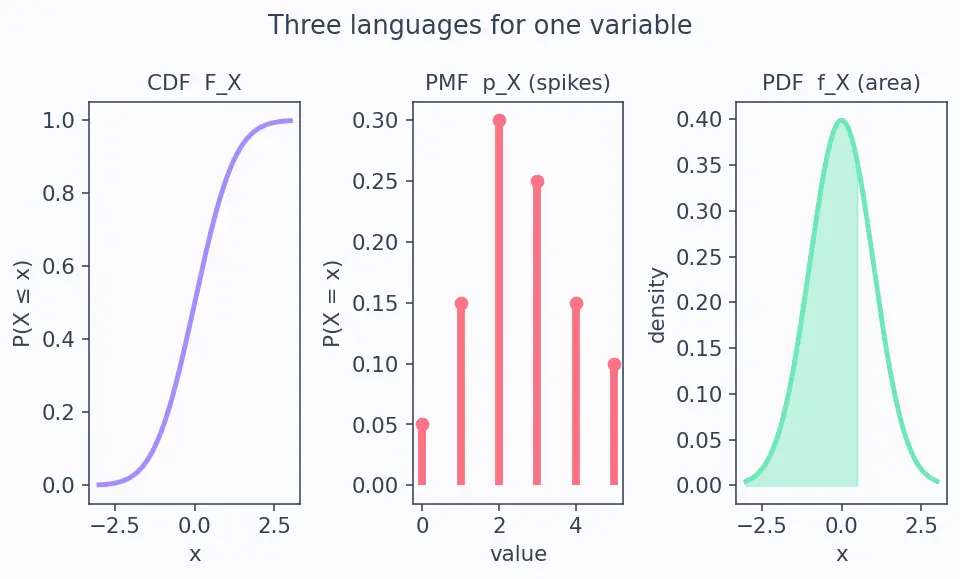

(Figure s03) — The same variable in three languages side by side: the lavender CDF climbing 0→1, the coral PMF as discrete spikes, and the mint PDF where a shaded slice of area is a probability. Reading all three off one picture is what lets you recognise the parent's CDF-, PMF- and PDF-factorisation rules as one idea.
Why the topic needs it: the parent's three criteria (CDF, PMF, PDF factorisation) are the same statement written in these three languages. You must recognise all three.
Now the star of the show. With two machines X and Y running on the same experiment, one outcome produces a pair(X,Y) — a point in the plane.

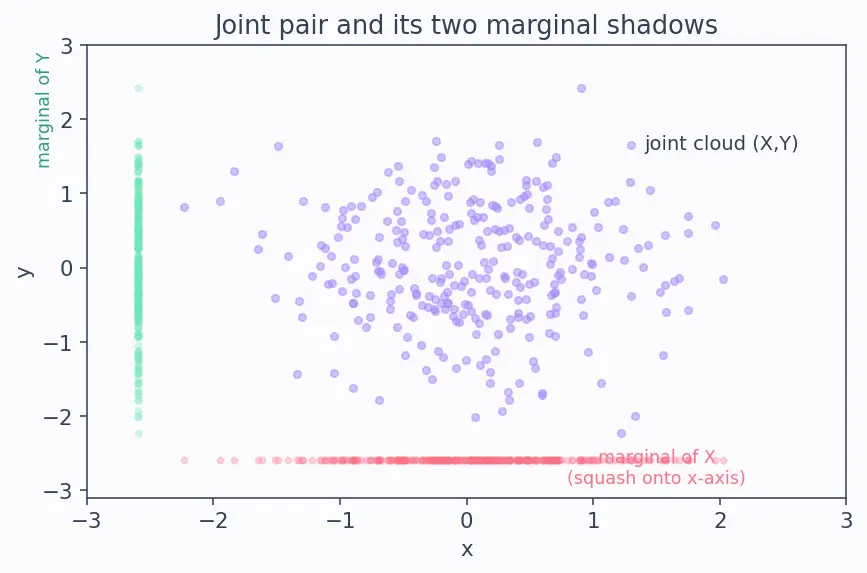

(Figure s04) — The lavender cloud is the joint pair (X,Y). Squashing every point straight down onto the x-axis (coral) forgets Y and leaves the marginal of X; squashing left onto the y-axis (mint) leaves the marginal of Y. The two shadows are exactly what the marginal integrals/sums below compute.

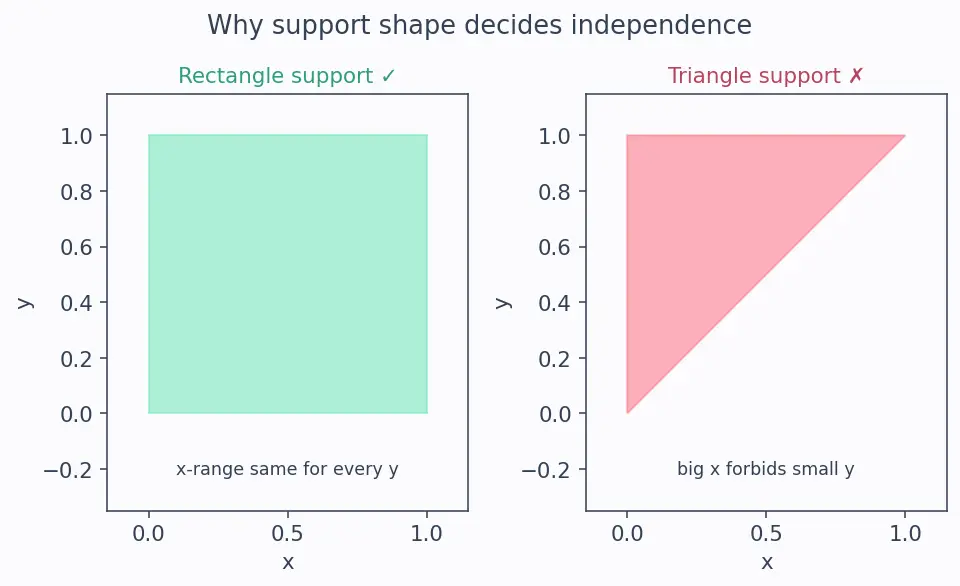

(Figure s05) — Left, a mint rectangle support: every horizontal slice offers the same range of x, so fixing y tells you nothing new about x. Right, a coral triangle support: picking a large xforbids small y. This picture is why "support must be a box" is a genuine extra condition, not decoration.
Why the topic needs it: the parent's "consequences" section shows independence forces Cov=0, and warns that the reverse fails. You need these before reading it. See Covariance and correlation.
