Foundations — Solving ODEs with Laplace (including discontinuous forcing)

Before you can read a single worked example in the parent note, you must own every mark on the page. Below, each symbol is built from nothing: plain words first, then the picture it stands for, then why the topic cannot proceed without it. Read top to bottom — each item leans on the one above.

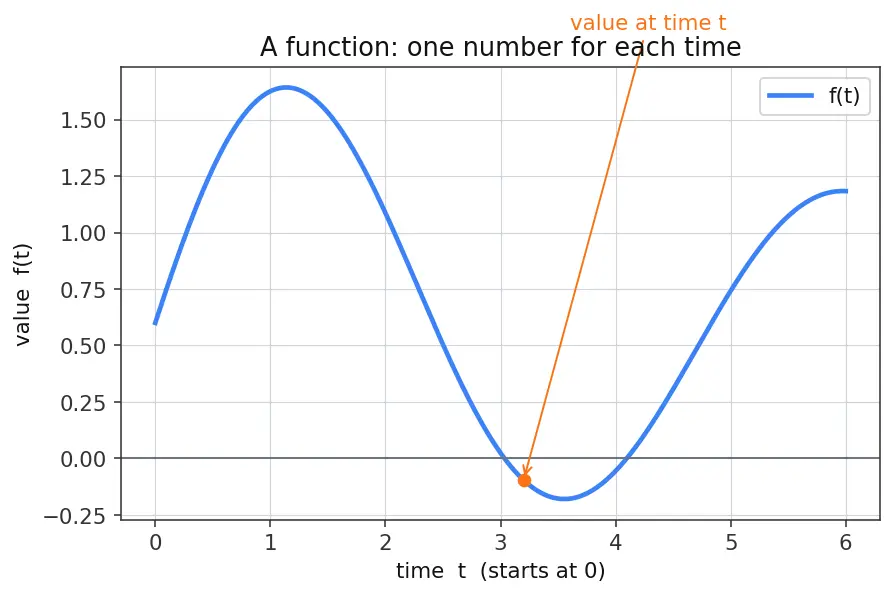

1. The time variable $t$ and a function $f(t)$

Picture. Draw a horizontal axis for $t$ and a vertical axis for the value. As your pencil moves right (time passes), the curve rises and falls. That wiggling curve IS $f$.

Why the topic needs it. Every unknown in an ODE is such a function of time — position, voltage, temperature. The whole game is: find the curve $y(t)$.

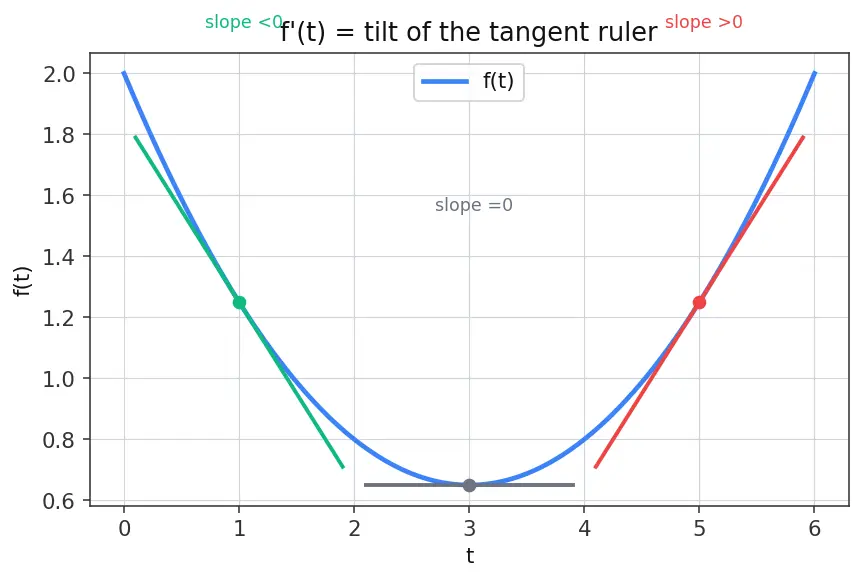

2. The derivative $f^{\prime }(t)$ — slope of the curve

Picture. Rest a tiny straight ruler on the curve at one point so it just kisses it (the tangent line). Its tilt is $f^{\prime }$ at that point. Tilt going up-right → $f^{\prime }>0$; flat → $f^{\prime }=0$; down-right → $f^{\prime }<0$.

Why the topic needs it. A differential equation is an equation that ties $y$ to its own slopes $y^{\prime }$, $y^{\prime \prime }$. That self-reference is exactly what makes it hard — and what Laplace will untangle. See Linear Constant-Coefficient ODEs for the family of equations we solve.

3. Initial conditions $f(0)$ and $f^{\prime }(0)$

Picture. On your $t$–value graph, $f(0)$ is where the curve pierces the vertical axis; $f^{\prime }(0)$ is the tilt of the curve right at that piercing point.

Why the topic needs it. An ODE alone has infinitely many solution curves (a whole family). The ICs pick out the one curve you want. The parent note's headline feature — "Laplace eats initial conditions automatically" — only means something once you know what $f(0),f^{\prime }(0)$ ARE.

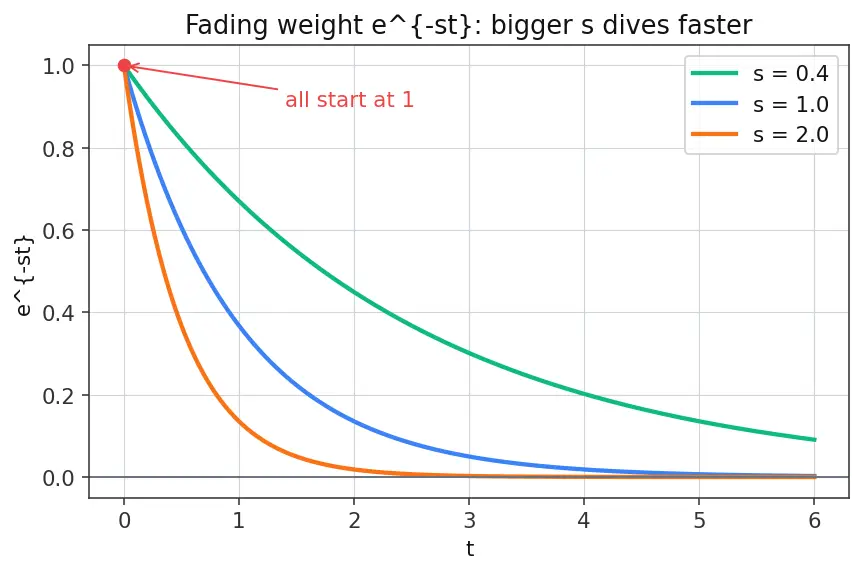

4. The exponential $e^{-st}$ — a decaying weight

Picture. A ski-slope pinned at height $1$ on the left, sinking to the ground on the right. Larger $s$ = steeper dive.

Why the topic needs it. $e^{-st}$ is the multiplier inside the Laplace integral. No other weight gives the clean derivative-to-multiplication trade.

5. The integral ${\int }_0^{\infty }$ — total accumulated area

Picture. Chop the region under the curve into infinitely thin vertical strips; add all their areas. The tall symbol $\int$ is a stretched "S" for "sum."

Why the topic needs it. The Laplace transform IS one big integral. And the whole trick "differentiation becomes multiplication by $s$" is proved by integration by parts — an area-rearranging rule — so you must be comfortable that an integral collects area.

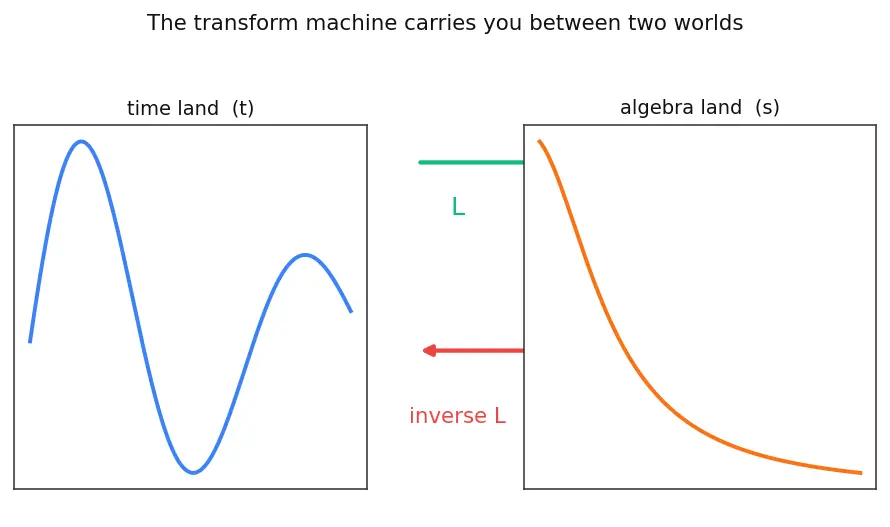

6. The transform $\mathcal{L}$ and the $s$-domain, $F(s)$

Picture. Two side-by-side worlds. Left: the wiggling curve in time ($t$). Right: a different, usually simpler curve in the $s$-land. The machine $\mathcal{L}$ is an arrow carrying you left → right; a return arrow ${\mathcal{L}}^{-1}$ carries you back.

Why the topic needs it. This is the entire strategy: leave hard $t$-land, do easy algebra in $s$-land, come home. Every symbol above ($t$, $f$, $e^{-st}$, $\int$) exists to build this one line. Deeper reasons the integral converges live in Laplace Transform — Definition and Existence.

7. The unknown $Y(s)$ and inversion ${\mathcal{L}}^{-1}$

Picture. Same two-world picture as §6, but now you start on the right (you found $Y(s)$ by algebra) and ride the return arrow left to reveal the answer curve $y(t)$.

Why the topic needs it. Step 3 of the recipe is "invert." Without a return trip, $s$-land answers are useless.

8. Partial fractions — the un-mixing tool

Picture. One heavy fraction on the left, an "=" sign, and two light lego-brick fractions on the right that you can look up individually.

Why the topic needs it. After algebra, $Y(s)$ is a messy fraction. The return machine ${\mathcal{L}}^{-1}$ only knows simple bricks. Partial fractions cuts the mess into brick-sized pieces. Full mechanics in Partial Fractions.

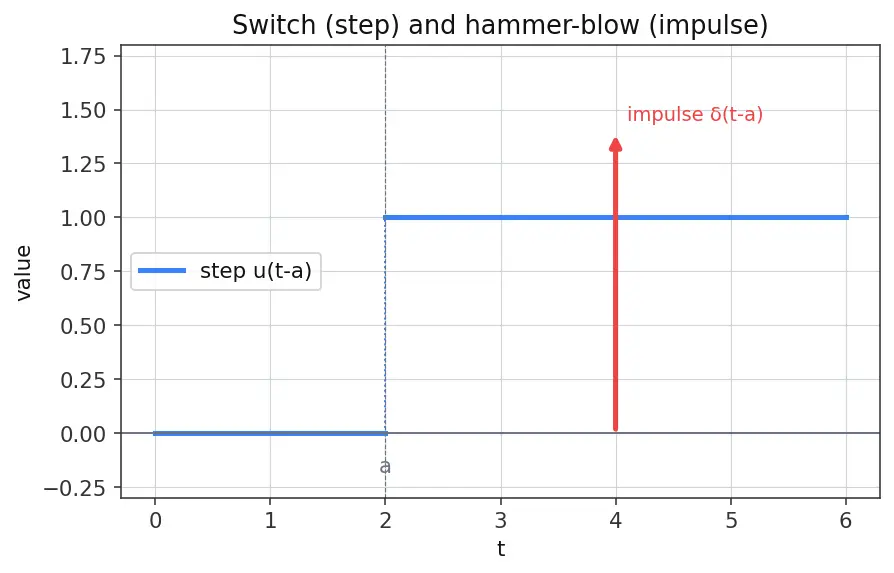

9. The step $u(t-a)$ and impulse $\delta (t-a)$ — switches and hammer-blows

Picture. The step is a flat floor that suddenly jumps up a stair at $t=a$. The impulse is a single vertical arrow standing at $t=a$.

Why the topic needs it. Real inputs turn on at a time or strike once. These two objects give clean algebra for "off, then on" and "a single kick" — the discontinuous forcing the parent topic is famous for handling. Their careful definitions live in Heaviside Step and Dirac Delta Functions.

How these feed the topic

Equipment checklist

Test yourself — cover the right side and answer before revealing.
