Vectors in ℝⁿ — operations, geometric interpretation: Worked examples

Two pieces of notation we'll lean on constantly

Two symbols appear in almost every example, so let's pin them down here in plain words before we use them.

The scenario matrix

Before working anything, let's list every case class these three operations can produce. Each row is a "cell" — a distinct situation with its own behaviour. The examples below are each tagged with the cell(s) they cover.

Cell	Operation	Scenario	What's special / the trap
A	add / scale	all-positive components	the "friendly" baseline
B	add / scale	mixed signs, negative scalar	flipping direction, sign bookkeeping
C1	scale	scalar $c = 0$	degenerate: $0 \cdot v = 0$ , direction vanishes
C2	add	adding the zero vector $0$	identity: $v + 0 = v$ , nothing changes
D	norm	normalise a vector; length of $0$	dividing by length; can't normalise $0$
E	dot	acute angle ( $θ < 9 0^{\circ}$ )	dot product positive
F	dot	right angle ( $θ = 9 0^{\circ}$ )	dot product exactly zero
G	dot	obtuse / opposite ( $θ > 9 0^{\circ}$ , or $18 0^{\circ}$ )	dot product negative
H	dot	in $R^{4}$ (no picture possible)	formula still works with no geometry to lean on
I	word problem	real displacement / force	tracking units, choosing the right operation
J	exam twist	find unknown component making $⊥$	solve an equation from $u \cdot v = 0$

Note that C1 (scaling by zero) and C2 (adding the zero vector) are different edge cases: C1 destroys an arrow, C2 leaves one untouched. Example 3 handles both, clearly separated. Ten examples follow; each header says which cell it hits.

Example 1 — Cell A (all-positive add & scale)

Worked example Combine two "friendly" arrows

Let $u = (2, 1)$ and $v = (1, 3)$ . Compute $3 u + v$ .

Forecast: Both arrows point up-and-right. Tripling $u$ makes a long right-leaning arrow, then $v$ nudges it up. Guess: the result lands somewhere far up-and-right, first component bigger than second. Write your guess.

Step 1. $3 u = (3 \cdot 2, 3 \cdot 1) = (6, 3)$ . Why this step? Scalar multiplication is component-wise — each axis is independent, so we multiply each coordinate by $3$ separately.

Step 2. $3 u + v = (6 + 1, 3 + 3) = (7, 6)$ . Why this step? Addition is also component-wise (add the east-parts, add the north-parts).

Verify: Both components positive and $7 > 6$ — matches the forecast. Sanity: $(7, 6)$ should sit tip-to-tail past $(6, 3)$ ; look at the figure — the green arrow $v$ starts where the long lavender $3 u$ ends, and the coral resultant closes the path. ✓

Figure — Vectors in ℝⁿ — operations, geometric interpretation

Example 2 — Cell B (mixed signs, negative scalar)

Worked example Subtraction is scaling by

$- 1$ then adding Let $u = (1, 2)$ , $v = (3, - 1)$ . Compute $2 u - v$ .

Forecast: $v$ points down-right (its second component is negative). Subtracting it means adding its flip, which points up-left. So the answer should drift left and up compared to $2 u$ . Guess the signs of the two components.

Step 1. $2 u = (2, 4)$ . Why this step? Component-wise scaling.

Step 2. $- v = (- 3, + 1)$ . Why this step? Subtracting $v$ is the same as adding $(- 1) v$ . Multiplying by $- 1$ flips the direction — every sign reverses, so $(3, - 1) \to (- 3, 1)$ .

Step 3. $2 u - v = (2 - 3, 4 + 1) = (- 1, 5)$ . Why this step? Add component-wise.

Verify: First component negative (drifted left), second positive and larger (drifted up) — exactly the forecast. In the figure, the dashed coral arrow is $- v$ pointing up-left, and the resultant lands in the upper-left region. ✓

Example 3 — Cells C1 & C2 (the two distinct degenerate cases)

Worked example Scaling by zero (C1) vs. adding the zero vector (C2)

Cell C1: (a) Compute $0 \cdot (5, - 7)$ . Cell C2: (b) Compute $(4, - 2) + 0$ where $0 = (0, 0)$ . Then (c) what is $∥ 0 ∥$ ?

Forecast: These two edge cases behave oppositely. Scaling by $0$ should destroy the arrow (shrink it to nothing). Adding "no movement" should preserve the arrow (change nothing). The length of "no arrow" should be $0$ .

Step 1 (C1, part a). $0 \cdot (5, - 7) = (0 \cdot 5, 0 \cdot (- 7)) = (0, 0) = 0$ . Why this step? Component-wise scaling; each coordinate times $0$ is $0$ . This is the C1 behaviour: the direction vanishes — a zero-length arrow points nowhere.

Step 2 (C2, part b). $(4, - 2) + (0, 0) = (4 - 0 - no, \cdot) = (4 + 0, - 2 + 0) = (4, - 2)$ . Why this step? This is the C2 behaviour, completely different from C1: $0$ is the additive identity. Adding "move zero east, zero north" leaves you exactly where you were — the arrow is untouched, not destroyed.

Step 3 (part c). $∥ 0 ∥ = 0^{2} + 0^{2} = 0$ . Why this step? The norm formula (length as root-sum-of-squares) still applies; all squared components are $0$ , so the length is $0$ .

Verify: C1 collapsed the arrow to $0$ ; C2 left $(4, - 2)$ unchanged — the two cases are genuinely different, as forecast. ⚠️ Watch out: because $∥ 0 ∥ = 0$ , you can never normalise $0$ — dividing by $0$ is undefined. The zero vector has no direction. ✓

Example 4 — Cell D (normalising, and why it can't fail here)

Worked example Turn a vector into a unit arrow

Normalise $w = (- 6, 8)$ .

Forecast: $w$ points up-left. The unit version points the same way but has length exactly $1$ , so its components must be smaller in size. Guess whether both stay the same sign.

Step 1. $∥ w ∥ = (- 6)^{2} + 8^{2} = 36 + 64 = 100 = 10$ . Why this step? We need the current length (the norm) before we can rescale to $1$ . Note $(- 6)^{2} = 36$ — the sign disappears under squaring, which is why length is always positive.

Step 2. $\hat{w} = \frac{1}{10} (- 6, 8) = (- 0.6, 0.8)$ . Why this step? Dividing every component by the length $10$ shrinks the arrow to length $1$ without rotating it — direction (both signs) is untouched. The hat marks it as the unit version.

Verify: Check the new length: $(- 0.6)^{2} + (0.8)^{2} = 0.36 + 0.64 = 1 = 1$ . ✓ Unit length confirmed, signs preserved (still up-left) — matches forecast.

Example 5 — Cell E (acute angle → positive dot)

Worked example Two arrows that mostly agree

$a = (3, 1)$ , $b = (2, 2)$ . Find the angle $θ$ between them.

Forecast: Both point up-right, fairly close in direction. So $cos θ$ should be close to $1$ , i.e. $θ$ small (well under $9 0^{\circ}$ ), and the dot product should be positive.

Step 1. $a \cdot b = 3 \cdot 2 + 1 \cdot 2 = 6 + 2 = 8$ . Why this step? Sum of products of matching components — this single number encodes alignment. Positive already tells us the angle is acute.

Step 2. $∥ a ∥ = 9 + 1 = 10$ , $∥ b ∥ = 4 + 4 = 8 = 22$ . Why this step? The identity boxed above, $a \cdot b = ∥ a ∥∥ b ∥ cos θ$ , needs both lengths (norms) to isolate $cos θ$ .

Step 3. $cos θ = \frac{8}{10 \cdot 2 2} = \frac{8}{2 20} = \frac{8}{4 5} = \frac{2}{5} \approx 0.894$ . Why this step? Rearranged the boxed identity to solve for $cos θ$ . The radicals simplify using the rule $a \cdot b = ab$ : so $10 \cdot 2 = 20$ , giving $10 \cdot 22 = 220$ in the denominator. Then $20 = 4 \cdot 5 = 25$ (pull the perfect square $4$ out as $2$ ), so $220 = 45$ ; cancel the $8$ on top with the $4$ to land at $\frac{2}{5}$ .

Step 4. $θ = arccos (0.894) \approx 26.5 7^{\circ}$ . Why this step? $arccos$ answers "which angle has this cosine?" — it undoes the cosine.

Verify: $θ \approx 26. 6^{\circ}$ is small and acute, dot product positive — forecast holds. Figure shows the tight sliver of angle between the two nearly-aligned arrows. ✓

Example 6 — Cell F (right angle → zero dot)

Example 7 — Cell G (obtuse and fully opposite → negative dot)

Worked example Arrows that disagree

(a) $c = (- 1, 2)$ , $d = (3, 1)$ : acute, right, or obtuse? (b) $e = (2, 1)$ , $f = (- 2, - 1)$ : find the angle.

Forecast: For (a), $c$ leans left, $d$ leans right — they seem to disagree, so guess obtuse (dot negative). For (b), $f$ is exactly $- e$ , i.e. the flip, so they point opposite — guess $18 0^{\circ}$ .

Step 1 (a). $c \cdot d = (- 1) (3) + (2) (1) = - 3 + 2 = - 1$ . Why this step? A negative dot product means $cos θ < 0$ , hence $θ > 9 0^{\circ}$ — obtuse. We don't even need the full angle to classify it; the sign alone tells us.

Step 2 (b). $e \cdot f = (2) (- 2) + (1) (- 1) = - 4 - 1 = - 5$ . $∥ e ∥ = ∥ f ∥ = 5$ , so $cos θ = \frac{- 5}{5 \cdot 5} = \frac{- 5}{5} = - 1$ . Why this step? $cos θ = - 1$ is the most negative cosine can be — it means the arrows point in exactly opposite directions.

Step 3 (b). $θ = arccos (- 1) = 18 0^{\circ}$ . Why this step? $arccos (- 1) = 18 0^{\circ}$ , a straight line — the two arrows are anti-parallel.

Verify: (a) dot $= - 1 < 0$ ⟹ obtuse ✓. (b) $θ = 18 0^{\circ}$ matches " $f = - e$ ". Figure shows $c, d$ opening wide past a right angle, and $e, f$ on one straight line pointing opposite ways. ✓

Example 8 — Cell H (dimension 4, no picture)

Worked example When you can't draw it, trust the formula

In $R^{4}$ , let $u = (1, 0, - 1, 2)$ and $v = (2, 3, 0, 1)$ . Find $u \cdot v$ and $∥ u ∥$ .

Forecast: We can't picture 4D, but the algebra is identical — sum products of matching components, and length is the square root of the sum of squares. Guess whether the dot is positive.

Step 1. $u \cdot v = (1) (2) + (0) (3) + (- 1) (0) + (2) (1) = 2 + 0 + 0 + 2 = 4$ . Why this step? The dot product formula $\sum u_{i} v_{i}$ has no dimension limit — it works the same in $R^{4}$ as in $R^{2}$ . Nothing about it needs a picture.

Step 2. $∥ u ∥ = 1^{2} + 0^{2} + (- 1)^{2} + 2^{2} = 1 + 0 + 1 + 4 = 6 \approx 2.449$ . Why this step? The norm is repeated Pythagoras, one perpendicular axis at a time — do it four times and you still just add up the squares.

Verify: Dot $= 4 > 0$ , so if we could see them the angle would be acute. Length $6$ is a plain positive number. The formulas never needed geometry — that's the power of $R^{n}$ . ✓

Example 9 — Cell I (real-world word problem, with units)

Worked example Two legs of a hike

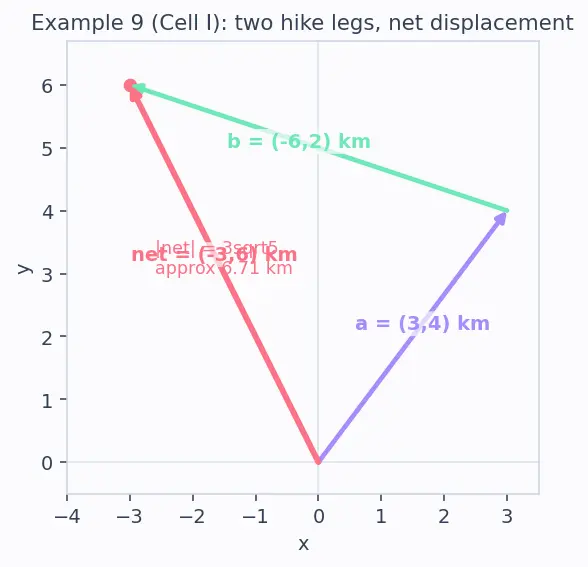

A hiker walks $a = (3, 4)$ km (3 km east, 4 km north), then $b = (- 6, 2)$ km. Find (a) their final position from start, and (b) the straight-line distance walked from start.

Forecast: First leg goes up-right, second goes far up-left. The net should end up left of start but higher up. The straight-line distance should be less than the total path (3+4+... walked). Guess the sign of the east-component of the final position.

Step 1 (a). Final position $= a + b = (3 - 6, 4 + 2) = (- 3, 6)$ km. Why this step? Doing two displacements in a row is tip-to-tail addition — the natural meaning of adding vectors. Units stay km throughout.

Step 2 (b). Distance from start $= ∥ (- 3, 6) ∥ = (- 3)^{2} + 6^{2} = 9 + 36 = 45 = 35 \approx 6.708$ km. Why this step? Straight-line distance is the length of the resultant displacement — the norm. Squaring $- 3$ removes the sign, so "went west" still adds positively to distance.

Verify: Final east-component $- 3$ (ended up west of start) matches the forecast; north $+ 6$ (higher up) makes sense. Units: $km^{2} = km$ ✓. The figure shows the two legs tip-to-tail and the straight coral resultant. ✓

Example 10 — Cell J (exam twist: solve for a missing component)

Worked example Make it perpendicular

For which value of $k$ is $s = (k, 2)$ perpendicular to $t = (4, - 3)$ ?

Forecast: Perpendicular means the dot product is forced to $0$ . That's one equation, one unknown — so a single value of $k$ should pop out. Guess whether $k$ is positive.

Step 1. Perpendicular $⟺ s \cdot t = 0$ . Why this step? This is the algebraic definition of a right angle — turn the geometric condition into an equation we can solve. (A zero dot means $cos θ = 0$ , i.e. $θ = 9 0^{\circ}$ .)

Step 2. $s \cdot t = (k) (4) + (2) (- 3) = 4 k - 6$ . Why this step? Apply the dot-product formula (matching components multiplied and summed), leaving $k$ symbolic since it is the unknown we're solving for.

Step 3. Set the dot product to zero and solve: $4 k - 6 = 0 ⟹ 4 k = 6 ⟹ k = \frac{6}{4} = \frac{3}{2} = 1.5.$ Why this step? The perpendicular condition from Step 1 says the expression from Step 2 must equal $0$ ; this is a linear equation in one unknown, so we isolate $k$ by adding $6$ to both sides then dividing by $4$ .

Verify: Substitute $k = 1.5$ back: $s \cdot t = (1.5) (4) + (2) (- 3) = 6 - 6 = 0$ ✓. The dot product vanishes, so $s = (1.5, 2)$ really is perpendicular to $t$ , and $k = 1.5 > 0$ as forecast. Final answer: $k = \frac{3}{2}$ .

Recall Which sign of the dot product means what?

Positive dot ::: acute angle ( $θ < 9 0^{\circ}$ ) — arrows mostly agree. Zero dot ::: right angle ( $θ = 9 0^{\circ}$ ) — perpendicular. Negative dot ::: obtuse angle ( $θ > 9 0^{\circ}$ ); and $cos θ = - 1$ (dot at its most negative) means exactly opposite ( $18 0^{\circ}$ ). Can you normalise the zero vector? ::: No — its length is $0$ and dividing by $0$ is undefined; it has no direction. What does scaling by a negative $c$ do? ::: Stretches length by $∣ c ∣$ and flips the arrow to the opposite direction. What does the norm symbol $∥ v ∥$ mean? ::: The length of the arrow, $v_{1}^{2} + \dots + v_{n}^{2}$ .
