Double integrals over general regions — Type I and II: Foundations

Before you can read a single formula on the parent page, you need to own every symbol it uses without hesitation. This page builds them all from the ground up, each one earning its place before the next arrives.

1. The plane and a point $(x, y)$

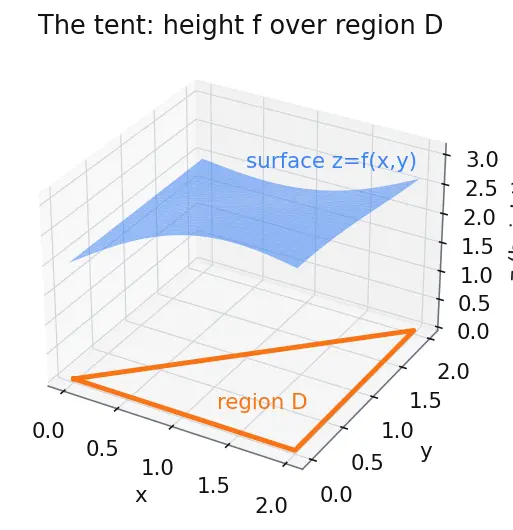

Figure — Double integrals over general regions — Type I and II

$x$ ::= how far right (or left, if negative).
$y$ ::= how far up (or down, if negative).
Why the topic needs it: every region $D$ is a set of these points, and $f (x, y)$ reads off a value at each one. No point, no integral.

2. A region $D$ and the symbol $\subseteq$

The curly-brace notation the parent uses, $D = {(x, y) : a \leq x \leq b, g_{1} (x) \leq y \leq g_{2} (x)},$ reads out loud as: " $D$ is the set of all points $(x, y)$ such that ( $:$ means such that) $x$ lies between $a$ and $b$ , and $y$ lies between the two curves." The braces ${}$ mean "the collection of," and the colon $:$ is the gate that lists the entry rules.

Why the topic needs it: the whole method is about writing $D$ in exactly this "such-that" form. Once you can, the limits fall out automatically.

3. A function $f (x, y)$ and the surface $z = f (x, y)$

Why the topic needs it: $f$ is the thing being integrated; if $f \equiv 1$ (constant height 1) the trapped "air" is just the area of $D$ — the sanity check on the parent page.

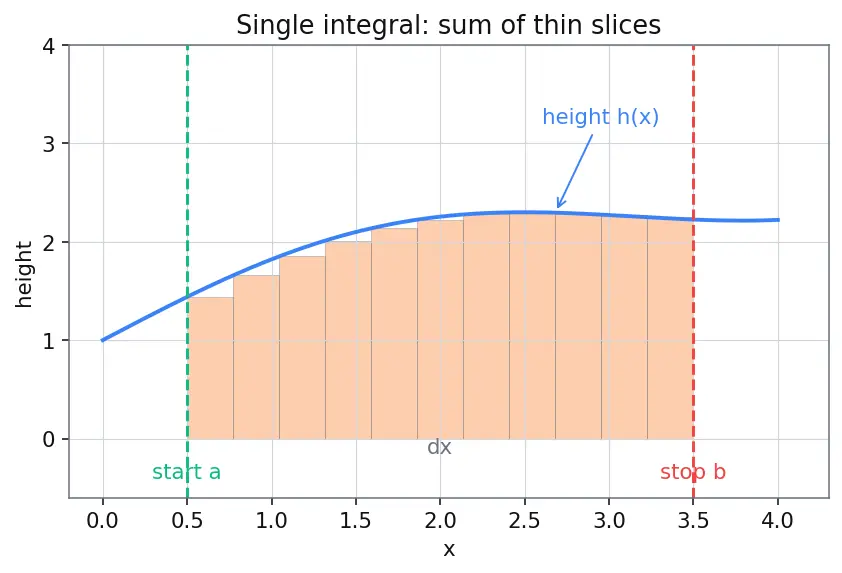

4. The integral sign $\int$ — an infinite sum

Read the parts:

$\int$ ::= "add up infinitely many tiny pieces."
$a$ (bottom) and $b$ (top) ::= where the sweep starts and stops.
$d x$ ::= the infinitely thin width of one slice, and it names the variable we sweep.

Why the topic needs it: the parent's iterated integral is just two of these sweeps stacked — you cannot read $\int_{a}^{b} \int_{g_{1}}^{g_{2}}$ without first owning one.

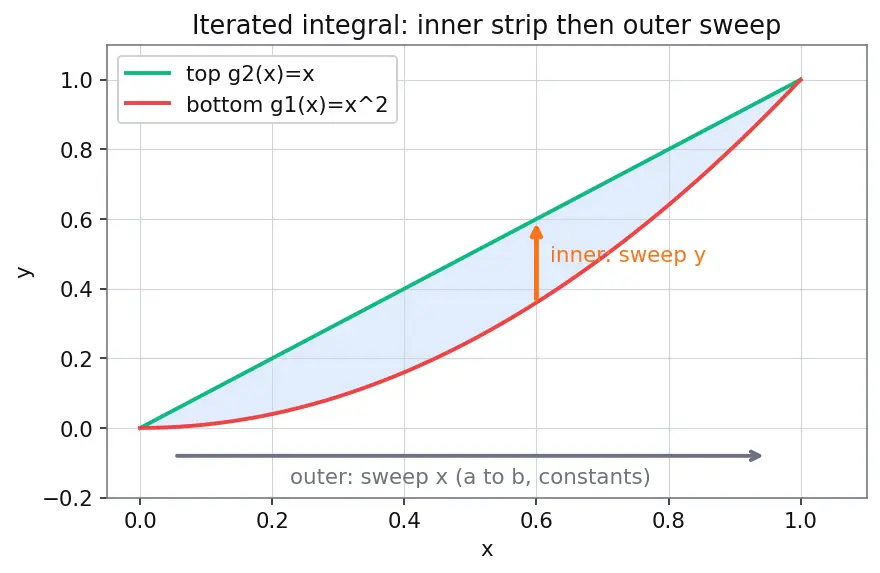

5. From one $\int$ to two — the iterated integral

The golden reading rule, now that you have the symbols:

Inner limits ( $g_{1} (x), g_{2} (x)$ ) may depend on the outer variable $x$ — because as you slide the strip sideways, its top and bottom move.
Outer limits ( $a, b$ ) must be plain constants — because after summing every strip there is nothing left to depend on.
Why the topic needs it: this is the entire deliverable of Type I / Type II — turning $\iint_{D}$ into two ordinary sweeps.

6. $d A$ — the area element

Why the topic needs it: $d A$ is coordinate-free (it doesn't care which way you slice). Choosing $d A = d y d x$ vs $d x d y$ is exactly the choice between Type I and Type II.

7. Curves as boundaries: $g_{1} (x), g_{2} (x)$ and $h_{1} (y), h_{2} (y)$

8. The prerequisite map

Read it top to bottom: points build a region and feed a function; the function makes a surface; single sweeps combine into iterated sweeps; boundary curves and the area element supply the limits — and all of it pours into the Type I / Type II formulas.

9. Where these prerequisites lead next

Once the symbols above are second nature, these vault pages become readable:

Fubini's Theorem — the guarantee that inner-then-outer equals outer-then-inner.
Double integrals over rectangles — the constant-limit warm-up case.
Changing the order of integration — swapping $d y d x$ for $d x d y$ by re-reading the boundary.
Area between two curves — the $f \equiv 1$ special case in disguise.
Polar coordinates double integrals, Centre of mass and moments, Jacobian and change of variables — later payoffs that all reuse this machinery.

Equipment checklist

Test yourself — cover the right side and answer aloud.

What does $(x, y)$ locate? ::: A single point: $x$ right, $y$ up, on the flat plane $R^{2}$ .
Read $D = {(x, y) : \dots}$ in words. ::: "The set of all points $(x, y)$ such that the listed conditions hold."
What does $\subseteq$ mean? ::: "Is a subset of" — every point of the left set is also in the right set.
What is $f (x, y)$ ? ::: A machine turning a point into one number (a height above the plane).
What surface does $z = f (x, y)$ draw? ::: A curved roof / tent hovering over the region.
What does the symbol $\int$ stand for? ::: A continuous sum of infinitely many infinitely-thin pieces.
What do the bottom and top numbers on $\int$ mean? ::: Where the sweep starts and stops.
What does $d x$ do (two jobs)? ::: Marks the tiny slice width and names the variable being swept.
In an iterated integral, which limits may contain a variable? ::: Only the inner limits, and only the outer variable — never the outer limits.
Why must outer limits be constants? ::: After summing all strips nothing is left to depend on, so the result is a plain number.
What is $d A$ , and how does it become $d y d x$ ? ::: A tiny tile of area; concretely a $d x$ -wide, $d y$ -tall rectangle.
$g_{1} (x)$ vs $h_{1} (y)$ — what's the difference? ::: $g$ gives $y$ from $x$ (vertical strips, Type I); $h$ gives $x$ from $y$ (horizontal strips, Type II).
