Ratio test — proof, limitations: Foundations

Before we can even read the parent note Ratio Test — Proof & Limitations, we must own every squiggle it writes. Below, each symbol gets three things: plain words, a picture, and why the topic needs it. They are ordered so each one only uses ideas already built.

1. A sequence: $a_{n}$

Picture: a row of numbered mailboxes. Box number $n$ holds the number $a_{n}$ .

Figure — Ratio test — proof, limitations

Why the topic needs it: the ratio test is about a list of terms and how one term relates to its neighbour. No sequence, nothing to test.

2. The neighbour: $a_{n + 1}$

Picture: stand at box $n$ and look one door to the right. That neighbour is $a_{n + 1}$ .

Why the topic needs it: the entire test compares each term to the one right after it. Without a name for "the next term," we cannot even write the ratio.

3. Adding it all up: $\sum a_{n}$

Picture: stack the mailbox values on top of each other into one growing tower of height $a_{1}$ , then $a_{1} + a_{2}$ , then $a_{1} + a_{2} + a_{3}$ , …

Why the topic needs it: the whole question — does this converge? — is a question about this tower. Does it settle at a finite height, or shoot to infinity?

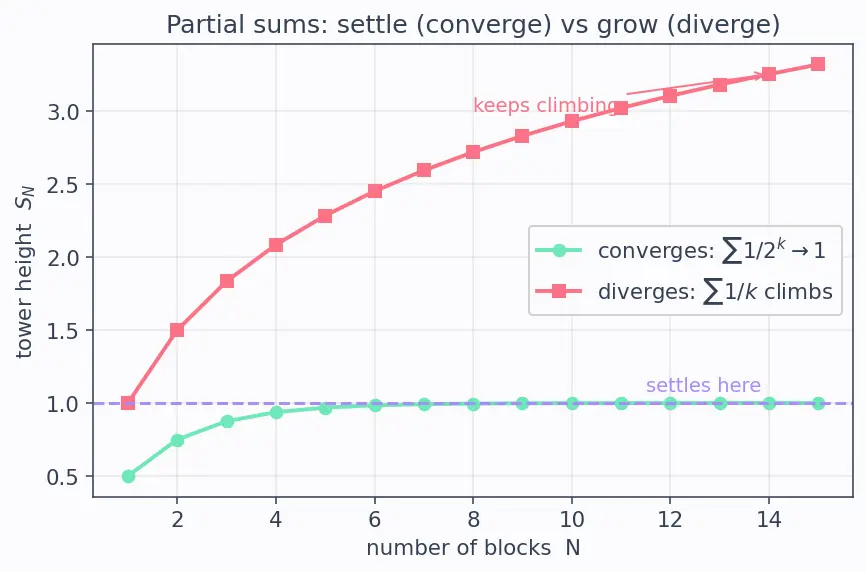

4. Partial sums and "convergence"

Picture: watch the tower's top edge as you add blocks. Converge = the edge homes in on a horizontal line. Diverge = the edge marches upward forever.

Why the topic needs it: "converges" and "diverges" are the two verdicts the ratio test hands out. This is the meaning behind those words.

5. Absolute value: $∣ x ∣$

Picture: fold the negative number line onto the positive side; $∣ x ∣$ is how far from the origin you land.

6. The ratio: $\frac{a _{n + 1}}{a _{n}}$

Picture: two blocks side by side. Measure the height of the new block as a multiple of the old one.

Why the topic needs it: this single number is the heart of the test. Why a ratio and not a difference? Because our benchmark, the geometric series, is built by repeated multiplying — so the natural comparison is "what did we multiply by," which is exactly a ratio.

7. The benchmark: geometric series $\sum r^{k}$

Picture: each block a fixed fraction of the last (say each is $\frac{2}{3}$ of the previous). The tower visibly closes in on a ceiling.

Why the topic needs it: this is the only series whose fate we know for certain by inspection. The ratio test works by squeezing your unknown series against this known one — that squeeze is the Comparison Test.

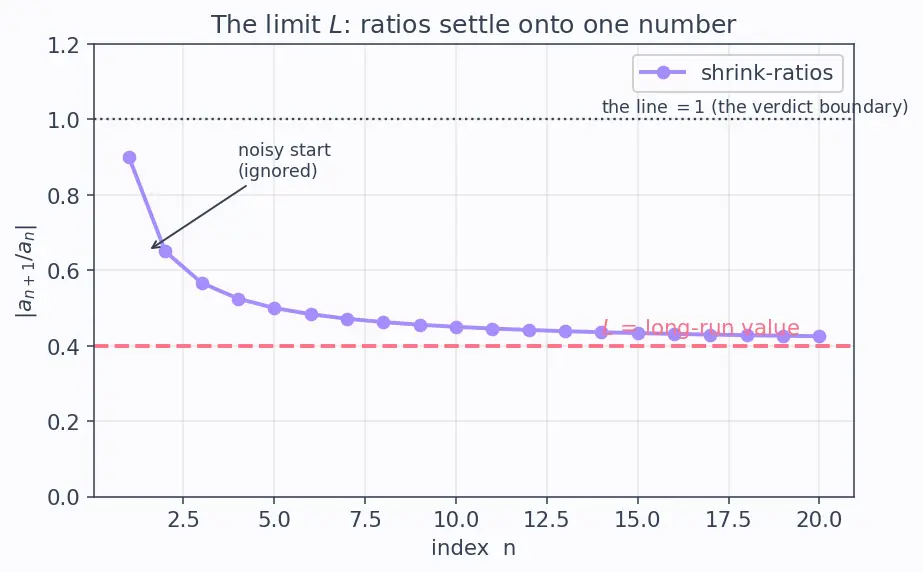

8. The limit: $L = n \to \infty lim \frac{a _{n + 1}}{a _{n}}$

Picture: plot the shrink-ratios $\frac{a _{2}}{a _{1}}, \frac{a _{3}}{a _{2}}, \dots$ as dots. $L$ is the horizontal line they hug in the long run.

Why the topic needs it: $L$ is the output of the test. The three verdicts — $L < 1$ converge, $L > 1$ diverge, $L = 1$ inconclusive — are all statements about this one number.

9. Infinity and " $\infty$ "

Picture: the dot-plot of ratios climbing off the top of the page, never levelling.

Prerequisite map

Read it top to bottom: mailboxes ( $a_{n}$ ) and their neighbours ( $a_{n + 1}$ ) give a ratio; wrapping in absolute value makes it a size; the limit turns the whole tail into one number $L$ ; meanwhile the geometric series gives a known benchmark, and the comparison squeeze against it delivers the verdict — that is the ratio test.

Equipment checklist

Test yourself — reveal only after answering.

What does the index

n

represent, and what does

a_{n}

hold?

n

is a counting-number address (

1, 2, 3, \dots

);

a_{n}

is the value stored at that address.

What is

a_{n + 1}

in words?

The very next term, one step after

a_{n}

What instruction does

\sum_{n = 1}^{\infty} a_{n}

give?

Start at

n = 1

and add every term forever.

What is a partial sum

S_{N}

The running total of just the first

N

terms:

a_{1} + \dots + a_{N}

When does a series converge?

When its partial sums

S_{N}

settle onto a finite number as

N \to \infty

What is

∣ x ∣

geometrically?

The distance of

x

from

0

— its size, ignoring sign.

Why does the test wrap the ratio in

∣ \cdot ∣

It compares term sizes; signs would break the geometric comparison, so we strip them.

What does the shrink-ratio

\frac{a _{n + 1}}{a _{n}}

measure?

The factor by which a term changes size compared to the term before it.

What is the common ratio

r

of a geometric series?

The fixed number each term is multiplied by to get the next.

When does

\sum r^{k}

converge?

Exactly when

∣ r ∣ < 1

What does

L = lim_{n \to \infty} \frac{a _{n + 1}}{a _{n}}

report?

The long-run, settled value of the shrink-ratio (the tail's behaviour).

What does

L = \infty

mean?

The ratios grow without bound; terms explode and the series diverges.

Connections

Geometric Series — the benchmark every symbol here is building toward.
Comparison Test — the squeeze that turns the benchmark into a verdict.
Term Test (nth-term divergence) — the quick $a_{n} \to 0$ check behind the $L > 1$ case.
Back to the parent: Ratio Test
