Surface area of revolution

What are we computing?

WHAT we add up: the lateral (side) area of infinitely many thin bands. WHY a band and not a disk: we want the surface, so each slice contributes its outer edge, a ring of circumference $2\pi r$ .

Deriving the formula from scratch

Step 1 — Area of one frustum (truncated cone)

A full cone of slant height $L$ and base radius $r$ has lateral area $\pi r L$ (unroll it into a sector). A frustum is the difference of two cones; algebra gives:

$A_{\text{frustum}} = \pi (r_1 + r_2)\,\ell$

where $\ell$ is the slant height of the band. Why this step? Because $\tfrac{r_1+r_2}{2}$ is the average radius — so it's "average circumference $\times$ slant length", exactly like a cylinder unrolled.

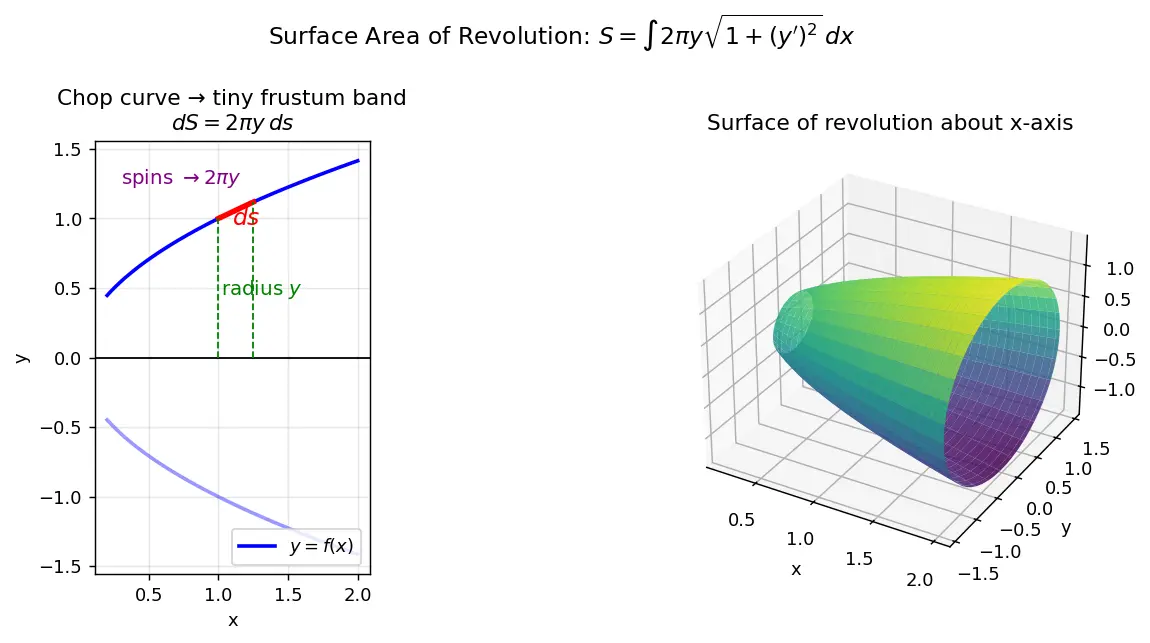

Step 2 — Make the band infinitesimal

For a tiny piece, $r_1 \approx r_2 \approx y$ (the height of the curve), and the slant length $\ell$ becomes the arc-length element $ds$ . So:

$dS = 2\pi\, y\, ds$

Why $2\pi y$ ? It's the circumference of the circle the point $y$ traces. Why $ds$ and not $dx$ ? Because the surface wraps along the tilted curve, not its flat shadow.

Step 3 — Express $ds$ (arc length element)

From Pythagoras on a tiny right triangle with legs $dx$ and $dy$ :

$ds = \sqrt{dx^2 + dy^2} = \sqrt{1+\left(\tfrac{dy}{dx}\right)^2}\,dx$

Step 4 — Integrate

Worked Examples

Worked example Example 1 — Sphere from a semicircle

Rotate $y=\sqrt{r^2-x^2}$ , $x\in[-r,r]$ , about the x-axis. Find $S$ .

Step 1: $\dfrac{dy}{dx} = \dfrac{-x}{\sqrt{r^2-x^2}}$ . Why? Chain rule on the square root. Step 2: $1+\left(\tfrac{dy}{dx}\right)^2 = 1+\dfrac{x^2}{r^2-x^2}=\dfrac{r^2}{r^2-x^2}$ . Why? Common denominator — the $r^2-x^2$ cancels nicely. Step 3: $\sqrt{\cdots}=\dfrac{r}{\sqrt{r^2-x^2}}$ . Step 4: $y\cdot\sqrt{\cdots}=\sqrt{r^2-x^2}\cdot\dfrac{r}{\sqrt{r^2-x^2}}=r$ . Why this is beautiful: the $y$ and the square-root cancel, leaving a constant! Step 5: $S=\int_{-r}^{r}2\pi r\,dx = 2\pi r\cdot 2r = \boxed{4\pi r^2}.$ This is the famous sphere surface area — derived from scratch. ✅

Common Mistakes (Steel-man + Fix)

Recall Feynman: explain to a 12-year-old

Imagine wrapping a ribbon around a spinning top to cover its whole surface. Cut the top's outline into tiny slanted stairs. Each tiny stair, when it spins, makes a thin ring. A ring's area is "how far around" ( $2\pi \times$ distance from the middle pole) times "how long the slanted edge is." Add up all the rings and you've painted the whole shape. The trick everyone forgets: use the slanted edge length, not the flat floor length — because the surface leans!

Active Recall

Surface area formula about x-axis for y=f(x)

S=\int_a^b 2\pi y\sqrt{1+(y')^2}\,dx

Why use

ds

not

dx

in surface area

Because the surface wraps along the tilted curve;

ds

is the true arc-length element,

dx

is only its horizontal shadow

Lateral area of a frustum with radii

r_1,r_2

slant

\ell

\pi(r_1+r_2)\ell

(average circumference × slant)

Radius factor when rotating about the y-axis

x

(distance from the y-axis), giving

S=\int 2\pi x\sqrt{1+(dx/dy)^2}\,dy

Arc length element

ds

in terms of dx

ds=\sqrt{1+(dy/dx)^2}\,dx

Surface area of a sphere of radius r (via revolution)

4\pi r^2

Lateral surface area of a cone radius r slant L

\pi r L

Parametric surface area about x-axis

S=\int 2\pi y\sqrt{(x')^2+(y')^2}\,dt

Radius when rotating about the line y=k

|y-k|

Connections

Arc length — the $ds$ here is identical to the arc-length integrand.
Volume of revolution (disk & shell) — volume uses $\pi r^2$ , surface uses $2\pi r\,ds$ .
Frustum and cone geometry — source of $\pi(r_1+r_2)\ell$ .
Parametric curves — generalizing the radius and $ds$ .
Integration by substitution — used to evaluate most of these integrals.
Pappus's theorem — $S=2\pi \bar{r}\,L$ , surface = circumference of centroid × arc length.

Concept Map

Hinglish (regional understanding)

Intuition Hinglish mein samjho

Socho ek curve ko hum axis ke around ghuma rahe hain — jaise potter ka wheel pe vase banta hai. Jo 3D surface banti hai, uska area nikalna hai (sirf upar ki skin, andar ka solid nahi). Trick yeh hai: curve ko bahut chhote tukdo mein kaato. Har tukda jab ghoomta hai to ek patli ring (frustum) banata hai. Us ring ka area = "circumference" $\times$ "slant length" = $2\pi y \cdot ds$ . Sab rings ko jod do (integrate) aur poora surface area mil jaata hai.

Sabse important baat: hum $dx$ nahi, $ds$ use karte hain. Kyun? Kyunki surface curve ke tilted (jhuke hue) edge ke saath wrap hoti hai, flat shadow ke saath nahi. Aur $ds = \sqrt{1+(dy/dx)^2}\,dx$ — yeh Pythagoras se aata hai (chhota right triangle with legs $dx$ aur $dy$ ). Yeh wahi $ds$ hai jo arc length mein aata tha.

Radius ka dhyaan rakho: radius matlab "axis se distance". x-axis ke around ghumao to radius $= y$ . y-axis ke around to radius $= x$ . Agar line $y=k$ ke around ghumao to radius $=|y-k|$ . Bas yeh ek galti sabse zyada hoti hai exam mein.

Practice ke liye: sphere ka area derive karo semicircle se — dekhna kaise $y$ aur square-root cancel ho jaate hain aur seedha $4\pi r^2$ aa jaata hai. Yeh derivation 80/20 ka best example hai — ek baar samajh gaye to poora concept clear.
