Foundations — Volume of revolution — shell method

This page assumes nothing. Before you touch the shell method, you must be fluent in a small toolbox of symbols and pictures. We build them one at a time, each on top of the one before, and end with a checklist so you can test yourself.

1. The number line and a point $x$

Picture a ruler laid flat. Pick a spot; the label under it is $x$. That's all. We need $x$ because a curve, a strip, and a shell all live at some horizontal position, and that position controls everything (radius, height, where the strip is).

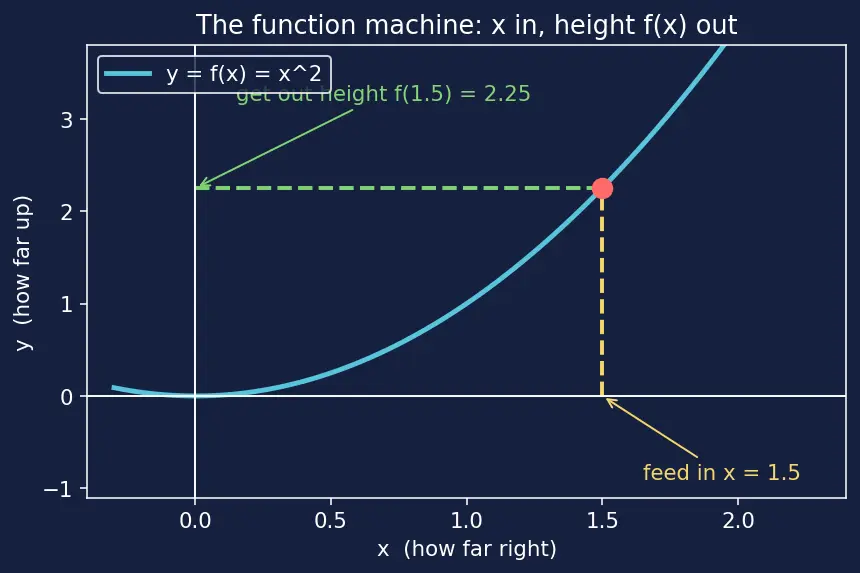

2. A function $f(x)$ and its graph $y=f(x)$

The graph is the picture of this machine: at each horizontal spot $x$, you place a dot at height $y=f(x)$. Join the dots and you get a curve.

3. A region under a curve

We care about regions because the shell method spins a region around a line to make a solid. No region, no solid.

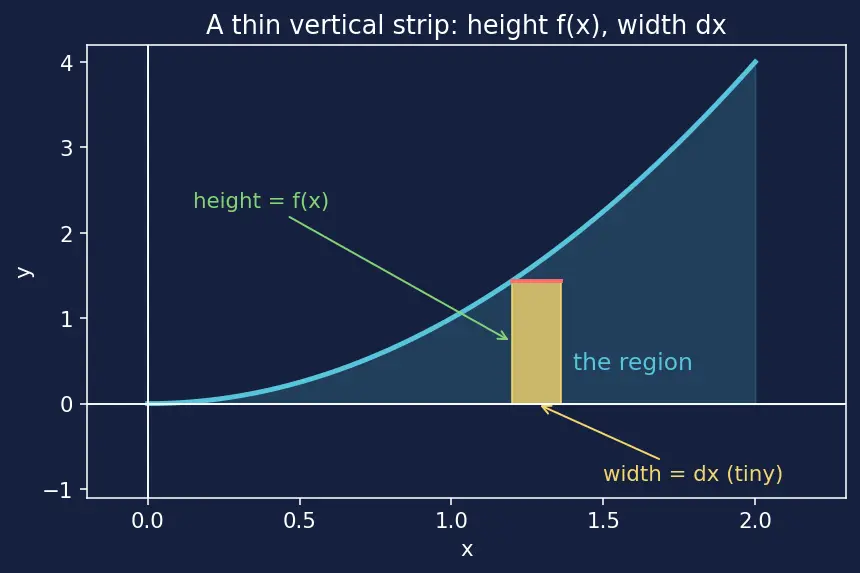

4. The vertical strip and its thickness $dx$

The symbol $dx$ is not "$d$ times $x$." It is one indivisible idea: an infinitely thin sliver of horizontal distance. When you eventually see $\int \dots dx$, the $dx$ is telling you: "the thing I'm adding up is one strip of thickness $dx$."

5. Circle facts: radius $r$ and circumference $2\pi r$

6. Area of a rectangle → volume of a slab

Why these? Because the shell method's whole trick is: slit a tube, unroll it, and it becomes a thin rectangular slab. Its width is the circumference $2\pi r$, its height is $h$, its thickness is $dx$. Multiply: $dV=\underset{\text{width}}{\underbrace{2\pi r}}\cdot \underset{\text{height}}{\underbrace{h}}\cdot \underset{\text{thickness}}{\underbrace{dx}}.$ Every symbol in that formula was just defined above — nothing snuck in.

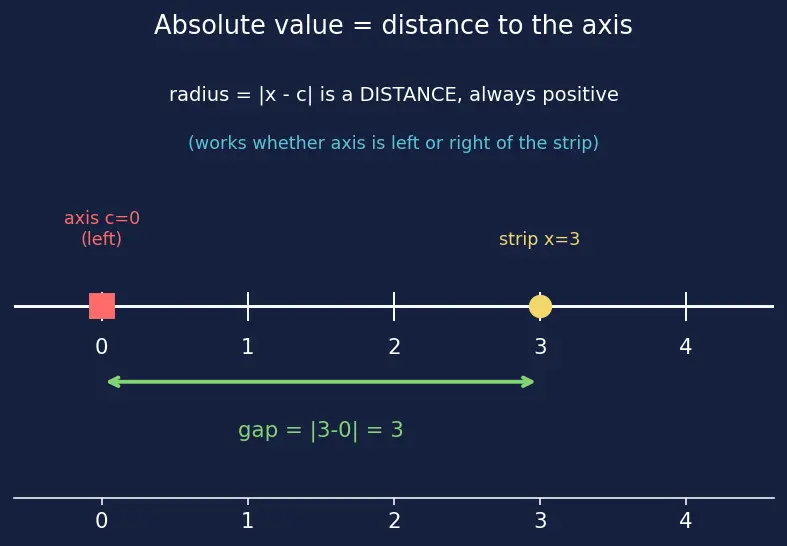

7. Distance as "bigger minus smaller", and absolute value $|x-c|$

The radius of a shell is a distance, so it must be positive. If the axis is the vertical line $x=c$ and the strip sits at position $x$, their gap is $|x-c|$:

• axis to the left of the strip ($c<x$): gap $=x-c$;
• axis to the right ($c>x$): gap $=c-x$.

Writing $|x-c|$ handles both cases at once — no chance of a negative radius. This is why the parent uses $r=|x-c|$ instead of blindly writing $r=x$.

8. Adding up infinitely many strips: the integral ${\int }_a^b$

The stretched-S symbol $\int$ is a stylised "S" for Sum. The $a$ (bottom) and $b$ (top) are the left and right walls of the region — where you start and stop adding. This "sum of infinitely many infinitely thin pieces" is made rigorous by Definite integral as a limit of Riemann sums; here we only need the intuition: lay down all the strips, add their contributions, shrink the width to zero.

Prerequisite map

Equipment checklist

Test yourself — each line is a question ::: answer. If any answer surprises you, reread that section before the main topic.

Connections

• Shell method (main topic — go here next)
• Definite integral as a limit of Riemann sums — makes "add up infinitely many strips" rigorous.
• Area between two curves — reuses "top minus bottom" for the strip's height.
• Choosing dx vs dy strips — deciding vertical vs horizontal strips.
• Volume of revolution — disk and washer method — the perpendicular-slice cousin.
• Arc length and surfaces of revolution — revolve a curve to get a surface instead.
