Volume of revolution — shell method — Maths notes

HOW do we derive the formula? (from scratch)

Worked examples

Worked example Example 1 — basic, about the

$y$ -axis Region bounded by $y = x^2$ , $y=0$ , $x=2$ , rotated about the $y$ -axis.

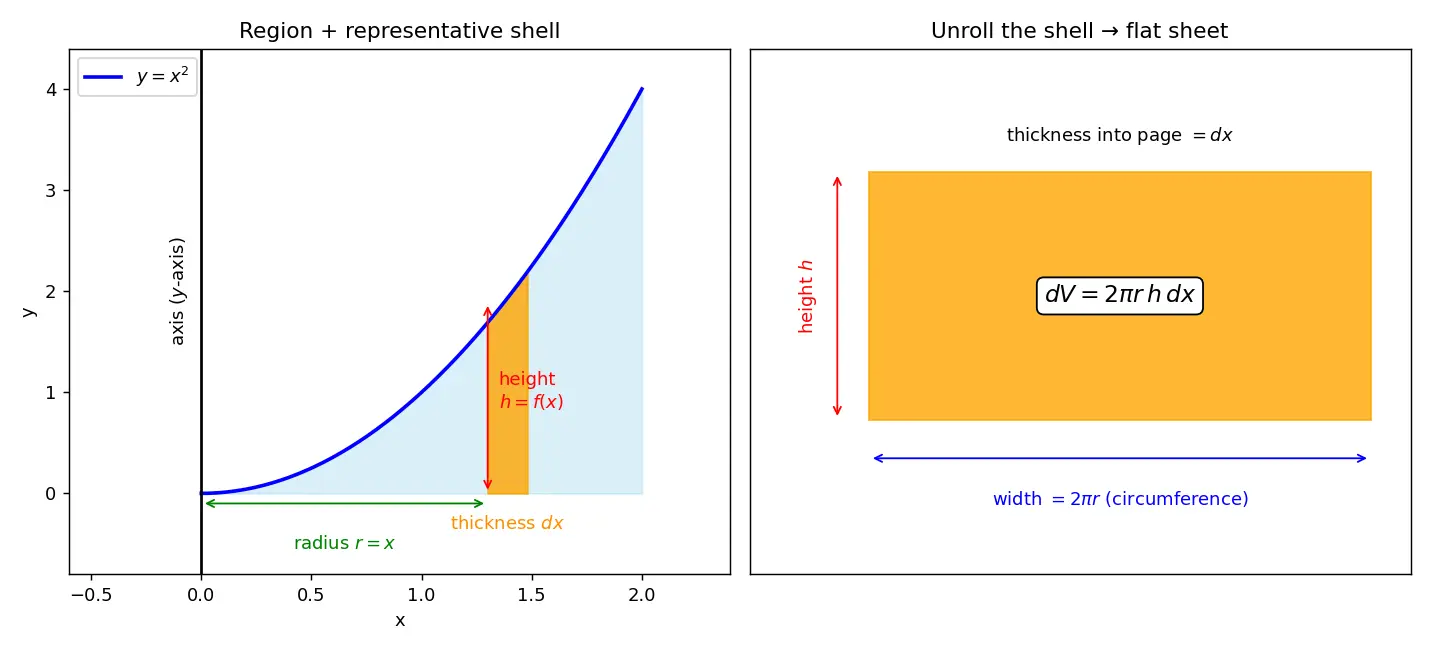

Step 1 — pick strip orientation. Vertical strips ⇒ shells parallel to $y$ -axis. Why: axis is $y$ -axis, so a vertical strip sweeps a tube around it. Step 2 — radius & height. $r = x$ , $h = f(x) = x^2$ . Why: distance from $y$ -axis to the strip is $x$ ; the strip runs from $y=0$ up to $y=x^2$ . Step 3 — set up integral. $x$ goes from $0$ to $2$ : $V = \int_0^2 2\pi x\cdot x^2\,dx = 2\pi\int_0^2 x^3\,dx.$ Step 4 — integrate. $= 2\pi\left[\frac{x^4}{4}\right]_0^2 = 2\pi\cdot 4 = 8\pi.$ ✅ (Check via disks would need $x=\sqrt{y}$ — messier. Shell wins.)

Common mistakes (steel-manned)

Forecast-then-verify

Flashcards

Shell method volume element

dV = 2\pi r\,h\,dx

(circumference × height × thickness)

Why

2\pi

appears in shells

unrolling the tube gives a flat sheet of width = circumference

=2\pi r

Shell radius about axis

x=c

r = |x - c|

, the distance from strip to axis

Strip orientation rule

strips run parallel to the axis of rotation

Shell about

y

-axis, region under

f(x)

V=\int_a^b 2\pi x f(x)\,dx

When prefer shells over disks

when solving for the inverse function is hard; keep natural variable

Height for region between curves

h = (\text{top}) - (\text{bottom})

Derivation: why

dx^2

dropped

\pi h(2r\,dx + dx^2)

, the

dx^2

term is second order → 0

Rotation about horizontal line

y=c

thickness

dy

, with

r=|y-c|

h=x_R-x_L

Volume of

y=x^2,y=0,x=2

about

y

-axis

8\pi

Recall Feynman: explain to a 12-year-old

Picture a stack of tin cans, all different sizes, sitting one inside another like Russian dolls — biggest outside, tiniest inside. Each can is super thin. If you take just one can, cut it down the side, and roll it flat, you get a flat rectangle. Its area is "how long it is around" times "how tall," and it's thin, so its volume is that times the thinness. Now glue all those flattened cans' volumes together and you've measured the whole onion-shaped solid. That adding-up is the integral, and "how long around" is $2\pi r$ because going all the way around a circle of radius $r$ is $2\pi r$ .

Connections

Volume of revolution — disk and washer method — the perpendicular-slice cousin; pick whichever avoids inverting $f$ .
Definite integral as a limit of Riemann sums — why "add up infinitely many shells" works.
Area between two curves — the "top − bottom" height idea reused.
Arc length and surfaces of revolution — next step: revolve a curve, get a surface not a solid.
Choosing dx vs dy strips — the orientation decision generalizes.

Concept Map

Hinglish (regional understanding)

Intuition Hinglish mein samjho

Shell method ka idea bilkul simple hai: socho ek pyaaz ke chhilke (onion layers) jaise patle-patle tube ek doosre ke andar fit hote hain. Hum solid ko in patle cylindrical tubes (shells) se banate hain. Har shell ka radius $r$ hai (axis se kitni door strip hai), height $h$ hai (strip kitni lambi hai), aur thickness $dx$ hai. Agar ek shell ko cheer kar flat kar do, toh wo ek rectangle ban jaata hai jiski width = circumference $=2\pi r$ , height = $h$ , aur thickness = $dx$ . Isliye ek shell ka volume $dV = 2\pi r\, h\, dx$ hota hai. Sab shells ko add (integrate) karo, total volume mil jaata hai.

Yeh method tab faydemand hai jab disk/washer method mein $x$ ko $y$ ke terms mein solve karna mushkil ho jaata hai. Shell method mein strips axis ke parallel hoti hain, isliye aapko function invert nahi karna padta — natural variable mein hi kaam ho jaata hai. Yaad rakho: $y$ -axis ke around rotate karte ho toh $r=x$ , lekin kisi line $x=c$ ke around karo toh $r=|x-c|$ — yeh sabse common galti hai, students hamesha $r=x$ maan lete hain.

Steps simple hain: pehle strip ki direction decide karo (axis ke parallel), phir radius aur height likho, phir limits set karo, phir integrate. Hamesha ek diagram banao taaki radius aur height clear dikhe. Aur $2\pi$ kabhi mat bhoolna — wo poore round tube ki wajah se aata hai, half-circle nahi. Thoda practice karoge toh yeh disk method se bhi easy lagega!
