Visual walkthrough — Trigonometric integrals — sinᵐ·cosⁿ cases, tan and sec cases

Before any symbol appears, three words. Integral = "find the running total area under a curve." $\sin x$ and $\cos x$ = the height and sideways-shadow of a point walking around a circle. $dx$ = an infinitely thin vertical strip we are adding up. That is all the vocabulary we start with.

---

Step 1 — What are we even staring at?

WHAT. We want the running total (area) of the wiggly curve $y={\sin }^{2}x{\cos }^{3}x$.

WHY start here. You cannot choose a clever trick until you see the object. The curve is a product of two circle-shadows raised to powers — it is not a shape whose area we know by heart, so no elementary formula applies.

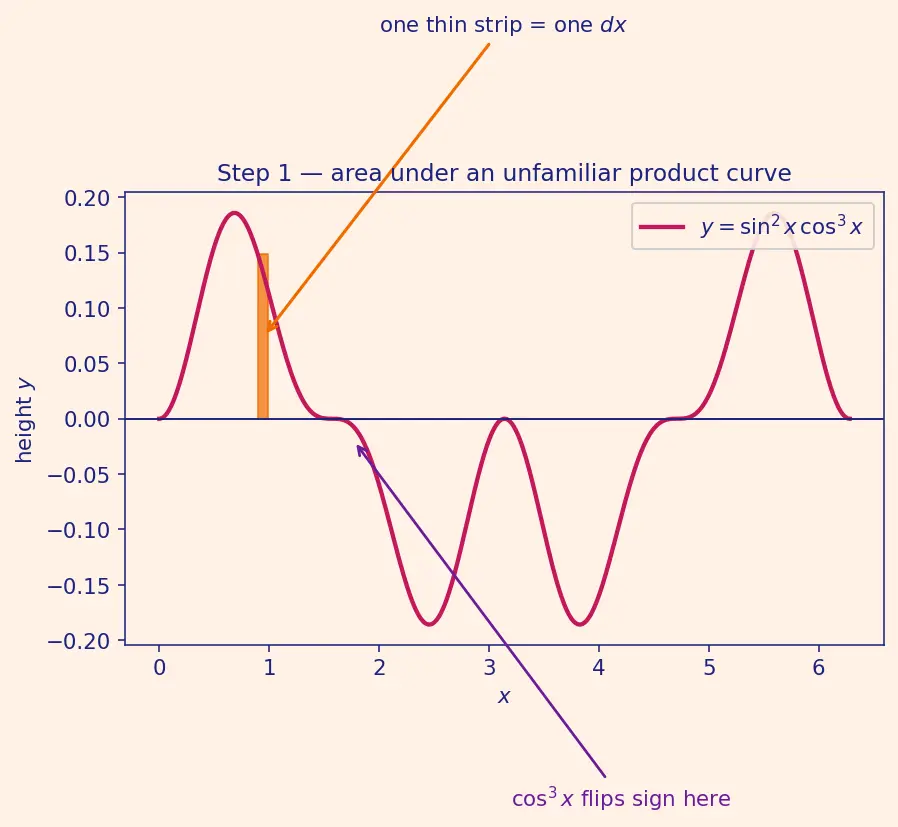

PICTURE. Below, the height of the curve at each $x$ is the product ${\sin }^{2}x$ (always $\ge 0$) times ${\cos }^{3}x$ (which flips sign wherever $\cos x$ flips). The shaded strip is one $dx$-wide sliver — we are summing infinitely many of these.

---

Step 2 — The one tool we have: u-substitution

WHAT. Our only machine for building antiderivatives of composite things is u-substitution. It works when the integrand has the exact shape $\int f(u)\underset{\text{derivative of the inside}}{\underbrace{\frac{du}{dx}}}dx.$

WHY this tool and not another. Substitution is literally the chain rule read backwards. The chain rule says $\frac{d}{dx}F(u(x))=F^{\prime }(u)u^{\prime }(x)$. So if — and only if — our integrand secretly contains a chunk $u(x)$ and a spare copy of its derivative $u^{\prime }(x)$, we can collapse the whole thing back into $F(u)$. No spare derivative, no substitution.

PICTURE. Think of it as spotting a "nesting doll": an inside function $u$ (blue) and its derivative $\frac{du}{dx}$ (orange) sitting right beside it, ready to be swallowed by $dx$.

---

Step 3 — The hunt: is there a hidden $u$ and $du$?

WHAT. We ask: can I split ${\sin }^{2}x{\cos }^{3}xdx$ into (a clump that is $u$) $\times$ (a leftover that is $du$)?

WHY the odd power matters. Look at ${\cos }^{3}x={\cos }^{2}x\cdot \cos x$. I can peel off one $\cos x$ and glue it to $dx$: $\cos xdx=d(\sin x).$ That peeled factor is exactly a $du$! And because $3$ was odd, what remains — ${\cos }^{2}x$ — has an even power. Even powers are the only thing our identity can convert (the identity only knows squares). If $n$ had been even, no single peel would leave an even remainder that also frees a clean $du$ — the parity is not decoration, it is the hinge.

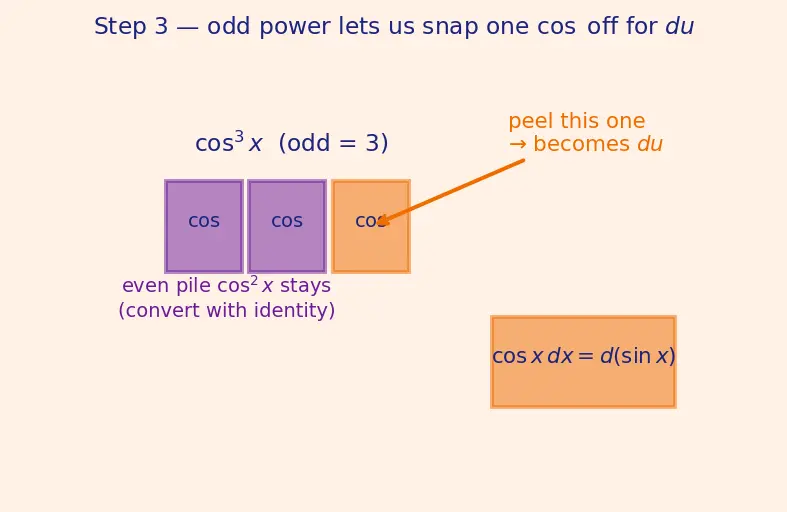

PICTURE. One $\cos x$ brick (orange) breaks off to marry $dx$; the even pile ${\cos }^{2}x$ (violet) stays behind waiting to be rewritten.

$\int \underset{\text{stays}}{\underbrace{{\sin }^{2}x}}\underset{\text{even, convert next}}{\underbrace{{\cos }^{2}x}}\underset{=du\text{— the peeled brick}}{\underbrace{(\cos xdx)}}$

---

Step 4 — Rebuild the leftover with the Pythagorean identity

WHAT. We turn the stranded ${\cos }^{2}x$ into something made only of $\sin x$, because our chosen $u$ is going to be $\sin x$.

WHY this identity. From Pythagorean identities, ${\sin }^{2}x+{\cos }^{2}x=1$, so ${\cos }^{2}x=1-{\sin }^{2}x$. This is the bridge: it launders every ${\cos }^2$ into the $\sin$-language so that, after substitution, nothing but $u$ remains. If a stray $\cos x$ (odd) were left over, we'd be stuck — but we already gifted the only odd $\cos$ to $du$.

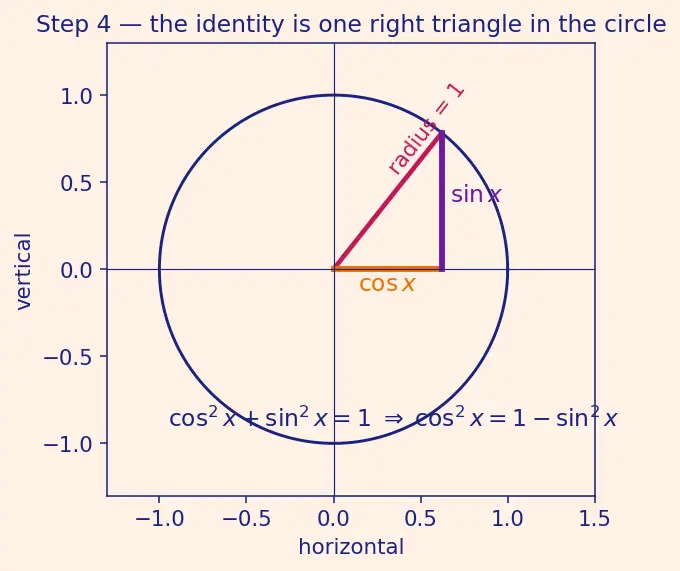

PICTURE. The unit circle: at any angle, the horizontal leg squared plus the vertical leg squared is the radius squared, which is $1$. That single triangle is ${\cos }^2+{\sin }^2=1$.

$\int {\sin }^{2}x\underset{={\cos }^{2}x\text{rewritten}}{\underbrace{(1-{\sin }^{2}x)}}(\cos xdx)$

---

Step 5 — Substitute: the calculus melts into algebra

WHAT. Rename $u=\sin x$. Then $du=\cos xdx$ — exactly the peeled brick.

WHY this is the payoff. Every trig symbol disappears. The scary integral becomes a polynomial in $u$, which a 12-year-old can integrate with the power rule $\int u^{k}du=\frac{u^{k+1}}{k+1}$.

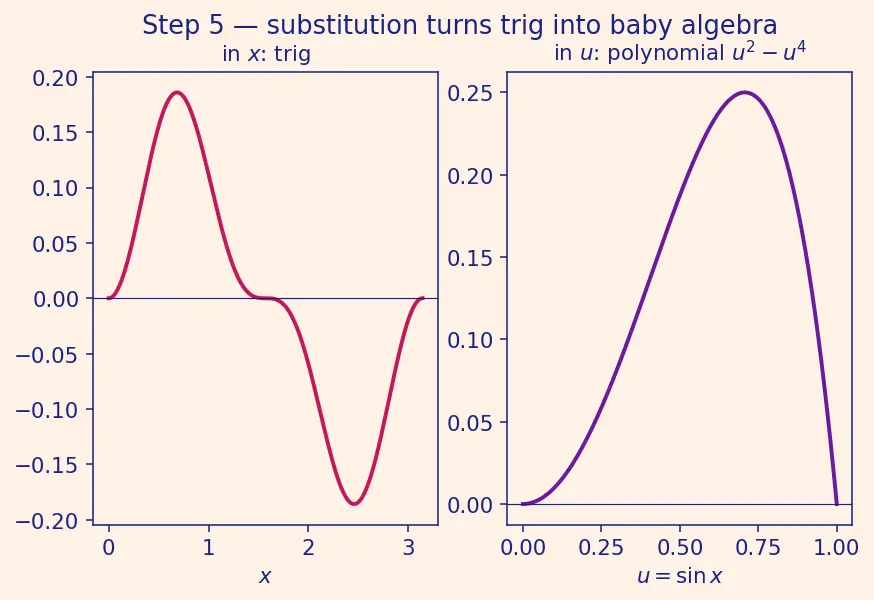

PICTURE. The whole trig expression collapses onto a clean $u$-number line; the curve in $x$ becomes a plain polynomial curve in $u$.

$\int u^2(1-u^2)du=\int (u^2-u^4)du=\underset{\int u^2}{\underbrace{\frac{u^3}{3}}}-\underset{\int u^4}{\underbrace{\frac{u^5}{5}}}+C$

Each term is just "raise the power by one, divide by the new power." No trigonometry left in sight.

---

Step 6 — Substitute back: return to the $x$-world

WHAT. Undo the rename: replace every $u$ with $\sin x$.

WHY. The question was asked in $x$; the answer must live in $x$. Substitution was only a temporary change of clothes.

PICTURE. The polynomial answer maps back onto the original oscillating curve — same numbers, dressed as $\sin x$ again.

$\boxed{\int {\sin }^{2}x{\cos }^{3}xdx=\frac{{\sin }^{3}x}{3}-\frac{{\sin }^{5}x}{5}+C}$

---

Step 7 — The degenerate case: what if BOTH powers are even?

WHAT. Try $\int {\sin }^{2}xdx$ (here $m=2$ even, $n=0$ even). Attempt the same trick.

WHY it fails. To peel a $du$ we need an odd factor to break off. With ${\sin }^{2}x$ there is no lonely $\sin x$ to hand to $dx$ that also leaves an even remainder freeing a clean derivative — peel one $\sin$ and you're left with a single $\sin x$ (odd, no matching $\cos xdx$). You spin in circles. The parity hinge is absent.

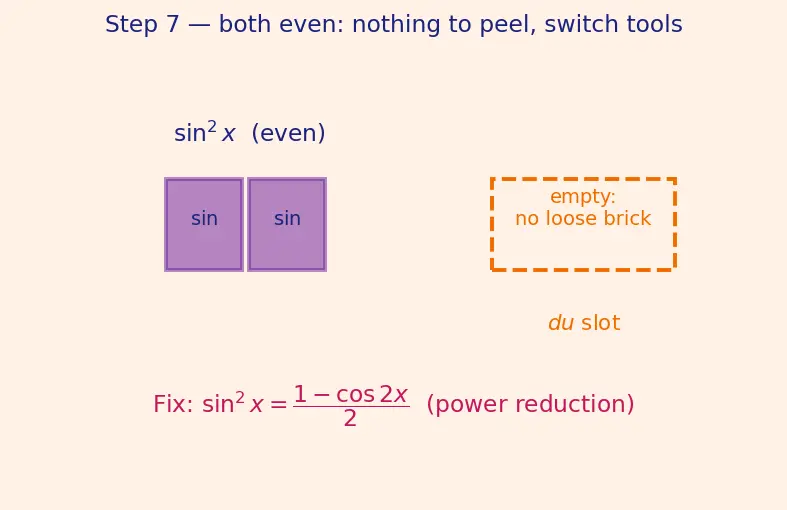

PICTURE. Two even piles, no loose brick to snap off — the "$du$ slot" is empty.

The fix — power reduction. Because the curve ${\sin }^{2}x$ is always $\ge 0$, its true average height is $\frac{1}{2}$. The Power-reduction & double-angle formulas make this exact: ${\sin }^{2}x=\frac{1-\cos 2x}{2}.$ Now integrate a plain cosine: $\int \frac{1-\cos 2x}{2}dx=\frac{1}{2}\left(x-\frac{\sin 2x}{2}\right)+C=\boxed{\frac{x}{2}-\frac{\sin 2x}{4}+C}.$

---

Step 8 — The sign trap: when the peeled factor is $\sin x$

WHAT. If instead $\sin$ is the odd one — e.g. $\int {\sin }^{3}xdx$ — we peel a $\sin x$ and set $u=\cos x$.

WHY watch the sign. $\frac{d}{dx}\cos x=-\sin x$, so $du=-\sin xdx$, meaning $\sin xdx=-du$. The minus sign is real and easy to drop.

PICTURE. The orange derivative arrow for $\cos x$ points downhill — that is the minus sign made visible.

$\int \underset{={\sin }^{2}x}{\underbrace{(1-{\cos }^{2}x)}}\underset{=-du}{\underbrace{\sin xdx}}=\int (1-u^2)(-du)=-u+\frac{u^3}{3}+C=\boxed{-\cos x+\frac{{\cos }^{3}x}{3}+C}$

---

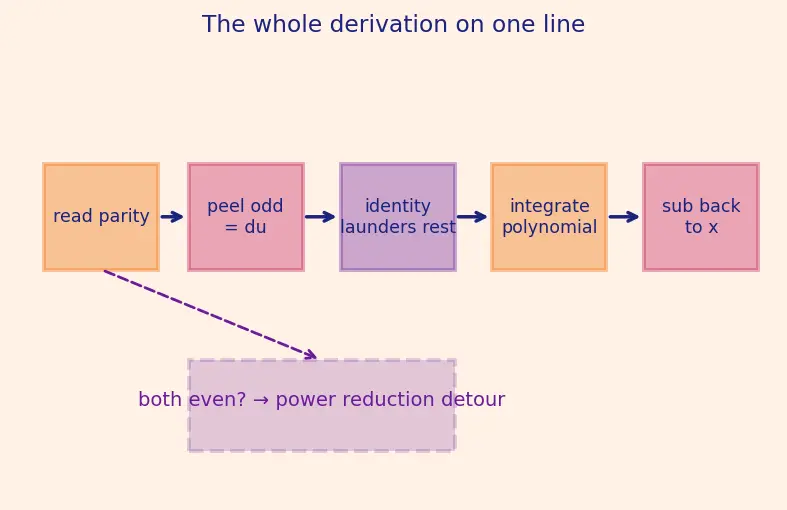

The one-picture summary

This single flow compresses everything: read the parity → peel the odd factor into $du$ → launder the even remainder with a Pythagorean identity → substitute to a polynomial → integrate → substitute back. If nothing is odd, detour through power reduction.

Recall Feynman retelling — the whole walk in plain words

We had a tower built from sine-bricks and cosine-bricks, and one machine — substitution — that only works if the tower already contains a piece and that piece's own derivative sitting next door. So we go brick-hunting. Cosine bricks came in an odd count (three of them), so we snap one off and hand it to $dx$ — that lonely cosine is exactly $d(\sin x)$, our $du$. Snapping one off an odd pile leaves an even pile, and even piles have a magic converter, ${\cos }^2=1-{\sin }^2$, that turns them entirely into sine. Now the whole thing is written in one letter, $u=\sin x$, and it's just baby algebra: $u^2-u^4$, integrate, get $\frac{u^3}{3}-\frac{u^5}{5}$, rename $u$ back to $\sin x$, done. If it had been sine that was odd, same game but $u=\cos x$ — just remember cosine's derivative points downhill, so a minus sign tags along. And if everything is even, there's no loose brick to snap off, the machine stalls, and we switch tools entirely: the "cut the power in half" rule (power reduction) shrinks ${\sin }^2$ into $\frac{1-\cos 2x}{2}$, which integrates on sight.

Connections

• u-substitution — the single machine every step here is built on.
• Pythagorean identities — the "laundering" bridge ${\cos }^2=1-{\sin }^2$.
• Power-reduction & double-angle formulas — the rescue tool for the both-even case.
• Trigonometric substitution — the reverse move, for $\sqrt{a^2-x^2}$ integrals.
• Reduction formulas — systematic recursion for very high powers.
• Integration by parts — the alternative route for stubborn $\int {\sec }^{3}xdx$.
