Integration by parts — derivation from product rule, LIATE mnemonic: Visual walkthrough

Before any symbol appears, three plain-word promises:

That is all the vocabulary. Everything else we earn on the page.

Step 1 — Two functions are the sides of a rectangle

WHY start here. Integration by parts is secretly a statement about how the area of a growing rectangle changes. If we understand the growing rectangle, the whole formula falls out. We choose a rectangle because a product $u \cdot v$ is literally an area — that is the one place a product is easy to see.

PICTURE. In the figure, the blue side is $u$ , the orange side is $v$ , and the shaded region is the area $A = uv$ . Watch what happens when $x$ takes one tiny step forward: the width grows by a sliver $d u$ (blue strip on the right) and the height grows by a sliver $d v$ (orange strip on top).

Figure — Integration by parts — derivation from product rule, LIATE mnemonic

Step 2 — The product rule is the growing rectangle

WHY. We are not inventing the product rule — we are reading it off the picture. The total change in area equals the sum of the two strips, so the rate of area change equals the sum of the two strip-rates. That is exactly the product rule.

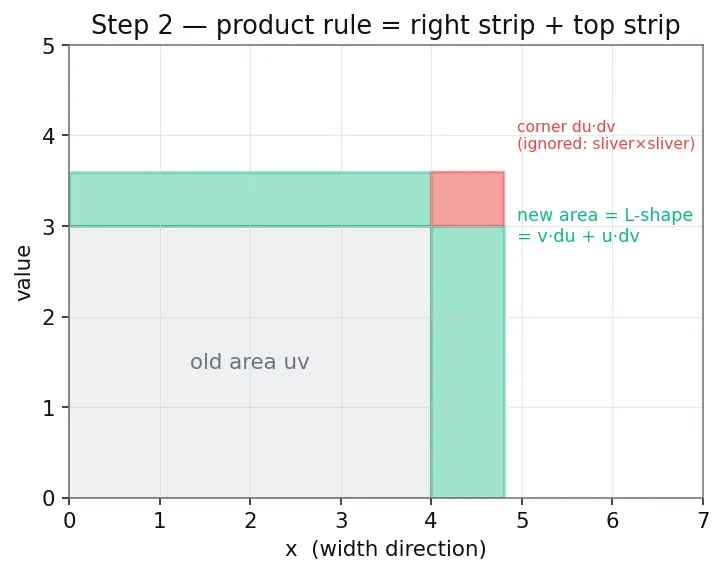

PICTURE. The green outline in the figure is the newly added area for one step. It is an L-shape = right strip + top strip. (The tiny corner square $d u d v$ is so small — a sliver times a sliver — that it vanishes in the limit; we ignore it.)

Step 3 — Integrate both sides: rebuild the total area

WHY the integral, and why now. We have an equation about rates. But we want an equation about integrals (that is the whole point). The tool that turns a rate-statement into a total-statement is the integral, because $\int$ is the exact inverse of $\frac{d}{d x}$ . No other tool undoes a derivative — that is why we reach for it here and not, say, another derivative.

PICTURE. Stack every tiny green L-shape from Step 2 side by side. Added up, they refill the entire rectangle. The figure shows the slivers accumulating left-to-right into the solid block $uv$ .

Step 4 — The left side collapses to $uv$

WHY. This is the Fundamental Theorem of Calculus in one line: $\int \frac{d}{d x} (anything) d x = that anything$ . The integral (build-up) and the derivative (rate) cancel perfectly, leaving the raw quantity behind.

PICTURE. The animation-in-a-frame: all the slivers have snapped together into the single solid rectangle of area $uv$ . Nothing else survives on the left.

Step 5 — Rearrange: keep the strip you want, subtract the other

WHY. The whole magic of the method is a trade: the integral we can't do ( $\int u d v$ ) equals a known rectangle $uv$ minus a different integral ( $\int v d u$ ) that we hope is easier. Moving a term across an equation flips its sign — that is where the famous minus comes from.

PICTURE. The figure splits the rectangle: the whole block $uv$ , minus the right strip total, leaves exactly the top strip total. The minus sign is drawn as literally cutting the right strip away.

Step 6 — Differential form: the boxed rule

WHY. This is only cosmetic — but it makes choosing $u$ and $d v$ obvious in practice. It is the form you actually use.

PICTURE. The final clean rectangle labelled with the finished formula underneath — the top strip $\int u d v$ equals the block $uv$ minus the right strip $\int v d u$ .

Step 7 — The degenerate check: does it collapse sensibly?

Case A — one side is constant. Let $u = 1$ (a flat, unchanging width). Then $d u = 0$ , and the rule says $\int 1 d v = 1 \cdot v - \int v \cdot 0 = v$ . Reading it: "integrate $d v$ and you get $v$ ." Obvious — but reassuring that the machine agrees with plain integration.

Case B — the "hidden product" $\int ln x d x$ . There is no visible product, but any function times $1$ is a product. Set $u = ln x$ , $d v = 1 d x$ so $v = x$ , $d u = \frac{1}{x} d x$ : $\int ln x d x = x ln x - \int x \cdot \frac{1}{x} d x = x ln x - \int 1 d x = x ln x - x + C .$ The rectangle here has a height that is the $1$ -strip — a genuinely degenerate rectangle, yet the formula still delivers.

Case C — the wrong choice makes it worse, not wrong. If in $\int x e^{x} d x$ you pick $u = e^{x}$ , $d v = x d x$ , you get $v = \frac{x ^{2}}{2}$ and a new integral $\int \frac{x ^{2}}{2} e^{x} d x$ — a higher power of $x$ . The rule is still true, but the trade went the wrong way: the right strip got fatter, not thinner. This is why LIATE exists — to pick the strip that shrinks.

PICTURE. Two rectangles side by side: the "good trade" (right strip shrinks toward zero, green) versus the "bad trade" (right strip balloons, red).

The one-picture summary

Recall Feynman retelling — the whole walk in plain words

Draw a rectangle. One side is $u$ , the other is $v$ , so the area is $u$ times $v$ . Now let it grow a hair. The new area you just gained is an L-shape: a skinny strip up the right side (that's $v$ times the little bit the width grew, $v d u$ ) plus a skinny strip across the top (that's $u$ times the little bit the height grew, $u d v$ ). That "the growth is right-strip plus top-strip" is the product rule. Now add up every tiny L-shape from start to finish — of course you rebuild the whole rectangle, so the total growth equals $uv$ . Split that: total top-strips plus total right-strips equal the whole block $uv$ . If it's the top-strips I actually want, I just say: top-strips = whole block minus right-strips. In symbols, $\int u d v = uv - \int v d u$ . The only skill left is picking which side to call $u$ so the leftover right-strip integral is the easy one — and that's what LIATE whispers in your ear.

Active Recall

Which picture object equals

uv

The whole growing rectangle's area (width

u

times height

v

What does the "right strip" of area represent?

v d u

— height times the tiny growth in width (the term integrated to

\int v d u

What does the "top strip" represent?

u d v

— width times the tiny growth in height (the term

\int u d v

Which theorem collapses

\int \frac{d}{d x} (uv) d x

uv

The Fundamental Theorem of Calculus.

Where does the minus sign in the formula come from?

Moving the right-strip integral

\int v d u

across the equals sign.

If you set

u = 1

, what does the rule reduce to?

\int 1 d v = v

— ordinary integration.

Why can a correct application still fail to help?

A poor

u

d v

choice makes the new integral bigger; the formula is true but the trade went the wrong way.

Connections

4.2.07 Integration by parts — derivation from product rule, LIATE mnemonic (Hinglish) — the parent topic (Hinglish).
Product rule (differentiation) — the growing-rectangle identity we read off in Step 2.
Fundamental Theorem of Calculus — collapses the left side in Step 4.
Integration by substitution — try this first; parts is for stubborn products.
Reduction formulae — repeated parts, packaged.
Tabular integration (DI method) — a fast table for repeated parts.
Definite integrals — where $uv$ becomes $[uv]_{a}^{b}$ .
