Interpretation — instantaneous rate of change, slope of tangent: Visual walkthrough

Before any symbol appears, let us agree what two words mean, in plain language, tied to a picture.

Step 1 — The honest question: what is "steepness at a point"?

WHAT. We stand at one spot on the curve $y = x^{2}$ , the point where $x = 2$ . Its height is $f (2) = 2^{2} = 4$ , so the point is $(2, 4)$ . We want a single number saying how steep the curve is exactly there.

WHY. Slope needs two points (a rise and a run between them). We have only one point. If we try to force it — using the same point twice — the run is $0$ and rise is $0$ , giving the forbidden $\frac{0}{0}$ . So a plain slope is impossible. We need a workaround.

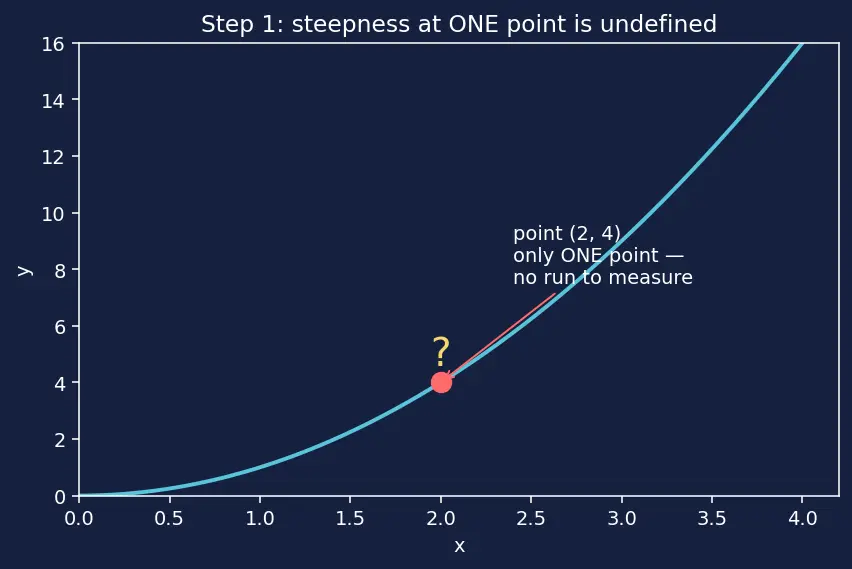

PICTURE. Look at the lone red dot at $(2, 4)$ . There is no run to measure — the tilt of "one point" is genuinely undefined. That empty feeling is the problem we now solve.

Figure — Interpretation — instantaneous rate of change, slope of tangent

Step 2 — Cheat honestly: bring in a second point

WHAT. Add a second point on the curve, a little to the right of $x = 2$ . Put it at $x = 2 + h$ , where $h$ is a small positive push (say $h = 1$ , so the second point sits at $x = 3$ ). Its height is $f (2 + h) = (2 + h)^{2}$ .

WHY. Now we have two real points, so an honest slope exists — no division by zero. The straight line through two points of a curve has a name:

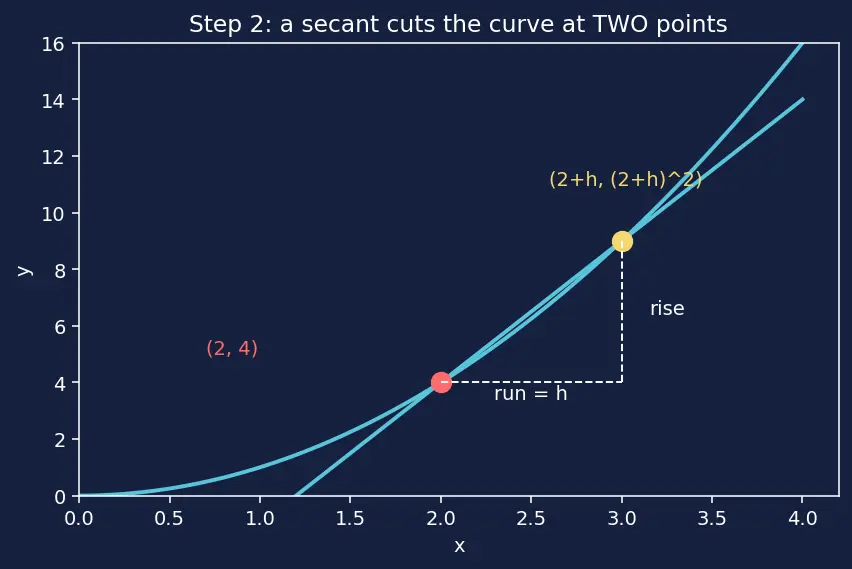

PICTURE. The blue secant line cuts $y = x^{2}$ at the red point $(2, 4)$ and the yellow point $(2 + h, (2 + h)^{2})$ . Between them there is a real run (horizontal) and a real rise (vertical) — both drawn as dashed lines.

Step 3 — Measure the secant's slope (the average rate)

WHAT. Compute rise $\div$ run for that blue line.

m_{sec} = rise over run \frac{f ( 2 + h ) height of yellow pt - f ( 2 ) height of red pt}{horizontal gap ( 2 + h ) - 2} = \frac{f ( 2 + h ) - f ( 2 )}{h}

Term by term:

$f (2 + h) - f (2)$ ::: the rise — how much higher the yellow point is than the red one.
$(2 + h) - 2 = h$ ::: the run — how far right we walked. The two $2$ 's cancel, leaving just $h$ .

WHY. This is exactly the Average rate of change over the interval $[2, 2 + h]$ : total change in output divided by total change in input. It is a completely legal number because $h \neq = 0$ .

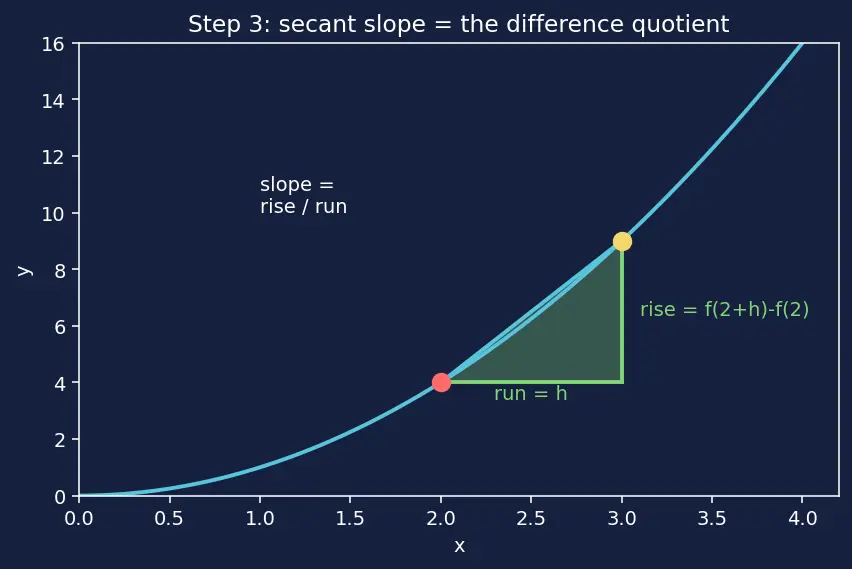

PICTURE. The green triangle shows rise (vertical leg) over run (horizontal leg = $h$ ). Its hypotenuse is the secant.

Step 4 — Plug in our curve and simplify (Simplify Before Limit)

WHAT. Use $f (x) = x^{2}$ , so $f (2 + h) = (2 + h)^{2}$ and $f (2) = 4$ :

m_{sec} = \frac{( 2 + h ) ^{2} - 4}{h} = \frac{4 + 4 h + h ^{2} expand ( 2 + h ) ^{2} - 4}{h} = \frac{4 h + h ^{2}}{h}

Now factor an $h$ out of the top and cancel it against the bottom:

\frac{4 h + h ^{2}}{h} = \frac{h ( 4 + h )}{h} = 4 + h (for h \neq = 0)

WHY. The whole difficulty (the coming $\frac{0}{0}$ ) is hiding inside that single factor of $h$ in the denominator. Cancelling it before we shrink $h$ removes the illegality while it is still legal to do so (we are still at $h \neq = 0$ ). This is the "Simplify Before Limit" rule.

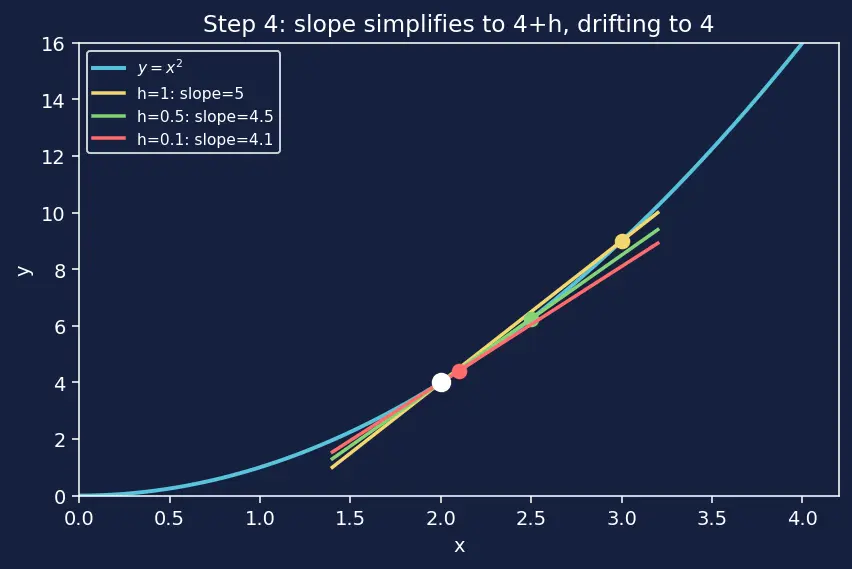

PICTURE. As $h$ gets smaller, the secant slope $4 + h$ is just a hair above $4$ . The figure lists three shrinking $h$ 's and shows each secant flattening toward the same tilt.

Step 5 — Shrink the gap: the secant pivots into the tangent

WHAT. Now slide the yellow point toward the red one — let $h \to 0$ . The simplified slope is $4 + h$ , so:

f^{'} (2) = h \to 0 lim (4 + h) = 4

Reading the symbols:

$lim_{h \to 0}$ ::: "the number this trends toward as $h$ shrinks to nothing" — not the value at $h = 0$ , which we never actually reach. (The engine behind this is Limits — formal definition.)
$f^{'} (2)$ ::: the derivative at $2$ — our long-sought single steepness number. It equals $4$ .

WHY. As the two points merge, the secant can no longer "cut" — it grazes. That limiting line is the tangent: the one straight line that best copies the curve right at $(2, 4)$ . Its slope is the answer we were denied in Step 1, now recovered legally.

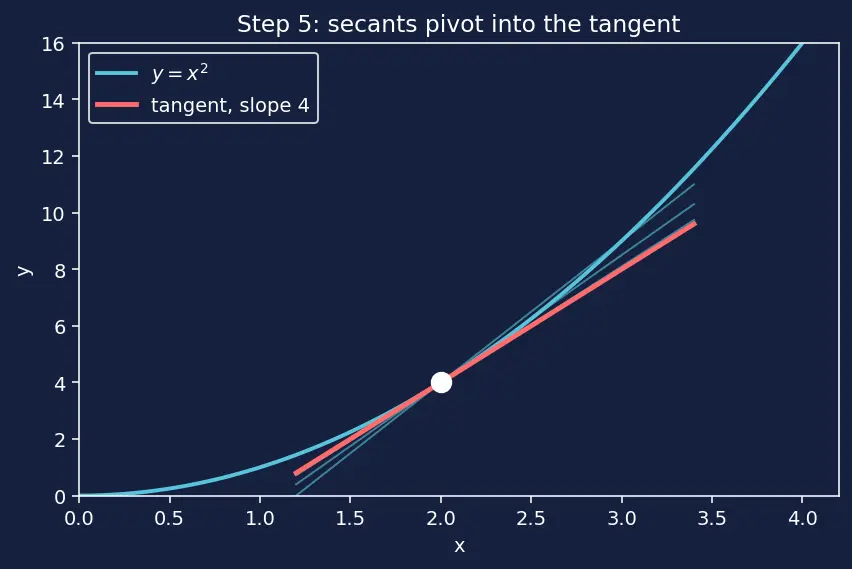

PICTURE. Watch the blue secants (for $h = 1, 0.5, 0.1$ ) rotate about the red point and settle onto the red tangent line of slope $4$ .

Step 6 — Draw the tangent line itself

WHAT. We now own a slope $m = f^{'} (2) = 4$ and a point $(2, 4)$ . A line needs exactly those two things. Point–slope form:

y - f (2) 4 = f^{'} (2) 4 (x - a 2) ⟹ y = 4 x - 4

$y - 4$ ::: height measured from the touch-point.
$4 (x - 2)$ ::: rise = slope $\times$ run, measured from $x = 2$ .

WHY. This is the punchline: the derivative is both a rate (the number $4$ ) and a geometry object (this line). One number, two costumes.

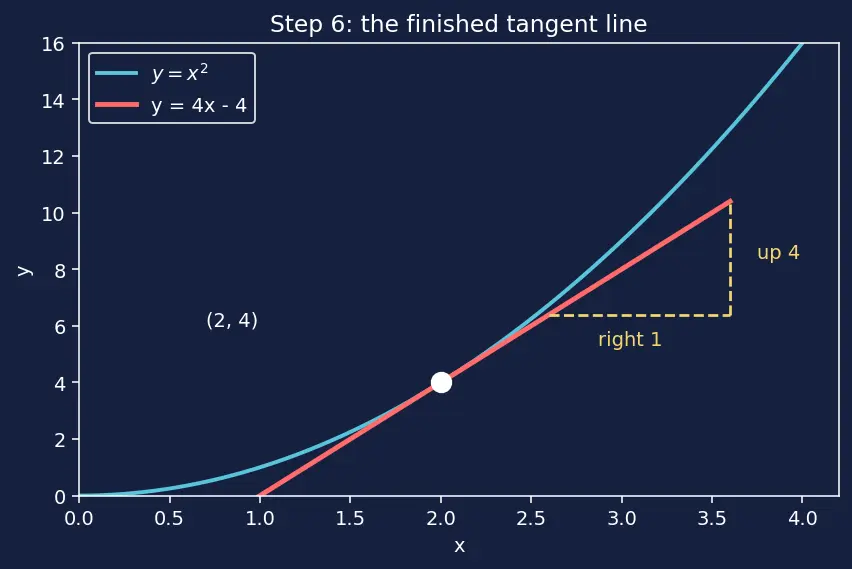

PICTURE. The parabola with the finished tangent $y = 4 x - 4$ kissing it at $(2, 4)$ , and a small step-triangle on the line showing "go right 1, go up 4."

Step 7 — The degenerate case: when no tangent exists ( $∣ x ∣$ at $0$ )

WHAT. Try the same machinery on $f (x) = ∣ x ∣$ (the V-shape) at $a = 0$ . The difference quotient is

\frac{∣0 + h ∣ - ∣0∣}{h} = \frac{∣ h ∣}{h} = {+ 1 - 1 h > 0 (push right) h < 0 (push left)

WHY. A secant coming from the right always has slope $+ 1$ ; a secant from the left always has slope $- 1$ . They never agree, so as $h \to 0$ there is no single number to settle on — the limit fails. A sharp corner has two would-be tangents, so it has none. (This is the heart of Differentiability and continuity.)

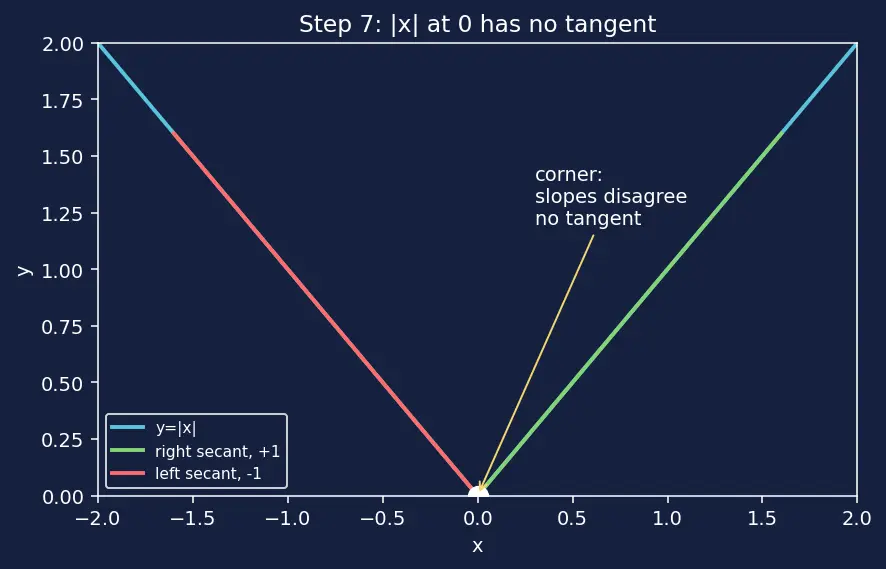

PICTURE. The V of $∣ x ∣$ at the origin: a right-side secant ( $+ 1$ , green) and a left-side secant ( $- 1$ , red) refuse to line up. No tangent is possible.

The one-picture summary

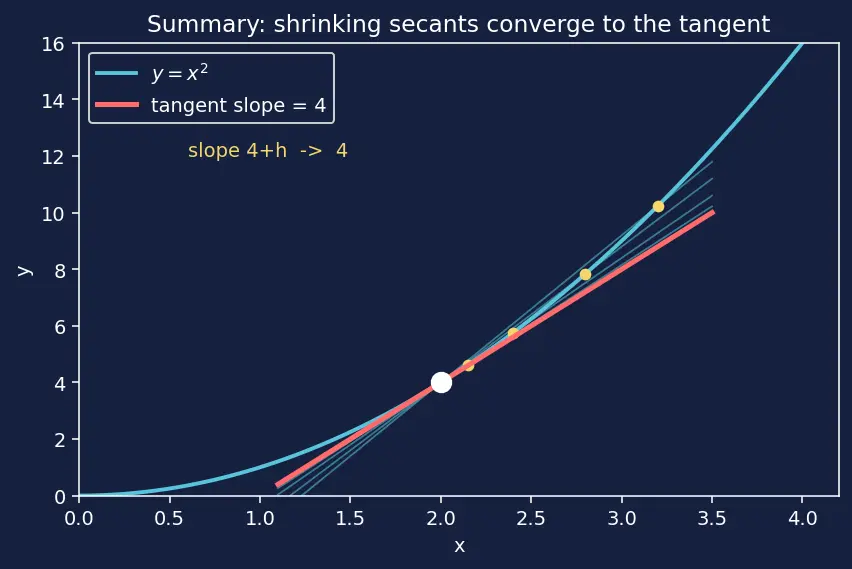

Everything at once: the fixed red point, a family of blue secants for shrinking $h$ , and the red tangent they all converge to — with the slope value $4 + h \to 4$ labelled as they collapse.

Recall Feynman retelling — the whole story in plain words

You want to know how tilted a bending curve is at exactly one spot, but "one spot" gives you nothing to measure — no run, no rise, just $\frac{0}{0}$ . So you cheat honestly: put a second dot nearby, join the two dots with a straight ruler (the secant), and measure that tilt — it's just rise over run, a perfectly ordinary slope. Now slide the second dot closer and closer to the first. The ruler slowly rotates and stops cutting the curve — it starts just kissing it. That final tilt, the one all the shrinking rulers agree on, is your answer: the slope of the tangent, the derivative. For $y = x^{2}$ at $x = 2$ every ruler reads $4 + h$ , and as the gap $h$ vanishes they all read $4$ . But watch out for corners like the V of $∣ x ∣$ : there the ruler from the right and the ruler from the left never agree, so no single tilt exists — no tangent, no derivative.

Active recall

What forces us past a plain slope when finding steepness at one point?

Only one point exists, so run

= 0

and rise

= 0

give

\frac{0}{0}

— undefined; we need a second point.

Why introduce a secant line?

Two real points give an honest, computable slope (no division by zero).

\frac{f ( a + h ) - f ( a )}{h}

, what is the numerator geometrically?

The rise — the height difference between the two points.

For

y = x^{2}

x = 2

, what does the secant slope simplify to, and why cancel

h

4 + h

; cancelling the

h

removes the future

\frac{0}{0}

while

h \neq = 0

is still legal.

h \to 0

, what happens to the secant?

It pivots/collapses into the tangent line at the point.

What is

f^{'} (2)

for

y = x^{2}

and its tangent line?

f^{'} (2) = 4

; tangent

y = 4 x - 4

Why does

∣ x ∣

have no tangent at

0

Right secant slope

= + 1

, left

= - 1

; they disagree so the limit doesn't exist — a corner.

Connections

Average rate of change — the secant slope is exactly this over $[a, a + h]$ .
Limits — formal definition — makes the " $h \to 0$ " pivot rigorous.
Derivative as a function — let $a$ roam and $f^{'} (a)$ becomes $f^{'} (x)$ .
Power Rule — the shortcut that these limits (like $x^{2} \to 2 x$ ) foreshadow.
Differentiability and continuity — why the corner in Step 7 kills the derivative.
Velocity and acceleration — the same picture read as motion.
