Solving exponential equations using logarithms: Visual walkthrough

This is the picture-first companion to the parent topic. Read it slowly; each step has a figure that is the argument.

Step 0 — What do the symbols even mean?

WHAT. We keep meeting three characters: $b$ , $x$ , and $c$ . Before we solve anything, let us see them.

WHY. You cannot "bring the exponent down" if you do not yet know which part is the exponent. Every mistake later comes from confusing these three roles.

PICTURE. Look at the figure. The equation $b^{x} = c$ is a little machine: you feed in the base $b$ (blue, the number being multiplied), you multiply it by itself $x$ times (orange, the exponent — this is our unknown, sitting up high), and out comes the result $c$ (green, a plain number on the floor).

Figure — Solving exponential equations using logarithms

Concretely, in $2^{x} = 7$ : $b = 2$ , $c = 7$ , and $x$ is the "how many times" we must multiply $2$ by itself to land on $7$ .

Step 1 — Why ordinary algebra is stuck

WHAT. We try to reach $x$ using only $+, -, \times, \div$ — and fail.

WHY. To justify calling in a new tool (the logarithm), we must first feel the wall that the old tools hit. A tool is only earned when the old ones run out.

PICTURE. In the figure, the exponent $x$ sits at the top of a staircase. Adding, subtracting, multiplying or dividing both sides only shuffles the floor level $c$ around — the arrows all stay on the ground. None of them can climb up to the orange $x$ . The exponent is above the reach of arithmetic.

Step 2 — Meet the logarithm as a question

WHAT. We define $lo g_{b}$ (log to base $b$ ) purely as a question, then draw it.

WHY. People fear "log" because it is handed to them as a button. It is not a button — it is a question that reverses the exponential machine (this is the inverse-function idea).

PICTURE. The figure shows two boxes back to back. The top box (blue) is "raise $b$ to a power". The bottom box (orange) is its mirror: "take $lo g_{b}$ ". Feed a number into one and back out of the other, and you return to where you started — like a lift going up then straight back down.

So a logarithm is literally an exponent that has been "read off". That is exactly the thing trapped at the top of our staircase.

Step 3 — The one law that does all the work: the power law

WHAT. We prove $lo g_{b} (m^{k}) = k lo g_{b} (m)$ and draw why the exponent "falls down".

WHY. This is the single lever of the whole topic. Every worked example uses only this. We derive it so it is ours, not memorised.

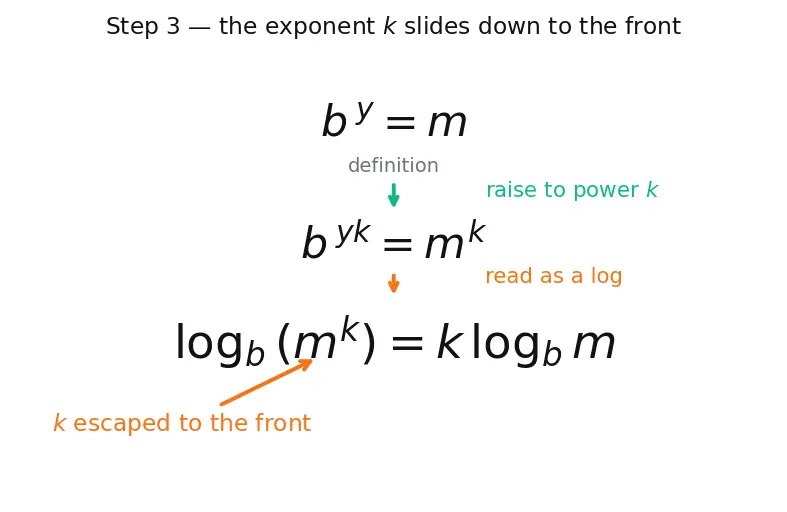

PICTURE. The figure stacks the derivation. Start with a small tower $b^{y} = m$ (the definition). Raising to the power $k$ (green arrow) multiplies the heights $y \times k$ — you can see the tower's exponent grow from $y$ to $y k$ . Reading that height back off as a log gives $y k$ , i.e. $k lo g_{b} m$ . The exponent $k$ has slid down from the roof to become a plain multiplier on the floor.

See Laws of Logarithms for the sibling product and quotient laws.

Step 4 — Apply log to both sides

WHAT. Starting from $b^{x} = c$ , we take $lo g$ of each side.

WHY. Both sides of $b^{x} = c$ are the same number. If two numbers are equal, applying the same honest function to both keeps them equal — like putting the same weight on both pans of a balance. We choose $lo g$ because Step 3 showed it is the one function that pulls exponents down.

PICTURE. The figure shows a balance scale: left pan $b^{x}$ , right pan $c$ , perfectly level. We drop the same "log" operation onto both pans. The scale stays level — equality is preserved.

$lo g (b^{x}) = lo g (c) .$

$lo g (b^{x})$ (left) — still tangled, but now inside a log where the power law can bite;
$lo g (c)$ (right) — just a number your calculator will give.

Step 5 — Drop the exponent with the power law

WHAT. Apply the Step 3 law to the left side.

WHY. This is the whole point: the trapped $x$ becomes a coefficient we can move.

PICTURE. The figure repeats the staircase, but now an orange arrow shows $x$ sliding down the banister from the roof to ground level, landing as a multiplier in front of $lo g b$ . It is finally reachable.

$x lo g (b) = lo g (c) .$

$x$ (orange) — down from the exponent, now a plain factor;
$lo g (b)$ (blue) — a fixed number (e.g. $lo g 2 \approx 0.3010$ ), just a constant sitting beside $x$ ;
$lo g (c)$ (green) — the other fixed number.

The equation is now linear in $x$ : "unknown times a constant equals a constant." Ordinary algebra can finish it.

Step 6 — Divide off the constant

WHAT. Divide both sides by $lo g b$ .

WHY. $lo g b$ is now just a number multiplying $x$ ; the inverse of multiplying is dividing. This isolates $x$ .

PICTURE. The final figure shows $x$ standing alone on the left, with the ratio $\frac{lo g c}{lo g b}$ assembled on the right — a fraction bar separating the two known numbers.

Worked instance — $2^{x} = 7$ : $x = \frac{lo g 7}{lo g 2} = \frac{0.8451}{0.3010} \approx 2.807$ . Sanity: $2^{2} = 4$ , $2^{3} = 8$ , and $7$ sits between, so $x$ sits between $2$ and $3$ . ✓

Step 7 — The degenerate and edge cases (never leave a gap)

WHAT. We check what happens at the boundaries where the formula might misbehave.

WHY. The Contract: the reader must never meet a case we did not show. Each strange input gets its own picture-in-words.

PICTURE. The figure plots $y = b^{x}$ for four situations on one axis so you can see each behaviour: base $> 1$ (rising), base between $0$ and $1$ (falling), $c \leq 0$ (the curve never touches it), and $b = 1$ (a flat line).

The one-picture summary

WHAT. All seven steps compressed into a single flow, from trapped exponent to clean ratio.

The journey: exponent trapped upstairs → arithmetic can't reach → log is the "which power?" question → power law lets the exponent slide down → log both sides → drop the exponent → divide off $lo g b$ → land on $x = \frac{lo g c}{lo g b}$ .

Recall Feynman retelling — the whole walk in plain words

A number is stuck at the top of a staircase — that's the exponent $x$ . Normal arithmetic (add, subtract, multiply, divide) only moves things around on the ground floor, so it can never grab something up top. We need a special elevator. That elevator is the logarithm, whose secret is one question: "what power turns $b$ into this number?" Because a log is literally "an exponent read off", it lets the trapped exponent slide down the banister and become an ordinary multiplier. Once $x$ is on the ground floor next to the fixed number $lo g b$ , we just divide it off, and out pops $x = \frac{lo g c}{lo g b}$ . We finish by checking the odd corners: if the target is zero or negative, the staircase never reaches it (no answer); if the base is $1$ , the staircase is a flat floor (everything or nothing); and if the target is $1$ , we never even climbed, so $x = 0$ .

Practice check

Solve

(\frac{1}{2})^{x} = 8

using the formula.

x = \frac{lo g 8}{lo g 0.5} = - 3

, since

(\frac{1}{2})^{- 3} = 2^{3} = 8

Why does

2^{x} = - 5

have no solution?

2^{x}

is always positive, so it can never equal a negative number;

lo g (- 5)

is undefined.

What breaks the formula when

b = 1

lo g 1 = 0

, so we divide by zero;

1^{x} = 1

always, giving infinitely many or no solutions.

Connections

Laws of Logarithms — the product/quotient siblings of the power law.
Change of Base Formula — the result $\frac{lo g c}{lo g b} = lo g_{b} c$ .
Inverse Functions — Step 2's up-then-down elevator.
The Number e and Natural Logarithms — swap $lo g$ for $ln$ ; every step is identical.
Exponential Growth and Decay — where these equations live (half-life, interest).
Solving Equations Graphically — Step 7's curves are the graphical view.
