Arc length and sector area using radians: Foundations

Before you touch $s = r θ$ or the sector-area formula, you must own every letter and every symbol inside them. Below is a from-zero tour: each item gives its plain meaning → the picture → why the topic needs it, ordered so each one leans on the one before it. Notice the order carefully: we do not write " $2 π r$ " until after the number $π$ has been defined.

1. The circle, and its centre

Figure — Arc length and sector area using radians

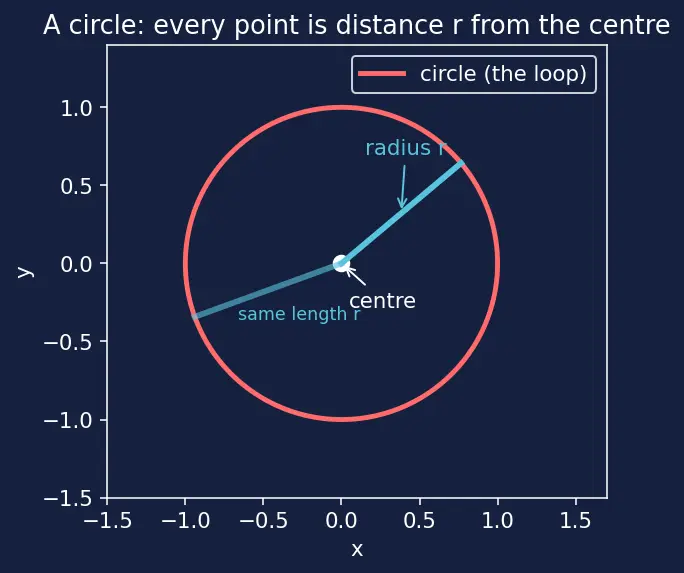

Picture: a round loop with a dot pinned in the middle. Every point on the loop is joined to the dot by a rod of the same length.

Why the topic needs it: every formula here is "an angle measured at the centre." No centre, no angle to measure. The centre is where the two straight edges of a pizza slice meet.

2. The radius $r$

Picture (same figure above): one of those rods from the centre-dot to the loop, coloured blue. Its length is $r$ .

Why the topic needs it: $r$ is the circle's own ruler. Radians measure angle in units of "how many radii of arc," and both formulas start with $r$ . If you don't know what $r$ measures, $s = r θ$ is just noise.

3. The arc, and arc length $s$

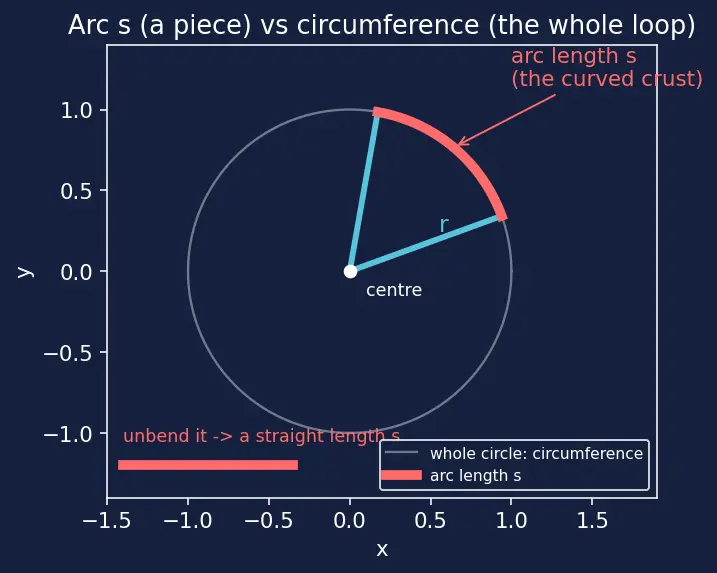

Picture: the curved red slice of crust between two rods. Imagine peeling that crust off and laying it flat — its length is $s$ .

Why the topic needs it: $s$ is the output of the arc-length formula and half the story of a sector. The letter choice $s$ comes from "span" / arc; get comfortable that $s$ is a length (measured in cm, m, ...), never an angle.

4. The number $π$ (define this BEFORE any $2 π r$ )

Why the topic needs it: the very next step measures the whole boundary of the circle. That measurement is $2 π r$ , and it contains $π$ — so $π$ must come first. Every cancellation in the parent's derivation later hinges on this number. See Radian measure and degree conversion.

5. The full boundary: circumference

Picture (see figure s02 above): the entire red loop, not just one slice of crust.

Why the topic needs it: the parent derives $s = r θ$ by saying "an arc is a fraction of the circumference." So you must already know the whole thing you're taking a fraction of. And because we now have $π$ in hand, the symbol $2 π r$ is fully earned.

6. Area, and the area of a disc

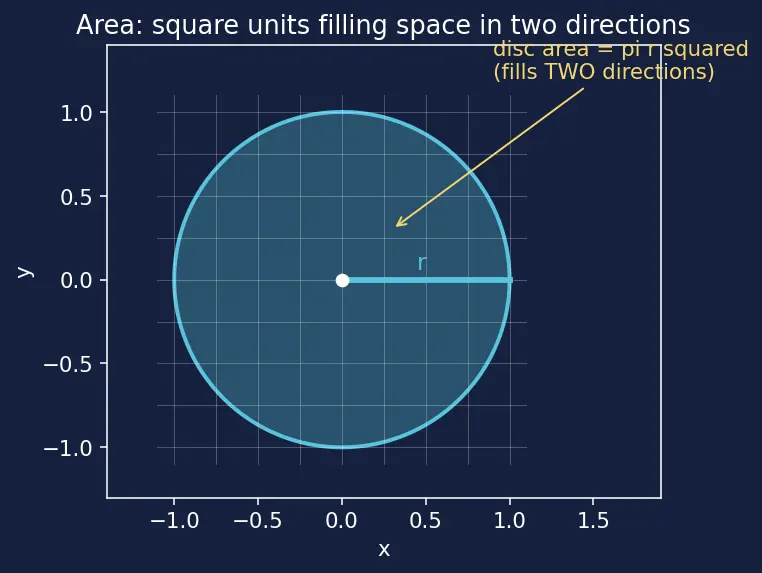

Picture: the whole inside of the circle is shaded — that filled patch is the disc area, and the little grid squares show why "square units" fill two directions at once.

Why the topic needs it: the sector-area formula takes a fraction of the whole disc. From Circumference and area of a circle, the disc area is $π r^{2}$ . The little " $^{2}$ " (read "squared", meaning $r \times r$ ) is why sector area carries an $r^{2}$ and a $\frac{1}{2}$ , while arc length does not.

7. The angle $θ$ — and the RADIAN

This is the heart of the whole topic, so it gets its own figure.

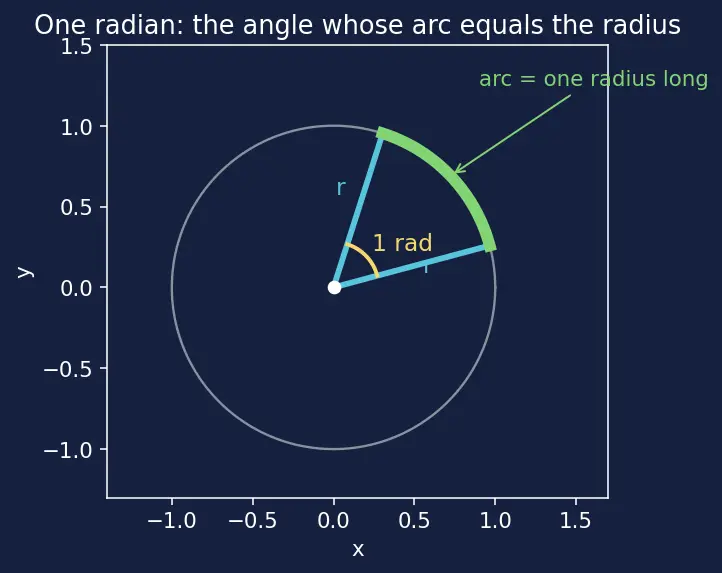

Picture: two rods of length $r$ from the centre. The curved crust between their tips is bent to be exactly length $r$ (green). The opening between the rods is 1 radian. Bend a crust of length $2 r$ and the opening is 2 radians, and so on.

Why this unit and not degrees? Degrees chop a full turn into an arbitrary 360 pieces (a leftover from ancient calendars). Radians instead measure angle using the circle's own radius as the ruler. Because the ruler and the arc use the same length-unit, the ratio $θ = s / r$ is pure and unit-free — and that is exactly why $s = r θ$ has no messy conversion factor.

8. Sign and orientation of $θ$ (an edge case you must not skip)

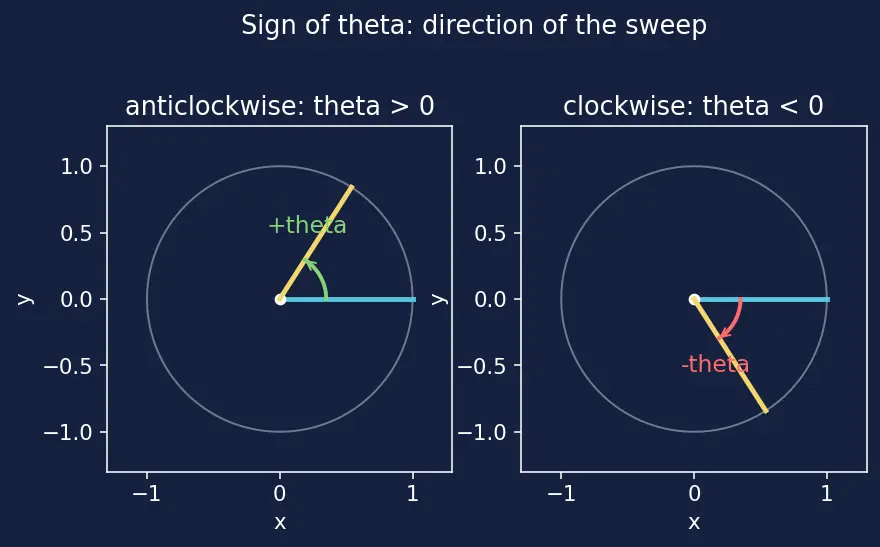

Picture: the yellow rod swings anticlockwise (positive) on the left; the same rod swinging clockwise (negative) on the right. Same "openness", opposite sign.

Why the topic needs it: the definition $θ = s / r$ ties the sign of the arc to the sign of the angle. When you later study rotation, a $- 1.2$ rad turn means "1.2 radians clockwise." For plain length and area problems you always use the size (the positive value $∣ θ ∣$ ), because a physical arc-length and a physical area can never be negative — but you must know the sign exists so a negative $θ$ in a problem never surprises you.

9. Fraction / proportion thinking — and where $A = \frac{1}{2} r^{2} θ$ comes from

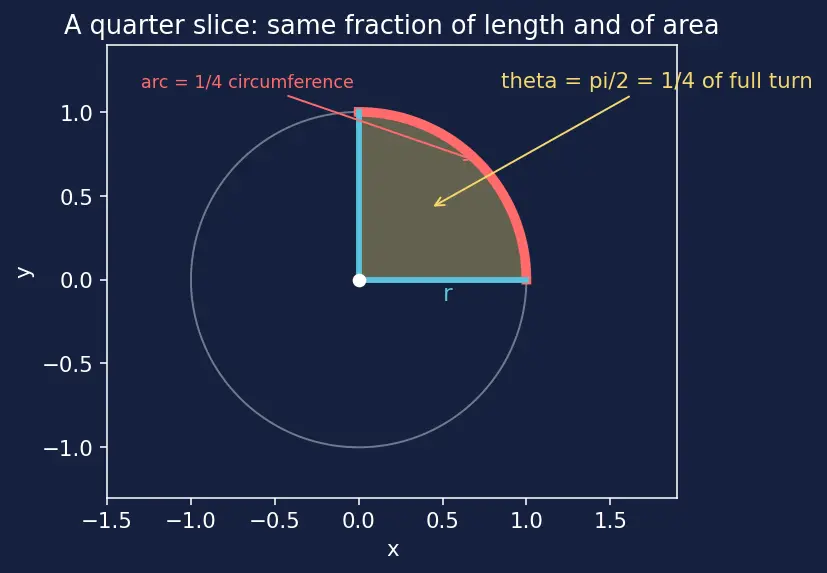

Picture: a quarter slice ( $θ = \frac{π}{2}$ , which is $\frac{1}{4}$ of the full $2 π$ ) is $\frac{1}{4}$ of the disc, so its crust is $\frac{1}{4}$ of the circumference and its shaded area is $\frac{1}{4}$ of the disc. Same fraction, both times.

Now let's actually build the sector-area formula so nothing is left as magic. Call the slice's area $A$ (for "Area of the sector"). The fraction of a full turn is $\frac{θ}{2 π}$ , so:

$slice \div whole disc \frac{A}{π r ^{2}} = your angle \div full turn \frac{θ}{2 π}$

WHAT we did: set "slice-area over whole-disc-area" equal to "angle over full turn." WHY: the picture says a slice covers the same fraction of the disc that its angle covers of the whole $2 π$ . Multiply both sides by the disc area $π r^{2}$ :

$A = π r^{2} \cdot \frac{θ}{2 π} = \frac{π}{2 π} r^{2} θ = \frac{1}{2} r^{2} θ$

WHAT IT LOOKS LIKE: the $π$ on top cancels the $π$ inside $2 π$ , leaving exactly one factor of $\frac{1}{2}$ . That $\frac{1}{2}$ is not decoration — it is the leftover of dividing $π r^{2}$ by $2 π$ .

Why the topic needs it: without the fraction idea, both $s = r θ$ and $A = \frac{1}{2} r^{2} θ$ look like magic. With it, the $\frac{1}{2}$ and the $r^{2}$ have a clear origin.

10. Symbol dictionary

Keep two lists separate: the base symbols you must define from zero, and the derived expressions built by combining them.

Recall Base symbols (primitive — defined directly)

$r$ ::: radius — distance centre to edge (a length) $s$ ::: arc length — length of a curved piece of the edge (a length) $θ$ ::: angle at the centre, in radians; carries a sign (+ anticlockwise, − clockwise) $π$ ::: fixed number $\approx 3.14159$ ; diameters-around-the-edge $A$ ::: area of a sector (the pizza slice), a square measure

Recall Derived expressions (built by combining base symbols)

$2 π$ ::: radians in one full turn (= radius-lengths around the whole circle) $2 π r$ ::: circumference — the whole boundary length $π r^{2}$ ::: area of the whole disc $s = r θ$ ::: arc length of a slice $A = \frac{1}{2} r^{2} θ$ ::: sector area (the $\frac{1}{2}$ is $π r^{2} \div 2 π$ )

Prerequisite map

Equipment checklist

Test yourself — cover the right side and answer each before revealing.

What does

r

measure, and in what units?

The distance from centre to edge; a length (cm, m, ...).

What is the difference between

r

and the diameter?

The diameter goes all the way across through the centre and equals

2 r

s

a length or an angle?

A length — the size of a curved piece of the circle's edge.

What single question does

π

answer?

How many diameters fit around the edge of any circle (

\approx 3.14159

What is the circumference of a full circle, in terms of

r

2 π r

What is the area of the whole disc?

π r^{2}

Define one radian in one sentence.

The angle whose arc is exactly one radius long.

How many radians are in a full turn, and why?

2 π

, because the circumference is

2 π r

2 π

radius-lengths of arc.

Write the definition of a radian as an equation.

θ = s / r

(equivalently

s = r θ

What sign does an anticlockwise angle get, and a clockwise one?

Anticlockwise is positive, clockwise is negative; use the magnitude for length/area.

Derive the

\frac{1}{2}

A = \frac{1}{2} r^{2} θ

A = π r^{2} \cdot \frac{θ}{2 π}

; the

π

cancels leaving

\frac{1}{2} r^{2} θ

Why does area grow with

r^{2}

but arc length only with

r

Area fills two directions at once (a square measure); length fills only one.

Connections

Arc length and sector area using radians — the parent topic these foundations feed.
Radian measure and degree conversion — where the radian and $π /180$ live in full.
Circumference and area of a circle — sources of $2 π r$ and $π r^{2}$ .
Small-angle approximations — needs a firm grip on $s \approx r θ$ .
Angular velocity — reuses these symbols ( $v = r ω$ mirrors $s = r θ$ ).
