Foundations — SOH-CAH-TOA mnemonic

Before you can trust that idea, you must be able to read every mark on the page. Below is every symbol, word, and picture the parent note leans on — built from nothing, in the order each one needs the one before it.

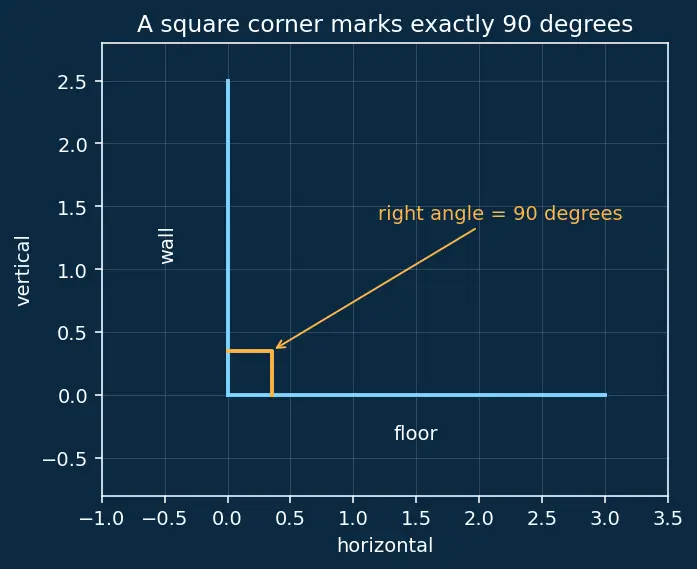

1. The right angle and its little square

The picture: a small square drawn inside a corner is the universal signal "this corner is exactly 90°". Not almost — exactly.

Why the topic needs it: every ratio in SOH-CAH-TOA is defined only for a triangle that contains one of these square corners. Take the right angle away and "opposite / hypotenuse" stops meaning anything fixed. See 2.4.01-right-triangle-anatomy for the full triangle tour.

2. The degree symbol ° and the angle name θ

The picture: an angle is the amount of opening between two lines that meet at a point. We draw a little curved arc between the two lines and write $\theta$ next to it — that arc is the angle.

Why the topic needs it: SOH-CAH-TOA is a machine that turns an angle into a ratio (or a ratio back into an angle). We need a single stable symbol, $\theta$, to talk about "the angle" through a whole calculation without committing to a number too early.

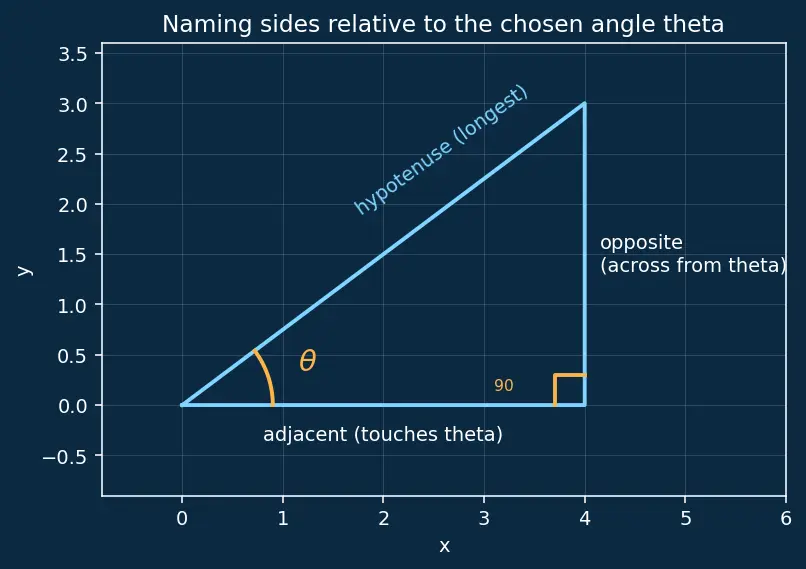

3. Naming the three sides

Once you have picked which corner is $\theta$, the three sides earn three names.

Why the topic needs it: the whole mnemonic is spelled out of these three words — S(ine)=O/H, C(osine)=A/H, T(angent)=O/A. If you cannot point to each side, the letters are meaningless.

4. The fraction bar and what "ratio" means

The picture: if the opposite side is 3 cm and the hypotenuse is 6 cm, the ratio $\frac{3}{6}=0.5$ says "the opposite is half as long as the hypotenuse." That single number $0.5$ carries no units — centimetres cancel centimetres — which is exactly why it can be shared between a tiny triangle and a giant one.

5. Similar triangles — the reason ratios stay fixed

What the picture shows: two right triangles share the same angle $\theta$. The big one has every side exactly twice the small one's. Watch the ratio:

$\frac{{\text{opp}}_{\text{small}}}{{\text{hyp}}_{\text{small}}}=\frac{3}{6}=0.5\frac{{\text{opp}}_{\text{big}}}{{\text{hyp}}_{\text{big}}}=\frac{6}{12}=0.5$

The lengths doubled; the ratio did not budge.

Why the topic needs it: this is the proof that "sine of 60°" is one specific number rather than "it depends how big you draw it." Without similar triangles, SOH-CAH-TOA would be a superstition. Compare with 2.4.04-unit-circle-definition, where we pin the hypotenuse to exactly 1 so the ratio is the side.

6. The function names: sin, cos, tan

Why the topic needs it: these three names are the entire vocabulary of the parent note. The special values in 2.4.05-special-angles and the wavy pictures in 3.2.01-sine-cosine-graphs are all built on these same three machines.

7. The inverse marks: ${\sin }^{-1}$, ${\cos }^{-1}$, ${\tan }^{-1}$

Why the topic needs it: whenever the parent note knows two sides and wants the angle, it must reverse the machine. That reversal is exactly ${\sin }^{-1},{\cos }^{-1},{\tan }^{-1}$ — the topic of 2.5.01-inverse-trig-functions.

8. The square-root symbol and the Pythagorean helper

The parent's derivation of $\sin (60°)=\frac{\sqrt{3}}{2}$ leans on the Pythagorean theorem $a^2+b^2=c^2$, which ties the three sides of a right triangle together. That relationship gets its own full page — see 2.4.02-pythagorean-theorem. For now, just be able to read $\sqrt{3}\approx 1.732$ as a length.

Why the topic needs it: exact trig values ($\frac{\sqrt{3}}{2}$, $\frac{1}{2}$) come out of Pythagoras applied to special triangles, so you must recognise the root sign to follow the derivation.

How these foundations feed the topic

Read top to bottom: corners and angles build the labelled triangle; the fraction bar plus similar triangles prove the ratio is angle-only; that lets us name the three machines, which is SOH-CAH-TOA; inverses reverse them; Pythagoras supplies the exact numbers.

Equipment checklist

Cover the right side and answer aloud. Reveal to check.
