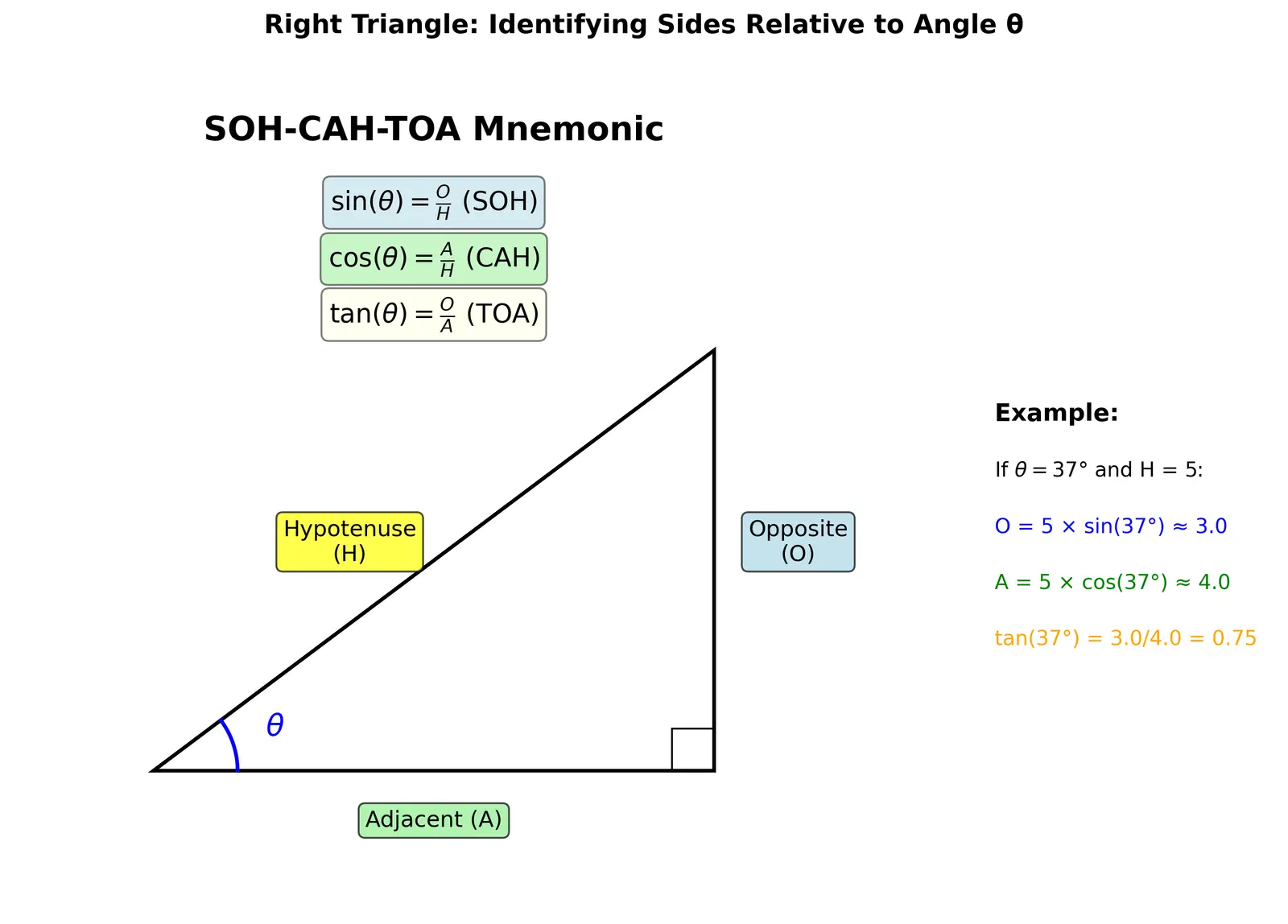

SOH-CAH-TOA mnemonic

What Each Letter Means

Why These Specific Ratios?

The ratios are constant for a given angle because of similar triangle properties. Let's derive why:

Start with two right triangles with the same angle $\theta$ but different sizes
By AA similarity (both have90° and share $\theta$ ), the triangles are similar
Similar triangles have proportional corresponding sides
Therefore: $\frac{\text{opp}_1}{\text{hyp}_1} = \frac{\text{opp}_2}{\text{hyp}_2}$ — this ratio depends only on $\theta$ , not triangle size
We call this constant ratio $\sin(\theta)$

This is WHY trigonometric functions exist: they capture the angle-to-ratio relationship that's universal across all right triangles.

Worked Examples

Worked example Example 1: Finding a Side (Given Angle and Side)

Problem: A laddereans against a wall at 60° from the ground. The ladder is 10 m long. How high up the wall does it reach?

Setup:

Angle $\theta = 60°$
Hypotenuse = 10 m (the ladder)
Want: opposite side (height)

Which ratio? We have hypotenuse, want opposite → Use SOH (sine)

$\sin(60°) = \frac{\text{height}}{10}$ Why this step? Sine relates opposite to hypotenuse, matching what we know and want.

$\text{height} = 10 \times \sin(60°) = 10 \times \frac{\sqrt{3}}{2} = 5\sqrt{3} \approx 8.66 \text{ m}$ Verify: Does the answer make sense? At 60°, the ladder is steep, so height should be close to the ladder length. ✓

Worked example Example 3: Using Tangent (Adjacent + Angle → Opposite)

Problem: From a point 50 m away from a building's base, you look up at 35°. How tall is the building?

Setup:

Angle = 35°
Adjacent = 50 m (horizontal distance)
Want: opposite (height)

Which ratio? We have adjacent, want opposite → Use TOA (tangent) $\tan(35°) = \frac{\text{height}}{50}$ Why tangent here? Because $\tan = \frac{\text{opp}}{\text{adj}}$ directly connects what we know (adjacent) to what we want (opposite). Note: we do not use cosine, because cosine involves the hypotenuse, which we neither know nor want here.

$\text{height} = 50 \times \tan(35°) \approx 50 \times 0.700 = 35 \text{ m}$

Common Mistakes

Derivation from First Principles

Why do these ratios have the specific values they do?

Let's derive $\sin(30°)$ from scratch using an equilateral triangle:

Start with equilateral triangle, all sides = 2units, all angles = 60°
Drop a perpendicular from one vertex to the opposite side
This creates two 30-60-90 right triangles
The perpendicular bisects the base: each half = 1 unit
Using Pythagorean theorem for the height $h$ : $h^2 + 1^2 = 2^2$ $h^2 = 4 - 1 = 3$ $h = \sqrt{3}$
Now focus on the 30° angle (at the top):
- Opposite side = 1 (half the base)
- Hypotenuse = 2
By definition: $\sin(30°) = \frac{\text{opposite}}{\text{hypotenuse}} = \frac{1}{2}$
For the 60° angle (at the base):
- Opposite = $\sqrt{3}$ (height)
- Hypotenuse = 2
$\sin(60°) = \frac{\sqrt{3}}{2}$

This shows: Trig values aren't arbitrary — they emerge from geometric properties of specific triangles.

Formula Core Formulas

$\sin(\theta) = \frac{\text{opposite}}{\text{hypotenuse}}$ $\cos(\theta) = \frac{\text{adjacent}}{\text{hypotenuse}}$ $\tan(\theta) = \frac{\text{opposite}}{\text{adjacent}} = \frac{\sin(\theta)}{\cos(\theta)}$ Relationship: $\tan(\theta) = \frac{\sin(\theta)}{\cos(\theta)}$ follows algebraically: $\frac{\sin(\theta)}{\cos(\theta)} = \frac{\text{opp}/\text{hyp}}{\text{adj}/\text{hyp}} = \frac{\text{opp}}{\text{adj}} = \tan(\theta)$

Memory Techniques

Mnemonic SOH-CAH-TOA Mnemonics

Classic phrase: "Some Old Hippie Caught Another Hippie Tripping On Acid"

Alternative: "Silly Old Harry Caught A Hering Trawling Off America"

Visual pattern:

    S = O/H    (SOH)
    C = A/H    (CAH)
    T = O/A    (TOA)

Sentence method: Make your own! Use first letters S-O-H-C-A-H-T-O-A to create a memorable story.

Body method:

Touch your Shoulder → Opposite Hand (SOH)
Touch your Chin → Across to Hand (CAH)
Tap One foot, then Adjacent foot (TOA)

Recall Feynman Explanation (Explain to a 12-year-old)

Imagine you're building a ladder to climb a wall. You know two things: how steep you want the ladder (the angle) and how long your ladder is. SOH-CAH-TOA is a magic recipe that tells you exactly how high'll reach.

Think of a right triangle as a ladder problem:

The ladder is the hypotenuse (the long diagonal part)
How high you reach is the opposite side (opposite from the ground angle)
How far from the wall you place the ladder is the adjacent side (next to the ground angle)

SOH-CAH-TOA is just three recipes:

SOH says: "If I know the angle and ladder length, I can find the height" (Sine = Opposite ÷ Hypotenuse)
CAH says: "If I know the angle and ladder length, I can find the ground distance" (Cosine = Adjacent ÷ Hypotenuse)
TOA says: "If I know the height and ground distance, I can find how steep it is" (Tangent = Opposite ÷ Adjacent)

The WHY it works: All laders at the same angle have the same "ratio" between height and length. A 10-foot ladder at 60° reaches the same fraction of its length as a 100-foot ladder at 60°. These ratios have special names: sine, cosine, tangent.

Connections

2.4.01-right-triangle-anatomy — Understanding which side is which
2.4.02-pythagorean-theorem — Finding the third side when you have two
2.4.04-unit-circle-definition — Extending trig beyond right triangles
2.4.05-special-angles — Exact values for 30°, 45°, 60°
2.5.01-inverse-trig-functions — Finding angles from ratios
3.2.01-sine-cosine-graphs — How these ratios behave as functions
applications-surveying — Real-world use in measurement

Active Recall Practice

#flashcards/maths

What does SOH stand for in trigonometry? :: Sine = Opposite / Hypotenuse

What does CAH stand for in trigonometry?

Cosine = Adjacent / Hypotenuse

What does TOA stand for in trigonometry?

Tangent = Opposite / Adjacent

In a right triangle, which side is the hypotenuse?

The longest side, opposite the 90° angle

For a given angle θ in a right triangle, which side is "opposite"?

The side across from angle θ, not touching θ's vertex

For a given angle θ in a right triangle, which side is "adjacent"?

The side touching angle θ's vertex (but not the hypotenuse)

Which trig ratio should you use if you know the hypotenuse and want the opposite side?

Sine (SOH): sin(θ) = opposite/hypotenuse

Which trig ratio should you use if you know opposite and adjacent sides?

Tangent (TOA): tan(θ) = opposite/adjacent

How do you find angle when you know sin(θ) = 0.5?

Use inverse sine: θ = sin⁻¹(0.5) = 30°

Why do similar right triangles with the same acute angle have constant side ratios?

Because similar triangles have proportional corresponding sides, so the ratio depends only on the angle, not the triangle's size

What is the relationship between tan(θ), sin(θ), and cos(θ)?

tan(θ) = sin(θ) / cos(θ)

If a ladder makes a 60° angle with the ground and is 8 m long, how high does it reach? Use sin(60°) ≈ 0.866 :: height = 8 × sin(60°) = 8 × 0.866 ≈ 6.93 m

Concept Map

Hinglish (regional understanding)

Intuition Hinglish mein samjho

Trigonometry mein SOH-CAH-TOA ek bahut important mnemonic hai jo tumhe right triangle ki sides aur angles ke bech relationship yad rakhne mein mad karta hai. Jab bhi tum kisi right triangle mein ek angle aur ek side jante ho, toh SOH-CAH-TOA use karke tum dosri sides ya angles nikal sakte ho.

SOH ka matlab hai Sine = Opposite/Hypotenuse. Yani agar tumhe angle pata hai aur hypotenuse (sabse lambi side) pata hai, toh opposite side (jo angle ke saamne hai) nikal sakte ho. CAH ka matlab hai Cosine = Adjacent/Hypotenuse — yeh tumhe adjacent side (jo angle ke pas hai) deta hai. TOA matlabTangent = Opposite/Adjacent** — yeh directly opposite aur adjacent sides ko connect karta hai bina hypotenuse ke.

Yeh ratios isliye kaam karte hain kyunki similar triangles (jo same angles wale hote hain) mein sides ke ratios hamesha same hote hain, chahe triangle kitna bhi bada ya chhota ho. Agar ek triangle mein 30° angle hai, toh uski opposite aur hypotenuse ka ratio hamesha 1:2 hoga. Yahi concept sine, cosine, tangent functions ki foundation hai.

Real life mein SOH-CAH-TOA ka use bahut hota hai — buildings ki height measure karna, bridges design karna, navigation mein distance calculate karna. Ek baar yeh mnemonic yad ho jaye, toh trigonometry ke sawaal solve karna bahut easy ho jata hai. Bas yad rakho: pehle identify karo ki tumhe kaunsi sides di gayi hain aur kaunsi chahiye, phir sahi ratio (SOH, CAH, ya TOA) choose karo!
