Midpoint formula: Visual walkthrough — Maths deep dive

We assume only that you know how to plot a dot: go right by its first number, up by its second. Everything else we earn.

Step 1 — Two dots on a grid

Read the little subscript $1$ as "belongs to point $A$ " and subscript $2$ as "belongs to point $B$ ". So $x_{1}$ is A's rightness and $y_{2}$ is B's upness. Nothing more.

WHAT: we planted two dots and labelled every number.
WHY: you can't find a middle until you have two ends to be in the middle of.
PICTURE: $A$ is the blue dot, $B$ is the yellow dot. The dashed guide-lines show where each number comes from.

Step 2 — Draw the segment and ask "where is halfway?"

We haven't computed anything yet — we've only named the thing we want. Call its coordinates $(x_{M}, y_{M})$ . The subscript $M$ means "belongs to the midpoint".

WHAT: we joined $A$ to $B$ and marked the target point $M$ (green) exactly in the middle.
WHY: naming the goal $(x_{M}, y_{M})$ lets us hunt for each number separately.
PICTURE: the green dot splits the segment into two equal red ticks — $A M$ and $M B$ are the same length.

Step 3 — Split the problem: handle right-and-left on its own

Let's do horizontal first. Forget height entirely — flatten everything onto the number line of $x$ -values.

WHAT: we projected $A$ and $B$ straight down onto the $x$ -axis, giving marks at $x_{1}$ and $x_{2}$ .
WHY: a midpoint on a line is far simpler than a midpoint in the plane. Reduce, then repeat.
PICTURE: the blue and yellow drop-lines land at $x_{1}$ and $x_{2}$ ; the green drop-line will land at the answer $x_{M}$ once we find it.

Step 4 — Walk the horizontal gap, take half

WHAT: we measured the gap $x_{2} - x_{1}$ , cut it in half, and added it onto $x_{1}$ .
WHY subtraction then addition? The subtraction measures how far to go; the addition places you at a spot. A gap is a length; a midpoint is a location — you need both jobs.
PICTURE: the full red arrow is the gap $x_{2} - x_{1}$ ; the shorter green arrow is exactly half of it, landing you on $x_{M}$ .

Step 5 — Tidy the algebra into "average"

WHAT: algebra turned "start + half-gap" into "sum ÷ 2".
WHY it's satisfying: the messy walk collapses into the friendliest operation in maths — averaging. That's why people just say "average the coordinates".
PICTURE: the balance-beam view — $x_{M}$ is the exact fulcrum where $x_{1}$ and $x_{2}$ balance.

Step 6 — Repeat the identical story vertically

WHAT: we ran Step 3–5 again in the vertical direction.
WHY we're allowed: horizontal and vertical never interfere — the grid is at right angles. So the two halves of the problem are independent.
PICTURE: same balance beam, now stood upright between $y_{1}$ and $y_{2}$ .

Stitch the two answers together:

Step 7 — Edge case: negative numbers don't break it

WHAT: we ran the formula with a negative coordinate.
WHY it still works: the "gap" $x_{2} - x_{1} = 2 - (- 4) = 6$ is a genuine positive length even though one endpoint sits left of zero. The subtraction bookkeeps the sign for you.
PICTURE: the segment crosses the $y$ -axis; the green midpoint sits at $x = - 1$ , still dead-centre. No special rule needed.

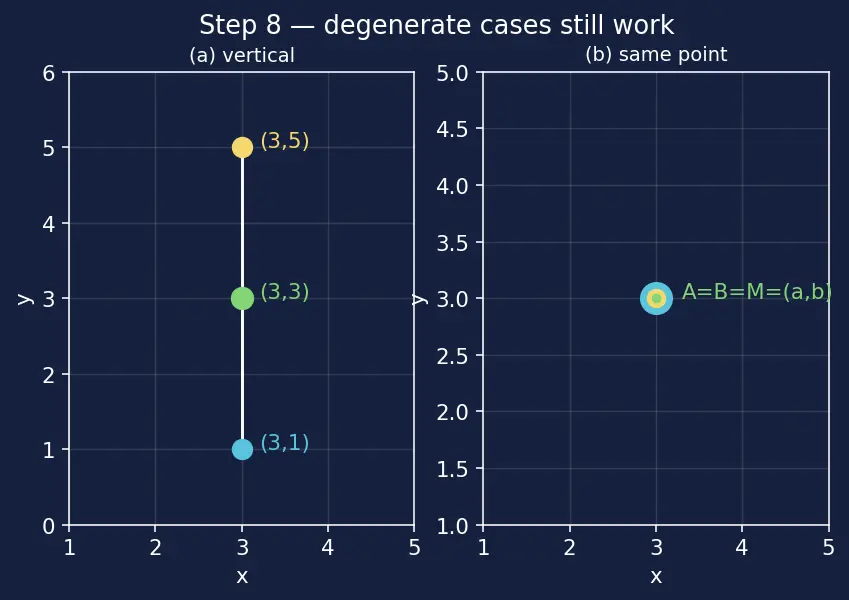

Step 8 — Degenerate cases: vertical, and a single point

WHAT: we tested the two ways a segment can "collapse".
WHY these matter: a formula you trust must survive its own extremes. Zero horizontal gap, zero total gap — both give sensible answers, never a division-by-zero (we always divide by $2$ , never by a gap).
PICTURE: left panel, a vertical stick with its green midpoint; right panel, the two dots stacked exactly, midpoint on top of them.

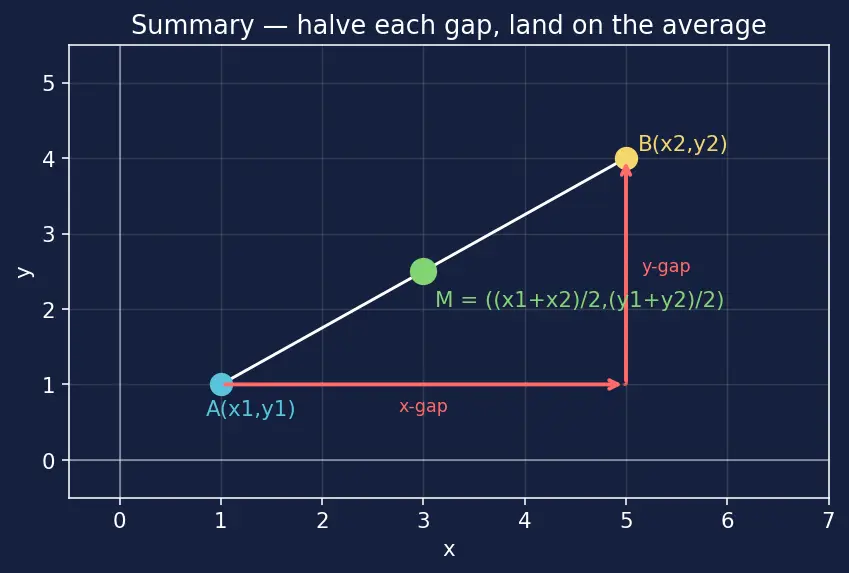

The whole derivation in a single frame: the red gap arrows in each direction, halved (green), added onto the starting corner, landing on $M$ — which turns out to be the average corner $(\frac{x _{1} + x _{2}}{2}, \frac{y _{1} + y _{2}}{2})$ .

Recall Feynman retelling — say it to a 12-year-old

You and a friend stand somewhere on a big grid floor. To meet exactly in the middle, split the job in two. First sort out left-and-right: see how many steps apart you are sideways, walk half of that from your spot — that's the meeting spot's rightness. Then do the very same thing for forward-and-back to get its upness. It always comes out to "add both our numbers and cut in half". Negative numbers, standing in a line, even standing on the exact same tile — the recipe never changes, because cutting a gap in half and adding it to where you started is the same as averaging.

Active Recall

Connections

Midpoint formula — this is its visual derivation.
Section formula — same walk with a ratio other than half-and-half.
Distance formula — uses the gap $x_{2} - x_{1}$ (subtraction) we built in Step 4, without the "add back".
Coordinate Geometry basics — plotting the dots of Step 1.
Properties of parallelograms — where equal midpoints prove a shape.
Centroid of a triangle — the same averaging idea, but over three points.
