Midpoint formula: Foundations — Maths deep dive

This page builds the toolbox. Every symbol the Midpoint formula parent note uses is unpacked here from absolute zero — no symbol is used before it is defined and drawn.

1. The number line — where a single number becomes a place

Before points on paper, there is one line.

Plain words: a number is a location on this ruler.
Picture: look at figure s01 — the pale-yellow tick at $3$ is not "the amount three", it is "the place three".
Why the topic needs it: the midpoint idea starts as "the spot halfway between two spots". You cannot talk about halfway without first agreeing that a number marks a place.

2. Coordinates — pinning a point on a flat page

One line gives a place with one number. A flat page needs two.

Plain words: $(x, y)$ is an address — "how far across, then how far up".

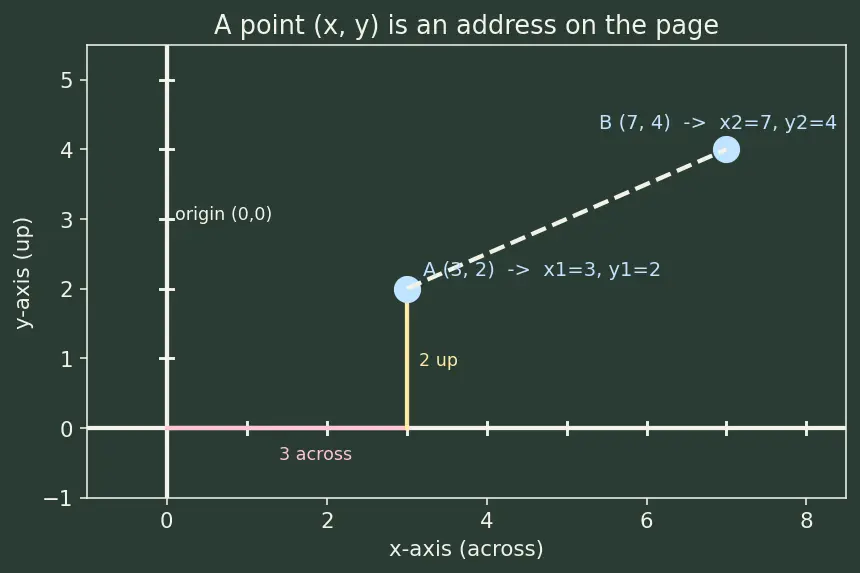

Picture: in figure s02 the chalk-blue point $A (3, 2)$ is reached by walking $3$ right along the x-axis, then $2$ up.
Why the topic needs it: the parent note writes points as $A (x_{1}, y_{1})$ and $B (x_{2}, y_{2})$ . Those are just two addresses. Everything else is arithmetic on these addresses.

3. Subscripts — telling two points apart

The parent note writes $x_{1}$ , $x_{2}$ , $y_{1}$ , $y_{2}$ . These little low numbers are subscripts.

Plain words: $x_{1}$ = "x of the first point", $x_{2}$ = "x of the second point".
Picture: for $A (3, 2)$ and $B (7, 4)$ we have $x_{1} = 3, y_{1} = 2, x_{2} = 7, y_{2} = 4$ — see the labels in figure s02.
Why the topic needs it: with two points we have two x's and two y's. Without name tags we would not know which is which.

4. Distance along one axis — the difference

To split a gap in half, we must first measure the gap.

Plain words: subtraction answers "how far apart along this axis?"
Picture: in figure s03 the pink bracket under the axis measures $x_{2} - x_{1} = 7 - 3 = 4$ ; the yellow bracket up the side measures $y_{2} - y_{1} = 4 - 2 = 2$ .
Why subtraction and not addition here? A gap is a length. Length is "how much bigger is one than the other", which is exactly what subtracting gives. (Contrast this with the Distance formula, which combines both gaps.)
Why the topic needs it: the derivation starts by walking the gap $x_{2} - x_{1}$ , then taking half of it.

5. Average — the machine that finds the middle

Here is the star tool.

Plain words: "add and halve".
Picture: figure s04 shows $2$ and $6$ on a line; their average $4$ lands exactly in the middle — the two blue arrows from $4$ to each end have identical length.
Why THIS tool and not another? We want the point that is equally far from both ends. Averaging is the only simple operation that always lands dead-centre: whatever you add to reach $b$ from the middle, you subtract the same to reach $a$ . That balance is equal distance both ways — which is the very definition of midpoint.
Why it always works — the check: distance from $a$ to the average is $\frac{a + b}{2} - a = \frac{b - a}{2}$ ; distance from the average to $b$ is $b - \frac{a + b}{2} = \frac{b - a}{2}$ . Same. Balanced. ✅

6. Segment, midpoint, and "bisect" — the words of the topic

Picture: in figure s02 the little "M" would sit right in the middle of the chalk line from $A$ to $B$ , equally far from each.
Why the topic needs these: Example 3 in the parent note asks whether diagonals bisect each other — that word just means "do they share the same midpoint?".

7. Solving for a hidden letter — undoing operations

The parent's Example 2 finds a missing endpoint. That needs one algebra move.

Plain words: to free a letter trapped inside " $\div 2$ ", multiply the whole equation by $2$ .
Example: $\frac{1 + x}{2} = 3 \Rightarrow 1 + x = 6 \Rightarrow x = 5$ .
Why the topic needs it: given the midpoint and one endpoint, you reverse the averaging to recover the other endpoint: $x = 2 x_{M} - x_{1}$ .

Recall Where does

$x = 2 x_{M} - x_{1}$ come from? Start from $\frac{x _{1} + x}{2} = x_{M}$ . Multiply by $2$ : $x_{1} + x = 2 x_{M}$ . Subtract $x_{1}$ : $x = 2 x_{M} - x_{1}$ . Same reverse-the-average move.

Prerequisite map

Read it top to bottom: places → addresses → name tags → gaps → the averaging machine → the midpoint, with a side branch for reversing the average.

Equipment checklist

Test yourself — cover the right side.

On a number line, what does the number

5

represent?

A place (a location), not just a quantity — the spot five steps right of zero.

In the point

(x, y)

, which number is horizontal and comes first?

x

— how far across;

y

(up/down) comes second.

Does

x_{2}

mean "x squared"?

No. A low subscript is a name tag ("x of point 2"); a raised one would be a power.

How do you measure the horizontal gap between two points?

Subtract:

x_{2} - x_{1}

(a distance, not a position).

What is the average of

a

and

b

, and why does it land in the middle?

\frac{a + b}{2}

; it is exactly

\frac{b - a}{2}

from each end, so equally far from both.

What does "bisect" mean?

To cut into two equal halves — the midpoint bisects the segment.

\frac{1 + x}{2} = 3

, how do you free

x

Multiply both sides by

2

(undo the ÷2), giving

1 + x = 6

, so

x = 5

Connections

Midpoint formula — the parent this page equips you for.
Coordinate Geometry basics — axes and plotting, deepened here.
Distance formula — uses the difference (gap) idea from §4.
Section formula — midpoint is its $1 : 1$ case.
Properties of parallelograms — where "bisect" (§6) is used.
Centroid of a triangle — extends the averaging machine (§5) to three points.
