Visual walkthrough — Perimeter of polygons — regular and irregular

This is the pictures-first companion to the parent note. If you want the same story in Hinglish, see the Hinglish note.

---

Step 1 — A point and a journey

WHAT. Put a piece of chalk on the ground. That single dot is a point — a location, with no size, no length. On its own it has nothing to measure.

WHY. Before we can talk about "distance around" a shape, we need the tiniest ingredient: a place to start. Every walk begins somewhere. A perimeter is a journey, and Step 1 is standing still at the starting line.

PICTURE. Look at the pale-yellow dot labelled $A$. That is our start. Nothing is drawn yet — that emptiness is the point: a location carries no length by itself.

---

Step 2 — One straight step becomes a length

WHAT. Walk in a straight line from point $A$ to a new point $B$. The chalk trail you leave is a line segment. The number that tells us how long that trail is — how far $A$ is from $B$ — is its length, and we name it $s_1$.

WHY. A polygon is built only from straight pieces. We use a straight step (not a curve) because the shortest, cleanest way between two points is a line — and its length is a single, honest number. This is the first thing we can actually measure.

PICTURE. The blue segment goes from $A$ to $B$. The bracket underneath is labelled $s_1$ — read it as "side one." That bracket is the distance travelled so far.

$\underset{\text{length of the first side}=\text{distance from }A\text{ to }B}{\underbrace{s_1}}$

Here $s_1$ is not a mystery symbol — it is literally the size of the bracket you can see.

---

Step 3 — Turn, step again, and start counting the total

WHAT. At $B$, turn and take another straight step to a new point $C$. That second trail has its own length, $s_2$. The distance you have walked in total is now the first length plus the second: $s_1+s_2$.

WHY. Distances travelled along a path simply add up — walking 3 steps then 4 more steps means you covered 7 steps. We use addition (not multiplication, not anything fancier) because each new side is a separate stretch of ground laid end-to-end. This "running total" is the seed of the whole idea.

PICTURE. Blue is $s_1$, pink is $s_2$. The running total written along the bottom — $s_1+s_2$ — is how far the chalk has travelled from $A$ to $C$.

$\text{distance so far}=\underset{\text{first step}}{\underbrace{s_1}}+\underset{\text{second step}}{\underbrace{s_2}}$

---

Step 4 — Close the loop: this is perimeter

WHAT. Keep stepping and turning until your final step lands you exactly back on the starting point $A$. Now the shape is closed — a polygon. Add up every side you walked. That grand total is the perimeter, written $P$.

WHY. We insist on returning to $A$ because "distance around" only makes sense for a closed loop — an open zig-zag has no inside and no fence to build. Once closed, each side has been walked exactly once, so their sum is the true total distance around the boundary.

PICTURE. A closed four-sided figure $A\to B\to C\to D\to A$. Each side has its own colour and its own label $s_1,s_2,s_3,s_4$. The green highlight traces the full loop — that whole outline is $P$.

$P=\underset{A\to B}{\underbrace{s_1}}+\underset{B\to C}{\underbrace{s_2}}+\underset{C\to D}{\underbrace{s_3}}+\underset{D\to A}{\underbrace{s_4}}$

---

Step 5 — When all steps are the same size, addition becomes multiplication

WHAT. Now suppose the shape is regular — every side has the identical length. Call that one shared length $s$. Then every $s_k$ equals the same $s$: $s_1=s_2=\cdots =s_n=s.$

WHY. Adding the same number to itself $n$ times has a shorter name: multiplication. $s+s+s+s$ is precisely what $4\times s$ means. We are not inventing a new rule — we are using the definition of multiplication to compress a long sum.

PICTURE. A regular hexagon: all six sides are the same blue length $s$. Below it, six equal brackets are stacked and then bundled into one arrow labelled $6\times s$ — the picture of "same length, six times."

$P=\underset{n=6\text{ equal sides}}{\underbrace{s+s+s+s+s+s}}=\underset{\text{how many}}{\underbrace{n}}\times \underset{\text{each length}}{\underbrace{s}}$

---

Step 6 — The forbidden shortcut (irregular case)

WHAT. Take an irregular polygon — sides of different lengths, say $5,8,6,9$. There is no single $s$ to plug into $n\cdot s$. You must return to the honest sum from Step 4 and add each side one by one.

WHY. Multiplication compresses a sum only when every term is equal. The moment the sides differ, $n\cdot s$ would ask "which side is $s$?" — and there is no honest answer. Picking one side and multiplying (e.g. $4\times 5$) counts three wrong lengths and ignores three true ones.

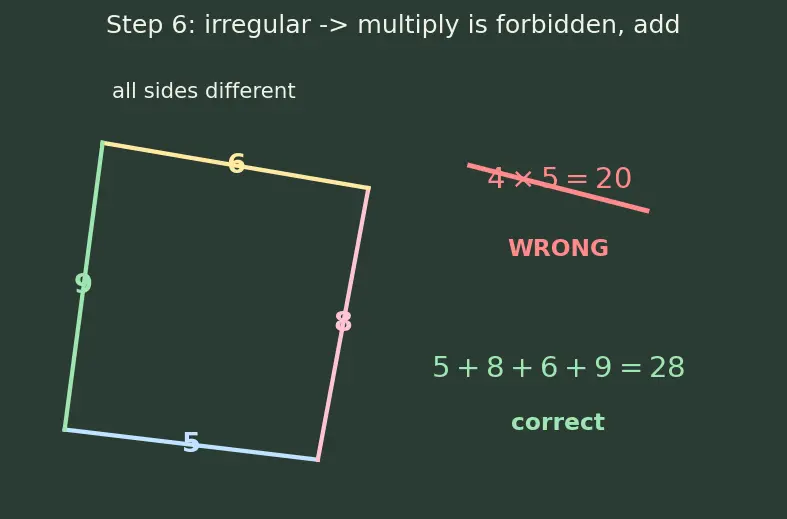

PICTURE. Left: an irregular quadrilateral with four different-coloured, different-length sides $5,8,6,9$. A red ✗ strikes through the tempting "$4\times 5=20$." Right: the correct running sum $5+8+6+9=28$ highlighted in green.

$P=5+8+6+9=28\text{(add each unique length)}$ $\underset{\text{WRONG: sides are not equal}}{\underbrace{4\times 5=20}}$

---

Step 7 — Degenerate & edge cases (so nothing surprises you)

WHAT. Three boundary situations to nail down:

1. Two sides only? Impossible for a closed polygon. Two segments can't enclose a region — the smallest polygon is the triangle, $n=3$. So $P=s_1+s_2+s_3$ at minimum.
2. Mixed units. If one side is $1\text{ m}$ and another is $50\text{ cm}$, you cannot add $1+50$. Convert first: $1\text{ m}=100\text{ cm}$, so $P=100+50=150\text{ cm}$.
3. Length, never area. Perimeter is a distance — one-dimensional — so it stays in cm, m, km. It never gains a little square (cm²); that belongs to Area of polygons.

WHY. These are exactly the traps where careful students still slip. Each one comes straight from the definition: perimeter is a sum of straight lengths measured in the same unit around a closed loop — break any part of that sentence and the number is meaningless.

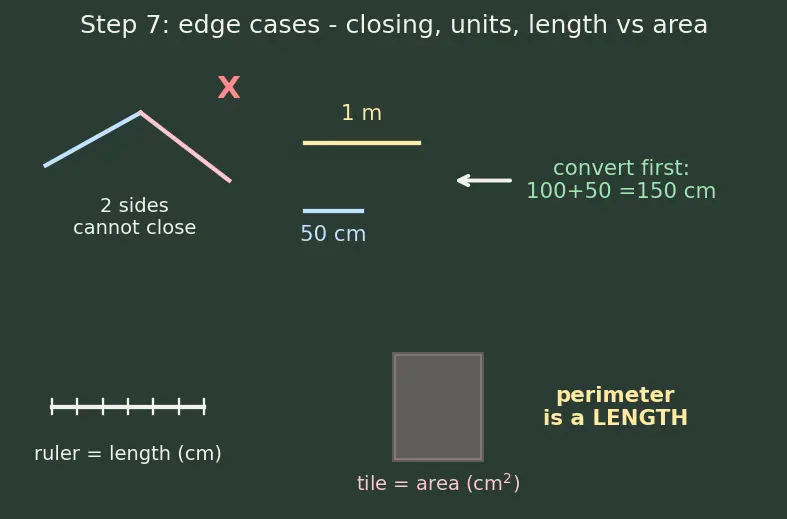

PICTURE. Three mini-panels: (a) two segments failing to close, marked ✗; (b) a "m → cm" conversion arrow before adding; (c) a ruler (length, cm) beside a shaded tile (area, cm²) to show they are different measurements.

For more on this last trap see Units of measurement; and for the shapes themselves, Triangles and Quadrilaterals. When a side is missing but a right angle is present, the Pythagorean theorem recovers it before you sum.

---

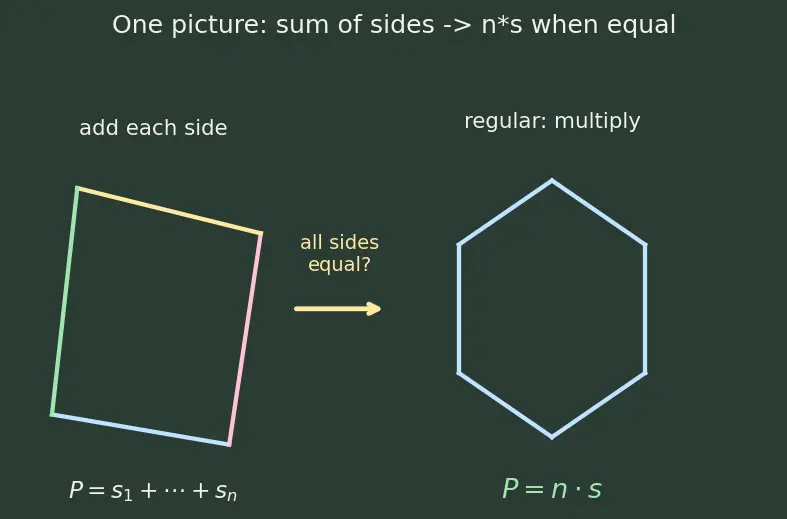

The one-picture summary

Everything above, on one board: start at $A$ (Step 1) → lay down sides one at a time and add their lengths (Steps 2–4) → if all lengths match, bundle the sum into $n\cdot s$ (Step 5) → if they differ, keep adding individually (Step 6) → always same units, always length (Step 7).

$\boxed{P=s_1+s_2+\cdots +s_n\underset{\text{all sides equal}}{\to }P=n\cdot s}$

Recall Feynman retelling — say it back in plain words

I put chalk on the ground at a starting dot. I walk one straight stretch and note how long it was — that's a side. I turn, walk another stretch, note that too, and add it to the first, because distances you walk just pile up. I keep going, turning and walking, until I land back exactly where I started — now I've drawn a closed shape. Adding up all the stretches I walked gives the distance around, which is the perimeter.

If every stretch happened to be the same length, I don't have to write the same number over and over — I just count how many sides there are and multiply by that one length: $n\times s$. But if the stretches are all different, there's no single number to multiply by, so I'm back to plain adding, one side at a time.

Two rules keep me safe: I never mix units (I turn every measurement into the same unit first), and I remember perimeter is a length — it lives in cm or m, never in little squares.

---

Connections

• Perimeter of Polygons — Regular and Irregular — the parent note this walkthrough expands
• Area of polygons — the inside, not the outline; different units (cm²)
• Triangles — smallest polygon, $n=3$, the floor of Step 7
• Quadrilaterals — four-sided figures used in Steps 4 and 6
• Circles — the "infinite sides" limit; its perimeter is called circumference
• Pythagorean theorem — finds a hidden side length before you can sum
• Units of measurement — the conversion rule from Step 7
