Foundations — Perimeter of polygons — regular and irregular

Before you can trust a formula like $P=n\cdot s$, you must know exactly what every mark in it means and what it looks like as a picture. This page rebuilds each piece from the ground up, in an order where nothing is used before it is built. If the parent note in the topic assumed you already knew a symbol, we un-assume it here.

1. A point — "where something is"

The picture: imagine the sharpest possible pencil touching paper once. That mark is the point. The dot we draw is bigger than a real point only so our eyes can see it.

Why the topic needs it: the corners of every shape are points. A garden's fence turns at corners; each corner is a point. Without points there are no corners, and without corners there is no polygon.

2. A line segment — "a straight walk between two points"

The picture: put two points on paper, then pull a string tight between them. The taut string is the segment. Pull it any less tight and it bends — a segment is the straightest, shortest connection.

Why the topic needs it: every side of a polygon is a line segment. When the parent note says "the sides," it means these straight pieces. Perimeter adds up their lengths, so segments are the things being measured.

3. Length and distance — "how far?"

The picture: lay a ruler along the segment. The number where the far end lands, minus where the near end starts, is the length. It's a count of how many unit-sticks fit end to end along the segment.

Why the topic needs it: perimeter is a length. The parent note's warning in Mistake 2 (perimeter vs area) is really the warning: keep counting one-dimensional length, do not slip into two-dimensional area. See Units of measurement for choosing and converting the unit.

4. A closed polygon — "a fence that comes back to the start"

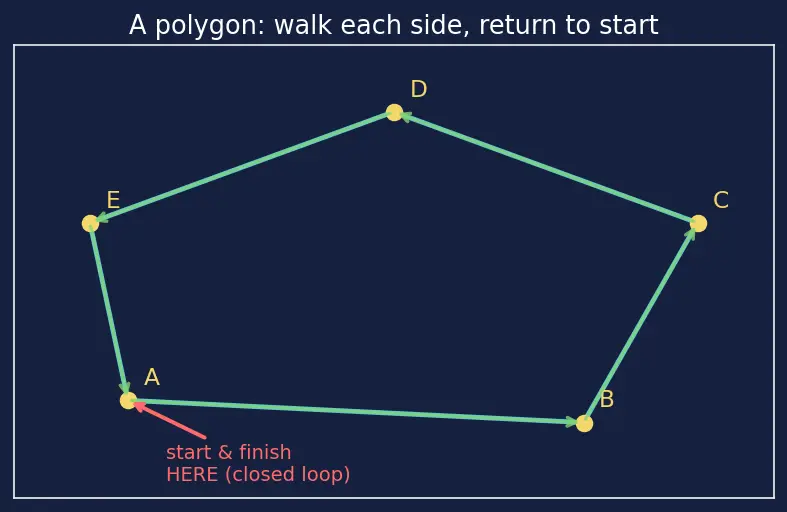

The picture: start at a corner, walk along a segment to the next corner, turn, walk the next segment, and keep going until — snap — you arrive back at your starting corner. That closed loop is the polygon.

Why the topic needs it: perimeter is defined only for a closed boundary. Regularity, side-counting, and formulas all assume you have a genuine closed loop.

Related closed shapes you will meet: Triangles (3 sides), Quadrilaterals (4 sides), and Circles (a boundary with no straight sides — handled differently).

5. The letter $s$ — "a name for a side's length"

The picture: put a label $s$ on one side of your drawn shape, the way you'd stick a name-tag on it. The tag stands for "however long this side is."

Why the topic needs it: the formula $P=n\cdot s$ uses $s$ so the rule works whether the side is 7 cm or 700 m. A letter that stands for a number is called a variable.

Subscripts — telling sides apart: when sides have different lengths we can't call them all $s$, so we number them: $s_1,s_2,s_3,\dots$ (read "s-one, s-two, s-three"). The small lowered number is a subscript; it is a label, not a multiplication or a power.

6. The letter $n$ — "how many sides"

The picture: walk around your polygon and tap each side once, counting out loud: "one, two, three...". The final number you say is $n$.

Why the topic needs it: $n$ is how many lengths you must add. In $P=n\cdot s$ it is also how many times the single length $s$ repeats.

7. Plus $+$ — "combine into one total"

The picture: lay two measuring sticks end to end. The combined length is the sum. Line up every side of a polygon end to end in a straight row — the length of that row is the perimeter.

Why the topic needs it: the master definition $P=s_1+s_2+\cdots +s_n$ is entirely built from $+$. Addition is the tool because we want a total distance, and total = everything combined.

The dots $\cdots$ in the middle of $s_1+s_2+\cdots +s_n$ mean "and keep going in the same pattern." They are shorthand so we don't have to write out fifty terms for a fifty-sided shape.

8. Times $\cdot$ (and $\times$) — "repeated adding, done fast"

Why this tool and not just more plus signs? Addition works, but for a shape whose sides are all equal it's wasteful to write $s+s+s+s+s+s$. Multiplication is the why-do-it-the-long-way? shortcut: it packages "the same length, repeated $n$ times" into one product. This is the whole reason regular polygons get a shortcut and irregular ones don't — repetition is what multiplication compresses.

The picture: six identical fence-panels, each of length $s$, snapped in a straight row. Counting their combined length by adding is $s+s+s+s+s+s$; naming the repetition is $6\cdot s$. Same row, same length, faster words.

9. The letter $P$ and the equals sign $=$ — "the answer, and 'is the same as'"

The picture: $=$ is a balance scale that hangs level. $P=6\cdot 7$ says "the perimeter weighs exactly the same as $6\times 7$." Whatever you compute on the right, that number is $P$.

Why the topic needs it: every formula is a sentence of the form "perimeter equals (some way of totalling the sides)." The $=$ promises the two descriptions are the same number.

10. Putting the vocabulary together

Now every symbol on the parent page has a plain meaning and a picture, so its two formulas read as ordinary sentences:

Nothing new is needed — only the pieces built in sections 1–9.

Prerequisite map

Read it top to bottom: locations make segments, segments have length, joined segments close into a polygon, we name and count sides, we add lengths (and multiply when they repeat), and out comes perimeter.

Equipment checklist

Test yourself — cover the right side and answer before revealing.
