Circumference and area of a circle: Visual walkthrough

We only assume you can measure a straight length with a ruler. Everything else, we build.

Step 1 — What "area" even means

WHAT. Before any formula, we agree on what number we are hunting. Area is: how many unit squares fit inside the shape. A unit square is a square 1 unit on each side (1 cm × 1 cm, say). Count how many tile the inside — that count is the area.

WHY. Formulas hide behind words. If you don't know what area is, " $π r^{2}$ " is just noise. Pinning it to "counting tiles" means every later step can be checked against a picture.

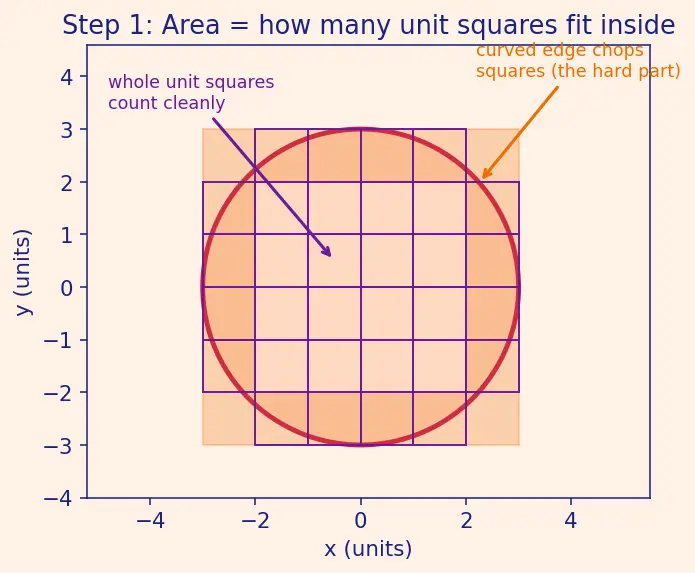

PICTURE. Look at the figure. The peach circle is being tiled with little violet squares. Whole squares inside are easy; the tricky part is the squares chopped by the curved edge. That leftover, curvy bit is exactly why we need cleverness — you can't cleanly count squares against a curve.

Figure — Circumference and area of a circle

Step 2 — The one number a circle is made of

WHAT. We fix the circle by one measurement: the radius $r$ — the straight distance from the centre to the edge. See Radius and Diameter.

WHY. A circle has no corners and no "sides" to measure. But every point on it is the same distance from the centre — that's the definition of a circle. So one number, $r$ , locks the whole shape. If we can write area using only $r$ , we're done.

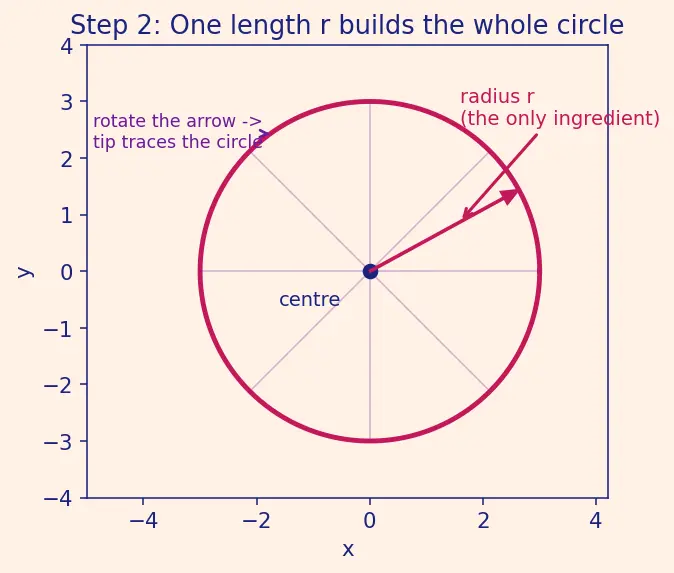

PICTURE. The magenta arrow is $r$ , sweeping from the centre dot to the rim. Rotate that arrow all the way around and its tip traces the circle. Nothing else is needed to draw it.

one straight length r ⟶ the entire circle

Here $r$ is the only ingredient; the arrow above says "from this one length, the whole shape follows."

Step 3 — Meet $π$ : the "around ÷ across" number

WHAT. Roll the circle along a line for exactly one turn. The distance it travels is the circumference $C$ — the length of the rim if you unrolled it straight. The number $π$ is defined as circumference divided by diameter:

π = \frac{C}{d} so C = π d = π (2 r) = 2 π r

$C$ — the unrolled rim length (how far one roll takes you),
$d = 2 r$ — the diameter, straight across through the centre,
$π$ — the fixed ratio between them, about $3.14159$ . See Pi (π) and Irrational Numbers.

WHY $π$ and not some other number per circle? Because all circles are the same shape scaled up or down (Similar Figures). Scaling multiplies "around" and "across" by the same factor, so their ratio never changes. That constant ratio is what we name $π$ .

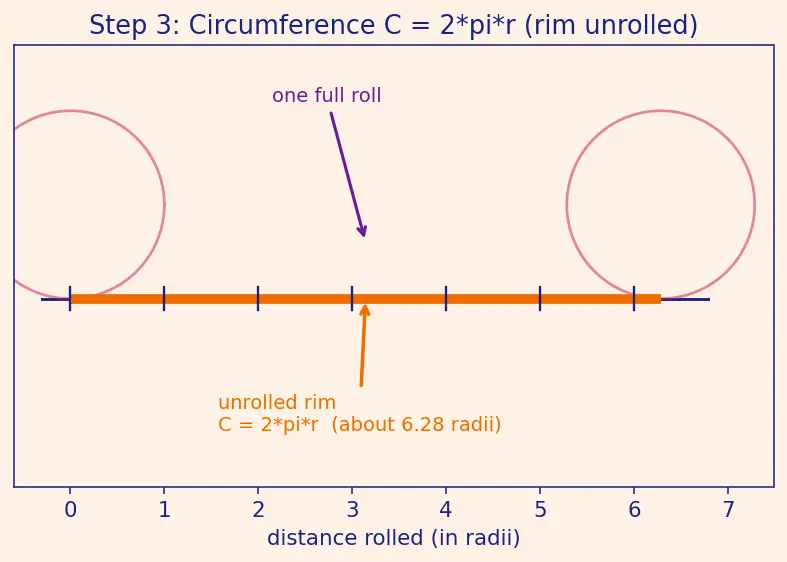

PICTURE. The circle rolls left-to-right. One full turn lays the whole rim onto the ground as a straight orange segment of length $C = 2 π r$ . Notice it's a little more than 6 radii long — because $2 π \approx 6.28$ . See also Arc Length and Wheel and Circular Motion.

Step 4 — Slice the circle into wedges

WHAT. Cut the disk into many thin wedges (pizza slices), all meeting at the centre. Each wedge has two straight edges of length $r$ and one tiny curved outer edge along the rim.

WHY. A curve is hard to measure; straight things are easy. A thin wedge is almost a skinny triangle — and triangles we understand. Slicing turns one impossible curvy shape into many almost-straight pieces. The thinner we slice, the straighter each piece gets.

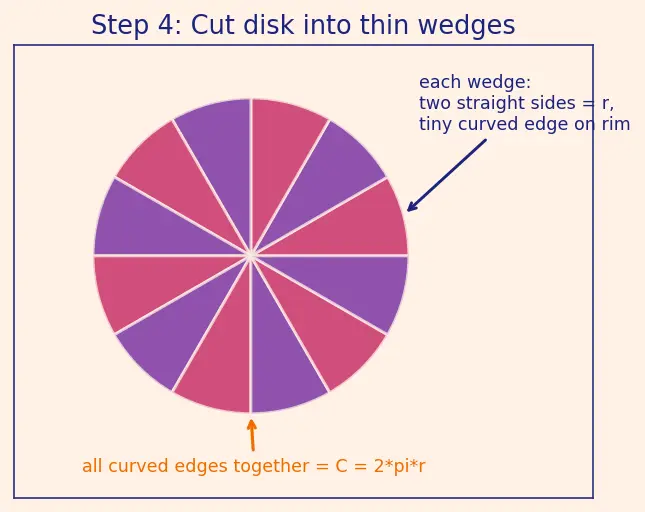

PICTURE. The disk is fanned into 12 alternating magenta/violet wedges. The total curved outer edge of all wedges together is the whole rim — length $C = 2 π r$ . Half the wedges point "up," half we'll flip "down" next.

Key bookkeeping we carry forward:

sum of the little arcs total curved edge of all wedges = C = 2 π r

Nothing has changed area — cutting doesn't add or remove tiles. We just rearrange next.

Step 5 — Rearrange the wedges into a rectangle

WHAT. Flip every second wedge upside-down and interlock them, like zipping two combs together. The pointy tips fit into the gaps and the shape straightens into a parallelogram. As the wedges get thinner, that parallelogram becomes a perfect rectangle.

WHY. Rearranging pieces never changes total area (Step 1: same tiles, moved around). But a rectangle's area we already know: base × height. So if we find the rectangle's base and height in terms of $r$ , we've found the circle's area — for free.

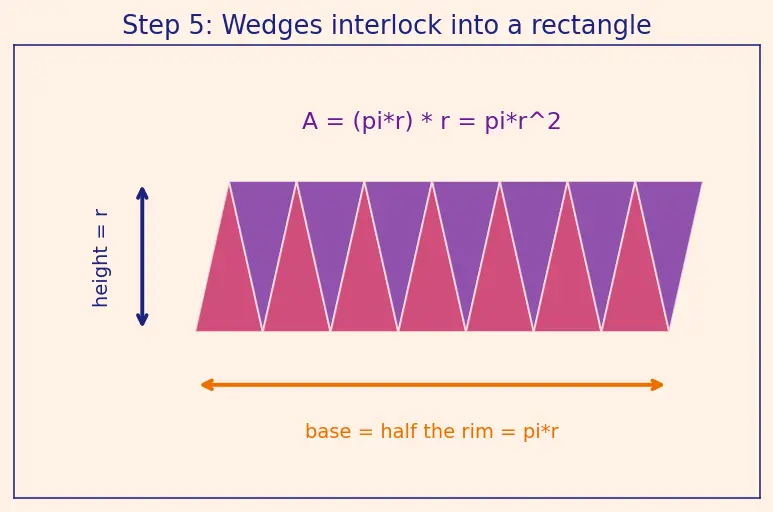

PICTURE. Top row points up, bottom row points down, interlocked into a long strip.

The bottom edge is made of the curved edges of half the wedges — half the rim: length $\frac{1}{2} C = \frac{1}{2} (2 π r) = π r$ .
The height is one straight wedge edge — the radius $r$ .

Now read the rectangle:

A = base = \frac{1}{2} of the rim (π r) \times height = radius r = π r^{2}

base $= π r$ — this is half the circumference, because the top wedges use the other half,
height $= r$ — the wedge's straight side, the radius,
multiply them (length × length) — that's exactly "count the unit squares," so it's area,
result $= π r^{2}$ — squared because we multiplied two lengths.

Step 6 — Why "thin wedges" is honest, not a cheat

WHAT. With few wedges the shape is bumpy — not really a rectangle. We claim that as slices $\to$ infinitely thin, the bumps vanish and the shape becomes an exact rectangle.

WHY. This is a limit (see Radians and Integration for the same idea used rigorously). Each wedge's curved outer edge is a tiny arc; the thinner the wedge, the closer that arc is to a straight segment, and the flatter the top and bottom of the strip. The area never changed while cutting, so the limit rectangle has the circle's exact area.

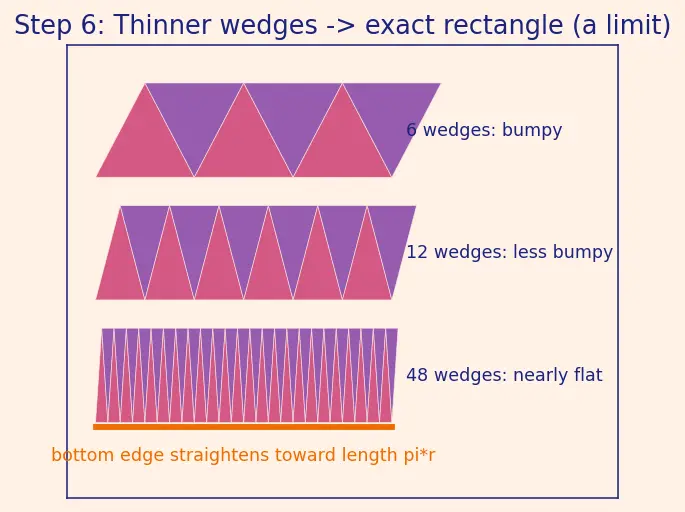

PICTURE. Three strips stacked: 6 wedges (visibly bumpy), 12 wedges (less bumpy), 48 wedges (looks like a clean rectangle). The bottom edge straightens toward the flat orange line of length $π r$ .

Step 7 — The edge cases (never leave a gap)

WHAT & WHY. A formula must survive its extremes, or you can't trust it.

$r = 0$ (a point). No disk at all. $A = π \cdot 0^{2} = 0$ . ✓ A single point holds zero tiles — correct.
Doubling the radius. New area $= π (2 r)^{2} = 4 π r^{2}$ — four times bigger, not twice. This is the "squared" biting: area grows with the square of size. Two 8-inch pizzas ≠ one 16-inch pizza; the big one has four times the food.
Given diameter, not radius. Halve it first: $r = d /2$ . Then $A = π (d /2)^{2} = \frac{π d ^{2}}{4}$ . Plugging $d$ straight in is the classic slip.
Units. $A$ is always in squared units — you multiplied a length by a length.

PICTURE. A small circle and a double-radius circle side by side; the big one is tiled to reveal it contains four copies of the small one's area.

A (2 r) = π (2 r)^{2} = 4 π r^{2} = 4 A (r)

$(2 r)^{2} = 4 r^{2}$ — squaring the doubled length quadruples it,
so the area is $4$ times, not $2$ times — the trap of scaling.

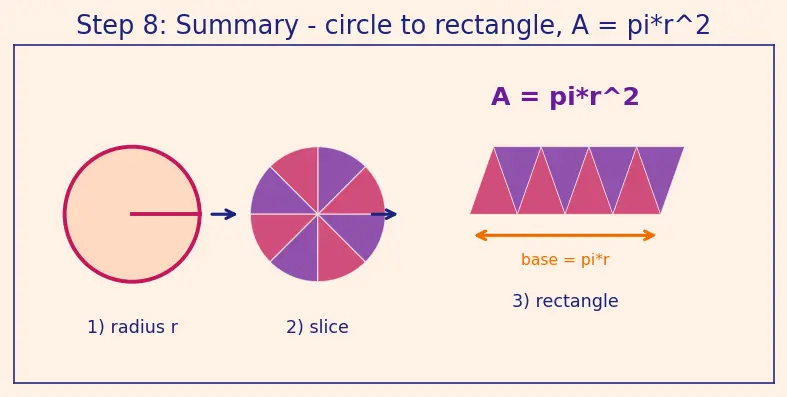

The one-picture summary

Read left to right: one radius → slice into wedges → straighten into a rectangle of base $π r$ and height $r$ → area $π r^{2}$ .

r slice wedges interlock rectangle (π r) \times r = π r^{2}

Recall Feynman retelling (plain words)

A circle is built from one length — the radius. Roll the circle once and the rim unrolls to a straight line of length $2 π r$ ; that number $π$ is just "around divided by across," the same for every circle. Now cut the disk into thin pizza slices. Flip every other slice and zip them together — the pointy shape flattens into a rectangle. Its tall side is the radius $r$ . Its long side is half the unrolled rim, $π r$ , because half the slices point up and half point down, splitting the rim in two. Area of a rectangle is length times width, so the circle's area is $π r \times r = π r^{2}$ . Squared, because we multiplied two lengths. And beware: double the radius and the area doesn't double — it quadruples, since $2^{2} = 4$ .

Recall Quick self-check

Base of the rearranged rectangle equals which length? ::: Half the circumference, $π r$ . Why is the exponent a 2 in $π r^{2}$ ? ::: Area = length × length; both lengths scale with $r$ , so $r \times r = r^{2}$ . A pizza's radius triples — how many times bigger is its area? ::: $3^{2} = 9$ times. If only the diameter $d$ is known, what is the area? ::: $A = π (d /2)^{2} = π d^{2} /4$ .
