Visual walkthrough — Triangle properties — angle sum = 180°, exterior angle theorem

---

Step 1 — What is an angle, and what is $180°$?

WHAT. Before any triangle, we agree on words. An angle is the amount of turning between two rays that start from the same point (the vertex). We measure it in degrees: a full turn all the way around is $360°$, so a half turn — a straight, flat line — is exactly half of that:

$$\underset{\text{a straight line}}{\underbrace{180°}}=\frac{1}{2}\times \underset{\text{full turn}}{\underbrace{360°}}$$

WHY. Everything on this page rests on one idea: the angles sitting along one side of a straight line add up to $180°$. If we don't nail down what "$180°$" means, the whole proof floats. So we anchor it: $180°$ = a flat line = a U-turn.

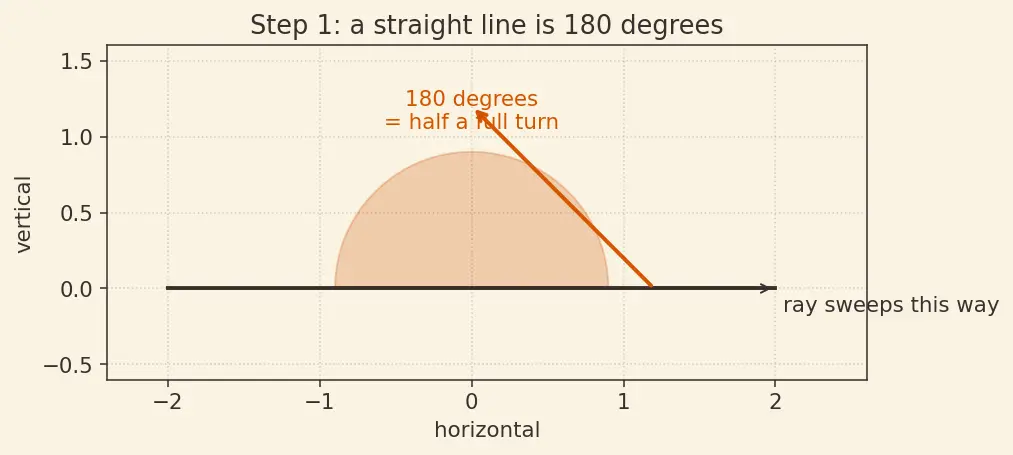

PICTURE. The ray sweeps from pointing right to pointing left. The shaded fan it swept is exactly $180°$.

---

Step 2 — Meet the triangle and name its three corners

WHAT. Draw any triangle. Call its corners $A$, $B$, $C$. The angle inside the triangle at each corner gets a Greek letter:

• $\alpha$ (alpha) = the angle inside corner $A$
• $\beta$ (beta) = the angle inside corner $B$
• $\gamma$ (gamma) = the angle inside corner $C$

These three are the interior angles — "interior" just means inside.

WHY. We need names before we can talk. Greek letters are the usual short-hand for angles so a formula like $\alpha +\beta +\gamma$ stays readable. Our goal, written out, is:

$$\underset{\text{corner }A}{\underbrace{\alpha }}+\underset{\text{corner }B}{\underbrace{\beta }}+\underset{\text{corner }C}{\underbrace{\gamma }}\stackrel{?}{=}180°$$

The little "?" over the equals sign means we have not proved it yet — that is the whole job of this page.

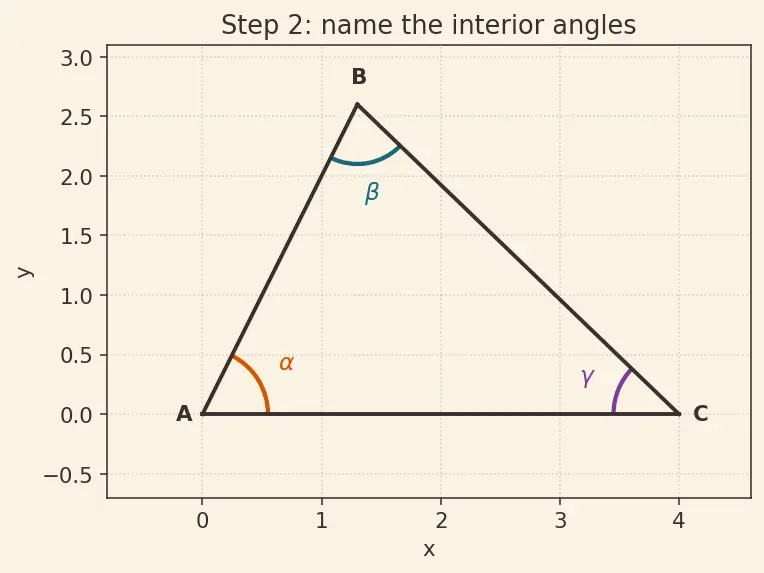

PICTURE. A slanted, deliberately lopsided triangle (so you never think it only works for "nice" ones). Each interior angle is coloured: $\alpha$ burnt orange, $\beta$ teal, $\gamma$ plum.

---

Step 3 — The one trick: a parallel line through the top corner

WHAT. Through corner $B$ we draw a brand-new line $DE$ that is parallel to the bottom side $AC$. "Parallel" means the two lines run in the exact same direction forever and never meet — like two rails of a train track.

WHY this and not something else? Look at what we want: we want $\alpha$, $\beta$, $\gamma$ to somehow end up together on a straight line, because we already know (Step 1) a straight line is $180°$. Right now $\alpha$, $\beta$, $\gamma$ live at three different corners — too far apart to add up by eye. The parallel line is a teleporter: it lets us copy $\alpha$ and $\gamma$ up to corner $B$, where $\beta$ already lives. That is the single reason we draw it.

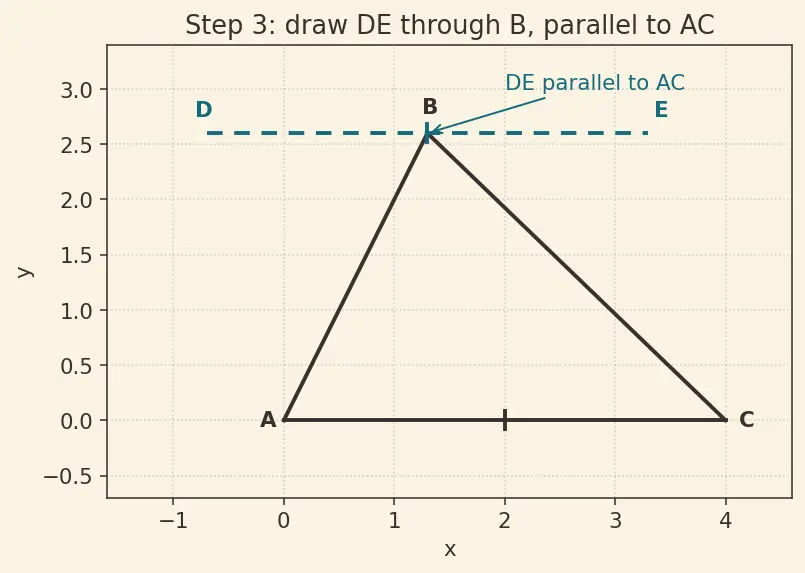

PICTURE. The new line $DE$ (dotted) glides through $B$, perfectly parallel to $AC$. Notice the flat line $DE$ passing through $B$ — that straight line is where our $180°$ will come from.

---

Step 4 — Why the teleporter works: alternate angles are equal

WHAT. A line that crosses two parallel lines is called a transversal. Side $AB$ of our triangle is a transversal: it crosses both $AC$ (at $A$) and $DE$ (at $B$). The rule from Parallel Lines and Transversals says: the two alternate interior angles — the ones tucked in a "Z" shape between the parallels, on opposite sides of the transversal — are equal.

So the angle $\alpha$ at $A$ has an equal twin sitting at $B$, on the far side of $AB$. Call that twin angle $\angle DBA$. Doing the same with side $BC$ as a transversal gives $\gamma$ a twin at $B$, called $\angle EBC$.

$$\underset{\text{copy of }\alpha \text{ at }B}{\underbrace{\angle DBA}}=\alpha \underset{\text{copy of }\gamma \text{ at }B}{\underbrace{\angle EBC}}=\gamma$$

WHY equal? Slide one parallel line onto the other: because they point the same direction, the transversal cuts them at the same slant. The "Z" shape guarantees the two inner corners of the Z open by the identical amount. (This is the alternate-interior-angle fact — the one Euclidean rule we borrow.)

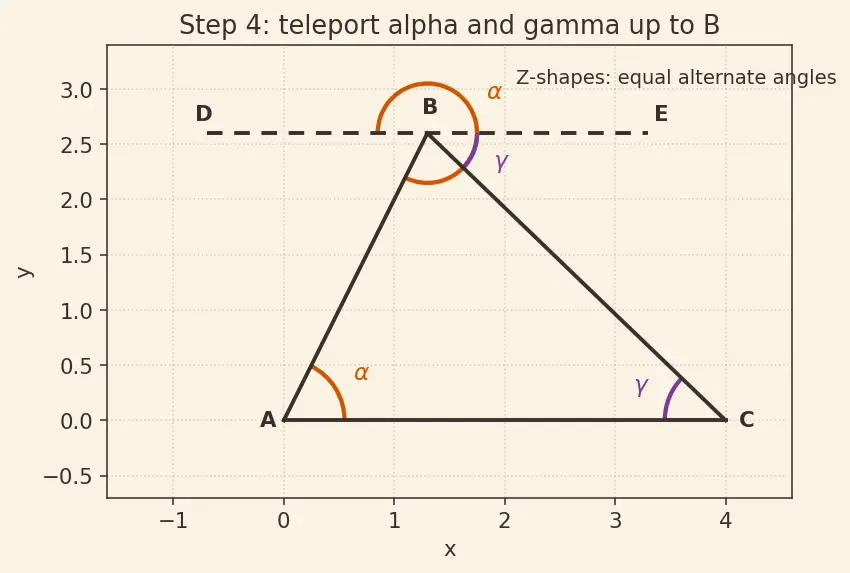

PICTURE. Trace the orange "Z" made by $A$, $B$ and the two parallel lines: the two orange angles are the same. Then trace the plum "Z" for $\gamma$: the two plum angles match too.

---

Step 5 — Snap the three angles together on line $DE$

WHAT. Now stand at corner $B$ and look at the flat line $DE$ passing through it. Three angles sit side-by-side along the top of that line, filling it edge to edge:

$$\underset{=\alpha }{\underbrace{\angle DBA}}+\underset{=\beta }{\underbrace{\angle ABC}}+\underset{=\gamma }{\underbrace{\angle EBC}}=180°$$

• $\angle DBA$ is the orange copy of $\alpha$ from Step 4.
• $\angle ABC$ is $\beta$ itself — corner $B$'s own interior angle, untouched.
• $\angle EBC$ is the plum copy of $\gamma$ from Step 4.

WHY does the left side equal $180°$? Because all three angles lie along the single straight line $DE$ through $B$ — and by Step 1, angles filling one side of a straight line total $180°$. That is the payoff of drawing $DE$: it turned three scattered corners into three neighbours on a flat line.

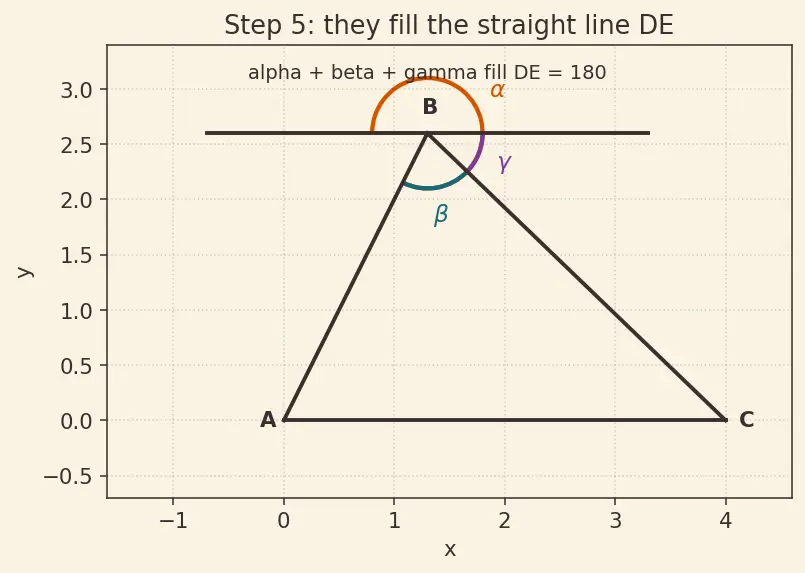

PICTURE. The three fans — orange, teal, plum — sit shoulder to shoulder and exactly fill the straight line $DE$. No gaps, no overlap.

---

Step 6 — Substitute and finish

WHAT. Step 4 told us $\angle DBA=\alpha$ and $\angle EBC=\gamma$. Swap those names into the Step 5 equation:

$$\underset{\text{was }\angle DBA}{\underbrace{\alpha }}+\underset{\text{was }\angle ABC}{\underbrace{\beta }}+\underset{\text{was }\angle EBC}{\underbrace{\gamma }}=180°$$

WHY. We built the copies precisely so we could replace the clumsy corner-names with our clean $\alpha ,\beta ,\gamma$. The "?" from Step 2 is gone — this is now proved. $■$

---

Step 7 — Every case: does the proof ever break?

WHAT. A good proof must survive weird triangles, not just the pretty one in Step 2. Let's stress-test it.

• Very tall, thin triangle ($\alpha$ tiny, $\beta$ near $180°$? no — $\beta$ big but under $180°$): the parallel line still passes through $B$, the Z-shapes still form. Works.
• Wide, flat triangle (one angle close to $0°$): as a corner shrinks toward $0°$, its twin at $B$ shrinks too, but the three still fill line $DE$. Works.
• Right triangle (one angle exactly $90°$): nothing special breaks — the parallel line and both Z's are fine.
• The degenerate "flat" triangle ($C$ slides onto line $AB$, so the triangle squashes to a segment): then $\gamma \to 180°$ and $\alpha ,\beta \to 0°$. The sum still limits to $180°$ — but it is no longer a real triangle, it's a straight line. This is the boundary, showing $180°$ is the exact ceiling.

WHY show these? Because a rule you can't push to its edges is a rule you don't understand. The sum is locked at $180°$; the individual angles are free to roam anywhere in $(0°,180°)$ as long as they total $180°$.

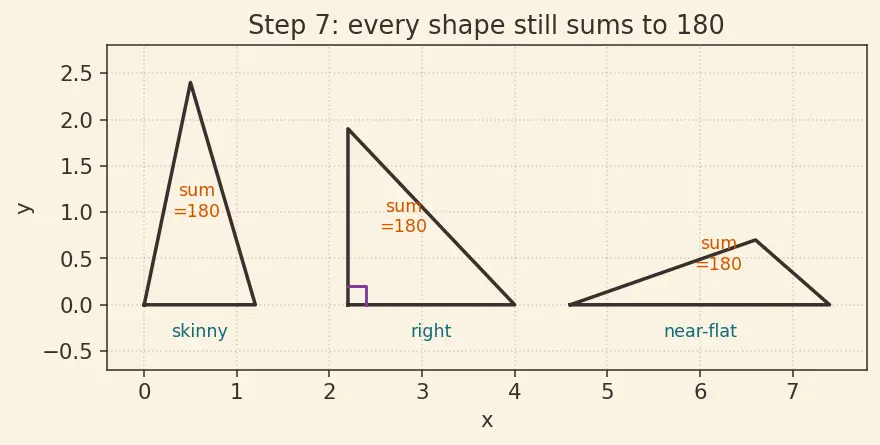

PICTURE. Three triangles side by side — skinny, right, near-flat — each with its interior angles labelled, each summing to $180°$.

---

Step 8 — Bonus: the exterior angle falls out for free

WHAT. Extend side $BC$ past $C$. The angle between that extension and side $CA$ is the exterior angle, $\theta$. Watch it appear from what we already have.

At corner $C$, the interior angle $\gamma$ and the exterior angle $\theta$ sit on one straight line:

$$\underset{\text{inside }C}{\underbrace{\gamma }}+\underset{\text{outside }C}{\underbrace{\theta }}=180°\text{(Step 1: straight line)}$$

But the whole triangle also gives $\alpha +\beta +\gamma =180°$ (Step 6). Both right-hand sides are $180°$, so:

$$\gamma +\theta =\alpha +\beta +\gamma ⟹\theta =\alpha +\beta$$

The $\gamma$ cancels from both sides, leaving the Exterior Angle Theorem: the exterior angle equals the sum of the two far-away (remote) interior angles.

WHY. No new drawing tricks — the exterior angle is just "what's left of the straight line after the interior angle." It literally fills the space the other two interior angles would occupy.

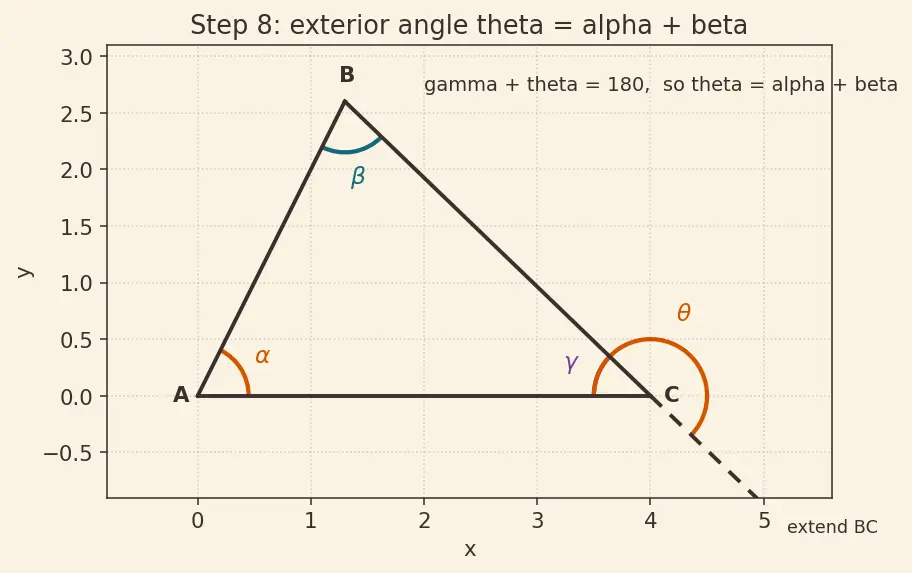

PICTURE. Side $BC$ extended; $\gamma$ (plum) and $\theta$ (orange) fill the straight line, and $\theta$ is shown equalling the $\alpha +\beta$ pair copied off to the side.

---

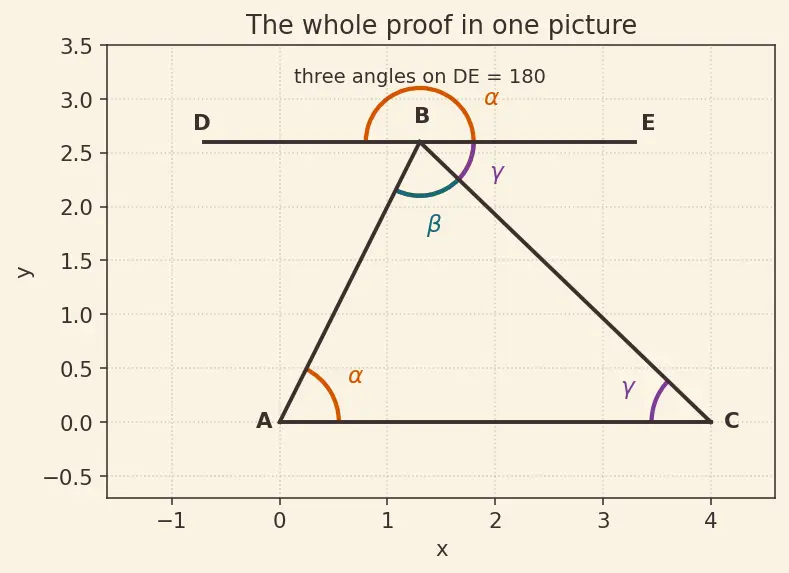

The one-picture summary

Everything on this page in a single frame: the lopsided triangle, the parallel line $DE$ through $B$, the two Z-shaped equal-angle pairs teleporting $\alpha$ and $\gamma$ up to $B$, and the three angles filling the straight line to make $180°$.

Recall Feynman retelling — say it like a friend

Take any triangle. Draw a line through the top corner that's parallel to the bottom edge — like laying a ruler flat across the peak. Now, a slanted side of the triangle crosses both the bottom edge and my new ruler at the same slant, so the little angle it makes below (down at a corner) shows up again, exactly equal, up top at the peak. Do that for both slanted sides. Now three angles are crowded together up at the peak: the left corner's angle (copied up), the top corner's own angle, and the right corner's angle (copied up). They sit along my flat ruler — and a flat line is a half-turn, $180°$. So the three add to $180°$. Done. And if I keep walking straight past a corner instead of turning in, the little "keep-going" angle I skip is just what's left of the straight line — which is exactly the two far corners added together. That's the exterior angle.

Recall Quick self-check

The parallel line is drawn through which vertex and parallel to what? ::: Through vertex $B$ (the top corner), parallel to the opposite side $AC$. Which single outside rule lets us copy $\alpha$ and $\gamma$ up to $B$? ::: Alternate interior angles between parallel lines are equal (the Z-shape rule). Why does the copied trio equal $180°$? ::: They all lie along one straight line $DE$, and angles on a straight line sum to $180°$. State the exterior angle result and where the cancellation comes from. ::: $\theta =\alpha +\beta$; both $\gamma +\theta$ and $\alpha +\beta +\gamma$ equal $180°$, so $\gamma$ cancels.
