Foundations — Triangle properties — angle sum = 180°, exterior angle theorem

Before you can trust that idea, you need to own every mark on the page: the little arc, the Greek letters, the word "parallel", the tiny "180°". This page builds each one from nothing, in the order they lean on each other. A smart 12-year-old who has never seen any of it should finish able to read the parent note line by line.

1. A point, a line, a ray, a segment

Everything starts with the simplest picture: a point — just a dot marking a place, no size at all. We label points with capital letters: $A$, $B$, $C$.

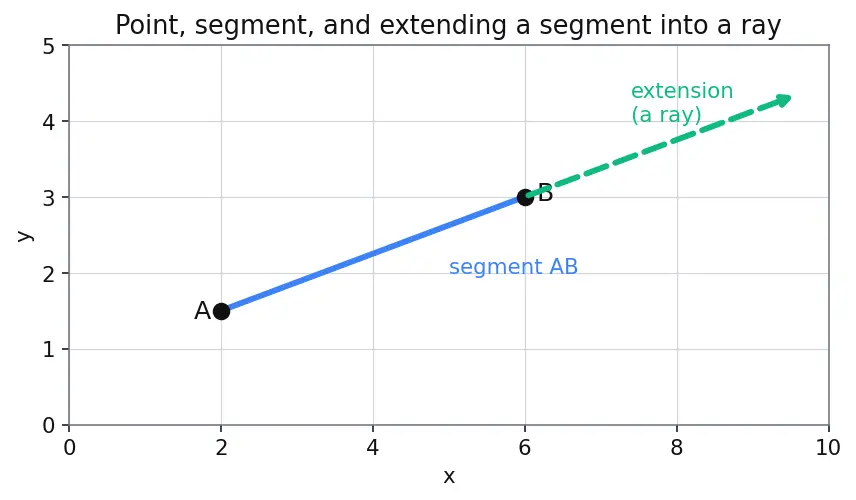

Why the topic needs these: the parent note writes things like "extend side $BC$" and "line $DE$". "Extend" means turn a segment into a ray by continuing it past its end. You cannot understand "extend side $BC$ beyond $C$" until you see that a segment can be pushed onward into a ray. Look at the figure: the green arrow is the extension — the same straight direction continued.

The bar notation $\overline{AB}$ just means "the segment from $A$ to $B$". The order does not matter: $\overline{AB}$ and $\overline{BA}$ are the same piece of straightness.

See Straight Lines and Angles for the full vocabulary of straightness.

2. An angle, and the little arc symbol

When two rays start from the same point, they open up like a pair of scissors. The amount of "opening" between them is an angle.

The picture: in the figure the vertex is the corner where the two rays meet; the little curved arc drawn near the corner is how we point at the angle. A small arc = a small opening; a wide arc = a wide opening.

Why the middle-letter rule matters: the parent note writes $\angle ABD$, $\angle ACB$, $\angle ACD$. To read $\angle ACB$ you find the middle letter $C$ — that is the corner — and the angle opens toward $A$ and toward $B$. Get the middle letter wrong and you are pointing at a different corner entirely.

3. Degrees, and the number 180°

We need a number for "how open". We cut a full turn — all the way around, back to where you started — into 360 equal slices. Each slice is one degree, written with the little raised circle: $1°$.

Why 180° is the star of this whole topic: look at the figure. A half turn — spinning until you face the exact opposite way — is $180°$. On a picture, that is a perfectly straight line: the two rays point in opposite directions and flatten into one line. This is the number the parent note keeps hitting: the three angles of a triangle add to it, and the angles on one side of a straight line add to it.

The parent also mentions π radians. A radian is just a different unit for the same turning — like measuring the same distance in miles or kilometres. Half a turn is $180°$ or $\pi$ radians; they name the identical amount. We will stick with degrees.

4. Greek letters α, β, γ, θ — they are just names

The parent note writes $\alpha +\beta +\gamma =180°$. Those swirly symbols scare people, but they are only names for angles, like using $x$ and $y$ in algebra.

Why use them at all? Mathematicians reserve Greek letters for angles and ordinary letters ($a,b,c$) for lengths, so you can tell at a glance what kind of thing you are looking at. When you see $\alpha$, think "an angle, measured in degrees" — nothing more mysterious than that.

The subscript in ${\theta }_{\text{exterior}}$ is just a label glued on to say "this particular theta is the exterior one." A subscript never changes what the letter is; it only tells you which one.

5. Interior vs exterior — inside and outside the corner

The picture is everything here. In the figure, at vertex $C$ the side $BC$ is extended (the dashed green ray). The interior angle is the shaded blue wedge inside; the exterior angle is the orange wedge outside, squeezed between the extension and the other side. Notice they share one side and together sweep a straight line — so:

$\text{interior}+\text{exterior}=180°$

Two angles that add to $180°$ are called supplementary (see Supplementary and Complementary Angles). This single fact is the hinge of the exterior angle theorem's proof on the parent page.

6. Parallel lines and the equal "alternate" angles

The parent note's main proof draws a line "parallel to $AC$" and uses "alternate interior angles are equal." We must earn both ideas.

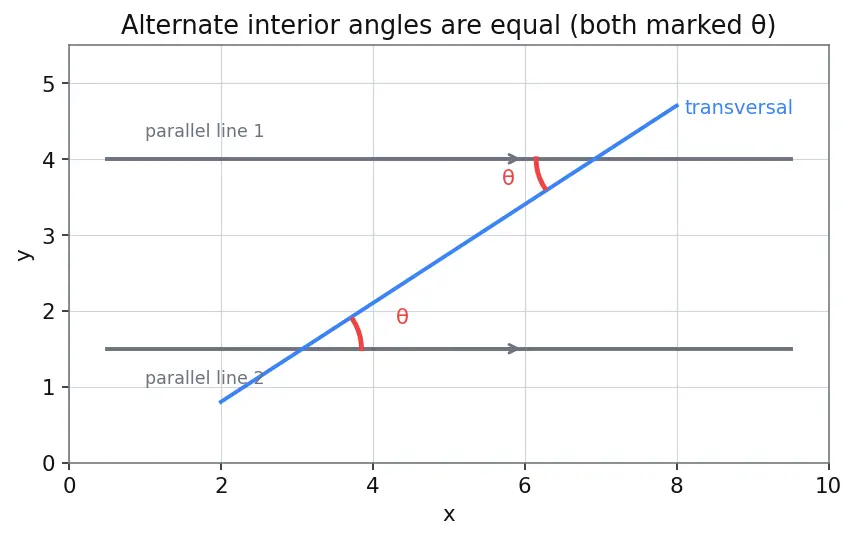

A transversal is a third line that crosses both parallels. Where it crosses, it makes angles — and here is the magic fact from Euclidean geometry:

Why this is the tool the proof needs: to prove the three angles add to $180°$, the parent "moves" angles $A$ and $C$ up to vertex $B$. The only reason a moved angle stays the same size is this equal-alternate-angles rule. In the figure, the two matching-coloured wedges are equal because the lines are parallel — that is the axiom doing all the work. Full detail lives in Parallel Lines and Transversals.

7. Isosceles: equal sides force equal angles

Example 2 on the parent uses an isosceles triangle. One symbol you must read is the tick mark — a little dash across a side meaning "this side has the same length as the other ticked one."

Why equal sides give equal angles: fold the triangle along its line of symmetry and the two equal sides land exactly on each other, so the two base angles must match. More in Properties of Isosceles Triangles.

8. How it all feeds the topic

The chain reads: dots make segments; segments extend into rays; rays open into angles; angles are counted in degrees where flat means $180°$; parallel lines let us move angles without changing them (giving the angle sum); and the interior/exterior pair on a straight line gives the exterior angle theorem.

Equipment checklist

Cover the right side and test yourself. If any answer is fuzzy, reread that section before opening the parent note.
