Visual walkthrough — Triangles — scalene, isosceles, equilateral; acute, right, obtuse

Before we start, three words we must agree on, each tied to a picture in Step 1.

We will use one more idea, defined the moment we need it (Step 3): parallel lines.

---

Step 1 — What "angle sum" even means (draw the triangle)

WHAT. We draw one honest, lopsided (scalene) triangle and name its three corner angles.

WHY. Before proving anything about "the sum of the angles," we must be crystal clear on which three angles and what adding them means. If the picture is sloppy, the proof is meaningless.

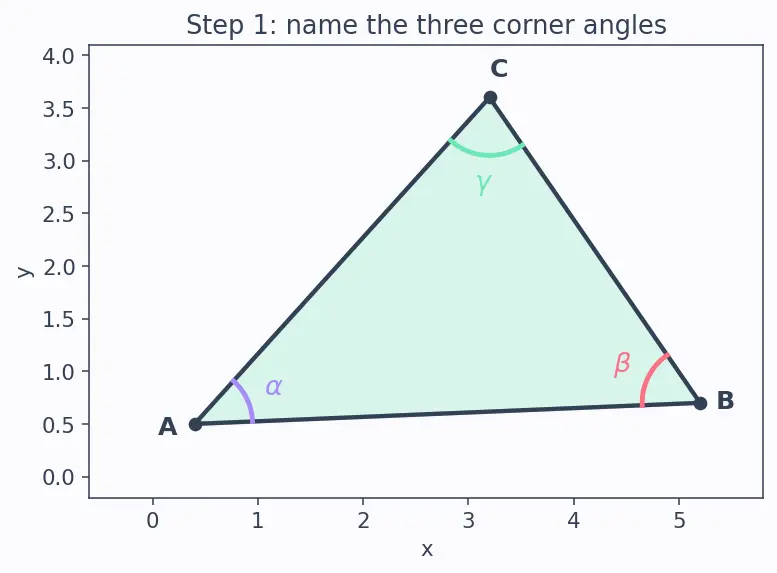

PICTURE. Look at the figure. The triangle has three vertices $A$, $B$, $C$. At each vertex there is an angle — the amount of opening between the two sides meeting there. Colour them:

• $\alpha$ (lavender) — the opening at vertex $A$.
• $\beta$ (coral) — the opening at vertex $B$.
• $\gamma$ (mint) — the opening at vertex $C$.

We chose scalene (all sides different) on purpose: if the proof works with no symmetry to lean on, it works for every triangle.

---

Step 2 — The idea of "turning as you walk" (why $180°$ and not something else)

WHAT. Instead of measuring three angles separately, imagine you are a tiny walker strolling once around the outside of the triangle.

WHY. Here is our first real choice of tool. We could measure angles with a protractor and add — but that only checks one triangle. To prove it for all triangles we need an argument that doesn't depend on the exact shape. The "walk around and count your turns" idea is that tool: it turns angles into rotation, and rotation obeys a rule we already know — going once around brings you back to facing the way you started.

PICTURE. Follow the arrow-walker. Starting at $A$ facing along side $AB$, you march to $B$. At $B$ you must turn to head toward $C$. That turn — the little wedge between "where you were pointing" and "where you now point" — is the exterior angle, call it ${\beta }^{\prime }$ (coral, outside the corner). You do the same turn at $C$ (call it ${\gamma }^{\prime }$) and at $A$ (call it ${\alpha }^{\prime }$). After three turns you are back at the start, facing the original direction.

Because one complete loop is one full spin: $\underset{\text{turn at }A}{\underbrace{{\alpha }^{\prime }}}+\underset{\text{turn at }B}{\underbrace{{\beta }^{\prime }}}+\underset{\text{turn at }C}{\underbrace{{\gamma }^{\prime }}}=360°$ Each term is a turn; the three turns of a closed loop add to one whole rotation. This is the fact we'll trade in for our $180°$.

---

Step 3 — Interior + exterior = straight angle (at every corner)

WHAT. At each single vertex, we relate the inside angle to the turn (outside angle).

WHY. We have a fact about the three turns ($360°$) but we want a fact about the three inside angles. So we need the bridge connecting them. That bridge lives at one corner and is pure straight-line geometry.

PICTURE. Zoom into vertex $B$. The side you arrived on, extended straight through $B$, makes a straight line — a flat $180°$. On one side of $B$ that line splits into the inside angle $\beta$ and the turn ${\beta }^{\prime }$. Together they refill the whole flat half-turn.

---

Step 4 — Add the three corners together (the algebra)

WHAT. We add the three bridge equations from Step 3, then subtract in the $360°$ fact from Step 2.

WHY. Now we simply combine what we have. Adding the three "straight line" facts sweeps in all three inside angles and all three turns; the turns are exactly the sum we already know equals $360°$, so they can be cancelled away, leaving only the inside angles.

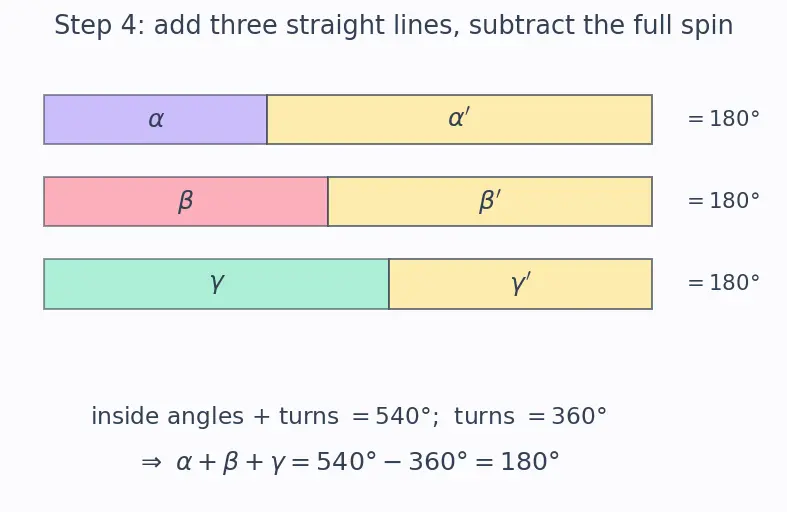

PICTURE. Stack the three corner strips (each a full $180°$ line) on top of each other; each strip is split into an inside piece and a turn piece. Three strips = $3\times 180°=540°$ total. Pull out the turns (all the coral pieces) — they gather into one full circle, $360°$.

Add the three bridges: $(\alpha +{\alpha }^{\prime })+(\beta +{\beta }^{\prime })+(\gamma +{\gamma }^{\prime })=180°+180°+180°=540°$ Group inside angles together and turns together: $\underset{\text{what we want}}{\underbrace{(\alpha +\beta +\gamma )}}+\underset{=360°\text{ from Step 2}}{\underbrace{({\alpha }^{\prime }+{\beta }^{\prime }+{\gamma }^{\prime })}}=540°$ Replace the turns by $360°$ and subtract: $(\alpha +\beta +\gamma )+360°=540°⟹\alpha +\beta +\gamma =180°$

---

Step 5 — The parallel-line view (a second picture, no turning)

WHAT. A cleaner static proof: draw a line through the top vertex parallel to the base.

WHY. The walking proof is intuitive but relies on "turns adding to $360°$." Here is an independent confirmation using only one new idea, so you trust the result from two directions.

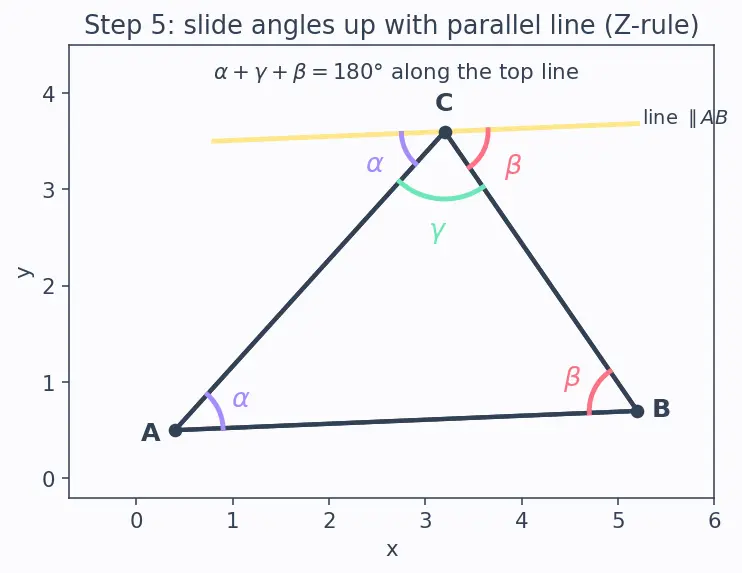

PICTURE. Through vertex $C$ draw a line parallel to base $AB$. Side $CA$ is a slant crossing both parallels, so the angle it makes at $C$ equals $\alpha$ (alternate "Z" angle, lavender). Side $CB$ likewise copies $\beta$ up to $C$ (coral). Now at $C$ we have, sitting along the straight top line, three angles in a row: the copy of $\alpha$, the real $\gamma$, and the copy of $\beta$.

$\underset{\text{slid up via }CA}{\underbrace{\alpha }}+\underset{\text{already at }C}{\underbrace{\gamma }}+\underset{\text{slid up via }CB}{\underbrace{\beta }}=180°$ They lie along one straight line, so they fill a straight angle — the same result, no walking required.

---

Step 6 — Every case works (nothing sneaks past)

WHAT. Check the proof survives for acute, right, and obtuse triangles — and even the degenerate flat "triangle."

WHY. The contract: the reader must never meet a shape we didn't cover. The parallel-line and walking arguments used no assumption about the sizes of the angles, so they must hold in every case. Let's see it.

PICTURE. Three triangles side by side, each with a parallel line through the top vertex.

• Acute (all corners sharp): the three angles at the top nicely tile the straight line.
• Right (one $90°$ corner): one copied angle stands straight up; still fills $180°$.
• Obtuse (one corner $>90°$): the big angle's copy overlaps, but the three still complete exactly one straight line — no more, no less.

Degenerate case. If the three points fall on one straight line (collinear), there is no triangle — the "middle" corner opens to $180°$ and the other two flatten to $0°$: $0°+180°+0°=180°$. Even the broken case respects the budget, which is exactly why the parent note requires the three points to be non-collinear.

---

Step 7 — Instant payoffs (the result doing work)

WHAT. Two corollaries fall out immediately.

WHY. A good result pays rent. Watch how $180°$ instantly gives the equilateral angle and forbids two right angles.

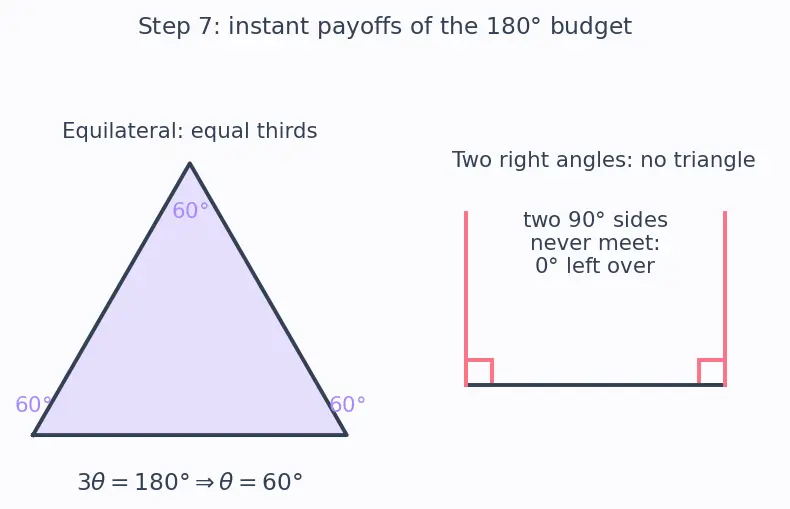

PICTURE. Left: an equilateral triangle, all three angles equal, splitting the $180°$ budget into three equal shares. Right: two right angles already eat the whole budget, leaving nothing for the third corner.

Equilateral. All three angles equal, call each $\theta$: $3\theta =180°⟹\theta =\frac{180°}{3}=60°$

No two right angles. Two $90°$ angles use $90°+90°=180°$, leaving $180°-180°=0°$ for the third — no opening, no triangle. So at most one angle can be $90°$ or more. (This is why obtuse and right triangles have exactly one "big" angle.)

---

The one-picture summary

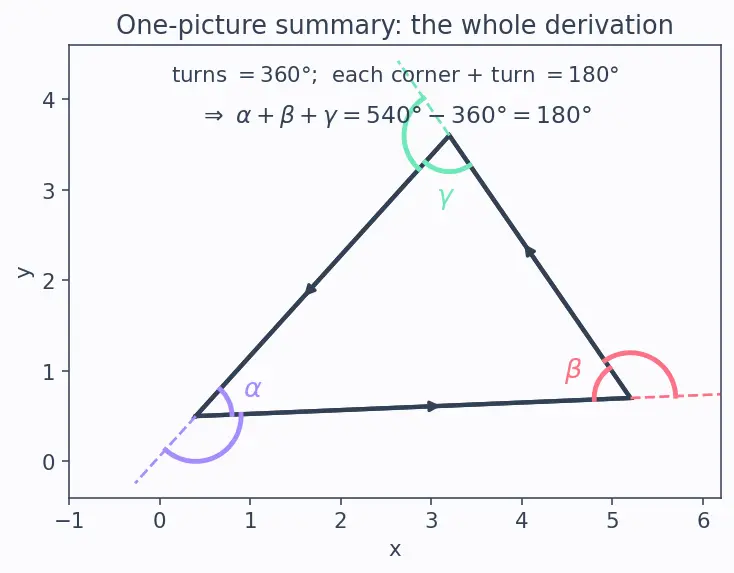

The whole story on one canvas: walk around the triangle and your three turns complete one full spin ($360°$); each turn plus its inside angle fills a straight line; subtract the spin from the three straight lines and only the inside angles remain — summing to a single straight angle, $180°$.

Recall Feynman retelling — say it in plain words

Imagine you're a tiny ant walking around the edge of a triangle. At each corner you turn a bit to follow the next side. By the time you get back to where you started, you've spun around exactly once — a full circle, $360°$ of turning. Now, at each corner, the little turn you make plus the actual inside corner angle always makes a flat straight line, $180°$, because the side you came in on stretches straight through. Three corners give three flat lines, that's $540°$ of "line." But $360°$ of that was just your turning, so throw it away — what's left, $540°-360°=180°$, is the sum of the three inside corners. That $180°$ is a fixed budget every triangle splits three ways: equal thirds ($60°$ each) for equilateral, or one hog taking more than $90°$ (obtuse) leaving crumbs for the rest. You can never overspend, and that's why two right angles or two obtuse angles are impossible.

Recall Self-test

What single fact about a full loop powers the walking proof? ::: One trip around a closed shape is exactly one full rotation, $360°$. At each vertex, inside angle plus turn equals what? ::: A straight angle, $180°$. Why does an equilateral triangle have $60°$ angles? ::: The $180°$ budget split into three equal parts: $180°/3=60°$. Why can't a triangle have two right angles? ::: Two $90°$ angles already use the entire $180°$ budget, leaving $0°$ for the third corner.
