Open hardware ecosystem (OpenRISC, OpenTitan): Worked examples

The scenario matrix

Before any calculation, let's list every distinct case-class this topic contains. Each worked example below is tagged with the cell it fills.

#	Case class	What makes it different	Example
A	Fixed-width code size (normal)	plain $4 N$ byte count	Ex 1
B	Code size — zero / degenerate	$N = 0$ , or one instruction	Ex 2
C	Address ↔ count inversion	given last address, find $N$	Ex 3
D	Hash security — birthday bound	collision effort $2^{n /2}$	Ex 4
E	Hash — preimage vs collision (which attack?)	$2^{n}$ vs $2^{n /2}$ , the trap	Ex 5
F	Signature vs hash — authenticity gap	word problem, attacker swaps both	Ex 6
G	Chain of trust — broken link (limiting/failure case)	one stage fails verify	Ex 7
H	Fuse / OTP — irreversibility edge case	can't un-burn a bit	Ex 8
I	"Open" layers — exam twist	which layer is actually open?	Ex 9

A vector angle problem has four quadrants; this topic has these nine cells. We hit all nine.

Cell A — code size, the normal case

Worked example Ex 1 — bytes for a routine

An OpenRISC-style routine has $N = 10$ fixed-width $32$ -bit instructions. How many bytes does it occupy, and what is the address of the first free byte after it?

Forecast: guess the byte count before reading on. (Multiple of 4? Bigger or smaller than 40?)

Each instruction is $32$ bits. Why this step? Fixed width is the whole point of RISC — width $w = 32$ bits, and $1$ byte $= 8$ bits, so each instruction is $w /8 = 32/8 = 4$ bytes.
Multiply by count. Why this step? $N$ back-to-back instructions with no gaps (load/store design packs them tight): $Bytes = 4 N = 4 \times 10 = 40$ .
First free byte address. Why this step? The routine starts at address $0$ and fills bytes $0 \dots 39$ , so the next unused address is $40 = 0x28$ .

Verify: the last instruction sits at byte $4 (N - 1) = 36 = 0x24$ ; it occupies $0x24 \dots 0x27$ ; next free $= 0x28 = 40$ . ✔ Units: bytes. ✔

Cell B — the zero and degenerate cases

Worked example Ex 2 —

$N = 0$ and $N = 1$ What does the formula $Bytes = 4 N$ say for an empty routine, and for a single-instruction routine? Do those answers make physical sense?

Forecast: is "0 bytes" a valid answer? Is "4 bytes" the smallest non-empty program?

Plug $N = 0$ . Why? Degenerate inputs are where formulas silently lie — always test them. $4 \times 0 = 0$ bytes. An empty routine really does occupy nothing; the formula is honest.
Plug $N = 1$ . Why? The smallest non-empty case. $4 \times 1 = 4$ bytes — one instruction at $0x00 \dots 0x03$ , next free byte $0x04$ .
Sanity on $P C_{next}$ . Why? Confirm the "no decode needed" claim holds even at the edge: after the single instruction, $P C_{next} = 0 + 4 = 4$ . Correct.

Verify: $4 N$ is linear and passes through the origin, so $N = 0 \Rightarrow 0$ and each extra instruction adds exactly $4$ . No off-by-one lurks. ✔

Cell C — inverting the relation

Cell D — birthday bound, the collision case

Figure — Open hardware ecosystem (OpenRISC, OpenTitan)

Worked example Ex 4 — collision effort for a 128-bit hash

Secure boot uses a hash $H$ producing $n = 128$ -bit digests. Roughly how many random images must an attacker try before two of them collide (same digest)?

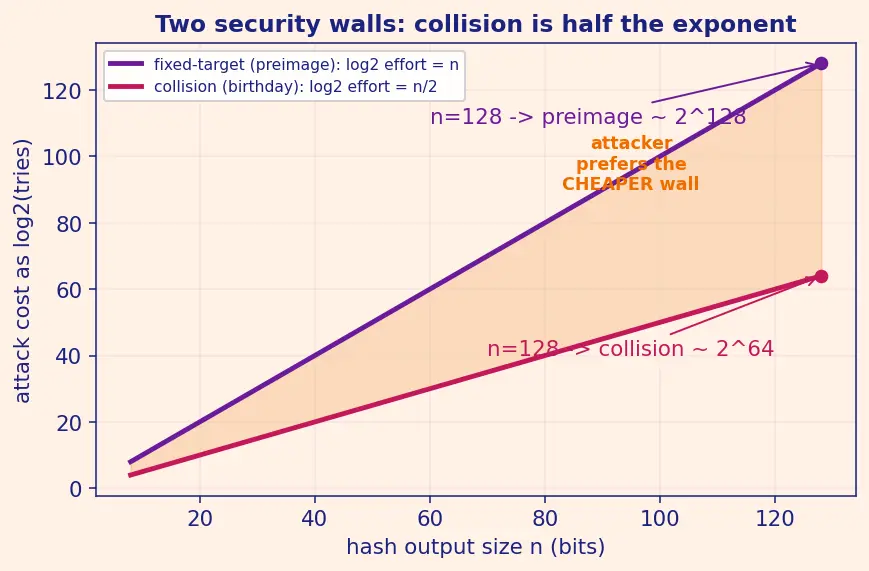

Forecast: is it about $2^{128}$ , or much smaller? Look at the red curve in the figure first.

Name the tool: the birthday bound. Why this tool and not brute force? We're asking "when do any two of my tries match", not "when do I match one fixed target". Among $k$ random $n$ -bit values, the expected first collision appears at $k \approx 1.18 2^{n}$ — this is collision resistance, and it's the weakest wall, so an attacker aims here.
Simplify the exponent. Why? $2^{n} = 2^{n /2}$ , so effort $\approx 2^{n /2}$ . Drop the $1.18$ constant — it doesn't change the order of magnitude.
Plug $n = 128$ . $2^{128/2} = 2^{64} \approx 1.8 \times 1 0^{19}$ .

Verify: $2^{64} = 18, 446, 744, 073, 709, 551, 616 \approx 1.8 \times 1 0^{19}$ . Enormous but far below $2^{128} \approx 3.4 \times 1 0^{38}$ — exactly why the birthday bound is the attack of choice, and why we pick hash widths twice the security level we want. ✔

Cell E — preimage vs collision (the trap)

Worked example Ex 5 — which effort applies?

An attacker already has the exact digest $m_{i} = H (I_{i})$ of the legitimate boot image and wants a different image $I_{i}^{'}$ with $H (I_{i}^{'}) = m_{i}$ (so the fused check still passes). For $n = 256$ , is this $2^{128}$ work or $2^{256}$ work?

Forecast: it's tempting to reuse " $2^{n /2} = 2^{128}$ " from Ex 4. Is that right here?

Classify the attack. Why this step? The target digest is fixed (it's the real image's hash). Matching a pre-chosen target is a second-preimage attack, not a free-for-all collision. Different question ⟹ different wall.
Effort for a fixed target. Why? With no birthday shortcut, each guess independently hits the target with probability $2^{- n}$ , so expected tries $\approx 2^{n} = 2^{256}$ .
Contrast with Ex 4. Why include this? Collision ( $2^{128}$ ) is easier than second-preimage ( $2^{256}$ ) because in a collision the attacker controls both images. A secure boot design that pins the exact expected hash forces the harder $2^{256}$ problem.

Verify: $2^{256} \approx 1.16 \times 1 0^{77}$ vs the collision $2^{128} \approx 3.4 \times 1 0^{38}$ — the preimage wall is astronomically higher. The trap ("just reuse $2^{n /2}$ ") gives the wrong, far-too-optimistic-for-the-attacker number. ✔

Cell F — the authenticity gap (word problem)

Worked example Ex 6 — why a hash alone loses

A vendor ships firmware and stores $m = H (I)$ next to it in normal flash. On boot the chip recomputes $H (I)$ and compares to the stored $m$ . An attacker with write access to flash wants to boot their image $I^{'}$ . Can they, and what fixes it?

Forecast: does collision-resistance save us here? Guess yes/no before step 1.

Attacker's move. Why this step? If $m$ lives in ordinary rewritable flash, the attacker writes both $I^{'}$ and $m^{'} = H (I^{'})$ . On boot the chip recomputes $H (I^{'}) = m^{'}$ — match! No collision needed at all.
Diagnose the missing property. Why? The hash proves integrity ("the image wasn't corrupted") but not authenticity ("the image came from the vendor"). Integrity ≠ authenticity — that gap is the whole vulnerability.
Apply the fix: a signature. Why this tool? A digital signature $σ = Sign_{s k} (m)$ can only be produced with the vendor's private key $s k$ . The chip verifies with the public key $p k$ burned into fuses it cannot rewrite. The attacker has $I^{'}$ and can compute $m^{'}$ , but cannot produce a valid $σ^{'}$ without $s k$ .

Verify: trace it — attacker writes $I^{'}, m^{'}, σ^{'}$ ; chip runs $Verify_{p k} (σ^{'}, m^{'})$ ; without $s k$ this returns false, boot halts. The forgery is stopped exactly at the layer the hash-only scheme left open. ✔ (This is Kerckhoffs in action: security in the key, not the design.)

Cell G — a broken link (limiting/failure case)

Worked example Ex 7 — one stage fails to verify

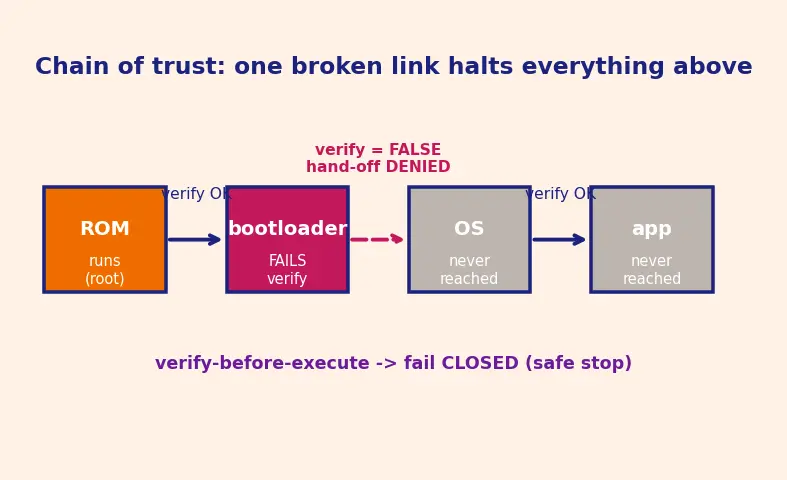

The chain of trust has stages: ROM → bootloader → OS → app. Suppose the bootloader image was tampered so its signature fails. What runs, and what does not?

Forecast: does the OS still boot because "the ROM was fine"? Guess before reading.

ROM stage runs. Why? The ROM is the immutable root; it always executes and its job is to measure the next stage (bootloader).
Verification of stage 2 fails. Why this step? $Verify_{p k} (σ_{boot}, H (I_{boot})) = false$ because the tamper changed $I_{boot}$ , so its hash no longer matches the signed value. Look at the figure: the broken link is coloured — everything above it is grey (never reached).
Chain halts — nothing downstream loads. Why? The core rule is verify-before-execute: control is only handed off on a true. Since stage 2 is rejected, the OS and app are never even loaded, let alone run. A single broken link severs the whole upper chain.

Verify: count what executed = $1$ stage (ROM only). What was verified-and-run = $0$ later stages. The limiting behaviour ("one failure ⟹ full stop") is the designed safe state — fail closed, not fail open. ✔

Cell H — fuse irreversibility (edge case)

Worked example Ex 8 — you can't un-burn a bit

A one-time-programmable (eFuse) field is $4$ bits, all starting at $0$ . Manufacturing burns it to $101 1_{2}$ to store a key-version number. Later someone wants version $010 0_{2}$ . Is that possible without replacing the chip?

Forecast: can you rewrite a fuse from $1$ back to $0$ ? Guess yes/no.

Model the physical operation. Why this step? An eFuse burn is one-way: it can turn a $0$ into a $1$ (blow the fuse) but never a $1$ back to a $0$ . So from any state you can only ever set more bits, never clear them.
Compare bit-by-bit. Why? Current $1011$ , target $0100$ . Bit 3: $1 \to 0$ — needs clearing. Impossible. Bit 2: $0 \to 1$ (OK), bit 1: $1 \to 0$ (impossible), bit 0: $1 \to 0$ (impossible).
Conclude. Why? Because at least one bit must go $1 \to 0$ , the target is unreachable on this chip. Fuse-based version counters exploit exactly this: an attacker can never roll back the stored version to re-enable old, vulnerable firmware.

Verify: reachable states from $1011$ are exactly those $\geq 1011$ bitwise (every $1$ stays a $1$ ): $1011, 1111$ . Target $0100$ is not in that set, since $0100 AND 1011 = 0000 \neq = 1011$ . ✔ The anti-rollback guarantee holds.

Cell I — which layer is open? (exam twist)

Worked example Ex 9 — spot the actually-open layer

A company ships a phone with a RISC-V CPU. They publish the ISA compliance docs but keep the RTL and physical layout secret and licensed. A student claims "so this chip is open hardware." Is it?

Forecast: open ISA — does that make the chip open? Guess.

Separate the three layers. Why this step? Recall openness can live independently at ISA (spec), microarchitecture/RTL (implementation), toolchain. We must check each, not lump them.
Check each layer. Why? ISA = RISC-V = open (it's a public spec, like the rules of chess). RTL = secret/licensed = closed. Toolchain = GCC exists but the silicon build flow is private = effectively closed. Only $1$ of $3$ layers is open.
Verdict. Why? "Open hardware" means the silicon design (RTL/layout) is inspectable and fabricable. An open ISA is a contract, not a design; you can implement it in a fully proprietary core. So the claim is false — this is a closed chip that speaks an open ISA.

Verify: contrast with OpenTitan, which is open at all three layers (RISC-V ISA + published Ibex RTL + open toolchain). The phone SoC is open at exactly one. Different count ⟹ different verdict. ✔

Recall Quick self-test

Bytes for $N = 10$ 32-bit instructions ::: $40$ bytes (next free $= 0x28$ ). Instructions if last is at $0x1C$ ::: $8$ (index $7$ , plus one for 0-indexing). Collision effort for a 128-bit hash ::: $\approx 2^{64} \approx 1.8 \times 1 0^{19}$ . Second-preimage effort for SHA-256 ::: $\approx 2^{256}$ , not $2^{128}$ . Why does a hash alone fail secure boot ::: integrity but no authenticity — attacker rewrites image and its stored hash. Can an eFuse go $1 \to 0$ ::: No — burns are one-way; only $0 \to 1$ is possible, giving anti-rollback. Does an open ISA make a chip open hardware ::: No — the RTL/layout must be open; ISA is only a spec.
