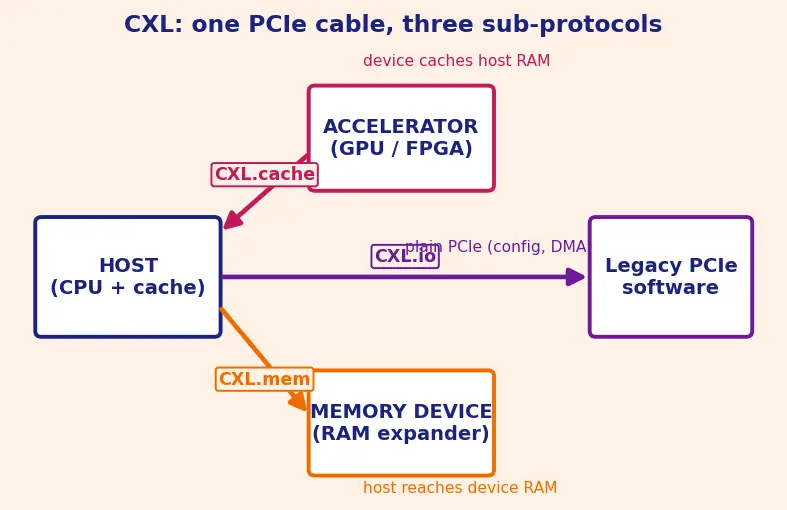

Before we start, one picture fixes every term used below. Look at it whenever you feel lost.

Figure — CXL (Compute Express Link)

The host is the CPU. An accelerator is a GPU/FPGA that can cache host memory (that is CXL.cache). A memory device is a box of RAM the CPU reaches over the wire (that is CXL.mem). The three arrows are the three sub-protocols riding one PCIe cable.


Level 1 — Recognition

Exercise 1.1 — Match the protocol

For each need below, name which of the three CXL sub-protocols (CXL.io, CXL.cache, CXL.mem) does the job.

(a) A legacy driver must enumerate the device with plain PCIe config reads. (b) A GPU wants to hold a coherent copy of a CPU cache line. (c) The OS wants to see a plug-in RAM box as extra system memory.

Recall Solution

(a) CXL.io — this is ordinary PCIe (config, MMIO, DMA). Every CXL device must support it so it boots in non-CXL slots. (b) CXL.cache — the accelerator caches host memory and joins the coherency protocol. (c) CXL.mem — the host reaches device memory as part of its physical address space.

Direction is the tell: .cache = device caching host's RAM; .mem = host reaching device's RAM.

Exercise 1.2 — MESI state naming

A cache line held by the CPU is dirty (its value differs from main memory), and the accelerator's copy is absent. Name both states.

Recall Solution

CPU = Modified (M): it has the only up-to-date, dirty copy, so it must write back before anyone else reads. Accelerator = Invalid (I): it has no valid copy. This is exactly the row "Modified | Has dirty data | Invalid | CPU only" from the parent table.


Level 2 — Application

Exercise 2.1 — Per-lane bandwidth from raw rate

PCIe 5.0 runs at (giga-transfers per second) per lane and uses 128b/130b encoding — for every 130 bits on the wire, only 128 carry your data (2 bits are overhead). Compute the effective data rate per lane in , then convert to (8 bits = 1 byte).

Recall Solution

What we do: scale the raw rate by the useful fraction of bits. Why: each transfer moves 1 bit on the wire, but only of those bits are your payload. Convert to bytes (divide by 8): This matches the parent note's per lane.

A CXL 1.0 link is (16 lanes) and is full-duplex (same rate each direction simultaneously). Give (a) one-direction bandwidth and (b) the aggregate bidirectional figure.

Recall Solution

(a) One direction: multiply per-lane by 16. Hmm — the parent quotes 32 GB/s each direction. The difference is because the parent rounds the usable protocol rate down (framing/flit overhead on top of encoding) to a clean "". So: (b) Aggregate = ==== bidirectional, i.e. each way in practice.

Two numbers, two meanings: is the encoding-only ceiling; () is the rounded protocol figure the spec advertises. Both appear in the parent — they are not contradictions.


Level 3 — Analysis

Exercise 3.1 — Trace a coherent read

The CPU holds line at address A in Modified state (dirty). The GPU issues ReadShared(A). Write the exact ordered steps and give the final MESI state of both caches. Explain why the write-back must happen.

Recall Solution

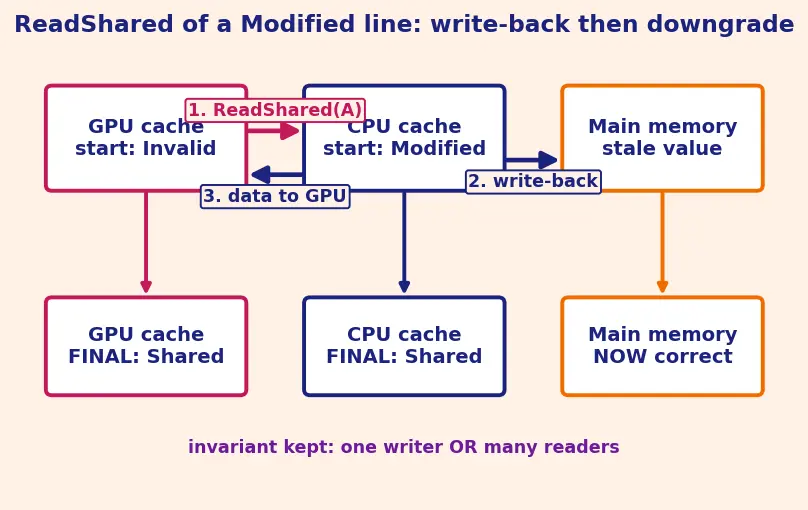

Follow the arrows in the figure below.

Figure — CXL (Compute Express Link)
  1. GPU sends ReadShared(A) across CXL.cache to the host.
  2. Host snoops its own cache, finds A in Modified → it holds the only correct value.
  3. Host writes back the dirty line to main memory. Why: memory currently holds a stale value; if we skipped this, a later reader that goes straight to memory would see garbage. Coherency requires memory to hold the truth once the line is Shared.
  4. Host sends the fresh data to the GPU and downgrades its own copy M → Shared.
  5. GPU installs the line in Shared. Final states: CPU = Shared, GPU = Shared. Neither may write now without first requesting ownership.

Exercise 3.2 — Why not just let both write?

State the single-writer / multiple-reader invariant and explain, using Exercise 3.1's line, what breaks if the GPU were allowed to write while the CPU stayed Modified.

Recall Solution

Invariant: at any instant a cache line has either one writer (Modified/Exclusive) or any number of readers (Shared) — never a writer plus another accessor. If the CPU stayed Modified (writing A = 5) while the GPU also wrote (A = 9), there are now two divergent "truths." A later reader could see 5 or 9 depending on which cache it snooped — the classic incoherency the parent's Google-Docs analogy warns about. The downgrade to Shared enforces exactly one authoritative value. This is the same coherency discipline described in Cache-CoherencyProtocols.


Level 4 — Synthesis

Exercise 4.1 — Memory expansion budget

An 8-socket server has DRAM per socket. An in-memory database needs . You add CXL memory expanders of each over CXL.mem. (a) How much DRAM is on-board? (b) How many expanders are needed? (c) What total address-space size does the OS see?

Recall Solution

(a) On-board DRAM . (b) Shortfall ; each expander is , so expanders. (c) OS sees of unified physical address space. The CPU's memory controller checks each physical address: if it falls in DRAM range it issues a DDR command; if beyond, it formats a CXL.mem transaction and routes to the expander. This tiering idea underlies NUMA-(Non-Uniform-Memory-Access) — near memory is fast, CXL memory is a farther "NUMA node".

Exercise 4.2 — Latency-aware access mix

Local DRAM latency ; CXL memory latency . A workload makes of its accesses to hot data in DRAM and to warm data in CXL memory. Compute the average access latency. Then compare against an all-DRAM ideal.

Recall Solution

Why a weighted average: each access pays the latency of wherever its data lives; the expected latency is the probability-weighted sum. All-DRAM ideal would be , so the CXL tier costs () extra latency — but buys you memory capacity you physically could not fit in DIMM slots. Compare with NVMe at tens of microseconds: CXL memory is still faster than flash.


Level 5 — Mastery

Exercise 5.1 — Model-serving capacity

A 70B-parameter language model stored in fp16 ( bytes per parameter) must be served. GPU VRAM . (a) Model weight size? (b) Does it fit in one GPU? (c) With a CXL memory expander, does it fit, and what protocol streams weights to the GPU?

Recall Solution

(a) . (b) no, it does not fit in one GPU's VRAM. (c) yes, it fits in the CXL expander. The GPU issues ReadShared(weight_addr) over CXL.cache; the CXL controller fetches 64-byte cache lines from expander memory on demand and the GPU caches them coherently for the current layer. This replaces slow manual copies with coherent on-demand streaming (contrast DMA-(Direct-Memory-Access), which copies blocks without coherency).

Exercise 5.2 — Bandwidth ceiling on weight streaming

Suppose each token's forward pass must touch all of weights once, streamed over a CXL 3.0 link at per direction. (a) Minimum time per token from bandwidth alone. (b) Peak tokens/second this ceiling allows.

Recall Solution

(a) Why divide bytes by bandwidth: time to move bytes over a link of rate bytes/s is . (b) Tokens/s . Interpretation: streaming every weight per token is brutally slow — this is why real systems keep hot weights resident in VRAM (HBM-(High-Bandwidth-Memory) gives TB/s) and use CXL memory as an overflow tier, not the primary path. The exercise reveals why HBM exists alongside CXL: bandwidth, not capacity, is the bottleneck for hot weights.

Exercise 5.3 — Generation reasoning

CXL 3.0 adds peer-to-peer device-to-device transfers over a fabric, "like NVLink but open." Explain in two sentences why removing the CPU from a GPU→GPU transfer matters, and name the earlier open interconnects CXL absorbed.

Recall Solution

Removing the CPU eliminates a round-trip through host memory and the CPU's coherency engine, so GPU→GPU data moves directly across the fabric at fabric speed with lower latency and no host-bandwidth tax. The earlier efforts CXL effectively subsumed are Gen-Z-and-CCIX — their memory-semantic and coherency ideas were folded into the CXL 2.0/3.0 fabric model.


Recall One-line self-test recap

.cache = device caches host RAM; .mem = host reaches device RAM ::: right PCIe 5.0 per-lane effective rate ::: ~3.94 GB/s CXL 1.0 x16 aggregate ::: 64 GB/s (32+32) Read of a Modified line ends in state ::: Shared for both 70B fp16 model size ::: 140 GB Invariant CXL enforces ::: single-writer or multiple-reader
