3.3.11 · D4Combinational Circuits

Exercises — Barrel shifters

2,615 words12 min readBack to topic

Before we start, one quick reminder of the vocabulary we lean on, so no symbol appears unexplained:

Definition Symbols used on this page (click to expand)
  • ::: the data width — how many bits are in the word we shift.
  • ::: the number of stages, one per power-of-two jump. When is a power of two, exactly.
  • ::: the shift amount — how far we want to move the bits, from to .
  • ::: bit of written in binary; it switches stage ON (=1) or OFF (=0).
  • ::: input / output bit at position of one stage. Position is the least-significant (rightmost) bit.
  • ::: "NOT " — the opposite of . A 2:1 multiplexer picks when the select is and when it is , written .

Before the first exercise, let us earn the one equation the whole page leans on.

Figure — Barrel shifters

The figure above shows that same two-row choice as a physical mux: one select line steering between the straight wire and the shifted wire.


Level 1 — Recognition

Exercise 1.1

An -bit barrel shifter has how many stages, and each stage is built from what kind of gate/block? Answer for .

Recall Solution

WHAT we compute: the stage count . For (a power of two): stages, shifting by , , . Each stage is a row of two-to-one (2:1) multiplexers — one mux per output bit. See Multiplexers. Answer: 3 stages, each a row of 8 2:1 muxes.

Exercise 1.2

For a 32-bit word, how wide (how many bits) is the shift-amount control input ?

Recall Solution

The shift amount ranges from to . The number of bits needed to count up to 31 is . Answer: 5 bits. (Do not confuse this with the data width of 32; see the mistake below.)


Level 2 — Application

Exercise 2.1

Which stages are switched ON to shift left by on a 32-bit word? Give the binary of and list the powers of two.

Recall Solution

Step 1 — write in binary. , so . Step 2 — read off the ON stages (the 1-bits):

  • shift by
  • shift by
  • shift by Step 3 — check the sum: . ✅ Answer: stages for 2, 4, and 16 are ON; stages for 1 and 8 pass through.

Exercise 2.2

Trace shift-left-by-22 applied to the 32-bit input value (only bit 0 set). What value comes out?

Recall Solution

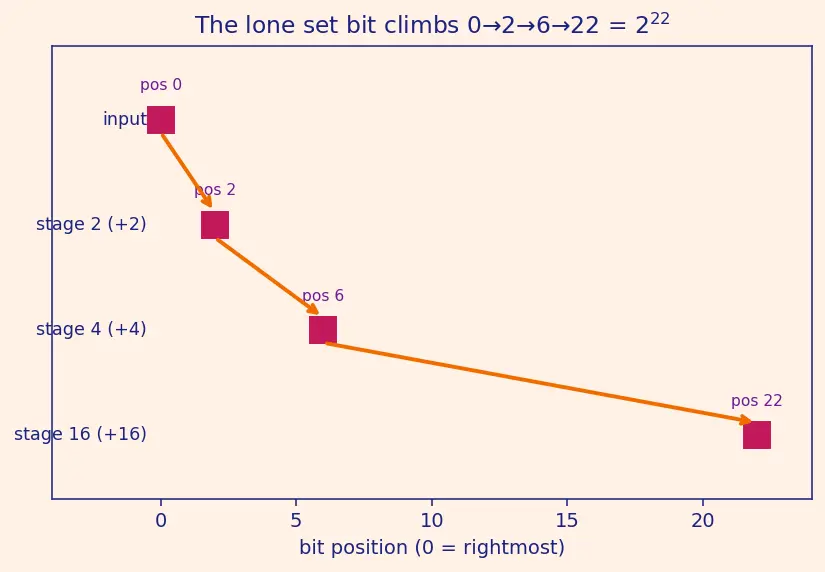

A single set bit at position , shifted left by , lands at position . So it lands at position . The output value is . WHAT IT LOOKS LIKE: figure below — the lone bit slides through three ON stages (2, then 4, then 16), climbing in position.

Figure — Barrel shifters

Exercise 2.3

Using the per-bit stage equation , compute output bit for stage (shift by 4) when , given input bits and .

Recall Solution

With : , so the first term drops and . Answer: ====. The output at position 5 picked up whatever was 4 positions lower (position 1), exactly what "shift left by 4" means.


Level 3 — Analysis

Exercise 3.1

Compare hardware for : total mux count and propagation delay (in mux-delays). Then say what happens to both if you double to 128.

Recall Solution

For : .

  • Total muxes .
  • Delay mux-delays.

Double to ():

  • Muxes .
  • Delay mux-delays.

The insight: doubling the width more than doubles the muxes (, a jump — because both and grew) but the delay rose by only one mux-delay. That gentle delay growth is the whole selling point — see Logarithmic Delay Structures.

Exercise 3.2

A student claims: "Swapping the order of the shift-by-2 stage and the shift-by-8 stage gives a different output." True or false, and prove it on the bit index.

Recall Solution

False. Take a single input bit at position .

  • Order A (by 2, then by 8): .
  • Order B (by 8, then by 2): . Both land at because addition of the displacements commutes (). Every set bit moves by the same total, so the words are identical. Answer: order does not change the final data (for pure shifts/rotates).

Exercise 3.3

On a 4-bit word, rotate right by 3 the input (bit 3 set). Do it stage-by-stage using the rotate rule , then check against a single direct rotation.

Recall Solution

, so : rotate right by , then by .

  • Stage 0 (rotate right by 1): each output bit pulls from one position higher, wrapping mod 4. . (The top bit wrapped down.)
  • Stage 1 (rotate right by 2): pull from 2 higher, mod 4. . Direct check: rotating 1000 right by 3 slides the single 1 from position 3 to position : 0001. ✅ Answer: ====.

Level 4 — Synthesis

Exercise 4.1

Design (on paper) an 8-bit logical left barrel shifter: list the stages, and for each stage write the per-bit equation for output bit (the top bit).

Recall Solution

stages: shift by 1 (), 2 (), 4 (). Per-bit left-shift equation is , with (logical fill). For :

  • Stage 0 ():
  • Stage 1 ():

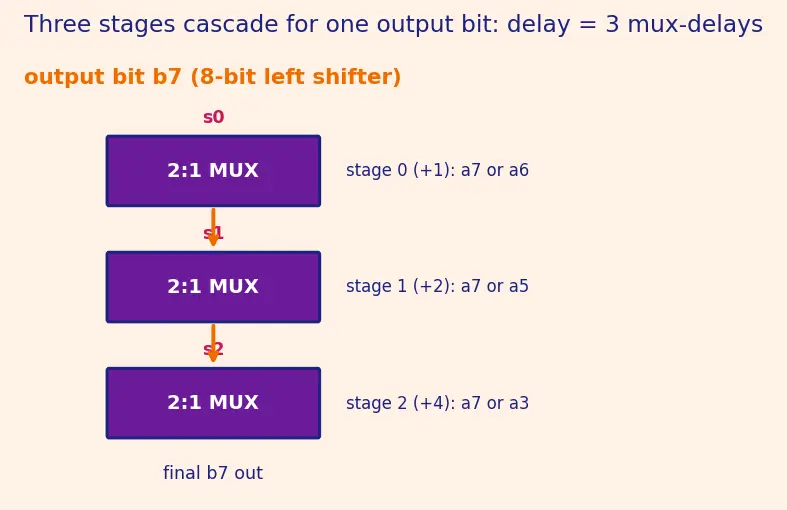

  • Stage 2 (): Cascade the three (output of one feeds the next). Total muxes ; delay mux-delays. See figure for the three-layer wiring of one bit column.
Figure — Barrel shifters

Exercise 4.2

Floating-point normalization must shift a mantissa left until its leading bit is 1 — an amount known only at runtime. Explain in one paragraph why a barrel shifter, not a 1-bit iterative shifter, is used, and give the worst-case delay for a 24-bit mantissa.

Recall Solution

Normalization happens every floating-point add/subtract, and the required shift can be anywhere from up to positions depending on cancellation. A 1-bit shifter would take up to 23 clock cycles, stalling the pipeline every time. A barrel shifter does any amount in one pass of combinational logic, so normalization costs a fixed, small delay independent of the shift size. The width is not a power of two, so we use stages (shift by ) on a 24-bit-wide datapath — the shifter matches the actual mantissa width, we do not widen the data to 32. The five stages still cover every amount ; the top () stage is simply left off for amounts below 16. Worst-case delay mux-delays. See Floating Point Normalization.


Level 5 — Mastery

Exercise 5.1

You must support both left and right logical shifts with one device, controlled by a direction bit . Propose a minimal design and state its total mux cost for . Then argue whether it beats building two separate shifters.

Recall Solution

Design idea: a right shift by on an -bit word equals a left shift by followed by masking — but the clean textbook trick is: bit-reverse the input, do a left shift, bit-reverse the output. Reversal is free wiring (no gates). So:

  1. Optionally reverse input (controlled by ) — one row of 2:1 muxes selecting straight vs reversed wiring.
  2. One -stage left barrel shifter: muxes.
  3. Optionally reverse output (controlled by ) — another row of muxes.

Cost for ():

  • Core: muxes.
  • Two reversal rows: muxes.
  • Total muxes.

Versus two separate shifters: two independent barrel shifters cost muxes plus an output selector row of = . The reverse-shift-reverse design (96) is cheaper and reuses the single expensive core. ✅

Exercise 5.2

Prove the general hardware bound: an -bit barrel shifter needs exactly muxes and give the count where .

Recall Solution

Proof. The shift amount ranges to , a -bit number, so we need one stage per bit stages. Each stage produces all output bits, and each output bit is one 2:1 mux muxes per stage. Multiply: . ∎ When is a power of two the ceiling vanishes and this is the familiar . For : , so muxes; delay mux-delays.


Active Recall

Recall Fast fire: stages, muxes, delay, control width for

. Stages ; muxes ; delay mux-delays; control width bits.

Recall Fast fire: which stages are ON for shift-by-45 on a 64-bit word?

, so stages for (sum ).

Connections

  • Multiplexers — every stage is a row of 2:1 muxes.
  • Binary Number Representation — decomposing into powers of two.
  • Shift and Rotate Operations — the logical-shift vs rotate distinction driving several exercises.
  • Logarithmic Delay Structures — why delay grows only as .
  • Floating Point Normalization — the runtime-variable shift of Exercise 4.2.
  • Combinational Circuits — no clock: all answers land in one pass.
