Don't-care conditions in K-maps

WHY do don't-cares even exist?

WHY they occur — two real reasons:

Impossible inputs. Example: a BCD (Binary-Coded Decimal) digit uses 4 bits but only encodes $0$ – $9$ . The combinations $1010$ to $1111$ (i.e. $10$ – $15$ ) are never produced by a valid BCD source. What the circuit outputs for those inputs is irrelevant — those inputs never arrive.
Unused outputs. Sometimes for a given input the downstream logic ignores the output (e.g. an enable line is off), so we don't care what it is.

HOW to use don't-cares in a K-map — the rules

WHY rule 2? An expression is a sum of product terms. Every group you draw becomes a term (extra hardware). If a group contains no real 1, it produces output for input combinations you never wanted — you paid for a gate that does nothing useful.

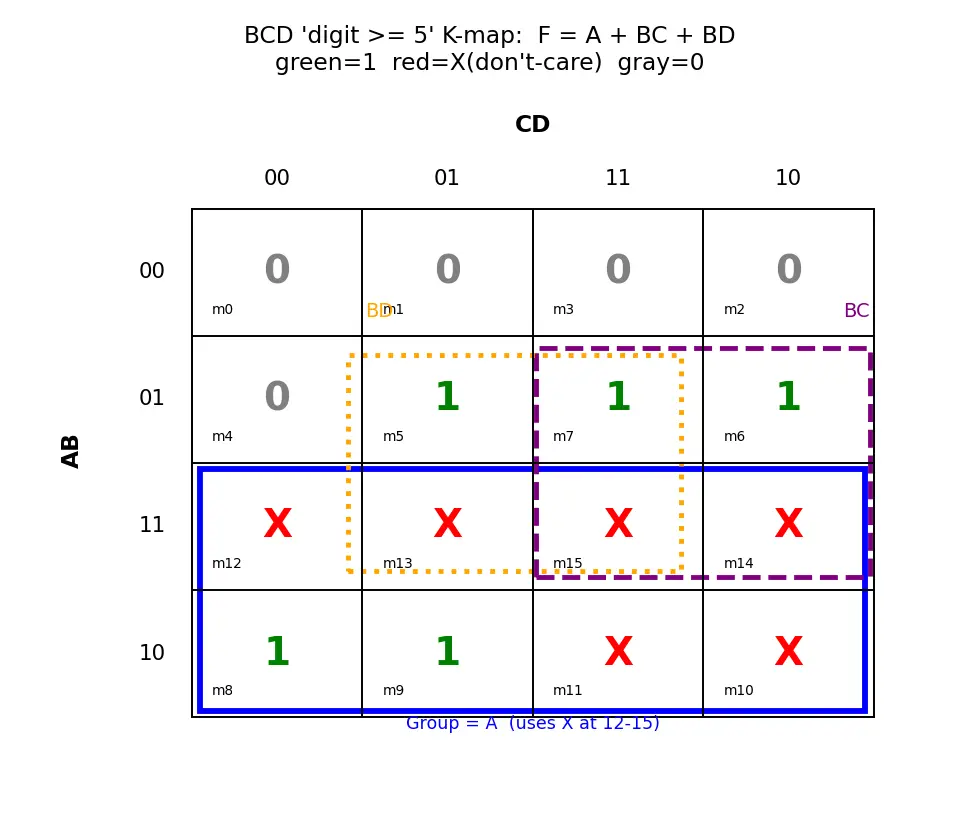

Figure — Don't-care conditions in K-maps

Worked Example 1 — BCD "is the digit ≥ 5?"

Inputs $A B C D$ = a BCD digit (0–9). Output $F=1$ when digit $\ge 5$ . Digits $10$ – $15$ never occur → don't-cares.

Minterms where $F=1$ : $5,6,7,8,9$ . Don't-cares: $10,11,12,13,14,15$ .

K-map (rows $AB$ , cols $CD$ in Gray order $00,01,11,10$ ):

AB\CD	00	01	11	10
00	0	0	0	0
01	0	1(5)	1(7)	1(6)
11	X	X	X	X
10	1(8)	1(9)	X	X

Step 1 — Group the 8,9 with the whole bottom-left don't-care region. Why this step? Cells $8,9,12,13$ form a 4-cell block ( $AB=1{-}$ , wait let's use the real coords). Take the entire bottom two rows column region so that $A=1$ absorbs $12,13,14,15$ as $X$ . The group $\{8,9,10,11,12,13,14,15\}$ = all cells with $A=1$ → simplifies to just $A$ . Why allowed? Because $10$ – $15$ are $X$ ; we chose them = 1, legally.

Step 2 — Group the 5,6,7 with 13,14,15 don't-cares. Why? $\{5,7,13,15\}$ share $B=1,D=1$ ? Instead take $\{6,7,14,15\}$ ( $B=1,C=1$ ) and $\{5,7,13,15\}$ ( $B=1,D=1$ ). Using $X$ 's at $13,14,15$ lets these become size-4 groups giving $BC$ and $BD$ .

Result: $F = A + BC + BD$

Compare: Without don't-cares you'd need $F = A\bar B + BC + BD + A\bar C\bar D$ -style clutter. Don't-cares collapsed it to a clean $A+BC+BD$ .

Worked Example 2 — small 3-variable map

$F(A,B,C)=\sum m(1,3,7) + \sum d(5)$ .

A\BC	00	01	11	10
0	0	1(1)	1(3)	0
1	0	X(5)	1(7)	0

Step 1 — Group column $BC=01$ plus $BC=11$ ? No — group the four cells $\{1,3,5,7\}$ . Why? $\{1,3,7\}$ are 1s; $5$ is $X$ . Cells $1,3,5,7$ are exactly all cells with $C=1$ → a size-4 group → simplifies to $C$ . Why use the $X$ ? Without treating $5$ as 1, the largest group of the 1s would be $\{1,3\}$ ( $\bar A C\,$ … giving $\bar A C$ ) plus a separate $\{3,7\}$ ( $BC$ ). Using the $X$ turns three terms into one literal.

Result: $F = C$ . (One wire!)

Common mistakes (Steel-man + fix)

Flashcards

What is a don't-care condition?

An input combination whose output is unspecified — either it can never occur or its value is ignored; marked

X

in the K-map.

Why do don't-cares arise in BCD circuits?

BCD uses 4 bits but only encodes 0–9; combinations 10–15 never occur, so their outputs are don't-cares.

Golden rule for using an X in a K-map group?

Include it only if it enlarges a group that already covers at least one real 1.

Why must you never group X's alone?

The group becomes an extra product term (extra hardware) covering inputs you don't care about — pure waste.

Symbol for a don't-care in a K-map/truth table?

X

(sometimes

d

\phi

In Example 2,

F=\sum m(1,3,7)+\sum d(5)

, what is minimised

F

F = C

(using the X at 5 to complete the size-4 group of all C=1 cells).

Do don't-cares ever have to be covered?

No — covering an X is optional; only the 1s must be covered.

Recall Feynman: explain to a 12-year-old

Imagine you're packing lunchboxes but you KNOW three kids are absent today — they'll never open their boxes. So it doesn't matter what you put in those three boxes! You can pretend they hold "sandwiches" if that lets you pack in nice neat identical rows (easier packing), or ignore them if that's easier. The absent kids' boxes = don't-cares. In a K-map, an $X$ is a box you can call full ( $1$ ) or empty ( $0$ ) — whatever makes your final pattern the simplest.

Connections

Karnaugh Maps (K-maps) — the base technique don't-cares extend.
Sum of Products (SOP) and Product of Sums (POS) — each group = one term.
BCD - Binary Coded Decimal — classic source of don't-cares (10–15).
Quine-McCluskey Method — how don't-cares are handled algorithmically.
Boolean Simplification — the goal: fewest literals/terms.
Logic Gates & Hardware Cost — why fewer terms = cheaper circuit.

Concept Map

Hinglish (regional understanding)

Intuition Hinglish mein samjho

Dekho, "don't-care condition" ka matlab hai aisa input combination jo ya to circuit ko kabhi milega hi nahi, ya jiska output kisi ko farak nahi padta. Sabse common example BCD hai — 4 bits mein hum sirf 0 se 9 tak encode karte hain, toh 10 se 15 wale combinations kabhi aate hi nahi. Un cells ka output kuch bhi ho, koi baat nahi. K-map mein hum unhe $X$ likhte hain.

Ab yeh $X$ apna dost hai. Normal cell locked hota hai (0 ya 1), lekin $X$ ko hum apni marzi se 0 bhi maan sakte hain aur 1 bhi — jo bhi humari final equation ko chhota banaye. Bada group banana hai (kam literals, sasta gate), toh $X$ ko group mein le lo. Agar $X$ se koi fayda nahi, toh chhod do.

Do rules yaad rakho: (1) $X$ ko sirf tab group karo jab woh kisi asli 1 wale group ko bada kare. (2) Kabhi bhi sirf $X$ ka group mat banao — kyunki har group ek extra product term banta hai, matlab extra hardware jo bekaar hai. Example 2 mein $\sum m(1,3,7)+\sum d(5)$ tha, aur $X$ ko 1 maan ke pura $C=1$ column group ban gaya, answer aaya seedha $F=C$ — ek hi taar! Bina don't-care ke do-teen terms aate. Isliye don't-cares se circuit sasta aur simple ho jata hai.
