Foundations — Einstein relation between mobility and diffusion

Before you can derive the Einstein relation, you must be fluent in every letter it uses. Below, each symbol gets three things: plain-words meaning → the picture → why the topic needs it. They are ordered so each one leans on the ones above it.

0. The stage: a bar of semiconductor

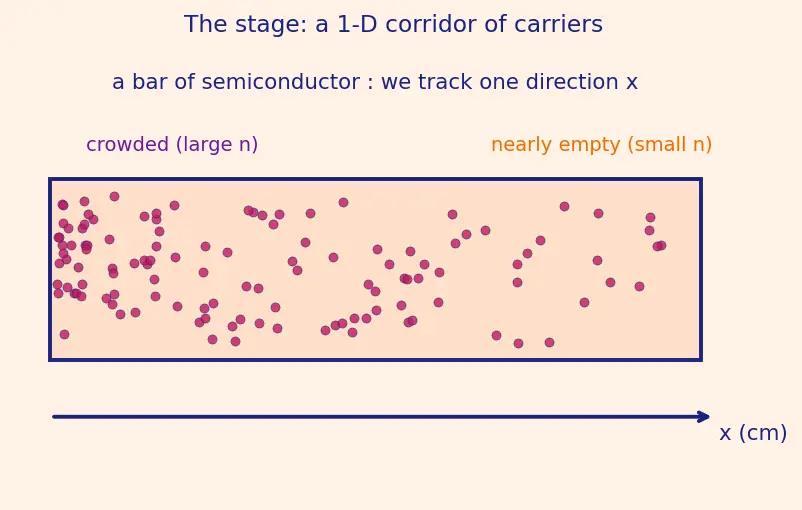

Everything happens inside a thin bar of silicon. We only care about one direction, which we call $x$ — think of a straight corridor. Position along the corridor is $x$ (in $\text{cm}$). Everything we talk about (how many carriers, how strong the field) is a number that can change as you walk along $x$.

1. Carrier concentration $n$

The picture: imagine dots (electrons) scattered inside the bar. Count the dots in a tiny box of volume $1{\text{cm}}^3$ — that count is $n$. Where dots are crowded, $n$ is big; where the bar is nearly empty, $n$ is small.

Why the topic needs it: diffusion is entirely about $n$ being uneven. If $n$ were the same everywhere, nothing would spread. (For holes — the "missing electron" spots — we'd write $p$, but the whole story is identical.)

2. The gradient $\frac{dn}{dx}$ — "how steeply the crowd thins out"

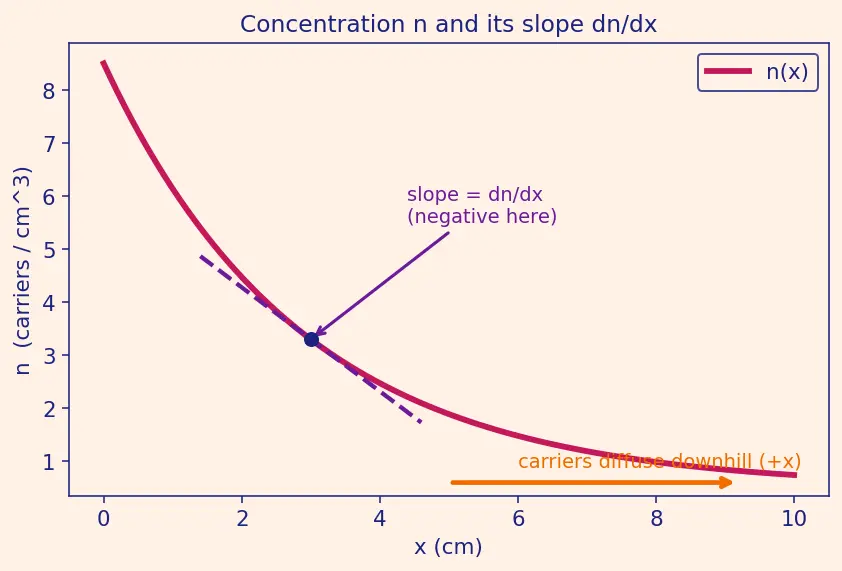

The picture: draw $n$ as a curve above the corridor. $dn/dx$ is the tilt of that curve at each point.

• Curve going downhill as $x$ grows → $dn/dx$ is negative.
• Flat curve → $dn/dx=0$ (no gradient, no diffusion).
• Steeper tilt → bigger magnitude.

Why the sign matters so much: carriers flow from crowded to empty — that is, downhill, in the direction where $n$ decreases. So the flow direction is opposite to the sign of $dn/dx$. This single minus sign is the source of the classic sign-confusion mistake on the parent note.

3. Flux $F$ and current $J$ — "how much stuff crosses a line"

The picture: stand at one spot in the corridor and hold up a hoop (area $1{\text{cm}}^2$). Count carriers passing through per second → that's $F$. Multiply by the charge each carrier carries → that's $J$. Rightward crossings count positive, leftward negative.

Why the topic needs it: the entire derivation is the sentence "in equilibrium the total current $J$ is zero." We cannot write that until we know what $J$ means and that it has a sign (a direction).

4. Charge $q$ and the electron's charge $-q$

The picture: one indivisible packet of charge. Every electron carries $-q$ (negative), every hole carries $+q$.

5. Electric field $E$ and potential $\psi$

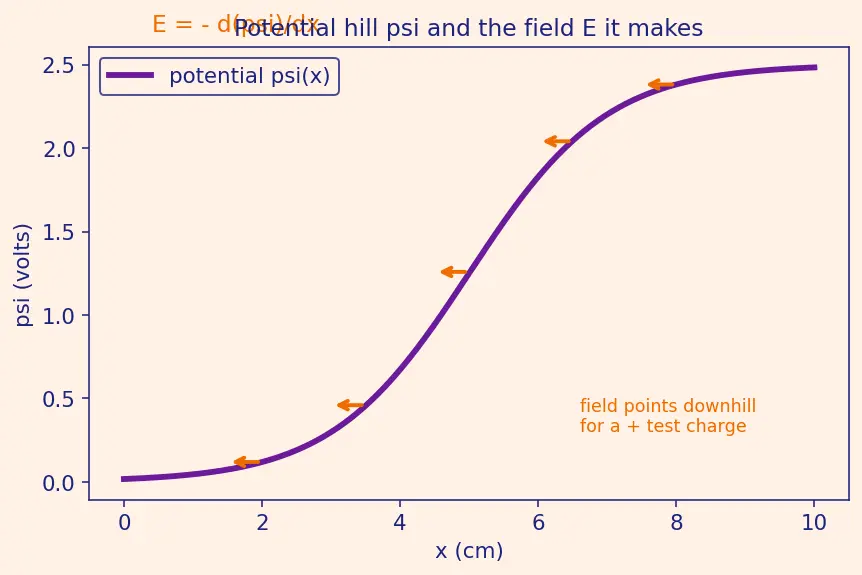

The picture — the crucial link: the field is the negative slope of the potential hill: $E=-\frac{d\psi }{dx}$ Walk downhill in $\psi$ and the field points the way you're walking (for a positive test charge).

6. Mobility $\mu$ — "how easily a field drags carriers"

The picture: turn on a field $E$. Carriers don't fly forever — they bump into vibrating atoms and impurities, forget their velocity, and start over. The result is a steady average drift speed. Big $\mu$ = a clean, low-collision path = easy dragging. Small $\mu$ = lots of bumping = sluggish drift.

Why the topic needs it: $\mu$ is one of the two numbers in the ratio $D/\mu$. It is the "wind can push me" number.

7. Diffusion coefficient $D$ — "how fast carriers spread on their own"

The picture: no field at all. Carriers just jiggle randomly. Purely because there are more of them on the crowded side, more random-walkers happen to step out of the crowd than into it — so the crowd leaks toward emptiness. $D$ says how quickly. The minus sign says "flow points down the gradient."

Why the topic needs it: $D$ is the second number in $D/\mu$ — the "I spread by myself" number. The whole punchline is that this and $\mu$ are secretly the same quality wearing two costumes.

8. Temperature $T$ and Boltzmann's constant $k_B$

The picture: $k_{B}T$ is roughly "how much random kinetic energy one carrier has because it's warm." It is the fuel tank for diffusion.

9. The Boltzmann factor $\exp \left(\frac{q\psi }{k_{B}T}\right)$

The picture: higher-energy spots are less popular, and the drop-off is steep (exponential). Warmer carriers ($k_{B}T$ large) can afford the climb more easily, so the distribution flattens. This is the only piece of new physics in the derivation — everything else is bookkeeping. See Boltzmann distribution in semiconductors and Fermi-Dirac vs Maxwell-Boltzmann statistics.

10. Thermal voltage $V_T=\frac{k_{B}T}{q}$

The picture: $k_{B}T$ is an energy (joules). Divide by charge $q$ (coulombs) and joules/coulomb = volts. So $V_T$ is "how many volts of push the thermal jiggling is worth." That's why $D/\mu$ — which must come out in volts — equals exactly $V_T$. See Thermal voltage V_T.
