Compare band gaps - conductor - semiconductor - insulator

WHAT are we comparing?

WHY does a full band carry no current? A completely full band has, for every electron moving right, another moving left → net current $=0$ . To get current you need empty states for electrons to accelerate into. So conduction requires either a partly-full band or electrons promoted across the gap leaving holes behind.

HOW the three classes differ

Definition The classification

Class	Band gap $E_g$	Situation at room $T$
Conductor (metal)	$E_g \approx 0$ (bands overlap or VB partly filled)	Always tons of free carriers
Semiconductor	small, $\sim 0.1$ – $3\ \text{eV}$ (Si $=1.12$ , Ge $=0.67$ , GaAs $=1.42$ )	Few carriers, thermally excited
Insulator	large, $\gtrsim 4\ \text{eV}$ (diamond $\approx 5.5$ )	Almost no carriers

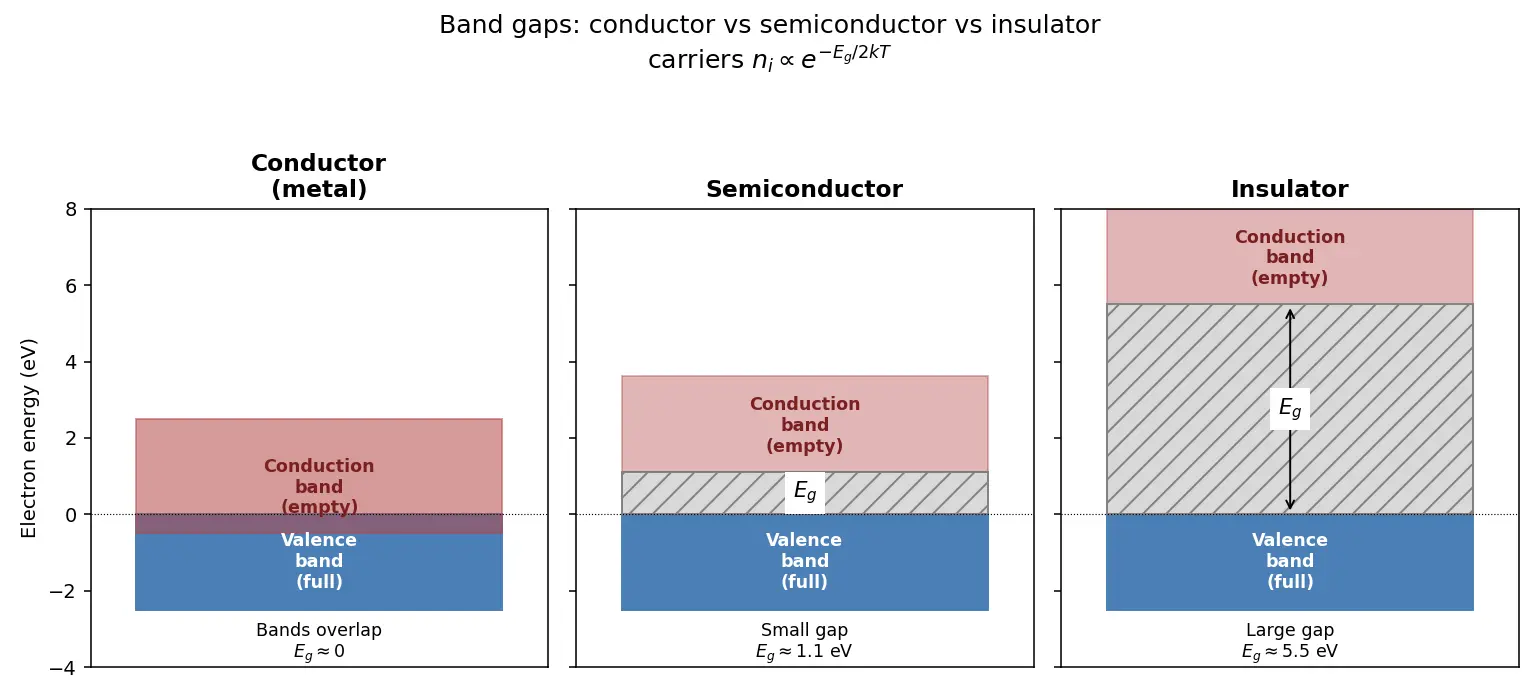

Figure — Compare band gaps - conductor - semiconductor - insulator

WHY temperature matters — derive the carrier count

The number of electrons that make it across the gap follows the Boltzmann/Fermi factor. Let's build it from scratch.

Formula Derivation of the thermal excitation factor

Step 1 — Fermi–Dirac occupation. The probability a state at energy $E$ is filled: $f(E) = \frac{1}{1 + e^{(E-E_F)/kT}}$ Why this step? Electrons obey Pauli exclusion; Fermi–Dirac is the correct statistics for such particles.

Step 2 — For an intrinsic semiconductor, $E_F$ sits near mid-gap, so for a CB state $E - E_F \approx E_g/2 \gg kT$ . Why this step? At room $T$ , $kT \approx 0.026\ \text{eV}$ , while $E_g/2$ is hundreds of meV, so the exponential dominates.

Step 3 — Approximate. When $e^{(E-E_F)/kT} \gg 1$ : $f(E) \approx e^{-(E-E_F)/kT}$ Why this step? Drop the "+1" in the denominator; the tiny error is negligible.

Step 4 — Carrier concentration integrates this over the CB density of states, giving the standard result: $n_i = \sqrt{N_c N_v}\; e^{-E_g/2kT}$ Why this step? $N_c, N_v$ are the effective densities of states in CB/VB; the surviving exponential controls everything.

Worked Examples

Worked example Example 1 — Ratio of carriers: Si vs diamond

Compare $n_i$ for Si ( $E_g=1.12$ eV) and diamond ( $E_g=5.5$ eV) at $T=300$ K ( $kT=0.02585$ eV), ignoring the prefactor difference.

$\frac{n_i^{Si}}{n_i^{dia}} = e^{-(E_g^{Si}-E_g^{dia})/2kT} = e^{(5.5-1.12)/(2\cdot0.02585)}$ Why this step? Same formula, take the ratio so prefactors roughly cancel. $= e^{4.38/0.0517} = e^{84.7} \approx 10^{37}$ Why this step? Convert $e^{84.7}$ using $\ln 10 = 2.303$ : $84.7/2.303\approx36.8$ .

Meaning: Si has ~ $10^{37}$ times more intrinsic carriers than diamond → Si conducts (weakly), diamond is an insulator. Same physics, different $E_g$ .

Worked example Example 2 — Effect of heating Si from 300 K to 600 K

Factor change $= \exp\!\left[\frac{E_g}{2k}\left(\frac{1}{300}-\frac{1}{600}\right)\right]$ . Why this step? $n_i \propto e^{-E_g/2kT}$ ; take the ratio at two temperatures. With $E_g/2k = 1.12/(2\cdot 8.617\times10^{-5}) = 6499$ K: $\exp[6499(1/300 - 1/600)] = \exp[6499\cdot 0.001667]=e^{10.8}\approx 5\times10^{4}$ Meaning: doubling $T$ multiplies free carriers ~ $50{,}000\times$ . Semiconductors get more conductive when hot — opposite to metals.

Common Mistakes (Steel-manned)

Recall Feynman: explain to a 12-year-old

Imagine electrons are kids stuck on the ground floor of a building, and to help push carts around (make electricity) they must jump up to an empty top floor. The band gap is how tall the jump is.

Metal: the floors touch — kids stroll across, always ready → great conductor.
Semiconductor: short jump — a few energetic kids make it, more make it when it's warmer (they have more energy) → sometimes conducts.
Insulator: huge jump — basically nobody makes it → no electricity. That "jump height" in an exponent is why a slightly taller jump means WAY fewer kids up top.

Active Recall

What is the band gap

E_g

defined as?

The forbidden energy range between top of valence band and bottom of conduction band,

E_g = E_c - E_v

Why does a completely full band carry no net current?

For every electron moving one way there's one moving the opposite way; no empty states to accelerate into → net current zero.

Typical band gap of a conductor/metal?

\approx 0

eV — valence and conduction bands overlap (or VB is partly filled).

Typical band gap ranges for semiconductor vs insulator?

Semiconductor

\sim 0.1

–

3

eV (Si 1.12); insulator

\gtrsim 4

eV (diamond ~5.5).

What single relation governs intrinsic carrier count?

n_i \propto e^{-E_g/2kT}

Why is the exponent

E_g/2kT

and not

E_g/kT

Intrinsic Fermi level sits near mid-gap, so each carrier costs ~

E_g/2

on average.

Why does semiconductor conductivity rise with temperature but metal conductivity fall?

Semiconductor: exponentially more carriers dominate. Metal: fixed carriers, only extra phonon scattering → resistance up.

Value of

kT

at room temperature (300 K)?

About

0.0259

eV (

\approx 26

meV).

What starting statistics gives the exponential factor?

Fermi–Dirac distribution

f(E)=1/(1+e^{(E-E_F)/kT})

, approximated as Boltzmann when

E-E_F \gg kT

Connections

Band Theory & Carrier Physics
Fermi–Dirac Distribution
Intrinsic vs Extrinsic Semiconductors
Density of States
Doping and the Fermi Level
Conductivity and Mobility
Temperature Dependence of Resistance in Metals

Concept Map

Hinglish (regional understanding)

Intuition Hinglish mein samjho

Dekho, teeno materials mein basic fark sirf ek cheez ka hai — band gap $E_g$ , matlab electron ko valence band (bharra hua) se conduction band (khaali) tak "uchhalne" ke liye kitni energy chahiye. Conductor mein ye gap almost zero hota hai (bands overlap kar jaate hain), isliye hamesha bahut saare free electrons available hote hain — current asaani se chalta hai. Semiconductor mein gap chhota hota hai (Si mein 1.12 eV), toh room temperature par thodi si garmi se kuch electrons upar chale jaate hain. Insulator mein gap itna bada (diamond 5.5 eV) hai ki koi electron upar ja hi nahi paata — current zero.

Sabse important formula: $n_i \propto e^{-E_g/2kT}$ . Yahan $E_g$ exponent mein baitha hai, isiliye thoda sa gap badhao toh carriers crore-guna kam ho jaate hain. Ye ek exponential poore conductor/semiconductor/insulator ke difference ko explain kar deta hai. Yaad rakho exponent mein $E_g/2$ aata hai, poora $E_g$ nahi — kyunki intrinsic case mein Fermi level gap ke beech mein hota hai, toh average cost aadha gap.

Ek aur maze ki baat: semiconductor garam karne par behtar conduct karta hai (zyada electrons upar jaate hain), lekin metal garam karne par kharab ho jaata hai (electron count fixed hai, bas lattice vibrations zyada scatter karti hain). Ye ulta behaviour exam mein bahut poochha jaata hai — isliye mechanism yaad rakho: semiconductor mein carrier-count jeetta hai, metal mein scattering.
