Exercises — Electron-hole pair generation

1,812 words8 min readBack to topic

Before we start, we agree on exactly one toolbox of numbers, so no symbol appears un-earned.

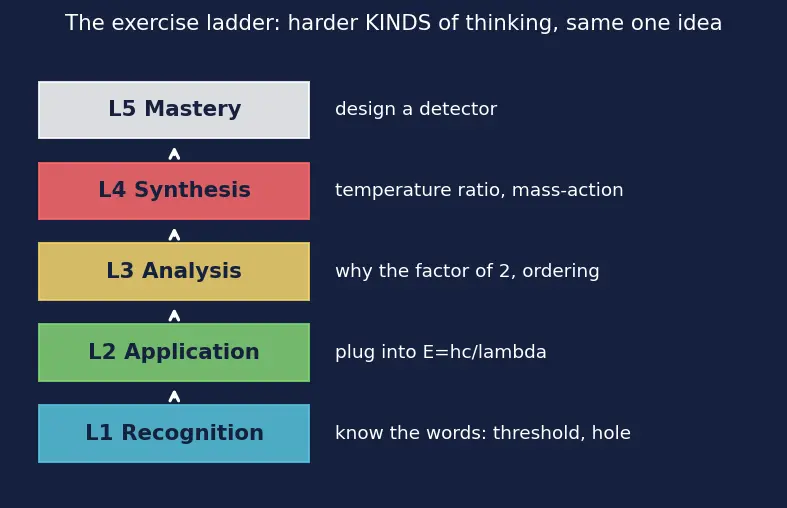

Look at the map of the ladder before climbing:

Figure — Electron-hole pair generation

Level 1 — Recognition

Recall Solution L1.1

Rule: an EHP forms only when the supplied energy is at least . For Si, eV.

  • (a) no. Too weak to lift an electron across the gap.
  • (b) yes. Plenty of energy; the extra eV becomes heat.
  • (c) Cooling removes thermal energy → no (in fact cooling reduces the number of pairs). Generation needs energy in.
Recall Solution L1.2

False. A hole is the absence of an electron in the valence band — a bookkeeping label for the collective shuffle of many bound electrons; it merely behaves like a carrier.


Level 2 — Application

Recall Solution L2.1

WHAT: find at the threshold where photon energy exactly equals the gap. WHY: longer wavelength ⇒ lower energy (, so bigger = smaller ). The longest usable wavelength is the one whose energy has just dropped to . So Ge absorbs out to ~1.88 µm — deeper into the infrared than Si (1107 nm), because its smaller gap needs less energy.

Recall Solution L2.2

yes, green light generates EHPs in GaAs.


Level 3 — Analysis

Recall Solution L3.1

Ranking (using ):

  • GaAs: eV → nm
  • Si: eV → nm
  • Ge: eV → nm

Ge reaches deepest (1879 nm). Reason: smallest gap ⇒ smallest threshold energy ⇒ even low-energy (long-wavelength) photons clear the bar. This is the same inverse relation as L2, now used to order three materials.

Recall Solution L3.2

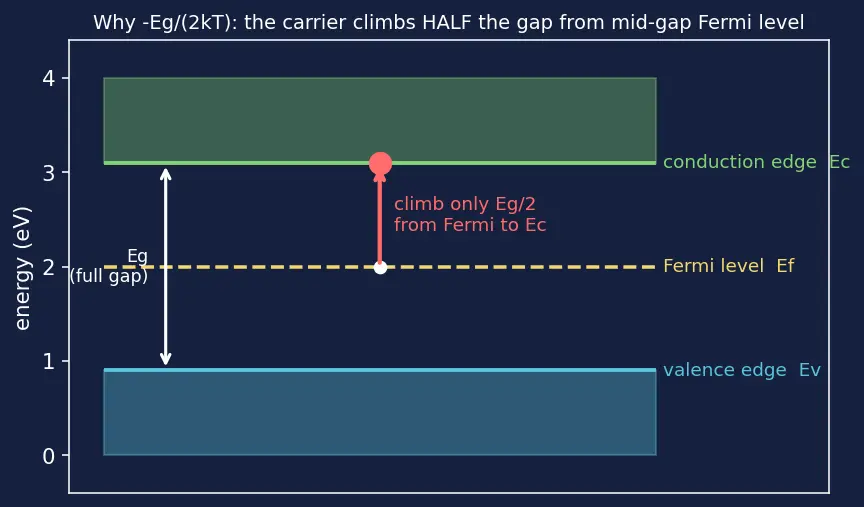

Look at the band diagram:

Figure — Electron-hole pair generation

The Fermi level (the energy where a state is 50% likely occupied — see Fermi-Dirac Distribution & Fermi Level) sits near the middle of the gap in an intrinsic crystal. An electron only has to climb from up to the conduction-band edge — a distance of , not the full . Boltzmann occupation with gives . The full belongs to the product : multiply two halves and the exponents add back to a whole gap. That is why .


Level 4 — Synthesis

Recall Solution L4.1

WHAT: take a ratio so cancels. First, . So a modest K rise multiplies the intrinsic carriers by ~225×. This is why raw semiconductors are so temperature-sensitive, motivating Doping — Donors & Acceptors.

Recall Solution L4.2

Tool: mass-action law , valid in equilibrium even after doping (generation always makes pairs, so the product stays pinned). Interpretation: adding electrons pushes holes down by a factor of ~. Holes are now the tiny minority carrier. See Intrinsic vs Extrinsic Semiconductors.


Level 5 — Mastery

Recall Solution L5.1

WHY this formula: at equilibrium nothing accumulates, so pairs are destroyed (recombined) exactly as fast as they are born (generated): . See Recombination & Carrier Lifetime.

Recall Solution L5.2

Step 1 — photon energy of the signal: Step 2 — detection rule: the material generates an EHP only if , i.e. only if eV. Step 3 — check each:

  • Ge: detects ✅ (also matches its long 1879 nm cutoff).
  • Si: transparent, no pair, cutoff 1107 nm is shorter than 1310 nm ❌.
  • GaAs: transparent ❌.

Answer: only Ge. This is exactly why Ge / InGaAs (not Si) is used for 1310/1550 nm fibre detectors — the signal photon must clear the gap. Ties together L1 (threshold), L2 (energy from ), L3 (cutoff ordering).


Recall Self-test checklist (hide & recite)
  • Threshold to make an EHP? ::: energy .
  • Photon energy from wavelength? ::: , eV·nm.
  • Cutoff wavelength? ::: (inverse to gap).
  • Why exponent ? ::: Fermi level mid-gap; climb half the gap (= square-root of ).
  • Mass-action law? ::: , fixed at given .
  • Equilibrium generation? ::: .
