Visual walkthrough — Read multimeter measurements (V, I, R)

We will lean on Ohm's Law as the spine, and touch Loading Effect and Meter Accuracy, Metric Prefixes and Engineering Notation, and Internal Resistance of Sources as we go.

Step 1 — The one relationship everything rests on

WHAT. Three quantities live in every circuit branch:

• Voltage $V$ — the push, the pressure difference between two points. Unit: volts.
• Current $I$ — the flow, how much charge streams past per second. Unit: amps.
• Resistance $R$ — the narrowness, how hard the path fights the flow. Unit: ohms, $\Omega$.

They are tied together by Ohm's Law:

$V=I\times R$

Read it term by term:

• $V$ (left) — the push you build up across the resistor,
• $I$ — the flow going through it,
• $R$ — the fixed narrowness of that particular part.

WHY this and not something else. Because it is the only rule we need. A multimeter never invents new physics — it just measures two of these three and solves for the third. Nothing more.

PICTURE. A tank of water (the push $V$) drives water through a narrow pipe (the resistance $R$); the stream rate is the current $I$. Wider push or less narrow pipe → more flow.

Step 2 — The DMM's secret: it can only truly measure ONE thing

WHAT. A digital multimeter (DMM) has, at its heart, a single trick: it measures a voltage very precisely. Everything else is Ohm's law wrapped around that.

WHY. Voltage is easy to sense directly — it is a difference the electronics can compare against a reference. Current and resistance are harder to sense directly, so the meter converts them into a voltage it can read, using a resistor it already knows the value of.

PICTURE. Think of the meter's brain as an eye that only sees "how much push is across these two internal terminals." To make it see current or resistance, we must first turn those into a voltage for the eye.

Step 3 — Voltage mode: rearrangement $V=IR$ with a huge $R$

WHAT. In voltage mode the meter drops a very large resistor $R_{in}$ (about $10\text{M}\Omega =10\times 10^6\Omega$) between the two probe tips and reads the push across it.

WHY huge? Whatever we clip the meter across, a little current will detour into the meter:

$I_{\text{stolen}}=\frac{V}{R_{in}}$

• $V$ — the voltage we are trying to read,
• $R_{in}$ — the meter's own resistance,
• $I_{\text{stolen}}$ — current that leaks away from the circuit into the meter.

Make $R_{in}$ enormous and $I_{\text{stolen}}$ becomes tiny — the circuit barely notices the meter is there. That "barely noticing" is the whole point; disturbing it is the loading effect.

PICTURE. The meter connects across (in parallel), like a second pipe branching off — but it is a pinhole pipe, so almost no water is diverted.

Step 4 — Current mode: rearrangement $I=V/R$ with a tiny $R$

WHAT. In current mode the meter inserts a very small shunt resistor $R_{shunt}$ in series, measures the voltage $V_{shunt}$ that appears across it, and computes:

$I=\frac{V_{shunt}}{R_{shunt}}$

• $R_{shunt}$ — a resistor the meter knows exactly,
• $V_{shunt}$ — the push the meter actually senses (its one true skill, Step 2),
• $I$ — the current we want, which falls straight out of the division.

WHY tiny? The meter is now in the path. Any resistance it adds slows the very current we want to measure. Small $R_{shunt}$ → small extra push wasted → the flow stays almost unchanged. An ideal ammeter would be $0\Omega$.

WHY a different jack? The current path carries the full circuit current, so it gets its own fuse-protected socket — never the voltage tips.

PICTURE. The meter is now a turnstile in the hallway: every unit of flow must pass through it, and it counts them by watching the tiny push across its own low bar.

Step 5 — Resistance mode: rearrangement $R=V/I$ with a known $I$

WHAT. Now the unknown is $R$. The meter can't know $R$ and can't know $I$ at once — so it supplies its own known current $I_{test}$ from an internal battery, pushes it through the part, and reads the resulting voltage:

$R=\frac{V_{measured}}{I_{test}}$

• $I_{test}$ — a small current the meter chooses and knows,
• $V_{measured}$ — the push that builds across the unknown part (its one true skill again),
• $R$ — the answer, from the division.

WHY power must be OFF. The formula assumes only $I_{test}$ flows. If the circuit is live, extra current corrupts $V_{measured}$, giving a wrong $R$ — and can blow the meter's fuse. See also Internal Resistance of Sources for why live sources refuse to sit still.

PICTURE. The meter's own little pump pushes a measured trickle through the isolated part and watches how much push it takes to keep that trickle flowing.

Step 6 — Edge case: measuring resistance in-circuit (why it lies)

WHAT. Leave the resistor connected to its neighbours and the ohmmeter reads too low.

WHY. The meter's $I_{test}$ now has more than one path — the resistor you want, plus whatever is wired beside it. Parallel paths always carry more total flow for the same push, so the meter thinks resistance is smaller. This is the parallel combination rule:

$R_{\text{measured}}=\frac{R_{\text{true}}{R}_{\text{parallel}}}{R_{\text{true}}+R_{\text{parallel}}}<R_{\text{true}}$

• $R_{\text{true}}$ — the value you actually want,
• $R_{\text{parallel}}$ — the sneaky neighbouring path,
• the result is always smaller than either — hence the false low reading.

PICTURE. The test current forks — some through your resistor, some around it — so the meter under-reads.

Step 7 — Degenerate cases: zero, infinity, and open circuits

WHAT. The three limits every reader will eventually hit:

WHY these matter. OL is not an error — it is Ohm's law saying "$R$ is bigger than I can push $I_{test}$ through," i.e. essentially infinite (an open circuit or a blown component). A clean wire honestly reads near-zero; that is the continuity beep.

PICTURE. Left: a solid pipe (near-0 Ω). Middle: a cut pipe — no flow possible ($\infty$, shows OL). Right: pump off — nothing moves.

Step 8 — Don't forget the prefix (the number is only half the reading)

WHAT. The digits on screen carry a prefix that scales them. From Metric Prefixes and Engineering Notation:

$1\text{k}\Omega =10^3\Omega ,1\text{M}\Omega =10^6\Omega ,1\text{mA}=10^{-3}\text{A}$

On a manual $20\text{k}$ range, a screen showing $0.47$ means:

$0.47\times 1\text{k}\Omega =0.47\text{k}\Omega =470\Omega$

WHY. A naked "5" is meaningless — $5\text{mA}$, $5\text{V}$, $5\text{k}\Omega$ are wildly different worlds. Always read digits × range unit.

PICTURE. The same digits "0.47" mean 470 Ω on the 20k range, 0.47 Ω on the 200Ω range — the range is the prefix.

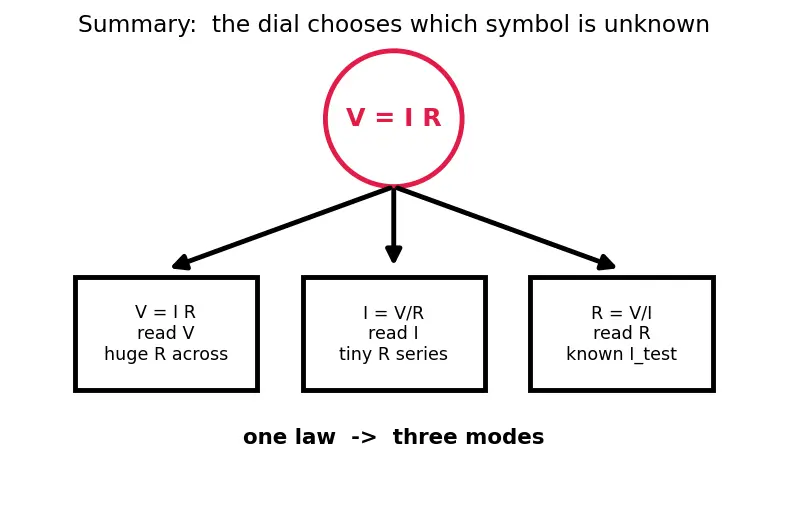

The one-picture summary

One law, $V=IR$, split three ways — plus a knob that chooses which symbol is the unknown, and a resistor (huge / tiny / driven) that turns the job into a voltage the meter can see.
