Foundations — Build and analyze a current divider

Before you can read a single formula in the parent note, you need to know what every letter means, what picture lives behind it, and why the topic can't do without it. We build them in order — each one earns the next.

1. The wire and the flow of charge

Picture a single arrow along a wire showing which way the charge marches. That arrow's thickness is how big $I$ is. The topic exists because sometimes that one arrow reaches a fork and has to become two thinner arrows.

Why the topic needs it: a "current divider" is literally the story of what happens to $I$ at a fork. No $I$, no story.

2. The junction (node) and why nothing is lost

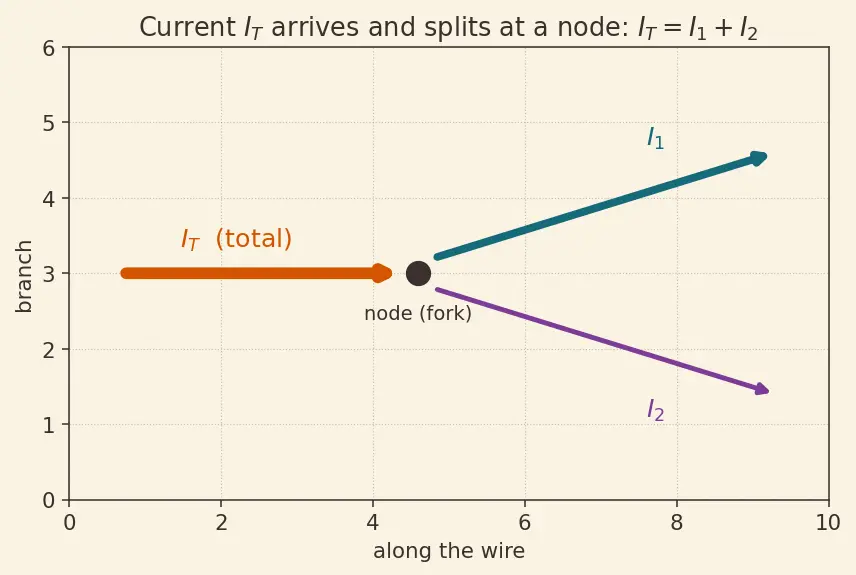

Water can't appear or vanish at a fork; whatever flows in must flow out. For charge this is a law:

Here the subscripts are just name-tags: $I_T$ = the Total current arriving, $I_1$ = current in branch 1, $I_2$ = current in branch 2. The little $\sum$ (capital Greek "sigma") that appears later just means "add them all up": ${\sum }_j{I}_j=I_1+I_2+I_3+\dots$

Why the topic needs it: KCL is the promise that the split is bookkeeping-clean. Every branch current we compute must add back to $I_T$ — that is our sanity check on every worked example. See Kirchhoff's Current Law.

3. Voltage — the push

Why the topic needs it: the entire current-divider trick rests on one fact — parallel branches share the same voltage. To understand that, we need "parallel."

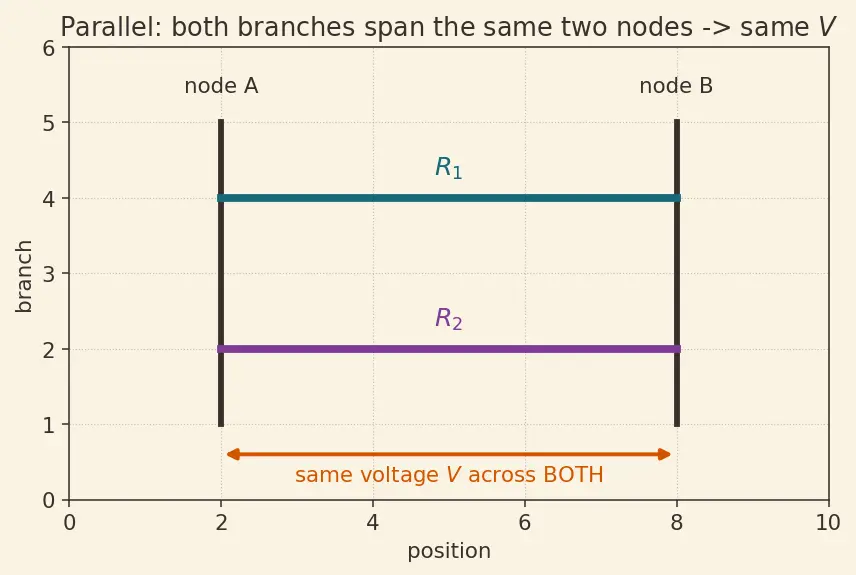

4. Parallel branches — same two nodes, same push

Contrast with series, where components sit in a single-file line so the same current runs through each and the voltage divides instead. That is the opposite situation — see Voltage divider.

Why the topic needs it: "same shared voltage $V$" is the lever that lets us compute each branch current independently. Without parallel, there is no divider. See Parallel resistance.

5. Resistance and Ohm's Law — how hard the path pushes back

The three quantities $V$, $I$, $R$ are tied by one rule:

6. Conductance — flipping the language to "how easy"

Resistance measures difficulty. But current splits by ease, so it is cleaner to name the opposite:

Rewriting Ohm's law with $G$: since $I=V/R=V\cdot (1/R)$, $I=VG.$

7. Equivalent parallel resistance $R_{\parallel }$

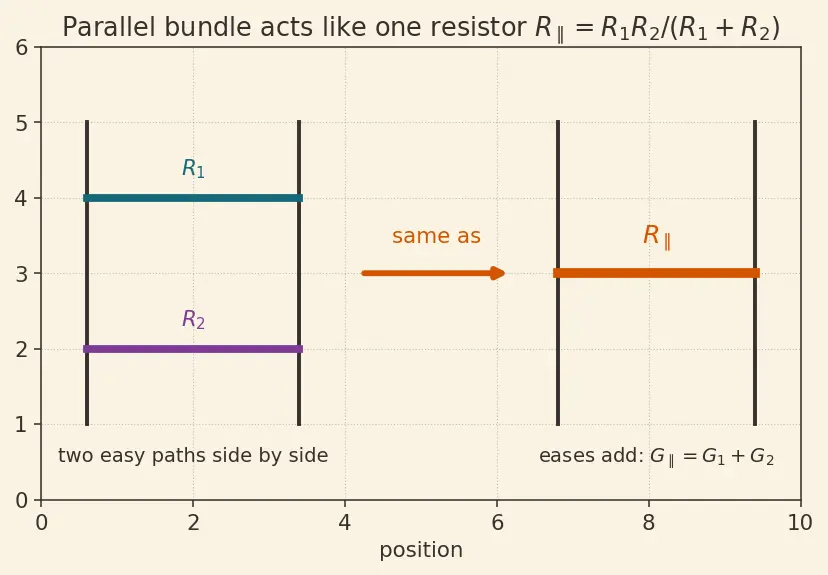

When several parallel branches act together, they behave like one single resistor. Its value:

Why the topic needs it: the derivation writes $V=I_T{R}_{\parallel }$ to get the shared voltage from the total current, then feeds it back into each branch. $R_{\parallel }$ is the bridge from "total" to "each branch." See Parallel resistance.

Putting the symbols together (a preview)

Now every symbol is earned. Watch how they chain in the parent's derivation:

1. Parallel ⇒ same $V$ across every branch.
2. Whole bundle: $V=I_T{R}_{\parallel }$ (Ohm's law on the equivalent).
3. Each branch: $I_1=V/R_1$ (Ohm's law again).
4. Substitute step 2 into step 3, the $R_1$ cancels, and out pops $I_1=I_T\cdot \frac{R_2}{R_1+R_2}.$
5. KCL guarantees $I_1+I_2=I_T$.

Every arrow in that chain is a symbol from this page.

Prerequisite map

Equipment checklist

Cover the right side and see if you can state each before revealing.

Connections

• Kirchhoff's Current Law — the conservation law that makes the split add up.
• Ohm's Law — $I=V/R$ applied to each branch.
• Voltage divider — the series dual where voltage (not current) splits.
• Parallel resistance — where $R_{\parallel }$ comes from.
• Conductance — $G=1/R$, the natural language of current sharing.
