Memory protection units (MPU) — preventing stack overflow, access faults: Exercises

Before we start, one visual to fix the vocabulary we will reuse in every problem.

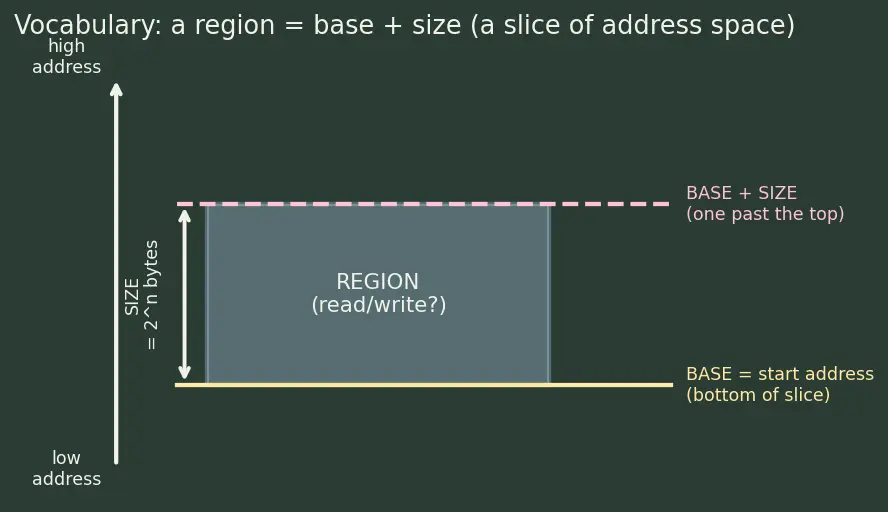

Figure — Memory protection units (MPU) — preventing stack overflow, access faults

Walk through the picture slowly — every term you will meet all page lives on it.

The tall arrow on the left is the address axis: it points up toward higher addresses and down toward lower ones. Memory is just a numbered ladder of bytes; this arrow is that ladder stood on end.
The shaded blue box is a region — a single contiguous slice of that ladder. One region = one continuous run of addresses with one set of rules (can you read it? write it? run code from it?).
The yellow line at the bottom of the box is the base address: the lowest address in the region, i.e. where the slice starts.
The pink dashed line at the top is BASE + SIZE: the first address just past the region. Note it is one past the top, not the last byte inside — the region owns addresses $A$ with $base \leq A < base + size$ (top excluded).
The double-headed arrow up the left edge of the box is the size: how tall the slice is, always a power of two, $2^{n}$ bytes.

So a region is fully described by just two numbers — where it starts (base) and how tall it is (size) — plus its rules. The alignment rule "base must be a multiple of the size" is the one thing this figure does not yet justify; we earn why below in #L2 Application.

Definition Two bits of C notation we will read all page

The parent's code writes register fields with the C left-shift operator << and the bitwise NOT operator ~. You must know these to read every problem:

k << 1 means "take the number $k$ and slide its bits left by 1 position" — arithmetically that is $k \times 2^{1} = 2 k$ . Registers pack several fields into one 32-bit word; each field lives at a fixed bit offset. SIZE sits starting at bit 1 of RASR, so to place the value $k$ there you shift it left by 1. The authors write (k << 1) (rather than just $2 k$ ) to make the bit position visible: "this value goes into the field that begins at bit 1."
~x means "flip every bit of $x$ ": every 0 becomes 1 and every 1 becomes 0 (bitwise NOT). We use it to build an alignment mask. For a 32-byte region, size - 1 = 31 = 0b...0001_1111 (the low 5 bits set). Then ~(size - 1) = 0b...1110_0000 — all high bits set, low 5 bits clear. AND-ing an address with this mask keeps the high bits and zeros the low 5 bits, which is exactly "round down to a 32-byte boundary".

L1 Recognition

Problem 1.1 (L1) — Decode a size field

On ARM Cortex-M, the region size is encoded in the RASR (Region Attribute and Size Register) as a field called SIZE. The actual byte-size of the region is

$bytes = 2^{(SIZE + 1)}$

The SIZE field is written as (k << 1) in the parent's code. As explained in the definition above, k << 1 places the numeric value $k$ into the SIZE field that begins at bit 1 of RASR, so the field's value is $k$ . If the code writes (9 << 1), so SIZE = 9, how many bytes is the region?

Recall Solution 1.1

The field value is $SIZE = 9$ . Plug in: $bytes = 2^{(9 + 1)} = 2^{10} = 1024 bytes = 1 KB .$ What we did: substituted the field value into the size formula. Why: the hardware stores the exponent minus one to save bits — one 5-bit field covers everything from $2^{5}$ (32 B) up to $2^{32}$ (4 GB). So a stored $9$ means an exponent of $10$ , i.e. $2^{10} = 1024$ bytes. ✅

Problem 1.2 (L1) — What does AP = 000 mean, and what are the other codes?

The AP (Access Permission) field in RASR is written as (v << 24) — three bits placed starting at bit 24. The parent note used (0 << 24) for the guard region. In words, what access does AP = 000 grant, and what are the other legal codes?

Recall Solution 1.2

AP = 000 means No access — neither privileged nor unprivileged code may read or write this region. That is exactly what a guard band wants: the first touch faults. The full ARMv7-M AP encoding table (Armv7-M Architecture Reference Manual, section on the MPU) is:

`AP`	Privileged	Unprivileged
000	No access	No access
001	RW	No access
010	RW	RO (read-only)
011	RW	RW
100	reserved (unpredictable)	—
101	RO	No access
110	RO	RO
111	RO	RO

Edge cases to know:

Code 100 is the only reserved code — writing it gives unpredictable behaviour, so never use it.
Code 101 is not reserved; it is a normal, architecturally-defined code meaning "privileged read-only, no user access" — handy for read-only kernel data. Do not confuse the reserved 100 with the perfectly legal 101; only the single value 100 is off-limits.
Codes 110 and 111 both mean "read-only for everyone" (they are equivalent; hardware treats them the same).

The parent used only 000, 001, and 011, but a real driver often needs 010 (kernel writes, user reads) and 110/111 (read-only constants / flash). ✅

L2 Application

Problem 2.1 (L2) — Is this base address legal?

A programmer wants a 64-byte ( $2^{6}$ ) region and writes base address 0x20000010. Is this base legal (properly aligned), and if not, where does the hardware actually place the region?

Recall Solution 2.1

Alignment rule: for a $2^{n}$ -byte region, the base's low $n$ bits must all be zero (base is a multiple of the size). Here $n = 6$ , so the low 6 bits must be zero, i.e. base must be a multiple of 64.

0x20000010 = 0x20000000 + 0x10 = base + 16. Is 16 a multiple of 64? No. The low 6 bits of 0x...10 are 010000 — not all zero. So the base is illegal.

Where it lands: the hardware masks off the low 6 bits. Recall ~ flips every bit (see the definition at the top): ~(64 - 1) = ~0x3F is "all ones except the low 6 bits", so 0x20000010 & ~0x3F = 0x20000000. Your protection window silently slides down to 0x20000000–0x20000040, not the 0x20000010–0x20000050 you intended.

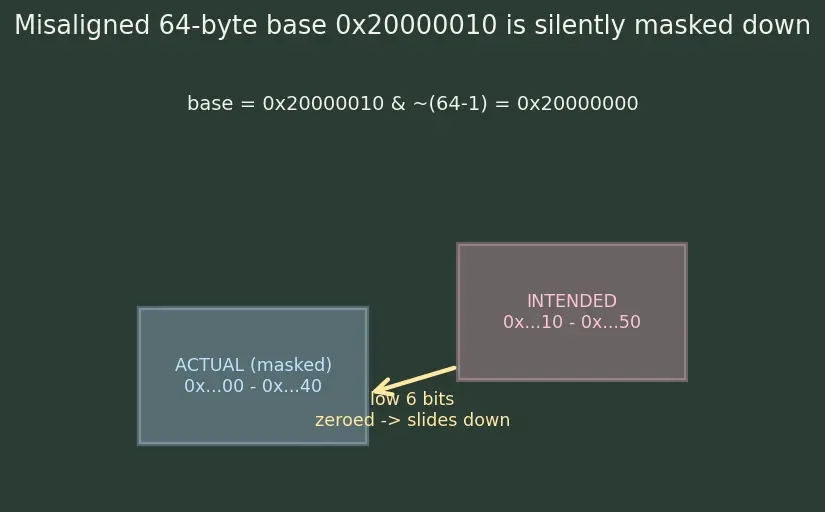

What it looks like: see the figure below — the intended window (pink) versus the actual masked window (blue). ✅

Problem 2.2 (L2) — Compute an aligned base

You must protect the 32-byte guard band that sits at the very bottom of a stack whose bottom is at 0x20000C00. Using base = addr & ~(size - 1), what base do you write for a 32-byte guard?

Recall Solution 2.2

Size $= 32 = 2^{5}$ , so size - 1 = 31 = 0x1F. The mask is ~0x1F = "all ones, low 5 bits clear". $base = 0x20000C00 & \sim 0x1F .$ The low 5 bits of 0x20000C00 are already zero ( $0 x C 00 = 0 b 110 0_{0} 00 0_{0} 000$ , last 5 bits 00000), so masking changes nothing: $base = 0x20000C00 .$ Why it was already aligned: 0xC00 = 3072, and $3072/32 = 96$ exactly — a whole number of 32-byte blocks. Good stack layouts are chosen so guards land on such boundaries. See Stack memory layout. ✅

L3 Analysis

Intuition Why the MPU uses "highest-numbered region wins"

Before Problems 3.1–3.2, understand why this rule exists (it is not arbitrary). The ARMv7-M MPU is deliberately built for layering: you set up broad background regions in the low indices (e.g. "all RAM is RW") and then carve specific exceptions in the high indices (e.g. "but these 32 bytes are a no-access guard"). For that layering to work, the later, more specific rule must override the earlier, broad rule — so the architecture (Armv7-M Architecture Reference Manual, MPU region-matching rules) defines the highest-numbered matching region as the winner. It is the hardware equivalent of writing a general policy first and then stamping "EXCEPTION" on top. Picking the highest index (rather than the lowest) lets you keep the broad backdrop stable and just add higher-numbered patches.

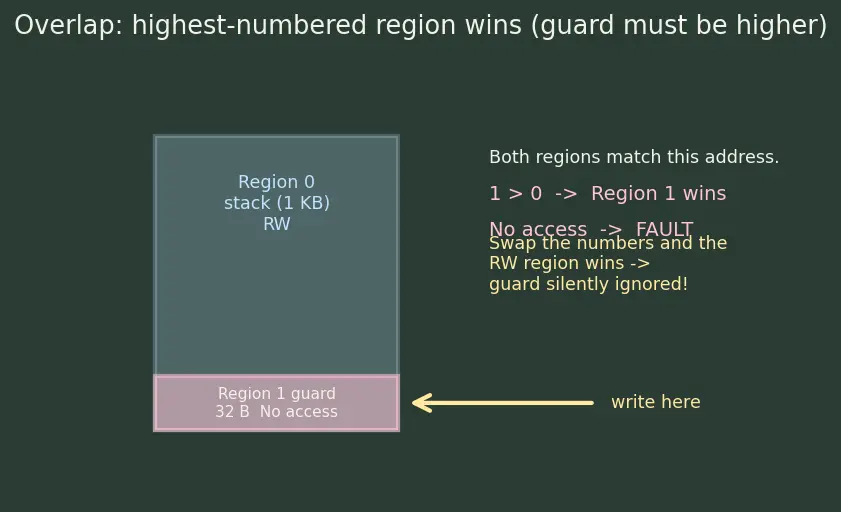

Problem 3.1 (L3) — Which region wins on an overlap?

Region 0: BASE = 0x20000000, SIZE = 2^10 (1 KB), AP = RW. Region 1: BASE = 0x20000000, SIZE = 2^5 (32 B), AP = No access (guard).

A task writes to address 0x20000004. Which region's rules apply, and does the write succeed or fault?

Recall Solution 3.1

Step 1 — which regions match? A region $i$ matches if $BASE_{i} \leq A < BASE_{i} + SIZE_{i}$ .

Region 0: $0 x 20000000 \leq 0 x 20000004 < 0 x 20000400$ → matches.
Region 1: $0 x 20000000 \leq 0 x 20000004 < 0 x 20000020$ → matches (4 < 32).

Step 2 — resolve the tie. Both match. As justified in the callout above, the hardware picks the highest-numbered matching region so specific exceptions override broad backgrounds. Region 1 > Region 0, so Region 1 wins.

Step 3 — apply Region 1's rule. Region 1 is No access. The write faults → CPU vectors to MemManage_Handler(). That is exactly the desired guard behaviour. ✅

See Memory faults and exception handling for what the handler does next.

Problem 3.2 (L3) — The same layout with the numbers swapped

Now suppose someone accidentally puts the guard in Region 0 (32 B, No access) and the broad RW stack in Region 1 (1 KB, RW). Same write to 0x20000004. Does the guard still protect the bottom?

Recall Solution 3.2

Both regions still match 0x20000004 (same address ranges as before). But now the highest-numbered matching region is Region 1, which is RW. So Region 1 wins, the write succeeds, and the guard in Region 0 is silently ignored.

Conclusion: the guard's protection depends entirely on it having the higher region number. Numbering, not order-of-configuration, decides priority. This is the layering rule from the callout used wrong: the broad background must be low-numbered, the specific exception high-numbered. ✅

L4 Synthesis

Definition XN — the Execute-Never bit

One more region attribute enters at this level: XN (eXecute-Never). It is a single bit in RASR, written as (1 << 28) — the bit at position 28. When XN = 1, the CPU is forbidden to fetch instructions from that region; any attempt to run code there raises a MemManage fault, even if the region is otherwise readable/writable. Why stacks need it: the AP bits control read/write; XN controls execute — they are independent. A stack must be RW (data), but should never be executed. If a buffer overflow overwrites a return address to point at attacker-supplied bytes on the stack, an XN = 1 stack makes the CPU fault the instant it tries to execute those bytes. So XN = 1 on all data regions (stack, heap) is a standard hardening step. XN = 0 is only for regions holding real code (flash / RAM functions).

Problem 4.1 (L4) — Design a two-task isolation layout

You have 4 KB of RAM starting at 0x20000000. Design an MPU layout with:

Task A stack: 1 KB, RW, with a 32-byte no-access guard at its bottom.
Task B stack: 1 KB, RW, with a 32-byte no-access guard at its bottom.
All stacks must be XN (execute-never).
Every base aligned to its size; guards must win over their stacks.

Give the base address, size field value, AP, and region number for each region.

Recall Solution 4.1

Layout (stacks grow downward, so the guard sits at the low end of each stack):

Region	Base	Size	`SIZE` field	AP	XN	Purpose
0	`0x20000000`	1 KB ( $2^{10}$ )	9	RW (011)	1	Task A stack
1	`0x20000000`	32 B ( $2^{5}$ )	4	No access (000)	1	Task A guard
2	`0x20000400`	1 KB ( $2^{10}$ )	9	RW (011)	1	Task B stack
3	`0x20000400`	32 B ( $2^{5}$ )	4	No access (000)	1	Task B guard

Checks:

Alignment: 0x20000000 is a multiple of 1024 (it's 0) and of 32 → ✅. 0x20000400 = 1024, a multiple of 1024 and 32 → ✅.
Priority: each guard (regions 1, 3) has a higher number than its stack (regions 0, 2). ✅ (per Problem 3.1).
XN: all four have XN = 1, blocking code execution from any stack — defeats stack shellcode (see the XN definition above). See Buffer overflow attacks.
SIZE field: 1 KB → $n = 10$ → field $= 9$ ; 32 B → $n = 5$ → field $= 4$ . ✅ (per Problem 1.1).

Total RAM used: $2 \times 1024 = 2048$ B of the 4 KB — plenty of room. The guards overlap the stack bottoms, so they cost no extra RAM.

Why an overlapping guard costs no extra RAM: an MPU region is not an allocation — it does not reserve or consume bytes. It is only a rule the MPU checks on each access: "for addresses in this range, apply these permissions." The guard region and the stack region are two rules that happen to describe the same physical bytes (the stack's low 32). Those bytes were already counted inside the 1 KB stack; the guard just changes the verdict on them (no-access instead of RW), it does not claim new memory. Regions are overlays, not reservations. The only real cost is that those 32 overlaid bytes become unusable as stack — see Problem 5.1. ✅

This is exactly the pattern RTOS task switching reprograms on every context switch: swap regions 0–1 for the incoming task's stack + guard.

Common mistake L4 trap — "put the guard in RAM

below the stack, not overlapping it" Wrong intuition: carve out separate bytes below each stack for the guard, so the stack keeps its full 1 KB. Why it feels right: a guard "between" two stacks feels like a physical fence that should occupy its own land — and it seems wasteful to "overlap" a rule onto memory you already own. The reality: two problems. (1) An MPU region is a rule, not an allocation, so overlapping it onto the stack costs no memory anyway — the "keep the full 1 KB" motive is chasing a saving that does not exist. (2) Worse, if the guard is placed adjacent rather than overlapping, a single large out-of-bounds write (one strcpy of a big buffer) can jump clean over the 32-byte gap and land in the next region — no address inside the guard is ever touched, so no fault fires and the overflow goes undetected. Fix: make the guard a higher-numbered region that overlaps the bottom of the stack it protects (same base, smaller size). Detection then happens at the very first byte over the line, and you lose no memory you would otherwise have kept.

L5 Mastery

Problem 5.1 (L5) — Latest-safe stack size before the guard fires

Task A's region is 0x20000000–0x20000400 (1 KB) with a 32-byte guard at 0x20000000–0x20000020. The stack pointer starts at the top (0x20000400) and grows downward. A function allocates a local array of $S$ bytes in one shot (char buf[S]), pushing the SP down by $S$ .

(a) What is the largest $S$ that does not touch the guard? (b) What is the smallest $S$ that does trigger a fault?

Recall Solution 5.1

The guard occupies addresses $A$ with $0 x 20000000 \leq A < 0 x 20000020$ , i.e. bytes 0x00–0x1F. The stack write of $S$ bytes touches [0x20000400 - S, 0x20000400).

(a) It stays out of the guard iff its lowest written byte is at or above the guard's top, i.e. $0 x 20000400 - S \geq 0 x 20000020$ , which rearranges to $S \leq 0 x 3 E 0 = 992$ . $S_{m a x} = 992 bytes .$

(b) The smallest fault-triggering allocation is one byte more: $S_{m i n}^{fault} = 993 bytes .$ At $S = 993$ , the lowest written byte is $0 x 20000400 - 993 = 0 x 2000001 F$ , which is in the guard → MemManage fault. ✅

Takeaway: the guard steals 32 bytes of nominal stack, so budget your worst-case stack depth against $992$ B, not $1024$ B.

Problem 5.2 (L5) — How much earlier does a bigger guard catch it?

Compare a 32-byte guard against a 128-byte guard on the same 1 KB stack. By how many bytes of overflow sooner does the 128-byte guard catch a downward overflow, and what is the RAM cost?

Recall Solution 5.2

Set up one clean model and stick to it. A guard of $G$ bytes occupies [0x20000000, 0x20000000 + G). Its top is at address 0x20000000 + G. A downward-growing stack faults as soon as its lowest written byte drops below that top, i.e. into the guard. So the single quantity that matters is the guard-top address — the higher it sits, the sooner (with less descent) the overflow hits it.

32-byte guard: guard-top = 0x20000020. Fault when the write reaches below 0x20000020.
128-byte guard: guard-top = 0x20000080. Fault when the write reaches below 0x20000080.

How much sooner? Take the difference of the two guard-top addresses: $0 x 20000080 - 0 x 20000020 = 0 x 60 = 96 bytes .$ The 128-byte guard's top sits 96 bytes higher, so the descending stack meets it after 96 fewer bytes of overflow — it fires 96 bytes earlier.

RAM cost: the guard overlaps the stack (it is a rule, not an allocation — see Problem 4.1), so it does not add RAM — but it removes usable stack (as we found in Problem 5.1, usable $= 1024 - G$ ):

32-byte guard leaves $1024 - 32 = 992$ B usable.
128-byte guard leaves $1024 - 128 = 896$ B usable.

You trade 96 bytes of usable stack for 96 bytes of earlier detection — the two are equal, which makes sense: every byte you add to the guard is one byte the top rises and one byte of usable stack you lose. On tight RAM, keep the guard at the 32-byte minimum; when chasing an elusive overflow bug, temporarily widen it. ✅

Recall Self-test summary (cover the right column)

Field value 9 encodes how many bytes? ::: $2^{10} = 1024$ B What does k << 1 do to the value k? ::: Shifts its bits left by 1 (= $2 k$ ), placing it in the field starting at bit 1. What does ~x do? ::: Bitwise NOT — flips every bit; used to build alignment masks. What do RBAR and RASR stand for? ::: Region Base Address Register and Region Attribute and Size Register. Does a misaligned base fault? ::: No — the hardware masks low bits and protects the wrong range silently. On overlap, which region wins and why? ::: Highest-numbered — so specific high-index exceptions override broad low-index backgrounds. Which AP code is reserved? ::: Only 100 (unpredictable — never use it); 101 is a legal privileged-RO code. Usable stack in a 1 KB region with a 32 B guard? ::: 992 bytes. AP = 000 means? ::: No access (privileged or unprivileged). Why does an overlapping guard cost no extra RAM? ::: A region is a permission rule, not an allocation — it re-describes bytes the stack already owns. What does XN = 1 forbid, and why on stacks? ::: Instruction fetch (execute); stops shellcode on an overflowed stack from running.
